About
Following the successful launch of two mega catamarans over 100 feet each in 2010, the Sunreef shipyard has been designated as a builder of an 82ft double decker sailing catamaran with the latest design, featuring sleek hulls and a streamlined deckhouse topped with a giant 35m2 flybridge inspired by large superyachts. Houbara has just received a complete technical and exterior refit including, engine and gen servicing, rig and boom removal painting and inspections, bottom painting, propeller service, top side painting now a darker brown color
Specifications
SPECS
MEASUREMENTS
ENGINE(S)

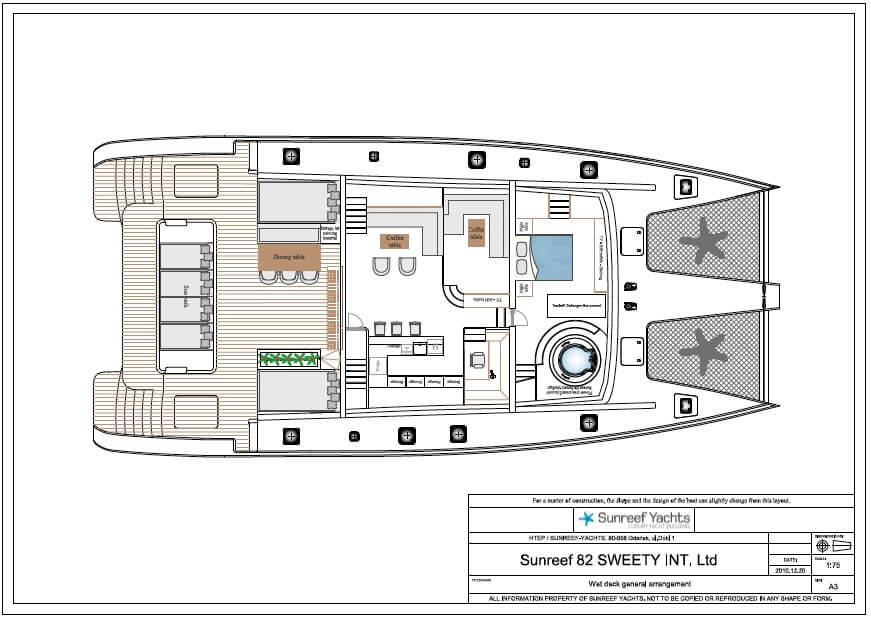

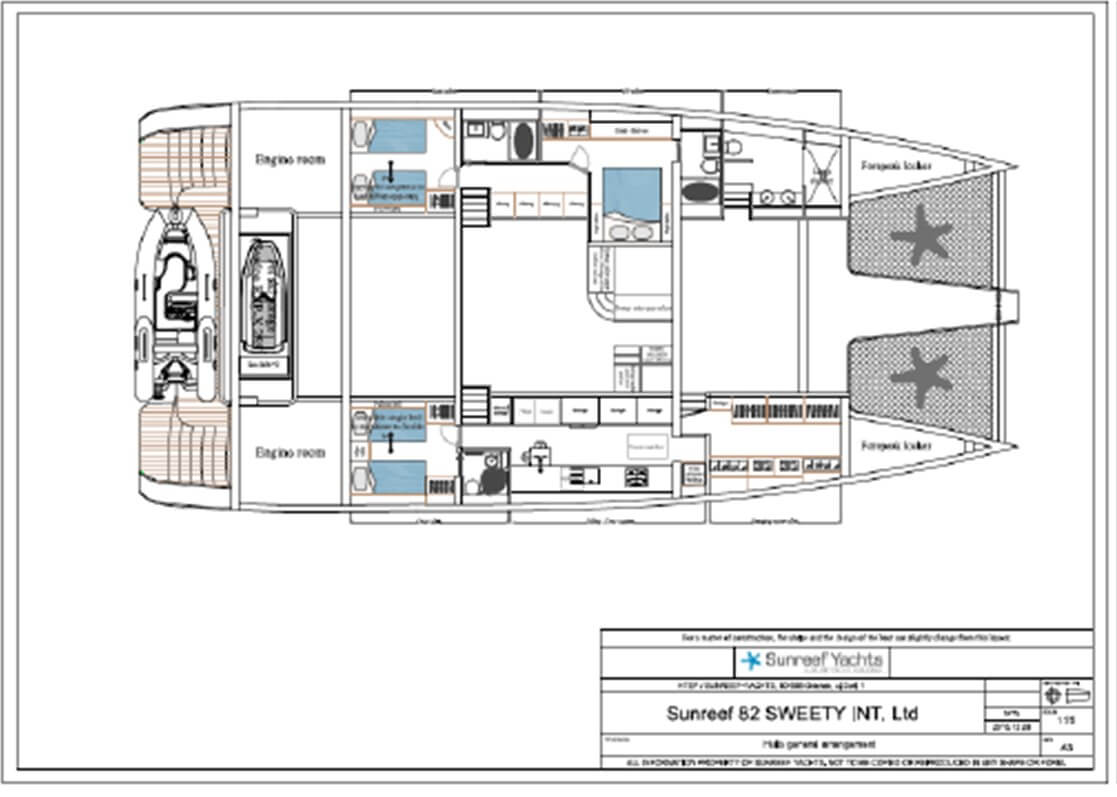

Layout & Accommodations
The owner suite, arranged over two floors, is set to occupy the entire forward section of the yacht with a master cabin, Jacuzzi and vanity on the main deck, and wardrobe and floor-to-ceiling storage and bathroom located below decks in port and starboard hulls respectively.
One Master in the front with a bathroom and a large dressing
Owner cabin
• A queen size bed 2.00 x 1.80 m with storage underbed and access doors
• 2 night tables with bedside lamps
• Floor with carpet (high quality)
• Jaccuzi Victory Spa, Bora Bora
• Countertop and lockers under the windscreen
• Cupboards
• TV locker + TV LCD 50″ and home cinema
• Stairs for access on port to the owner bath room and on starboard to the dressing
Safe METALKAS TG1SL Classic, dimensions 265*405*300 en mm

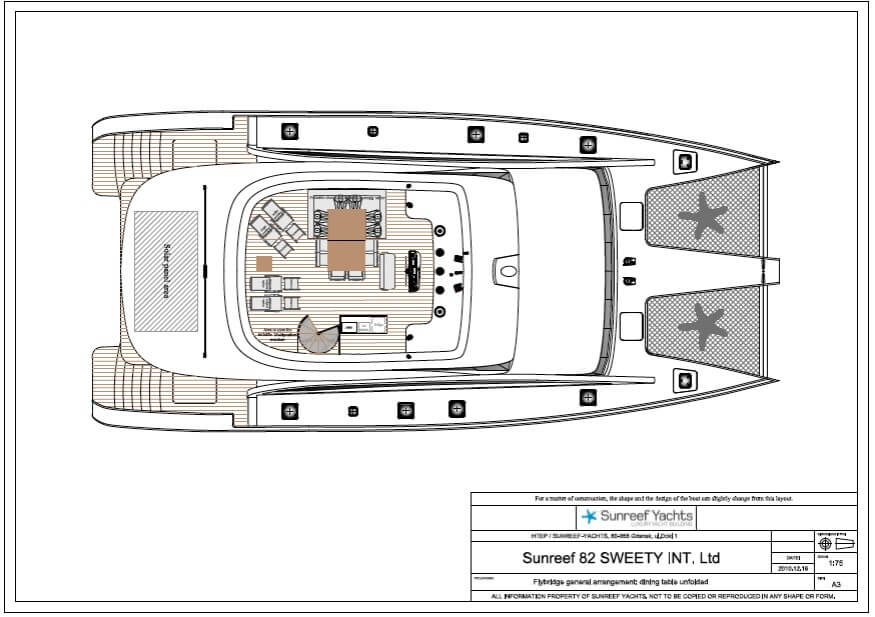

FLYBRIDGE
• Steering post with instruments console
• Navigation seat
• Small kitchen with bar, fridge, ice maker and cupboard
• U shape sofa with table
• 2 Armchairs Triconfort Rivage (Dining Armchairs)
• 2 Deckchairs Triconfort Rivage multiposition + footrest + 2 deckchairs Triconfort Rivage

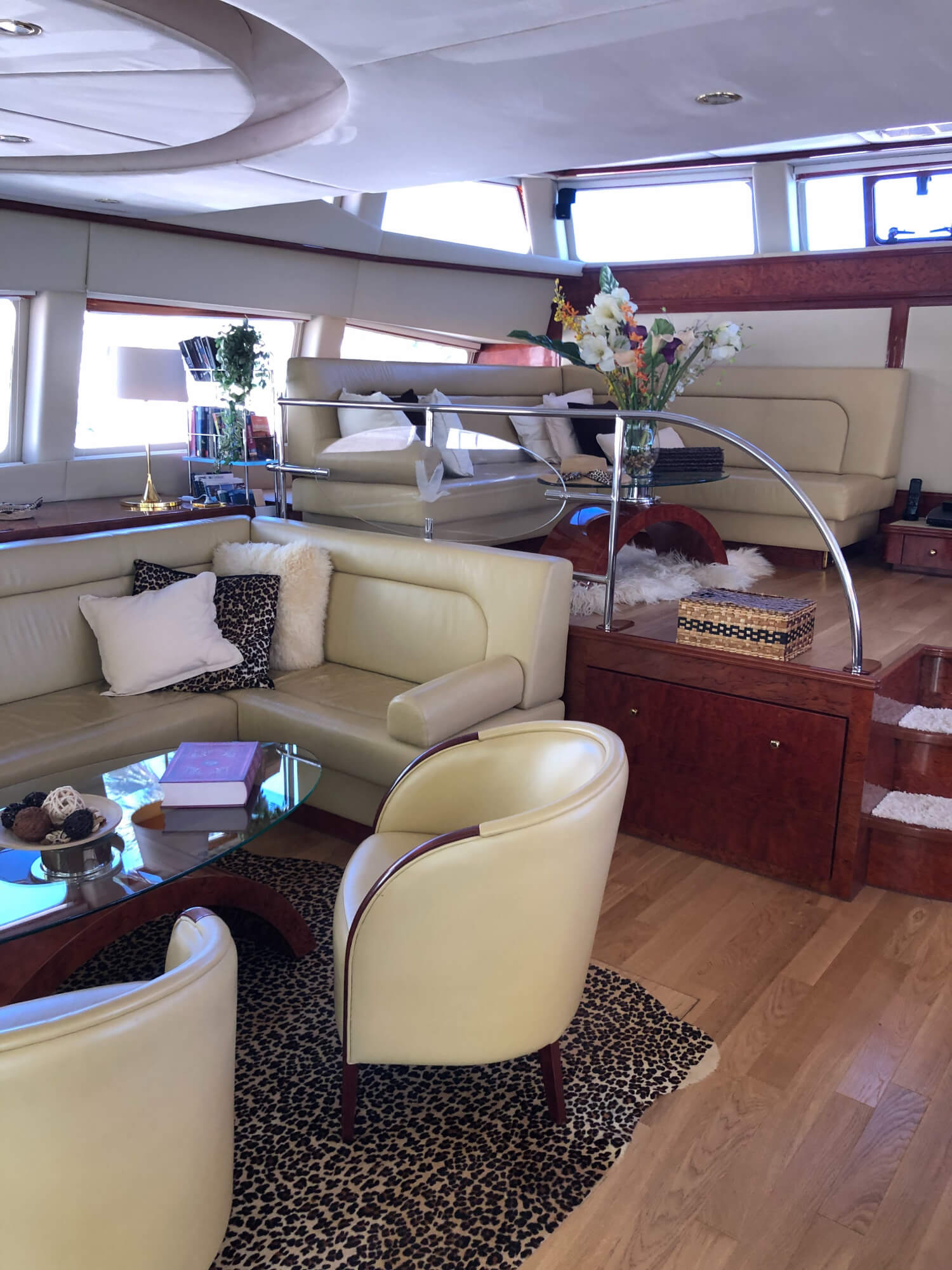

– Saloon, with upper saloon, and a bar
– Saloon divided into :

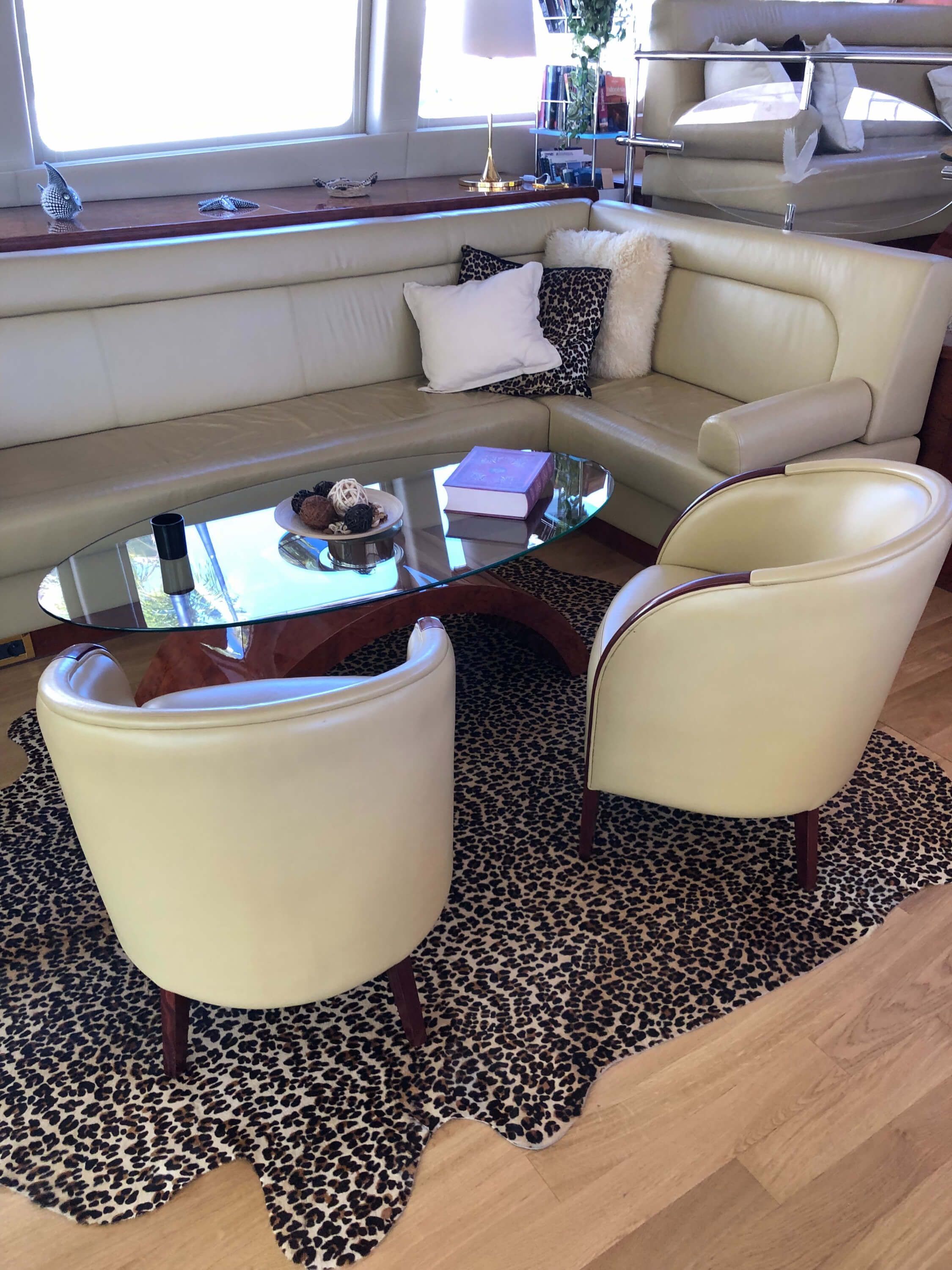

– a lower saloon, with coffee table, large bar
– an upper saloon for TV watching
– a interior navigation station raised
From front to back

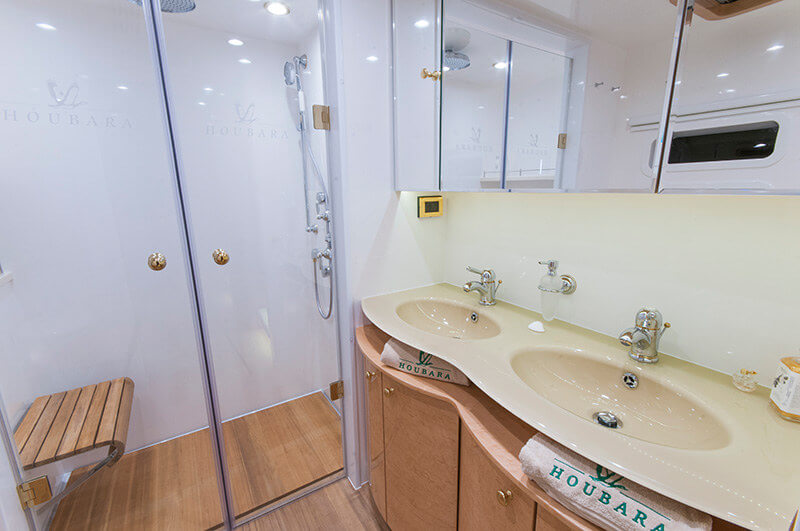

– on port , Owner bathroom
– Double bed guest cabin with its own bathroom
– Aft , guest cabin with two single beds and its own bathroom that could be used as a Day
head for invitees.
On starboard,
– Owner dressing room with direct access to Owner suite
– Large kitchen , very well insulated from dressing
– aft, crew cabin with two single beds and its own bathroom
Guests cabins: one double bed with bathroom + one with 2 single beds and bathroom.
double bed crew cabin

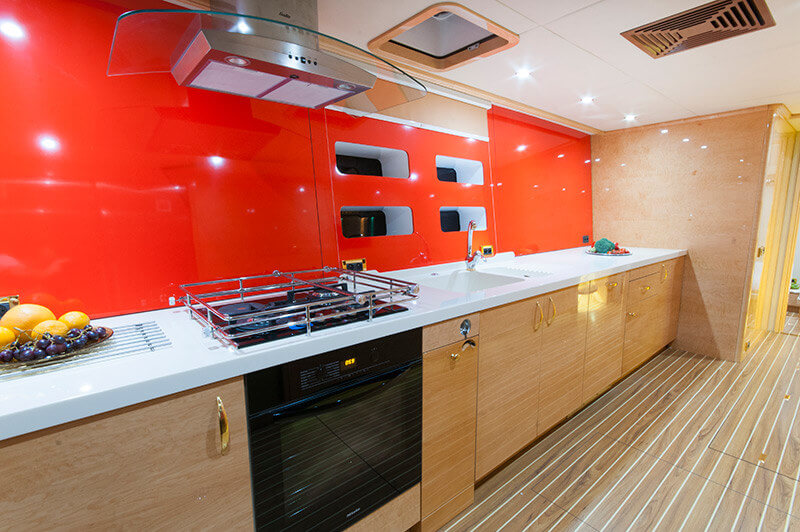

Galley
Large Kitchen
Lower kitchen
• 1 freezer under the floor Electrolux ECO22212W (216L)
• 1 fridge SIEMENS KS38RV73EU (355L)
• 1 Freezer SIEMENS GS32NV73EU (244L)

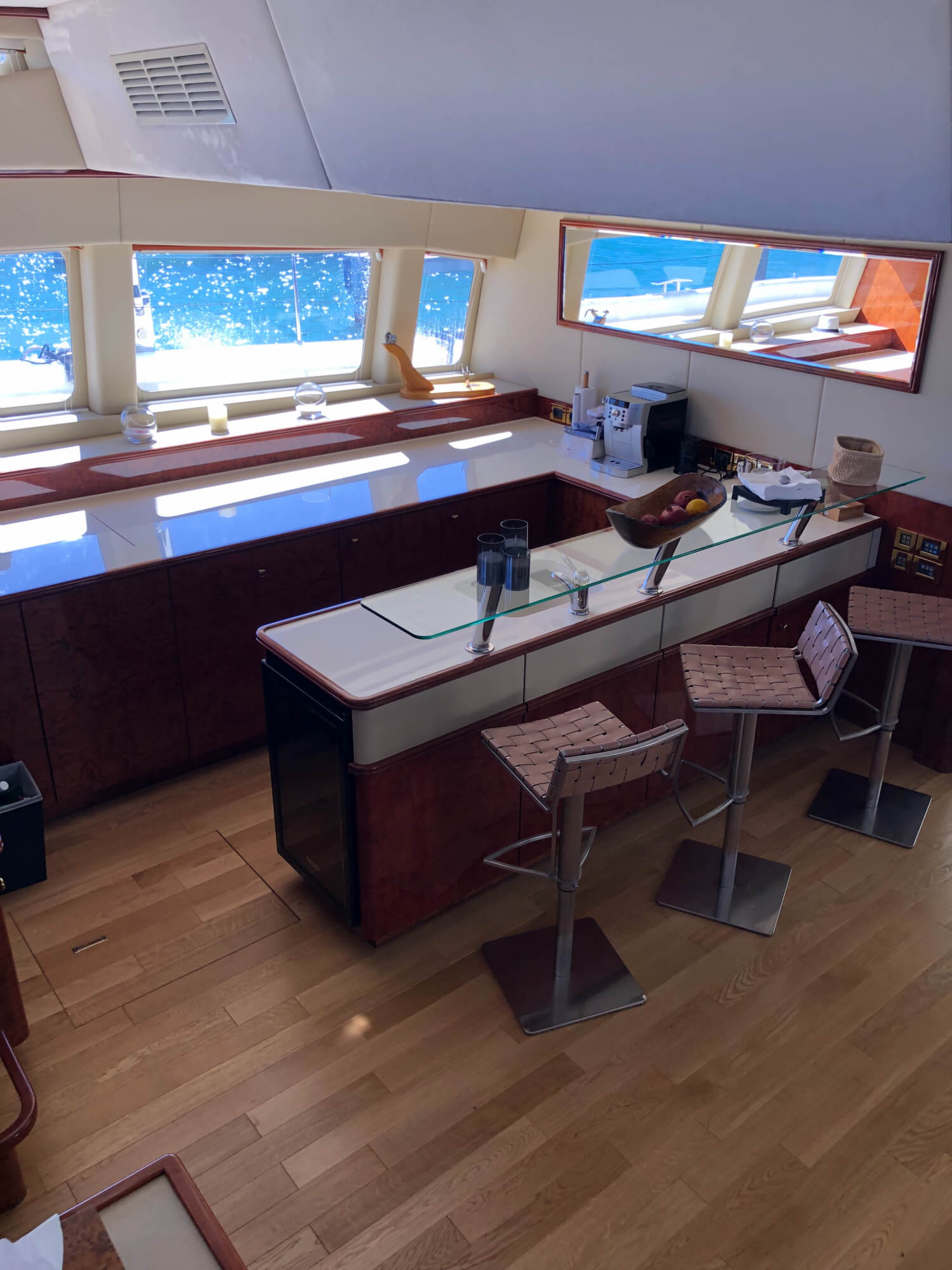

Bar
• 1 fridge with small freezer , SIEMENS KI18LA50FF (117L + 17L)
• Ice maker Vitrifrigo Classic Refill 11kg/24h
• 1 wine cellar 32 bouteilles Beaumatic BW28
Trash storage
In a temperature controlled locker
• Countertop with double sinks in Corian with electric macerator ISE65 InSinkErator and
mixing taps
• Lockers under the sinks with shelves
• Cook top mixte gaz/electricity (3 fires): SCHOLTES TV 631 E (BK) GH with SS system to
block the pans and electric oven MIELE H5140 BP
Gaz bottles stored outside in a ventilated locker, alimentation with rigid copper pipe
• Dish washer MIELE G 1173 Vi
• Microwave inox LG MP- 9485SL
• Hob Amica OKC 95131**
• Trash compactor InSinkErator 8251 SS
• Table for crew lunches, stools, the table would be used for ironing
• Vertical locker for top to bottom
• Stair for access to saloon
• Washing machine MIELE W 2819 i and Dryer MIELE T 7644
• Large locker for linens
• Fridge equipment (see paragraph Refrigeration)
Deck & Equipment
Winches : HARKEN
Swimming ladder, (Custom Sunreef in SS 316L) , movable on each stern for access to the sea
Gangway, 1 x retractable hydraulic gangway (Berenzoni )
Side ladders, (custom Sunreef in SS) is fixed on the railway on each side.
Sliding door, A 4 parts Opacmare sliding door
A galvanized chain of 120m long and 16 mm diameter with a Spade 100kg anchor.
second (safety) mooring line includes 80 m of galvanized chain of 13 mm diameter, a FOB anchor
of 90 kg and a spring line of 50 m, diameter 28mm.
Anchors, one anchor type spade 100kg , second anchor type FOB 90kg
Capstans, 2 electrical capstans QUICK 2 300 W/24V in the stern of the Yacht.
Tender lifting system
2 Telescopic arms located inside the flybridge allow the lift of the tender and its storage on the aftplatform.
A large central locker in the cockpit for storage of a Jet ski
Bar Flybridge
DIVING EQUIPMENT
Diving compressor
Bauer JUNIOR II-W, filling rate 2mn/L de 0 à 200 Bars and rack for 3 bottles 15L
Tender , ZODIAC 550 MEDLINE NEO, with a Mercury 80hp outboard engine + following
equipments : SS craddle, slings,ski mast, bimini, sunmastresses, shower and cover.
• 1 fridge Vitrifrigo C90 i (87L)+ Ice maker Vitrifrigo Classic Refill 11kg/24h
JET SKI
– Brand : SEA DOO RXT 255
– Power : 275 hp
-large cockpit table
– sunbathes
– New windlasses-Aug 2018
– New main chain- Aug 2018
– All new teak deck
Flybridge windscreens have been replaced Jan 2024
Electronics & Navigation
Integrated system of navigation instruments GARMIN and compatible communication system with the Garmin systems
All electronic equipment NEW in 2016

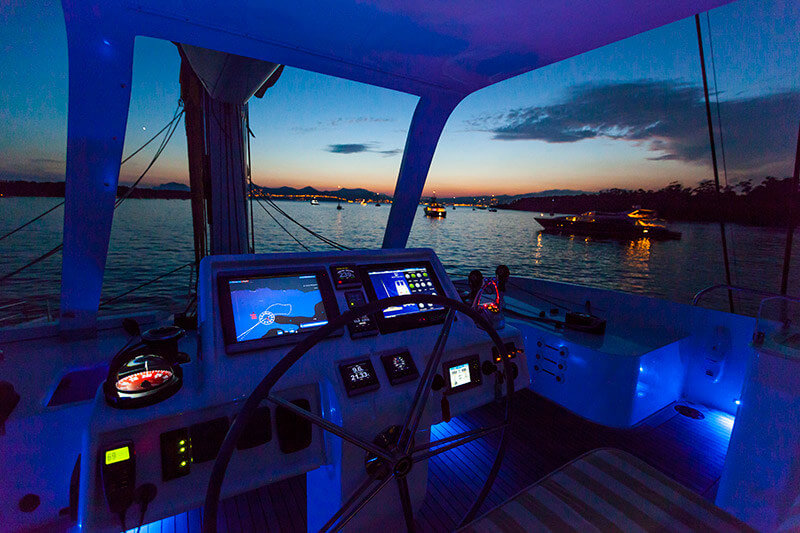

Exterior steering station
• Compas
• Screen 15″ serie 7 Garmin GPSMAP 6212
• Fishfinder 300 C Garmin
• Screens (3) multifonction GMI 10 Garmin for speedo, loch, anemometer/windvane
• Anemometer/windvane GWS 10 Garmin
• Automatic pilot command GHP 10 Garmin
• VHF 300i Garmin with active loud speaker
• Deck light command
• Fog Horn command
• Control screen for Alarms Navylec
• Monitoring screen SmartCraft for Cummins engines and Onan generators

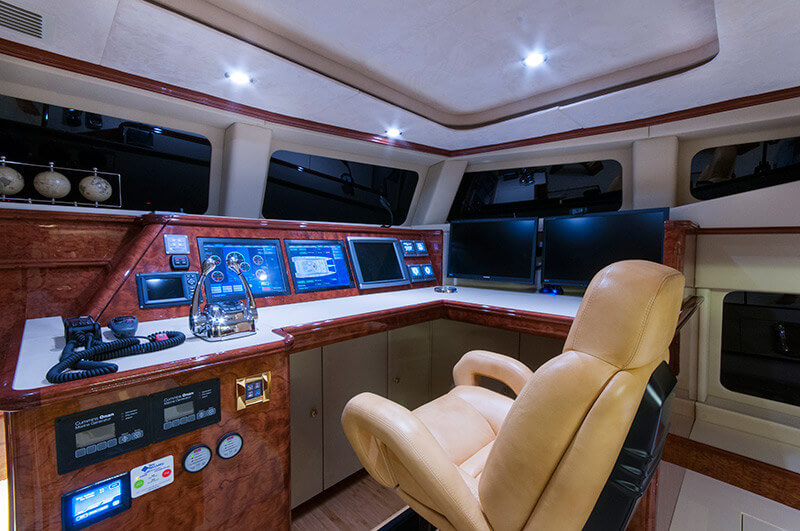

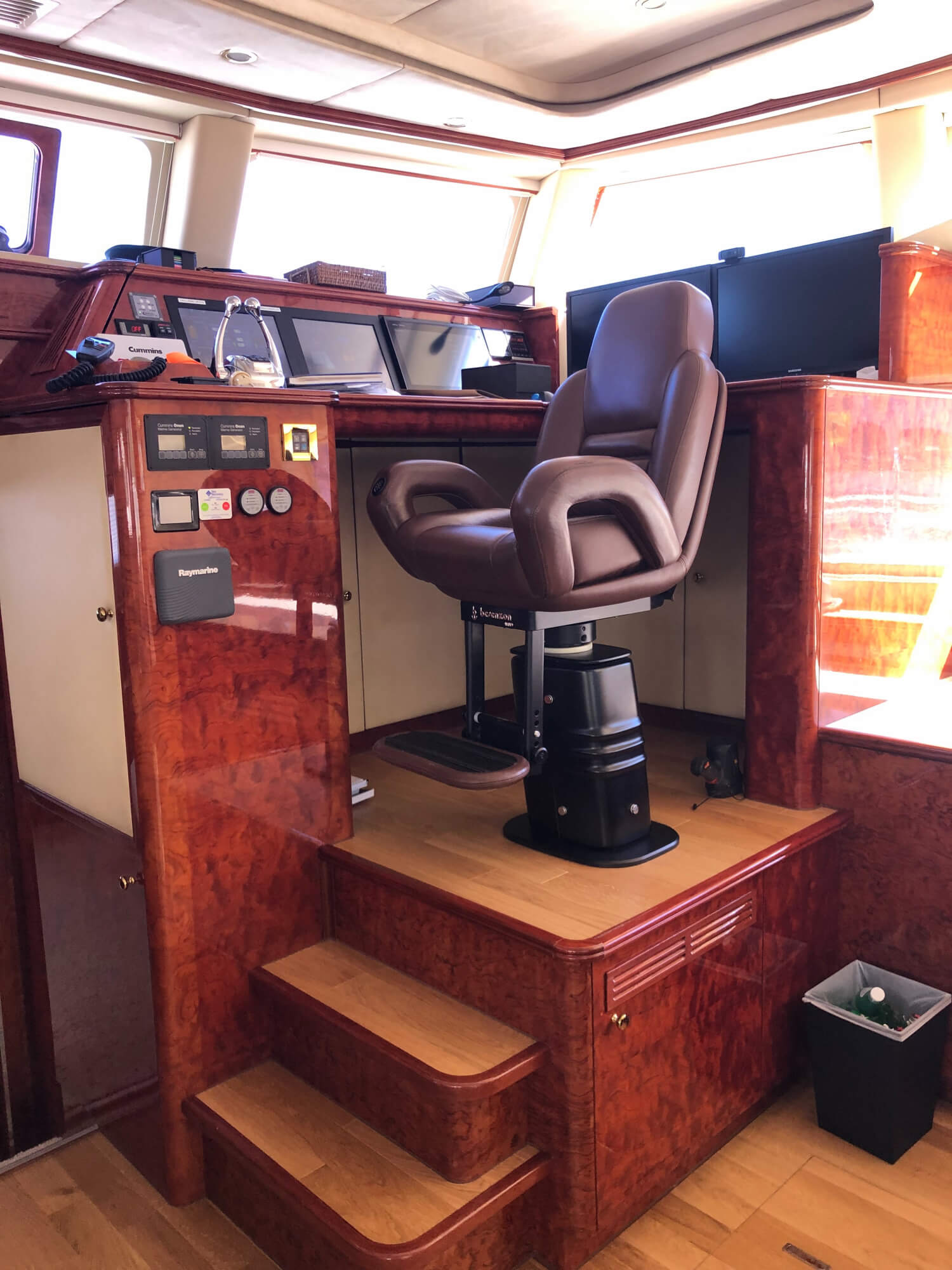

Inside navigation station
• Compas
• Screen 15″ serie 7 Garmin GPSMAP 7215
• Screens (3) multifonction GMI 10 Garmin for soundeur, loch, anemometer/windvane
• Receiver GPS 17HVS, 12 channels
• Digital Radar GMR 18HD Garmin 4kw, range 36 miles
• Connexion in between the navigation instruments and the computer
• Transfert of navigation informations on the TV screen in the saloon
• VHF 300 i Garmin
• VHF 300i Garmin with active loud speaker
• Auto pilot GHP 10 Garmin and GHC 10
• Remote command for auto pilot
• Remote command for engines and windlasses (Yacht Controler)
• Barometer and chronometer
• 2 Marine Garmin GC 10 cameras with automatical infra red on the spreaders and in the cockpit
• 2 control screens for Navylec alarms
• Screen for Monitoring SmartCraft for Cummins engines and Onan generators
Telephone
• Satellite KVH V7
• Navtex 700 A
Monitoring and alarms
The Yacht is equipped of a monitoring system from Navylec to control :
ALARMS :
– Bilge pumps
– Engine rooms temperature and exhaust temperature
– Batteries
– Grey and black water levels
ELECTRONIC FOR LEISURE
• Satellite antennae TV KVH M5
• TV connection cables in all cabins for later TV installation
• TV LCD 50″ in the upper saloon, new 2017
• TV LCD 50″ in the owner cabin , new 2017
• TV LCD 26″ in the kitchen and a TV set in the crew cabin with a CD reader
• Connection cable in between inside navigation station and TV sets of saloon and owner
cabin with cable RJ45-categorie 6
• Armchair Berenzoni P216 Président
All new Garmin electronics. Jan. 2024
Electrical, Power & Plumbing
New house batteries (12) Master Volt 6V 400Ah each, Jan 2022
Electric windlasses, A electric windlass QUICK of 3500 w/24V , A second electric windlass QUICK of 3500 w/24V
Two watermakers SEA RECOVERY, one Ultra Whisper Compact 400 60L/h 24V and one Aquamatic 700-1 L/h 220 V
The fresh water tanks (4) in Polythène . Their volume are appro. 1 560 L total.
Plus 1 more 1 000L tank in each hull
Fresh water distribution outside
• deck showers on port and starboard, located on sterns
• outlets for washing at mast step, on flybridge and in the cockpit
• outlet for rinsing before winterage of main engines
WATERHEATER
On port side, a water heater QUICK BX 801-2S, capacity 80L, pressure 800 Kpa,
• On starboard side, 2 water heaters QUICK, one of 100L , one of 60L
Grey water tanks,one in each hull, capacity 335L.
Black waters, All toilets are connected to a black water tank.
Black water tanks, a black water tank of 335L in the port hull
STEERING SYSTEM
• 2 hydraulic rams Kobelt, one manual hydraulic pump an electro hydraulic pump
• 2 composite ( glass/vinylester) rudder blades with aluminium stocks
• 2 self alignement bearings on top and deck
• a SS steering wheel
• 2 safety tillers with access by deck outlet on the sterns
• The auto pilot is connected to the 24V hydraulic pump.
An reverse AC system of 88 000 BTU for saloon, kitchen and cabins.
CHARGERS/CONVERTERS,2 Chargers(VICTRON) 24V/100A to charge the
batteries ,2 Inverters(VICTRON) 5 000W
DOCK LINE,of 20 m lenght with 63 A plug on a rool Cable Master
BATTERIES
Service batteries, 12 ODYSSEY AGM( 12V 214Ah) gel batteries, 1284 Ah in 24V.
charged using the 24V/100A chargers connected to the generators or the dock or the extra
alternators. Replaced in NZ, 2 years ago
Engine starting batteries, own starting batteries ODYSSEY AGM( 2*12V 100Ah), 200 Ah in
12V,
Extra alternators : Mastervolt 110A/24V , fitted with an Alpha pro regulator with temperature
gauge.
SOLAR PANNELS & WINDVANES
8 solar pannels , type SM 225 M35 MARINE SOLARAon the aft of the flybridge.Two windvanes D400,Eclectic Energy
Engine & Mechanical
Gear Boxes
Two hydraulic gearboxes from ZF , reduction ratio 2,9
Shaft lines
The Shaft lines are in SS, diameter 65 mm
They are protected from corrosion by zinc anodes
The shaft lines are supported by a brass shaft support
Two propellers VARIPROP 4 blades
References : 34*25*22 RH & LH DF-210
A rope cutter is fixed in front of each propeller
An electric pump is installed for pumping out used oils from engines and generators.
The exhausts of the main engines include : a water pot Centek ( waterlock).
The exhausts of the generators are equipped with water separators Combo Sep Centek
Life areas are separated from the engine rooms by Balsa composite watertight bulkheads.
The engine rooms walls are in Balsa/Glass/Resin sandwich composite to limitate vibrations.
The engine rooms hatches are insulated by insulation complex
The generators are located in insulated cocoons, located in the engine rooms.
Engines and generators are fixed on silent blocks to limitate vibrations transmission.
The engine room is feeded with fresh air through appertures ( with chicanes)
equipped with air dryers, the outlet being done by axial ventilators, high efficiency (FEIT 25 cubic
meter/mn). Inlets and outlets equipped with fire retardators
Tanks, in aluminium, total volume 8 000 L .
day tanks in aluminium ( volume 140L each) in the engine rooms
Filters and separators, a water/fuel separator RACOR 500 installed for each engine, or
generator, plus one ALGAE X LG-X system eliminating the microbiae growth.
An electric transfert pump FEIT (54L/mn) to equilibrate the two tanks,
– complete engine drive shafts and propellers -Aug 2018
– complete check of generators-Aug 2018
– New house and engine battery banks- Aug 2018

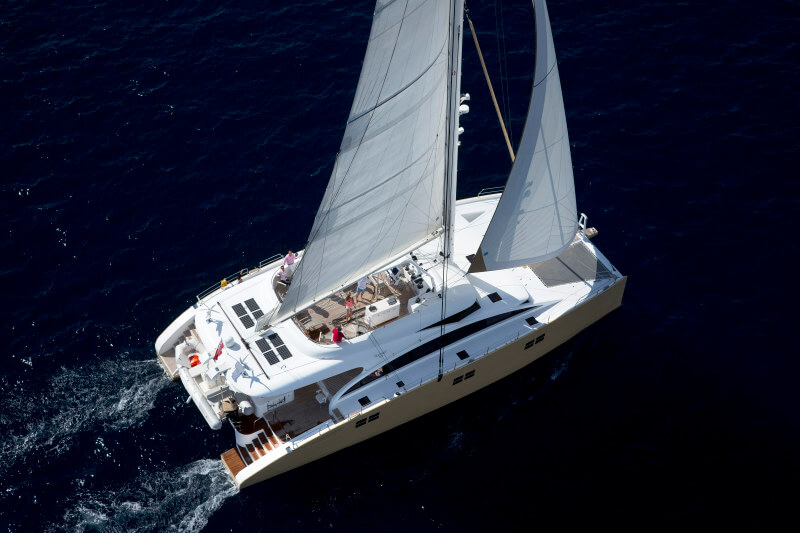

Sails & Rigging
New fully battened mainsail by Incidence 65,000 Euro Delivery March 2022

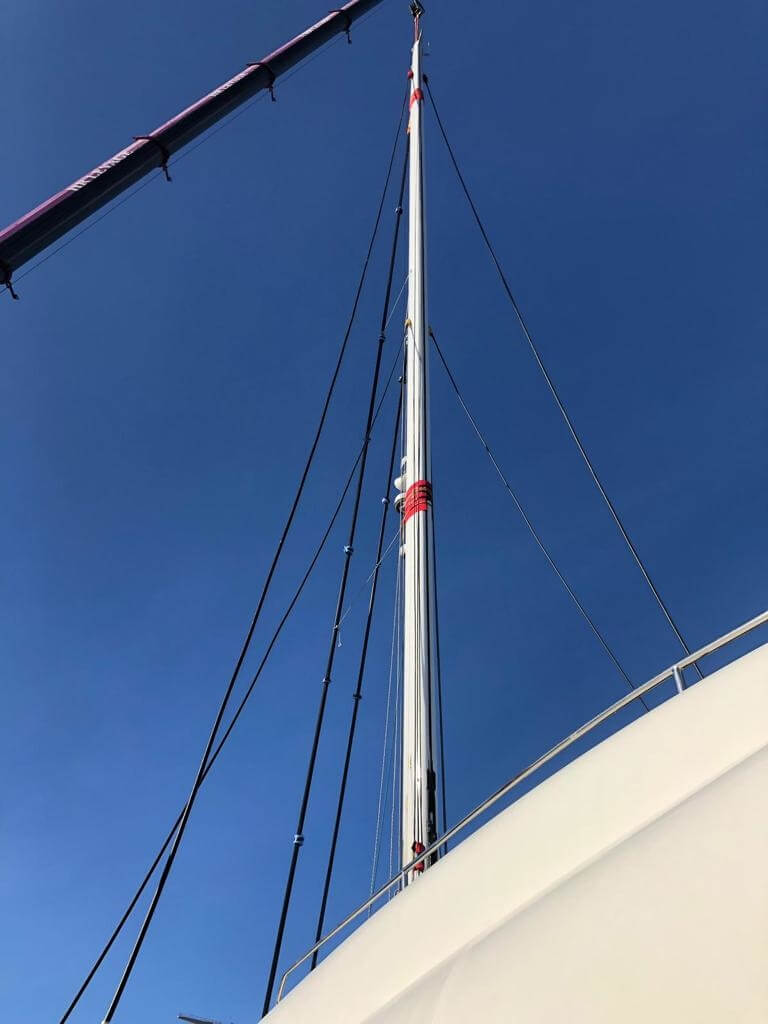

The mast is 34 meter long. It is built in carbon fibers which modulus is 235 Gpa. The aerial draft is
39,00 meters
The boom is of canoe type, in carbon composite, with hardware for reefs, lazy jacks and lazy bag
The sail plan is a sloop type, with a top gaff rig fullbatten mainsail and a genoa. A geenacker is
settled at the fore end of the longitudinal beam. All sails are in Spectra, but the Geenacker being
in Stormlite and the spinnacker being in nylon.
Main sail, Spectra of 235 m² , 6 battens.
Genoa ,135 m² built in Spectra ,on an electric furler
Geenaker, built in Stormlite , 260 m² ,on an electric furler
Spinnaker : 350 m² , color : orange
All forward sails equipped with anti UV protection stripes.
Fore stay ,In Rod Navtec with turnbuckle
Geenacker stay,Anti torsion textile cable, protected
Shrouds, in Kevlar from Navtec (PVC protected)
Diamond shrouds, in Kevlar from Navtec (PVC protected)
Last control : NewZealand , 2 years
– New Kevlar standing rigging -Aug 2018
– New standing rigging cables-Aug 2018
– New running rig-Aug 2018
-New main sail stack pak-Aug 2018
*New fully battened mainsail by Incidence 65,000 Euro Delivery March 2022*
Additional Information
2 new air conditioning in salon Jan 2022

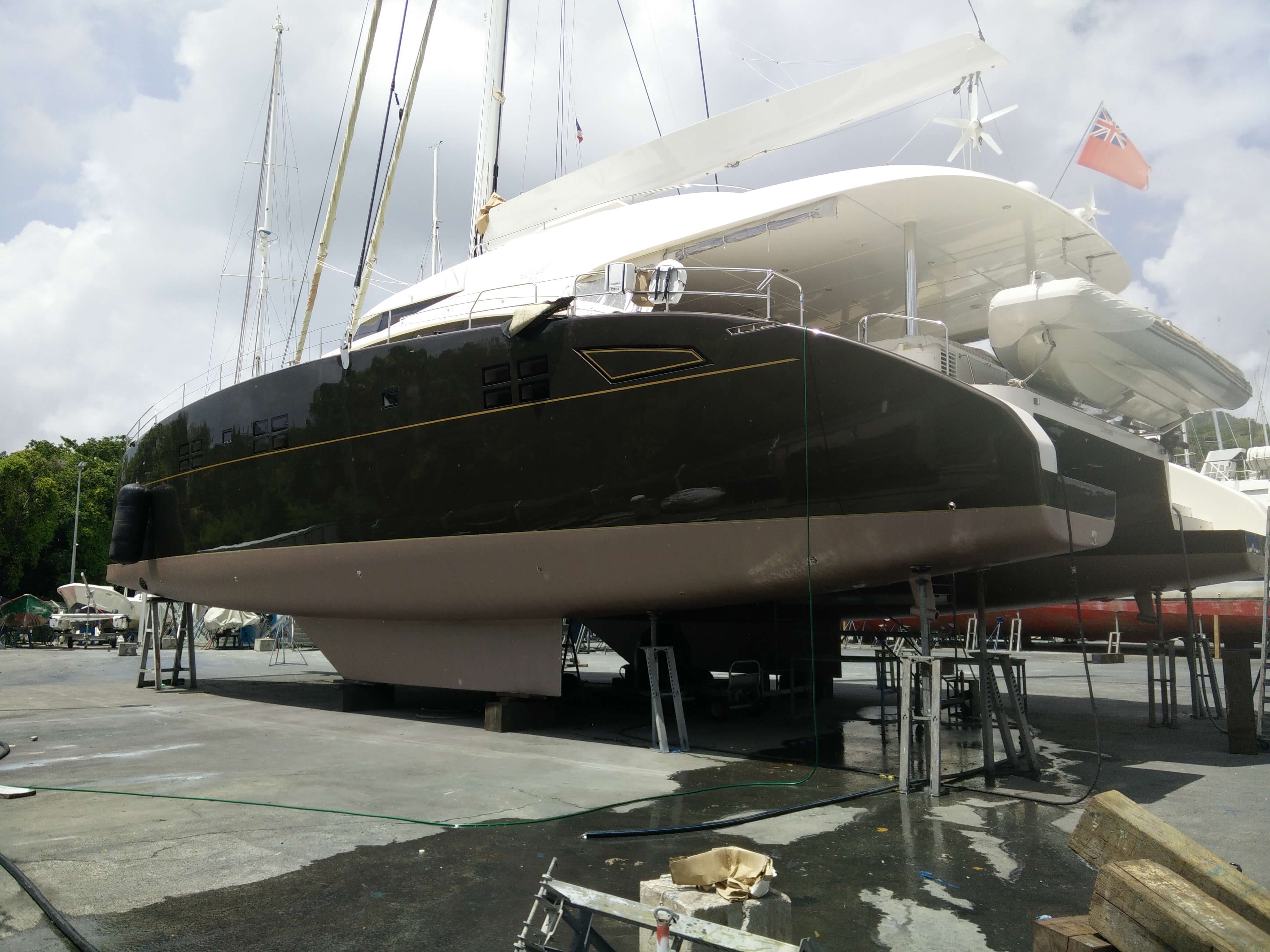

New bottom paint and all underwater fittings serviced. Jan 2022
MONITORING :
– Tanks levels
– Service batteries : Capacity, Tension, alternators charge currents , current PNX solar pannels,
discharge currents
– Temperature 2 engine rooms (exhaust and local) + technical locker
– Chargers states
FIRE PORTECTION SYSTEM
Portable equipment , extinguishers
Automatic extinguishing system for engine rooms
A SEA FIRE FD-1350 in each engine room.
SAFETY EQUIPMENT
Life rafts, 2
Alarms and detection system, for gaz is installed with its alarms.
Safety equipments ( small) , mob Raymarine Life Tag with a central unit and 10 bracelets
Tracking system, Satellite (Advanced Tracking) with movements detection, anti pirats button and
anti intrusion Alarm
Tender – complete new tubes. Aug 2018

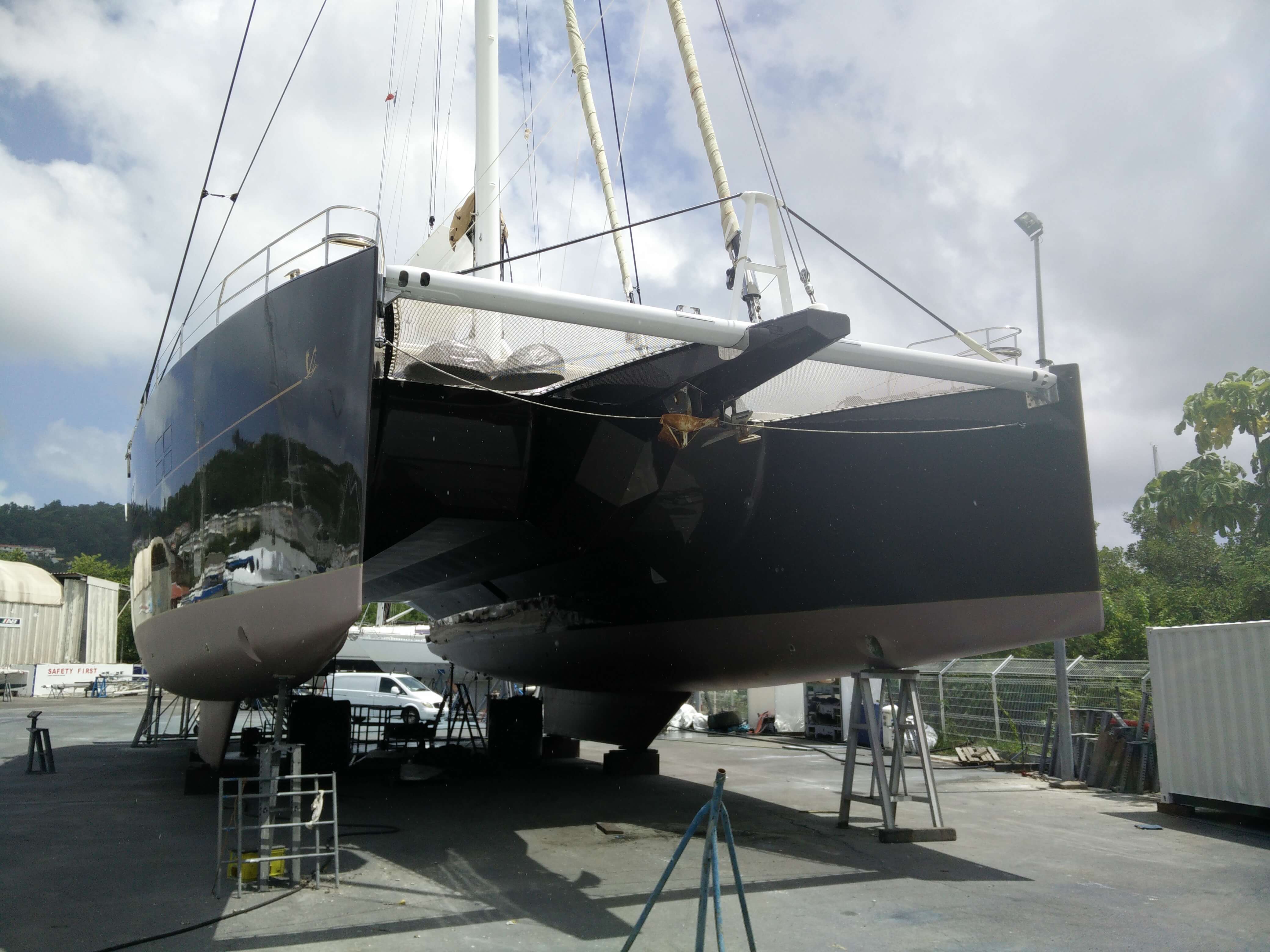

*NEW* Bottom paint Oct 2019
The Multihull Company is pleased to assist you in the purchase of this vessel though the vessel may be listed with another brokerage company.
Request More Information Add to Favorites Receive Updates
My wife and I worked with Andrew Hodgdon to sell our 2021 FP Elba 45. In addition to skillfully carrying out the traditional yacht broker responsibilities, Andrew went above-and-beyond to ensure that we were well-positioned to sell in a competitive market. For example, Andrew helped out with much-appreciated repairs and hurricane prep, among other things. Trustworthy, intelligent, and conscientious, Andrew’s communications with us and the buyer were always thoughtful and forward-thinking, and fairly represented our interests.
We really lucked out in connecting with The Multihull Company. We made a cold call to Cynthia Wummer, a Multihull Company broker and told her we wanted to buy a catamaran to cruise The Great Loop and experience the Bahamas. We particularly wanted a PDQ power catamaran. From our first contact she was so helpful and responsive. She immediately contacted a selling broker who represented a prospective seller. Because we are new to a bigger boat and boating on the ICW, Cynthia assisted us through the entire process. She is a captain which was an added bonus to the process; she knew all the right questions to ask the selling broker as well as the surveyor. She drove 3 hours to be present during the survey, she developed a good relationship with the selling broker, she called and checked in with us regularly, was very enthusiastic about our purchase, and answered all our questions. We could not have done it without her. The Multlihull Company support team, Andrew Holland and Courtney Greider, were so helpful in the closing process: the paperwork was easy to complete and communication was smooth and timely. We wouldn’t hesitate to recommend The Multihull Company and Cynthia to anyone who is the market for a boat large or small. Thank you!!!!
Multihull Company has succeeded again. This is my second time using their services and they are extremely professional and honest. Working with their brokers and their administrative team was easy. Communication occurred at every level and constructive advise was always given. They know this business inside and out and acted as my fiduciary in every way. I will use them again for their service and knowledge.
Great to deal with and very patient in our questions. They were able to find us the perfect vessel for our needs.
Successful relationships cannot exist without it. At The Multihull Company we base every relationship on a firm commitment to earning and retaining our client’s trust.
Advice of any kind is valuable only when grounded in hard-won expertise. It too, must be trustworthy. Trust and expertise define the heart and soul of The Multihull Company. We are a team of skilled professionals who thrive on providing expert, trustworthy advice and service to catamaran and trimaran sailors around the globe.
Read More
