About

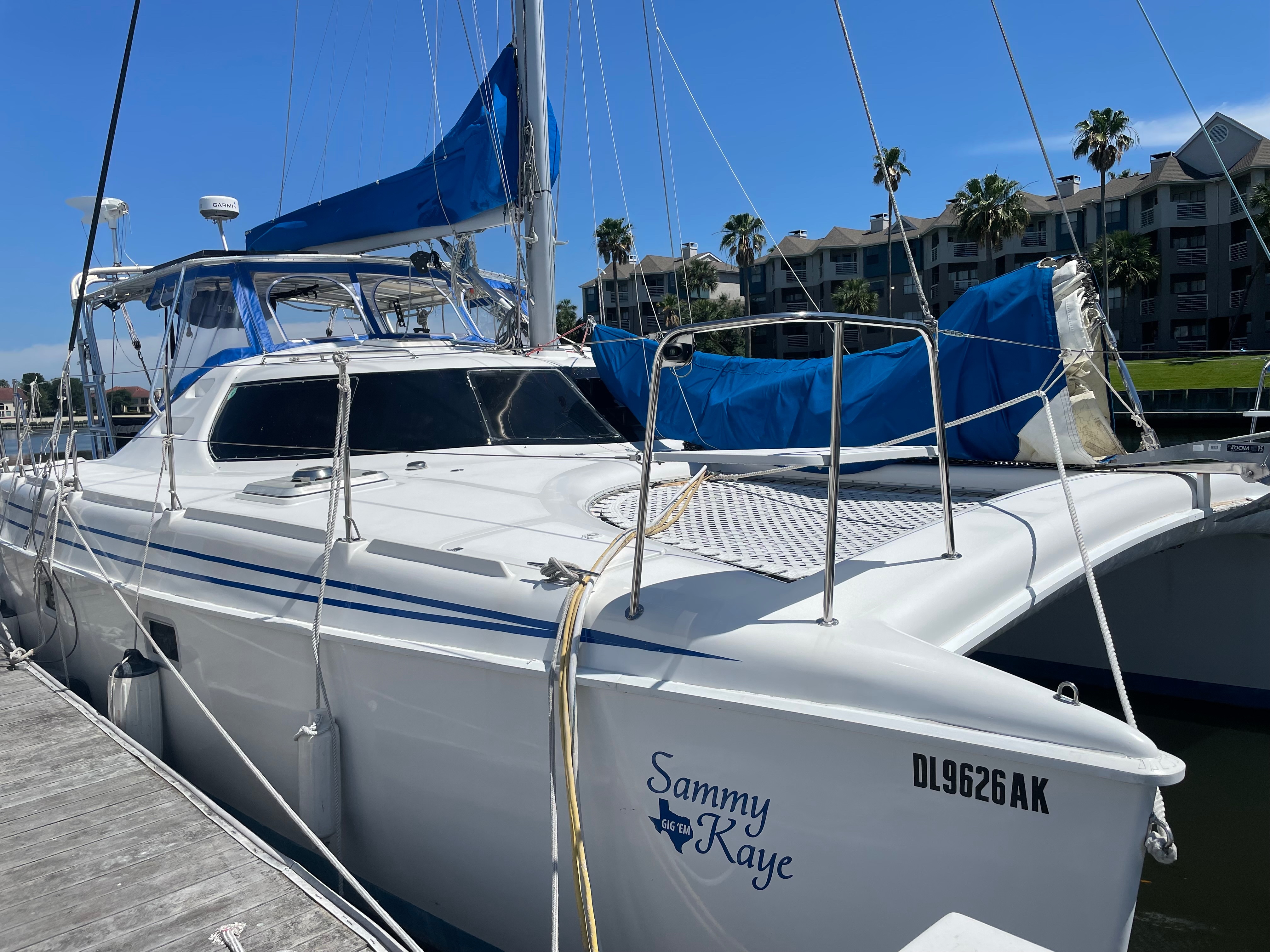

"Sammy Kaye" is true and tested blue water cruiser, family fun in comfort and style.
Well-equipped brand-new rigging and sails inventory.
3 cabins, 2 heads , Accommodations for two couples and one single in AC comfort.
Solar, wind generator and Genset provide power and more!
Specifications
SPECS
MEASUREMENTS
ENGINE(S)
Accommodations
Layout & Accommodations
This 40 Manta will sleep 4 comfortably in 2 air-conditioned staterooms on queen-sized beds. A
third single berth is in the starboard forward hull. The owner’s suite is in the port hull. Both
staterooms have toilets, separate showers and air-conditioning.
The main salon on the bridge deck contains a well-equipped kitchen area, top loading
refrigerator/freezer, nav-station, electrical panels, dining area and entertainment center.

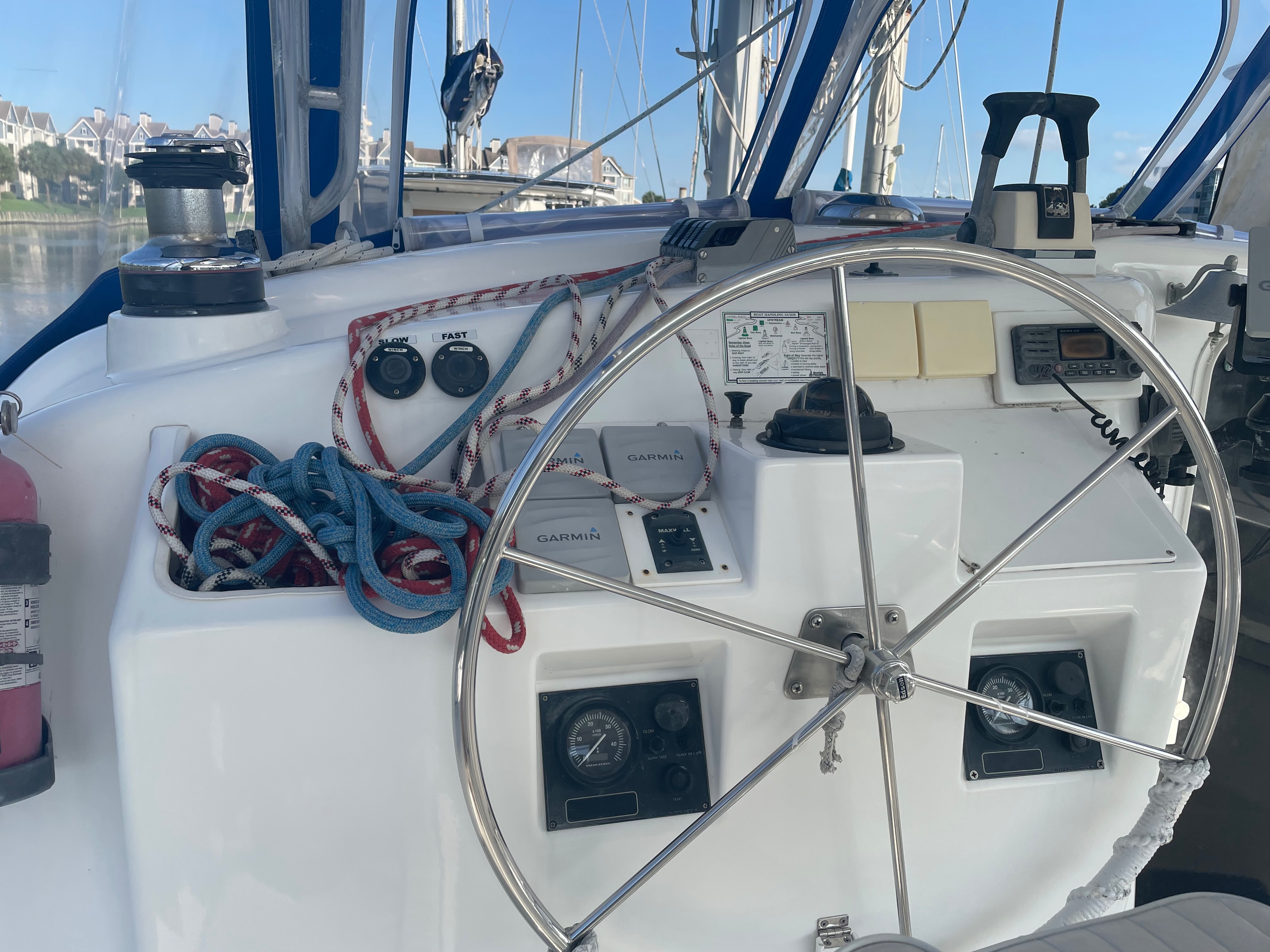

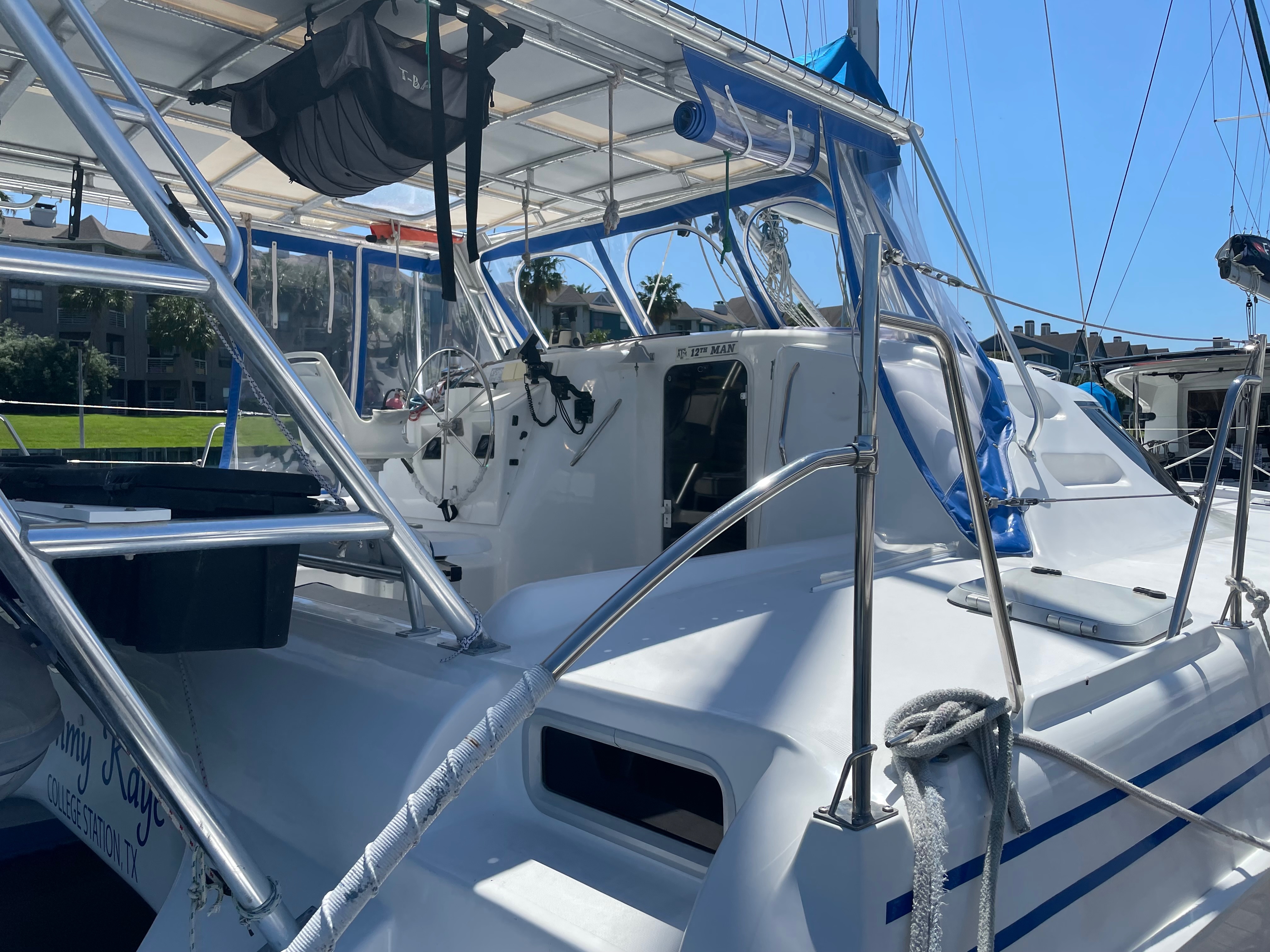

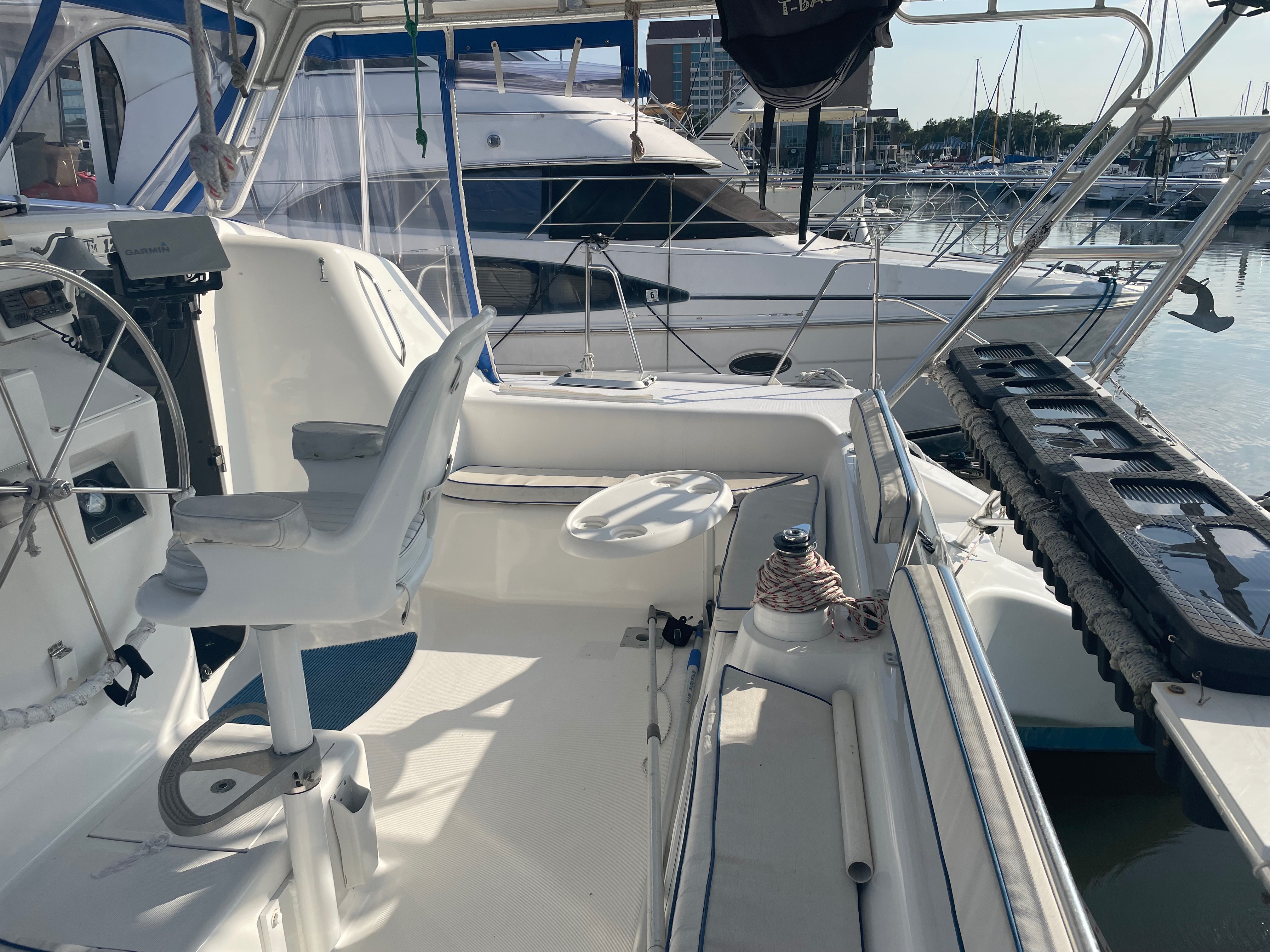

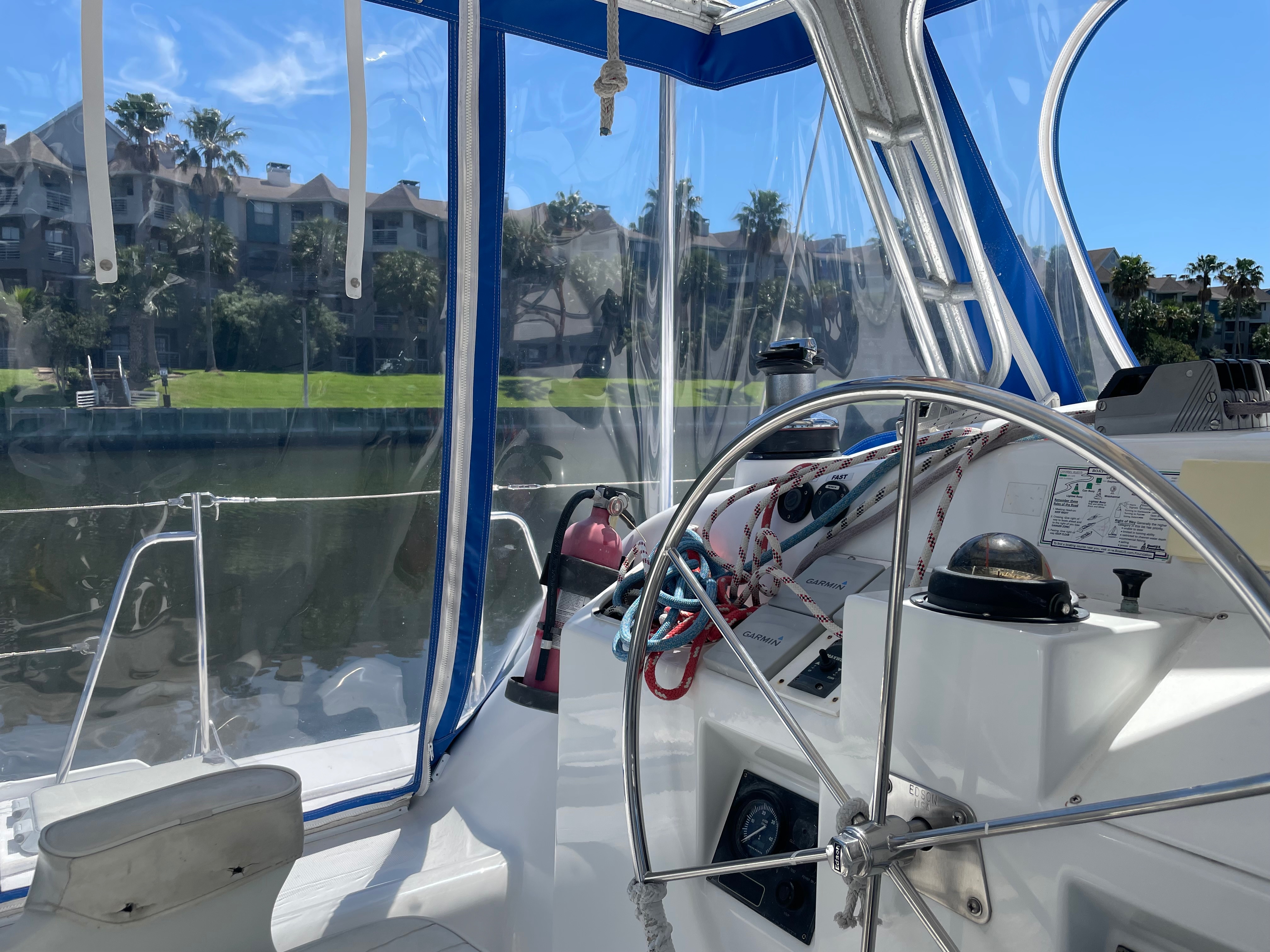

The helm is a true single-handed setup that can be open or enclosed, she has all navigational
electronics for worldwide cruising in safety and comfort.
Her hull, deck and bulkheads were constructed of trial axial, biaxial, and unidirectional fiberglass
with vinyl ester, isophthalic resins, and Divincell composite foam cores (hull and deck) and
Nida-core (sub-soles and bulkheads) that were all vacuum bagged.
Interior Finishes:
Interior finishes are natural teak wood moldings and trim, natural teak covered wood doors
accented with composite countertops/sinks, vinyl headliners and upholstery, and high durability
synthetic teak and holly appearing soles.

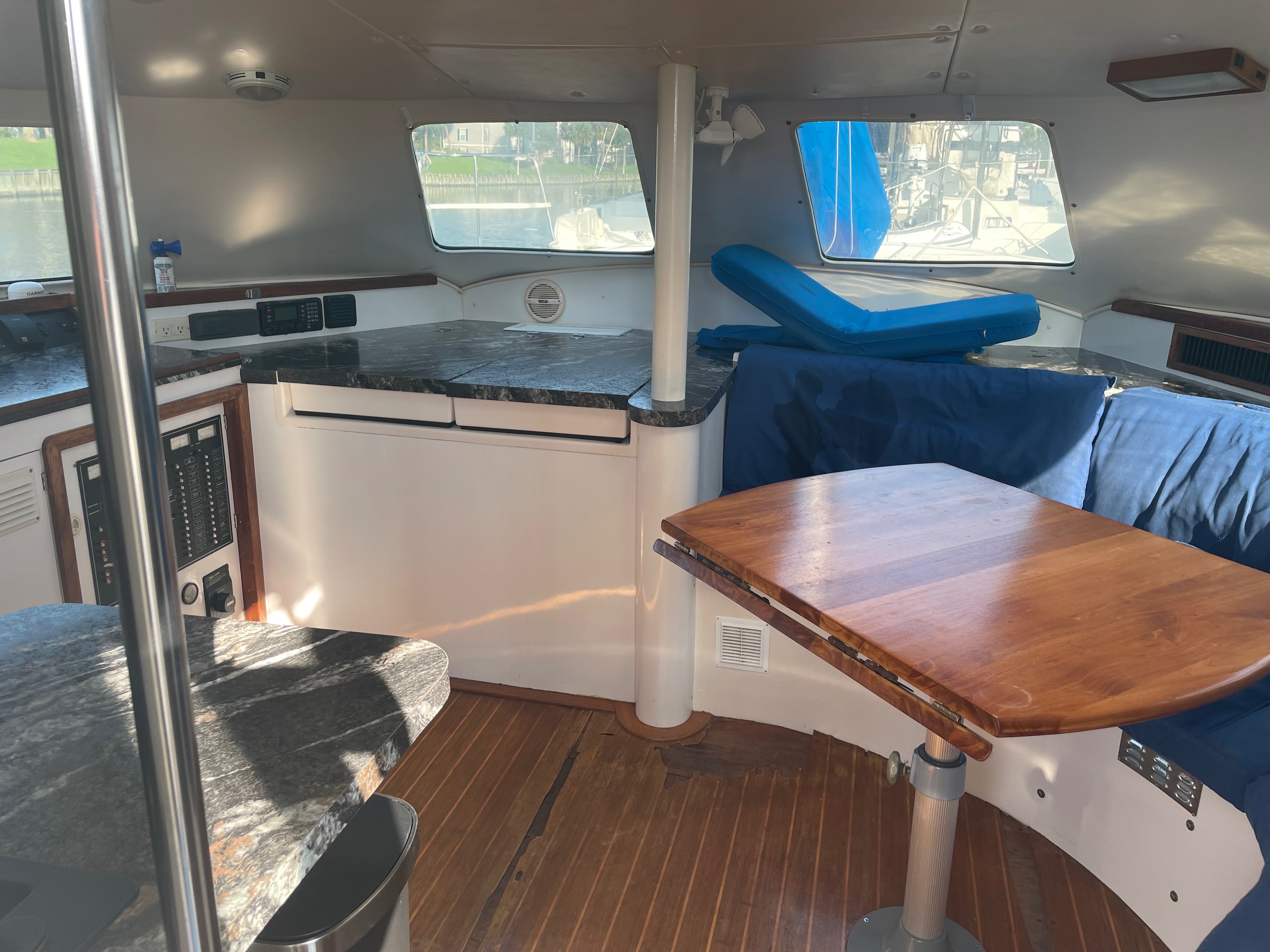

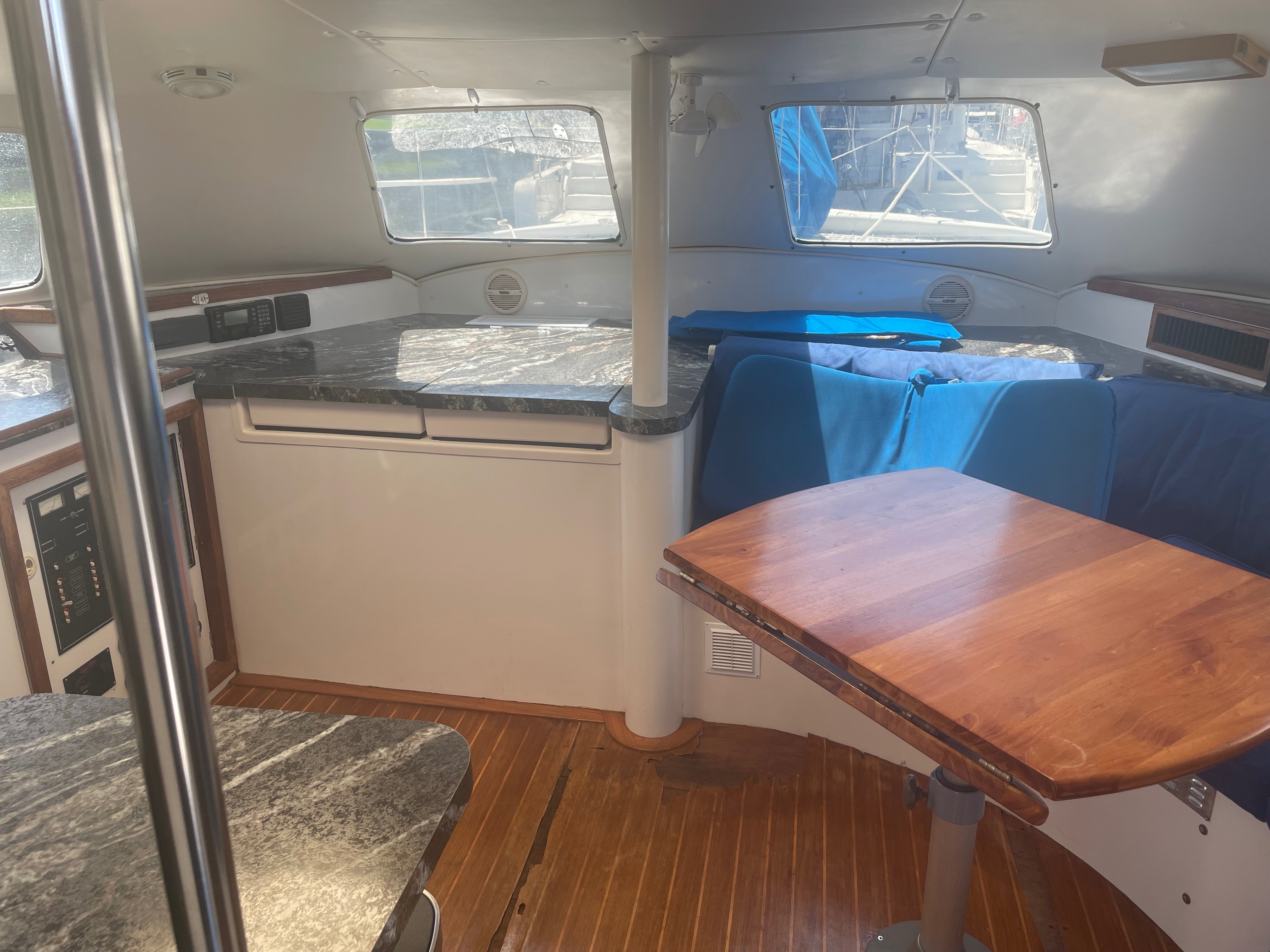

Salon:

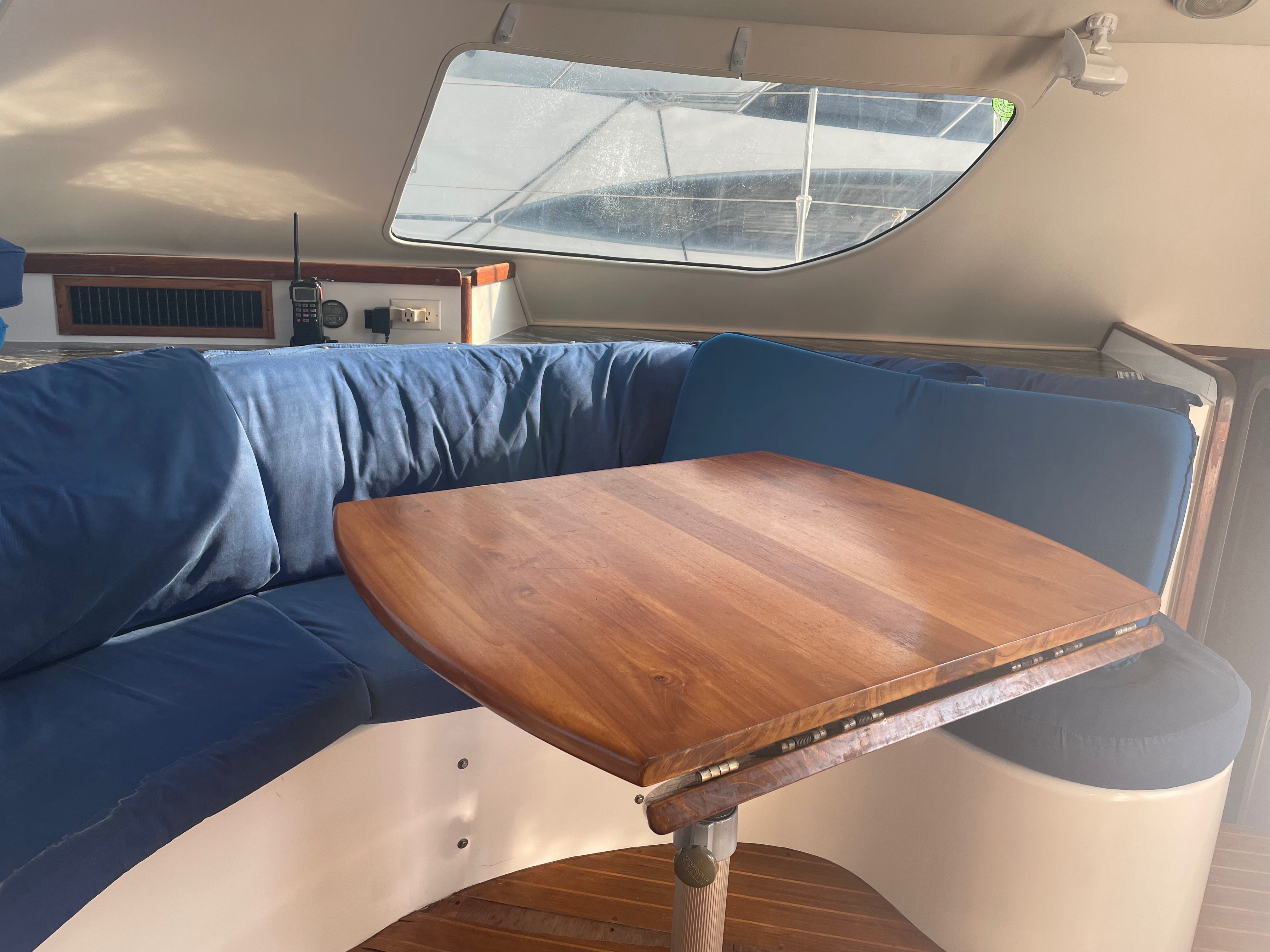

The salon area had access to the helm, and the port and starboard hulls. The L shaped built-in
bench seating is comfortable and with 2 seating/storage cubes provide seating around the

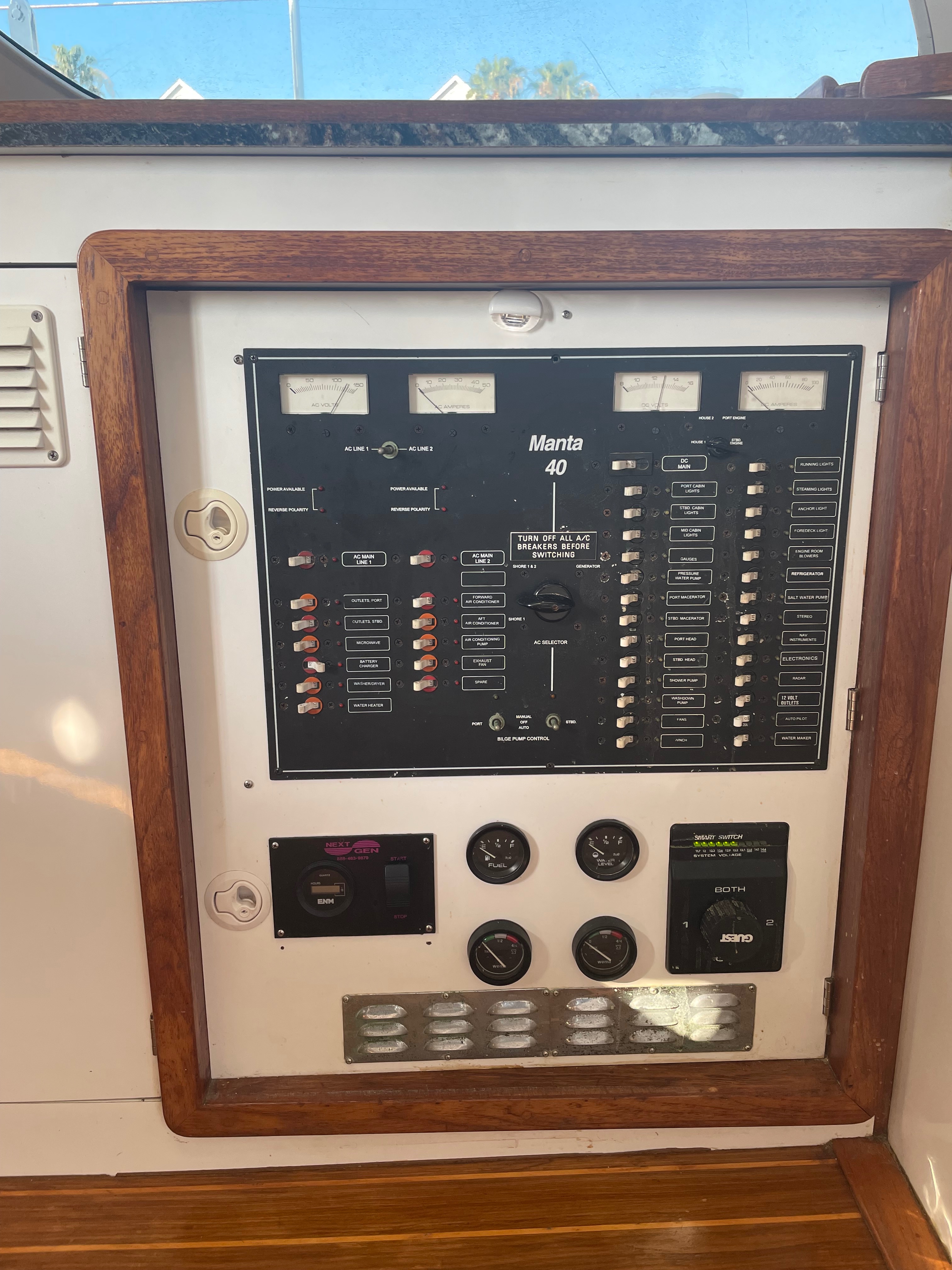

adjustable tabletop. The bridge deck contains the galley, navigation station, electrical panels,
refrigerator/ freezer, dining/settee area, entertainment area, wet locker, and storage cabinets. The
galley area has a built-in composite sink countertop, 3 burner propane range/oven/broiler,
drawers, and cabinets with a microwave oven. Domestic Top loading, 10 cubic ft.
refrigerator/freezer.

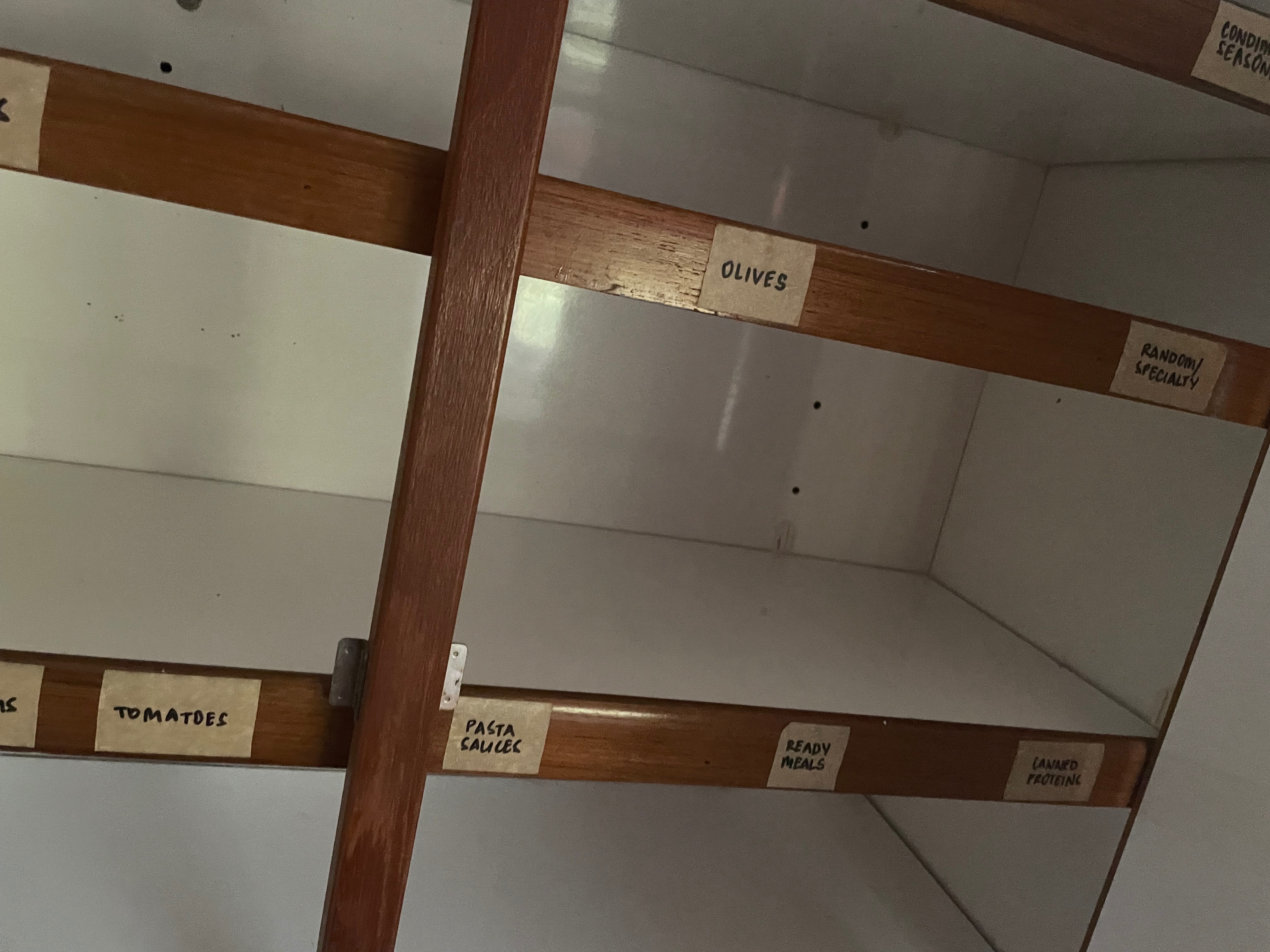

The cabinetry includes 2 drawers, with cabinets above and below the countertops. The
navigation station has a chart-sized hinged countertop with chart storage beneath.
HULLS:
New Top Quality Bottom Paint — SeaHawk Island 44+ Harder with Tin boost. 2 full coats.

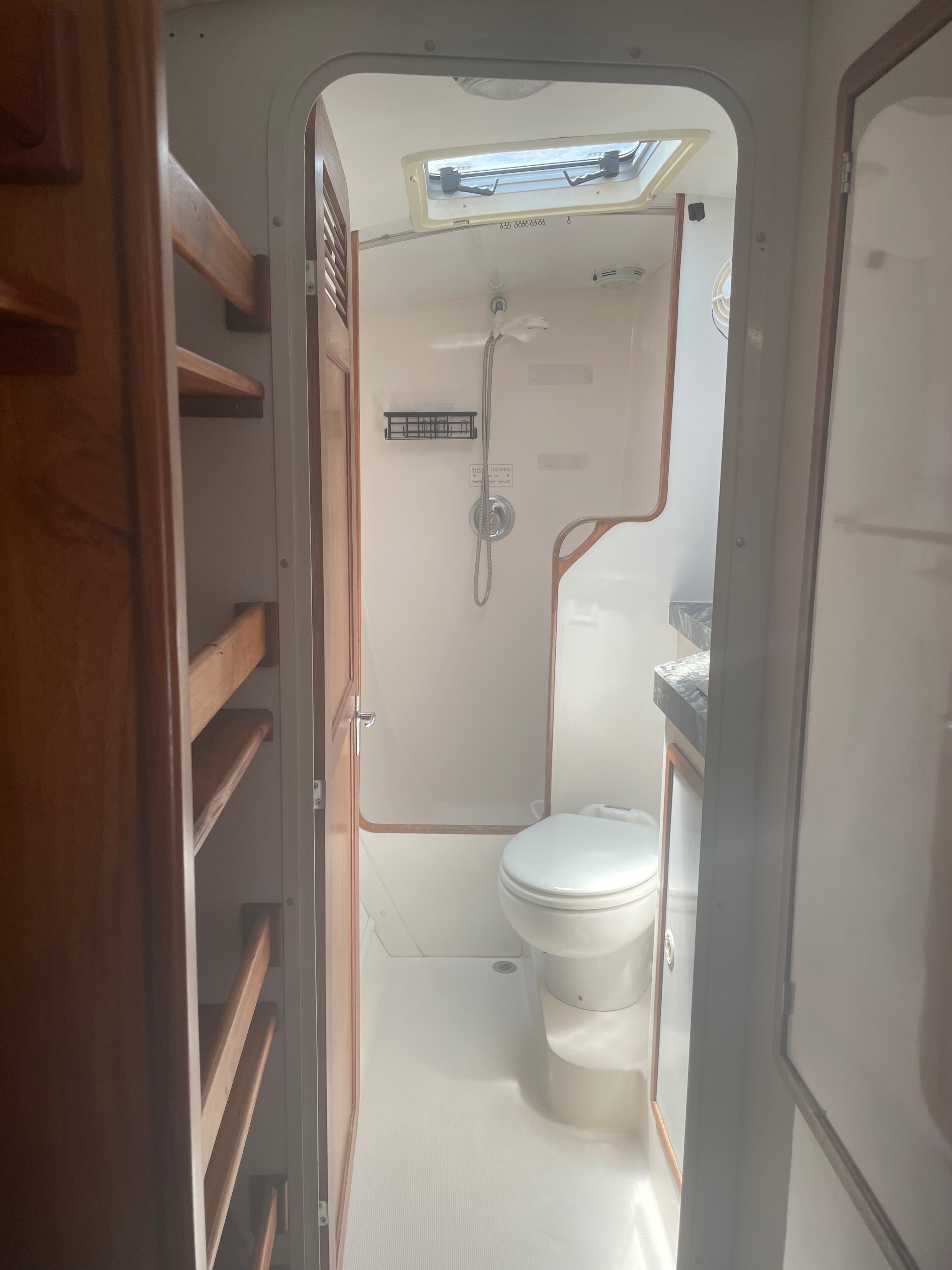

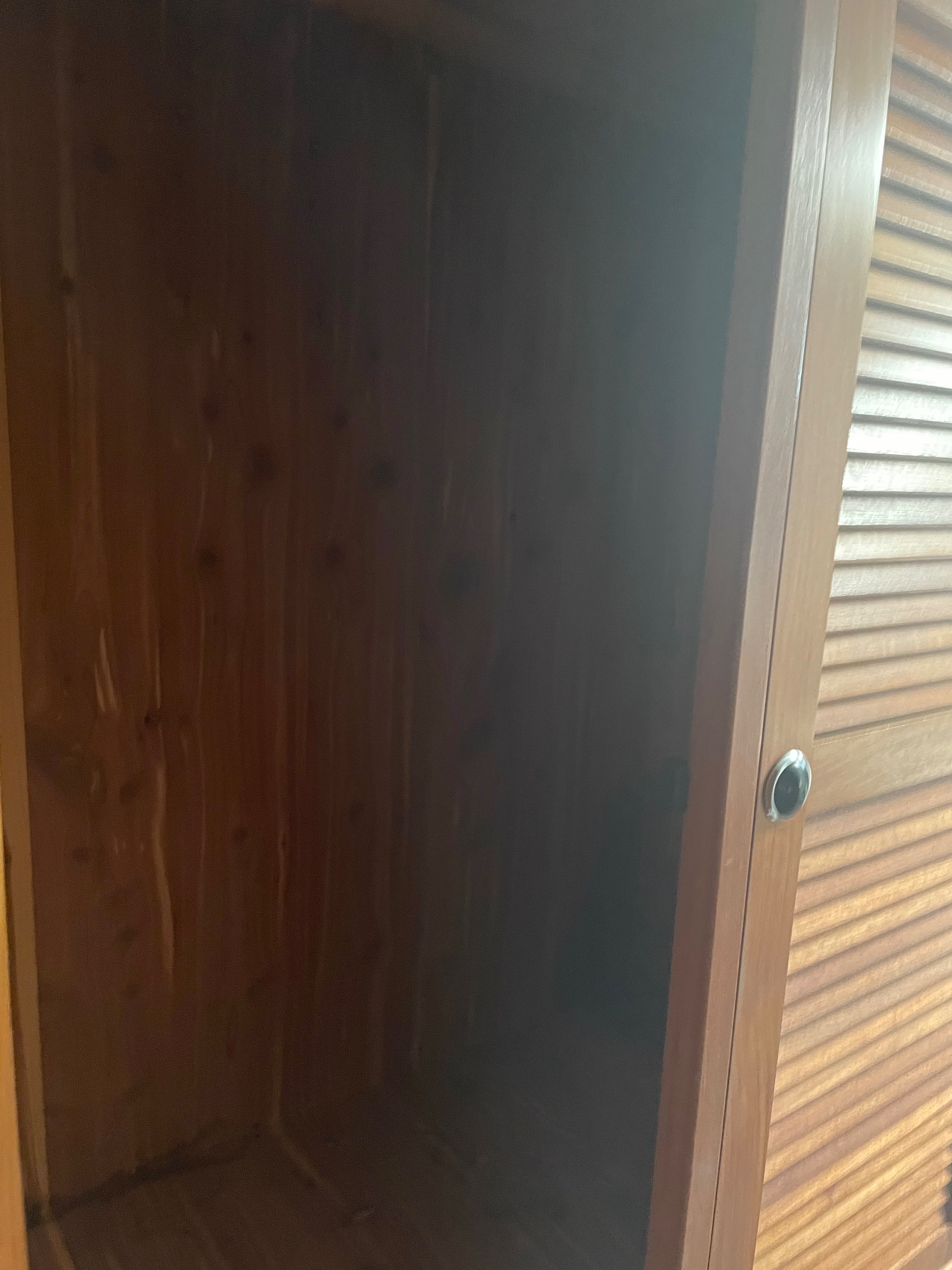

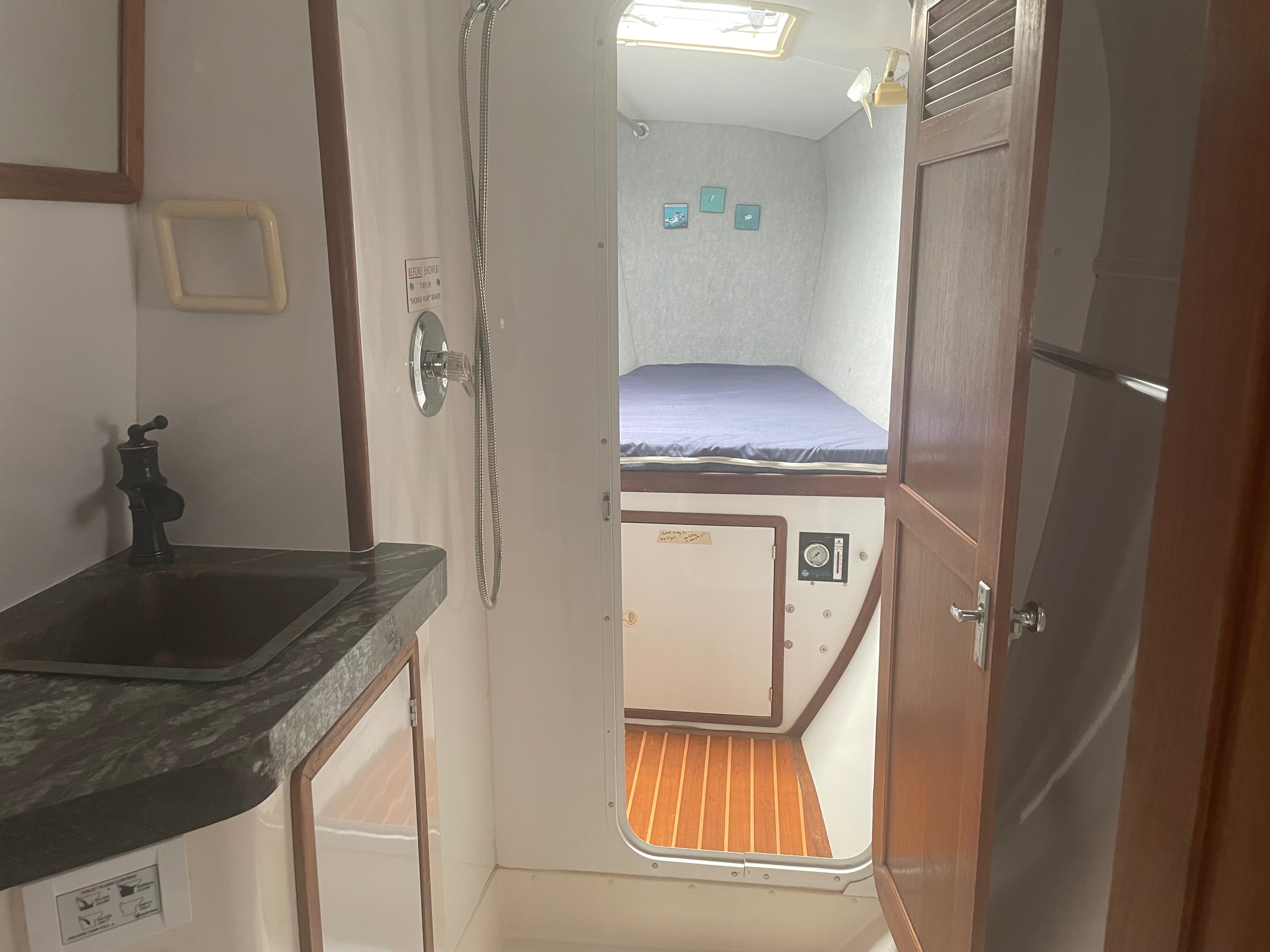

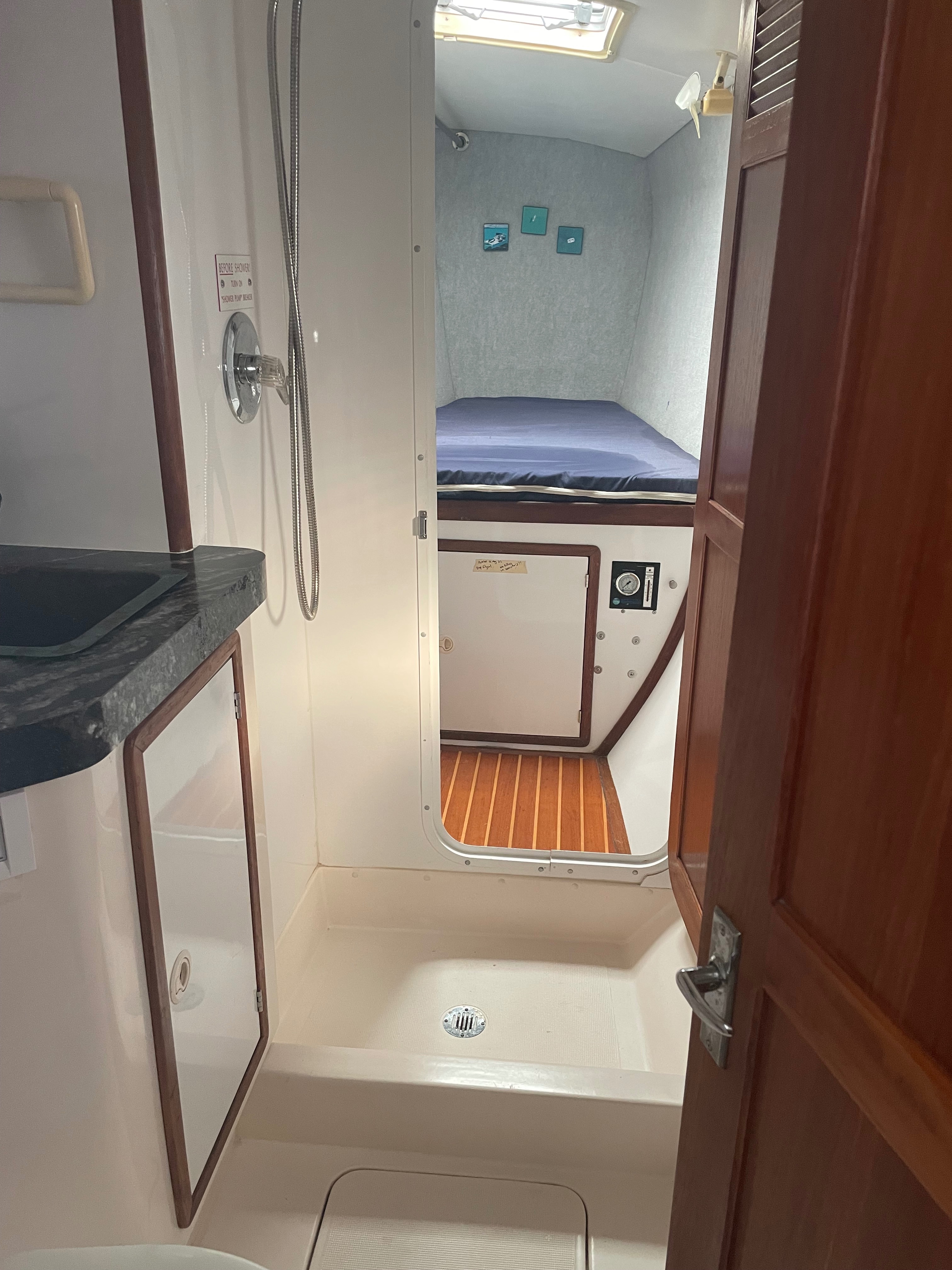

The PORT hull features the Owner’s suite; queen size bed, cedar-lined hanging closet, (4)
drawers, open and closed shelving, a shoe locker and a settee with storage under the seat. The

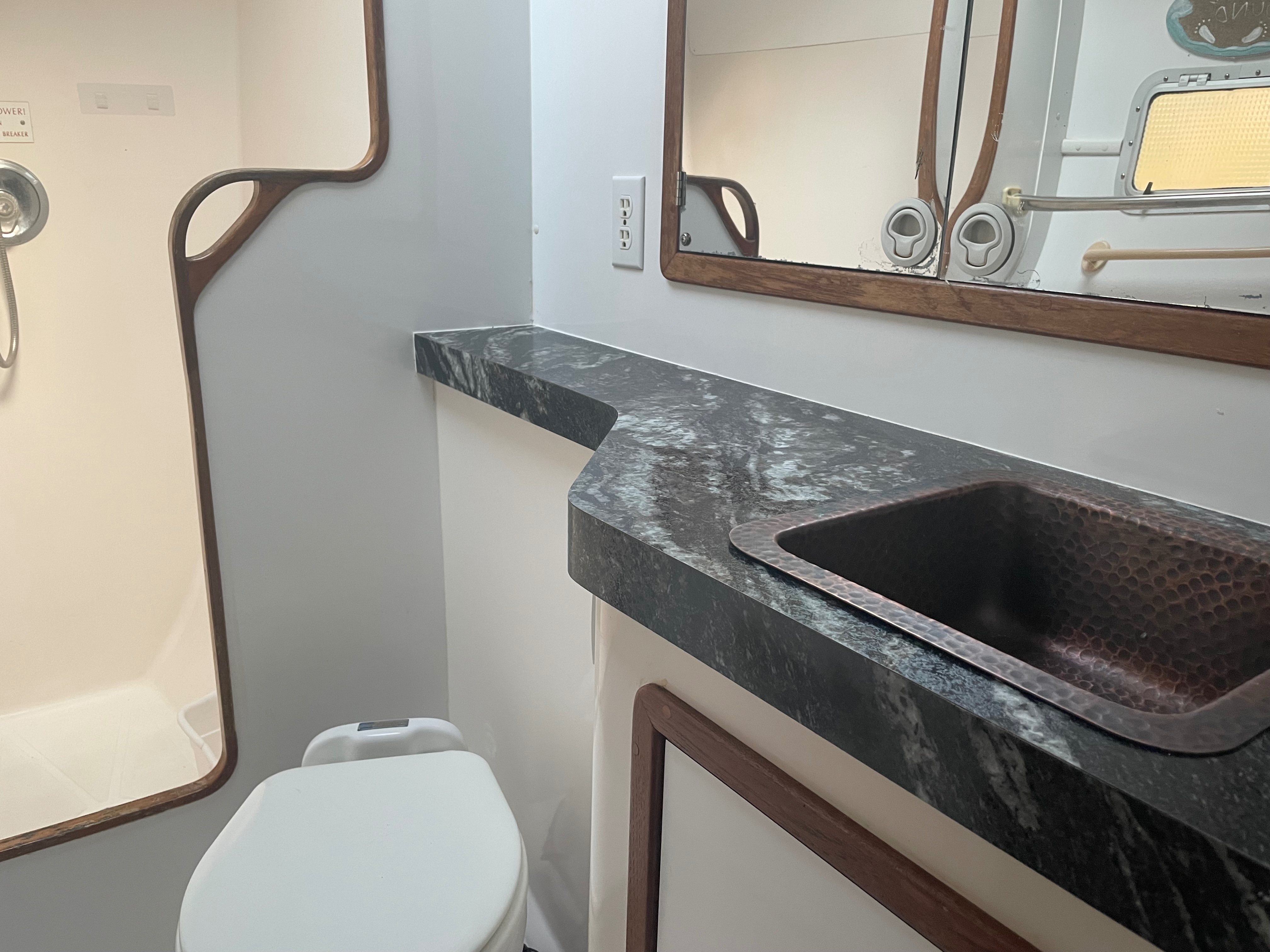

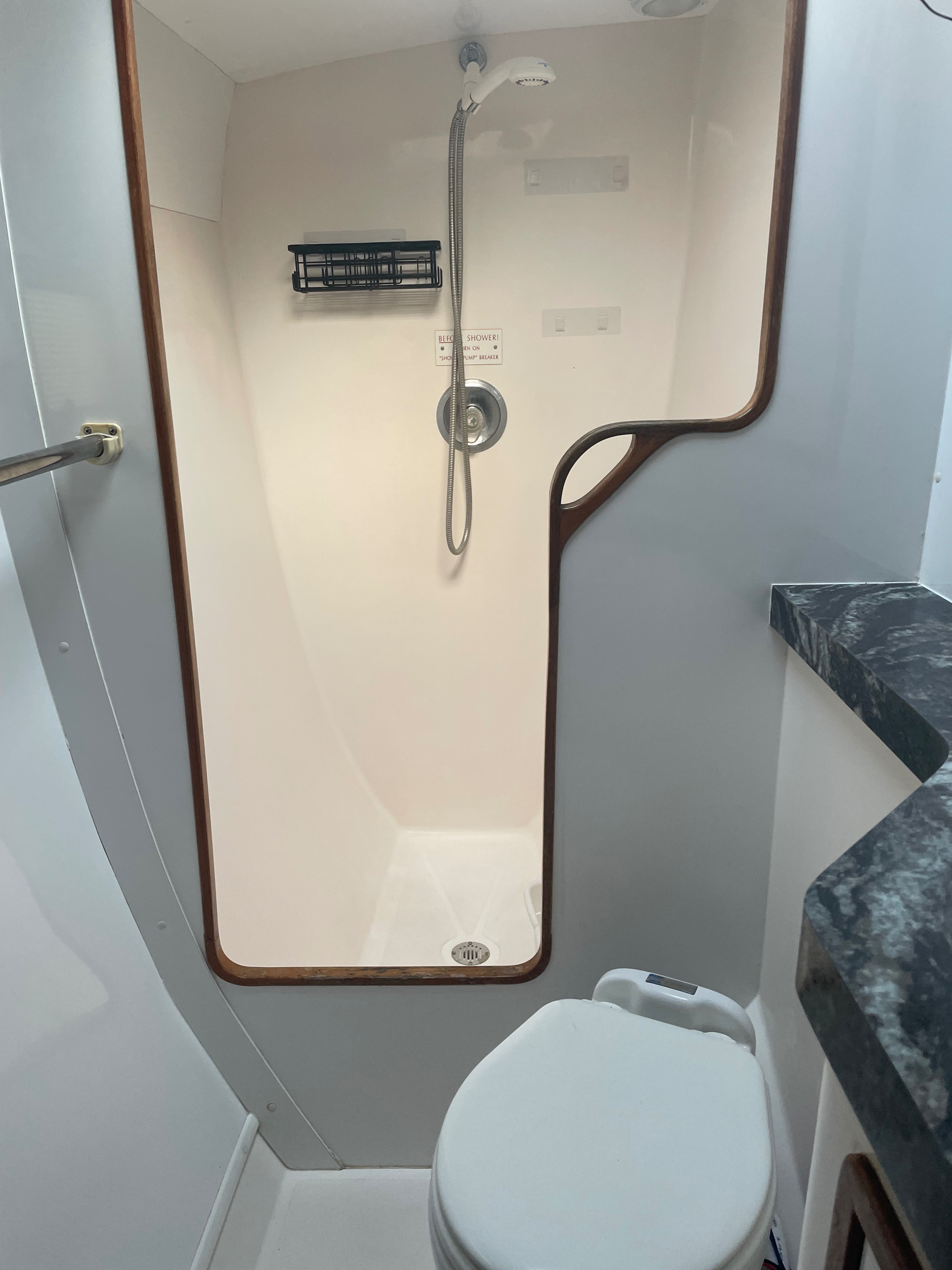

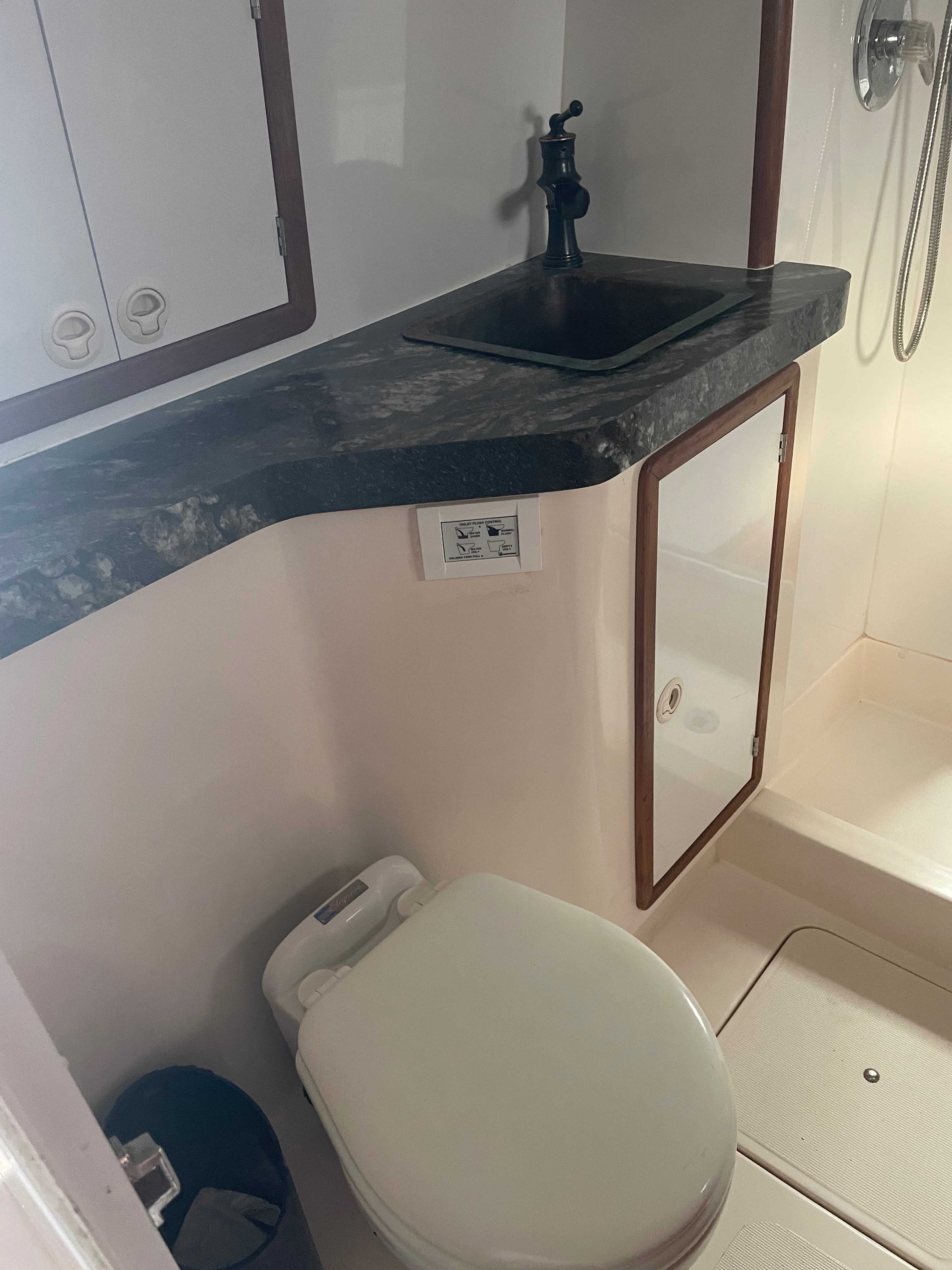

bath includes an electric flush, freshwater toilet, built in sink composite counter, generous
medicine cabinet, and a large separate shower.

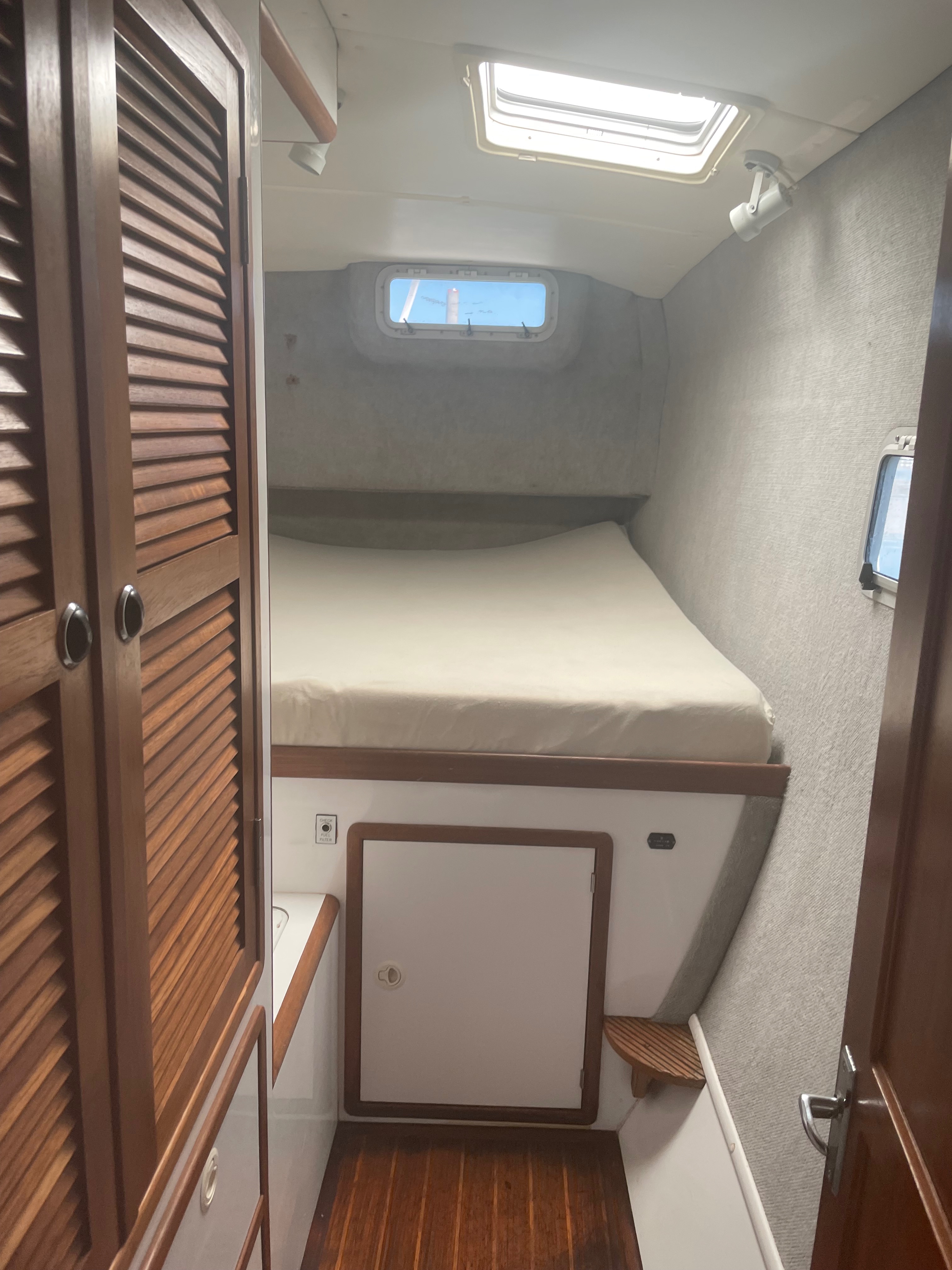

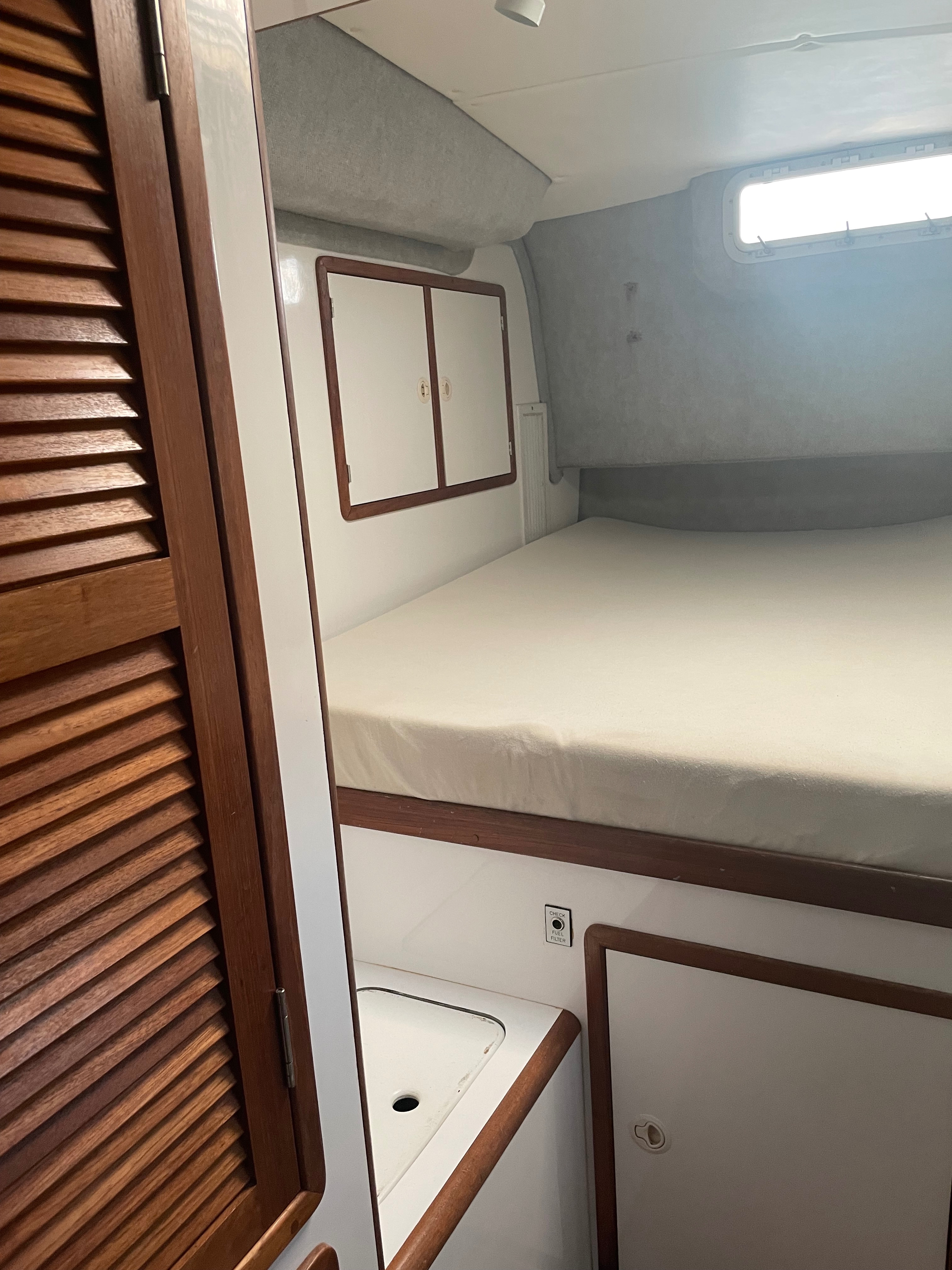

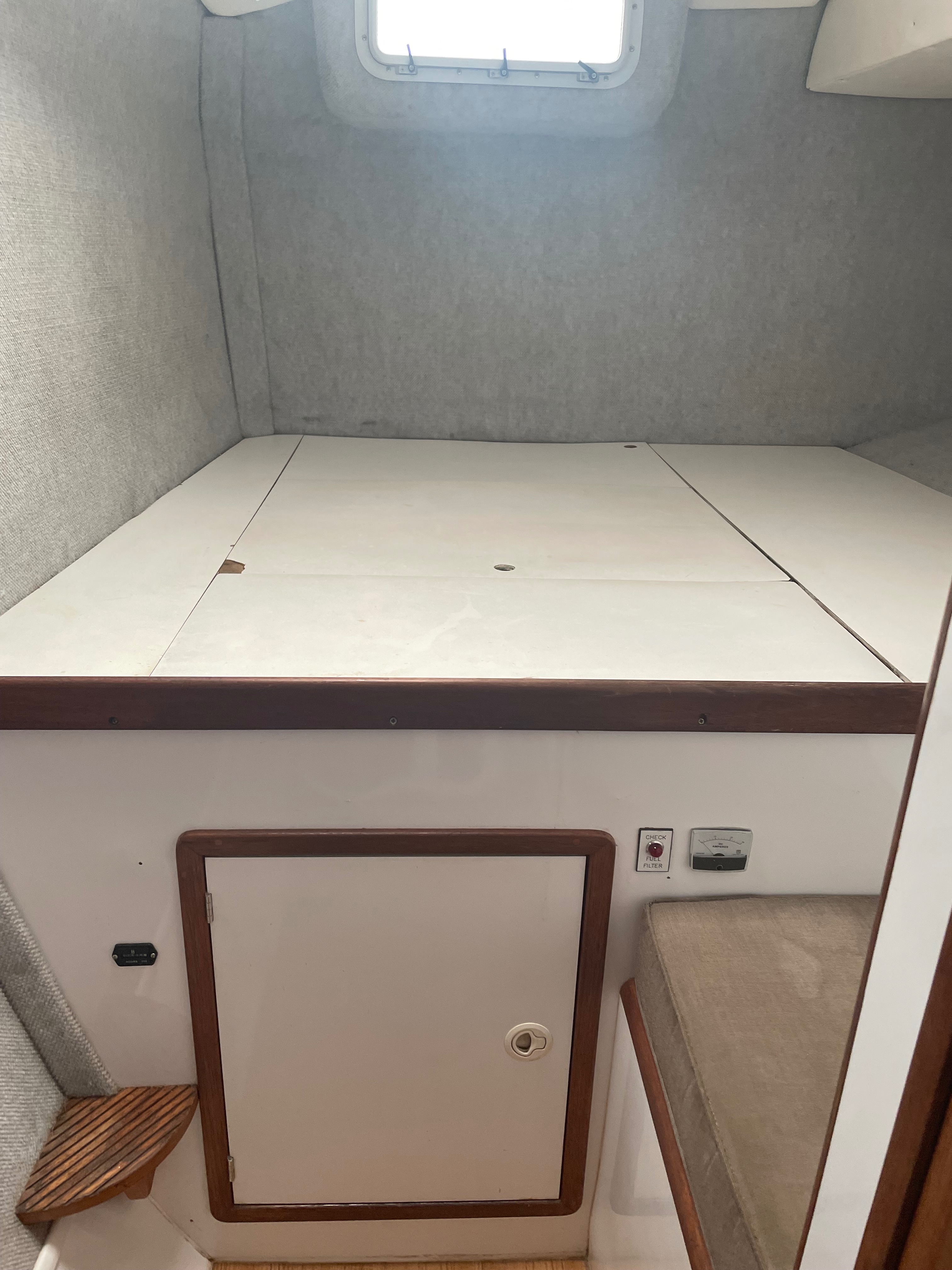

The STARBOARD hull features an aft VIP stateroom with a queen-sized bed, cedar lined
hanging closet, 3 drawers, a shoe locker, and a settee with storage under the seat. The connecting
companionway has bookshelves. All heads have manual flush, saltwater toilet, built-in composite
sink and countertop with storage cabinet.
Water Maker is a Spectra Cape Horn Extreme 330 15/GPH

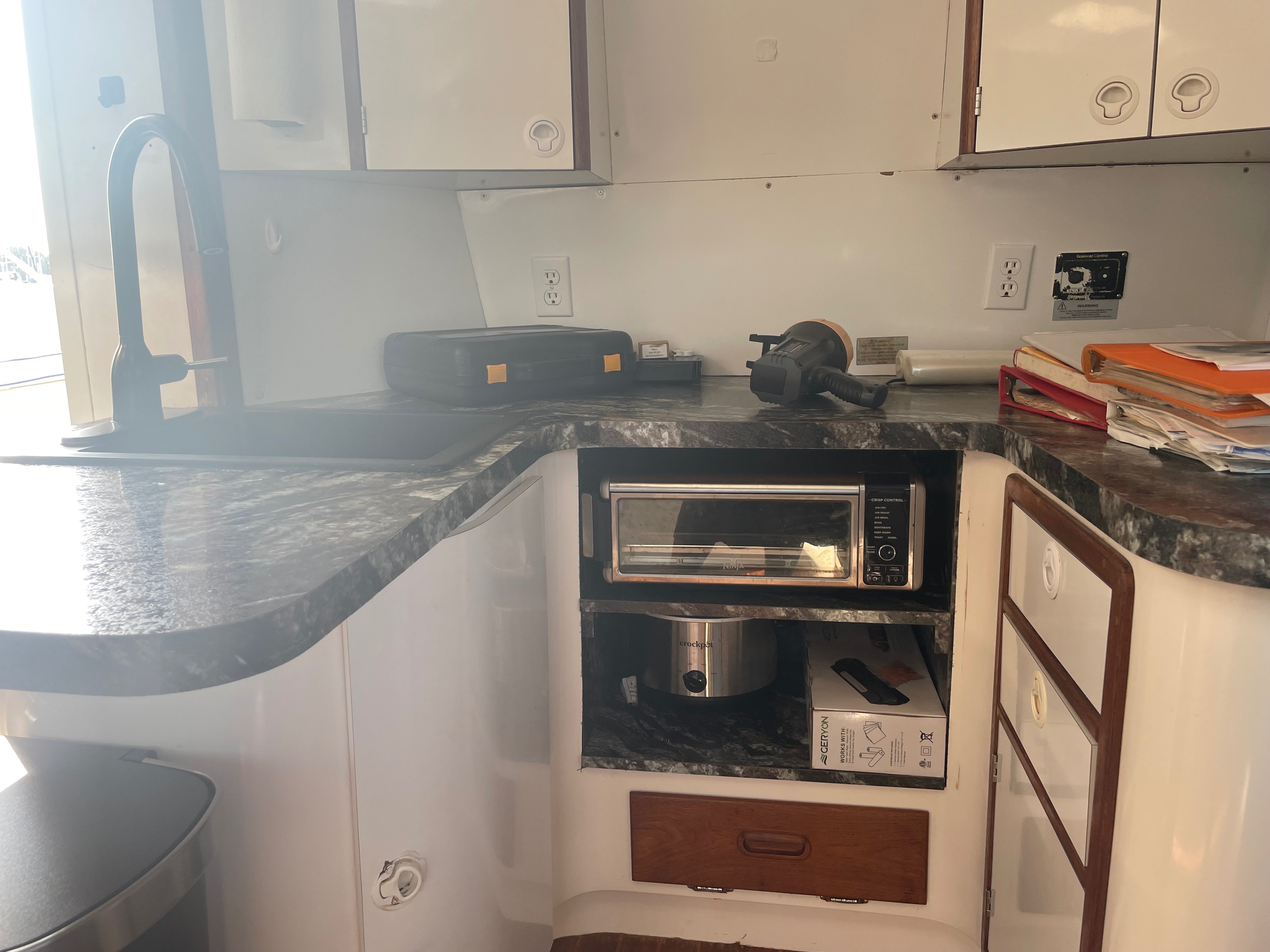

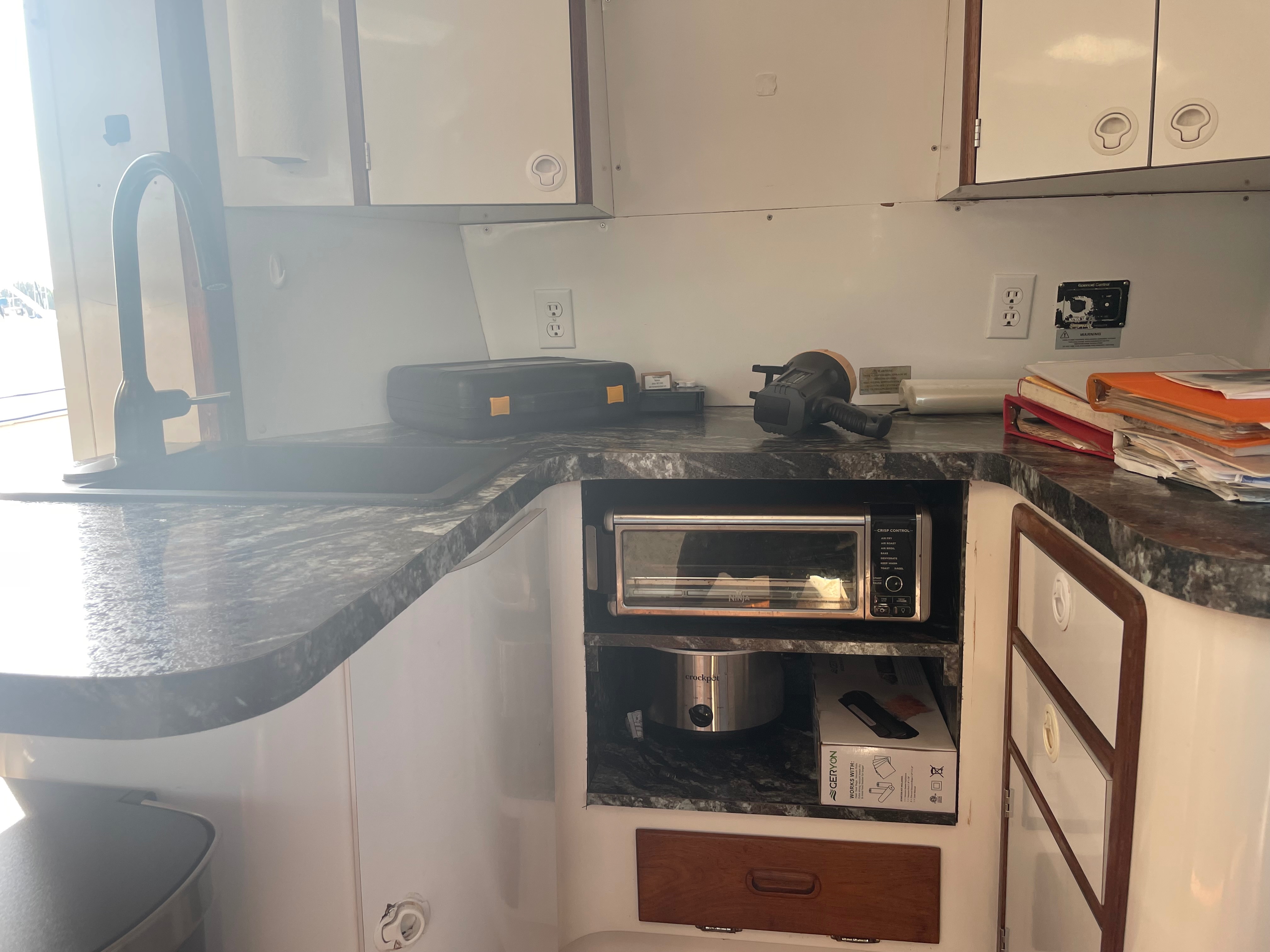

Galley
U-shaped galley with ample counter space.
Force 10, 3-burner propane stove with oven/broiler.
Large sink with a single handle water mixing faucet. New faucet and plumbing.
Storage cabinet below oven

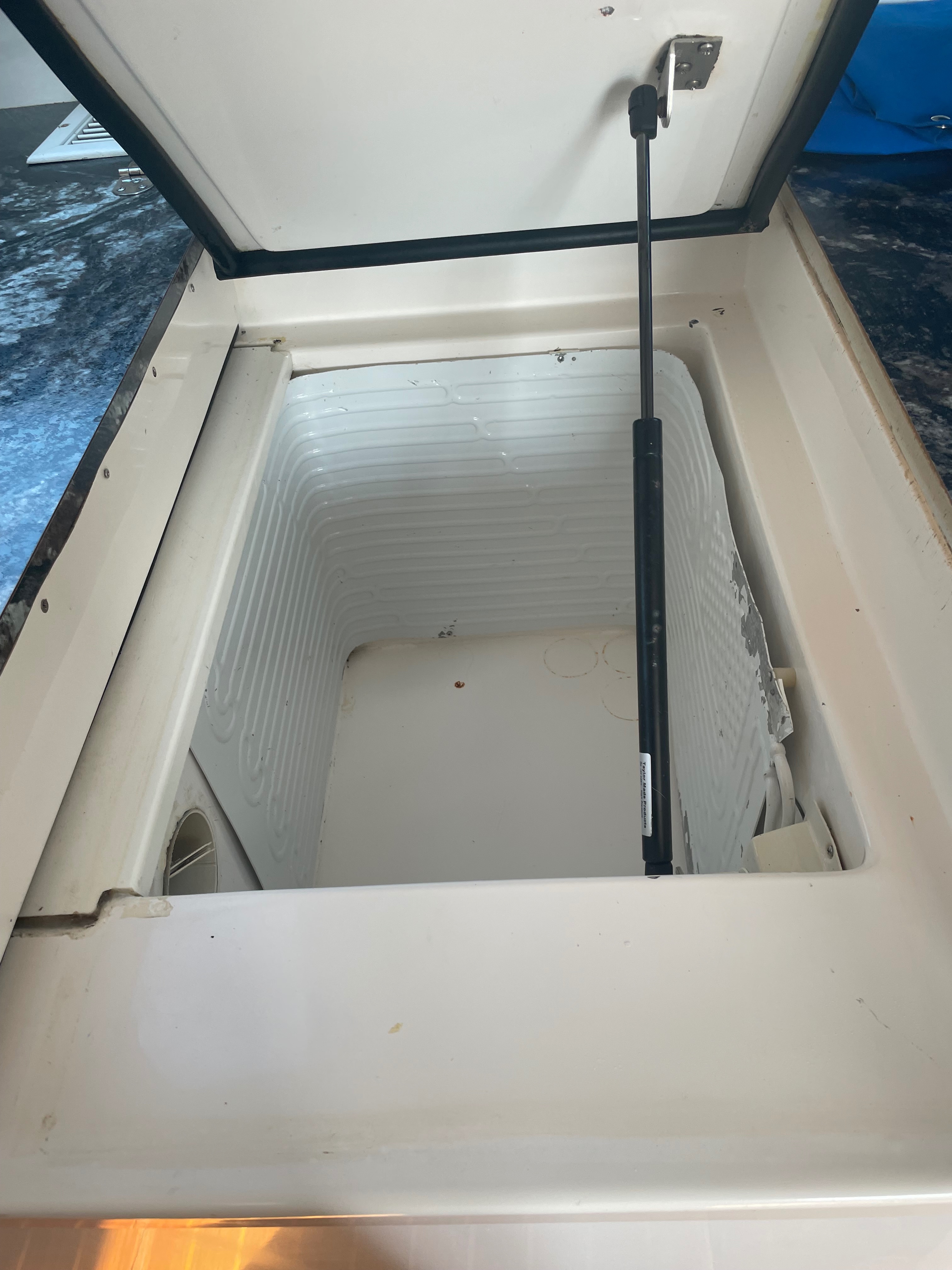

Top loading, 10 cubic ft. refrigerator/freezer – Dometic 12V compressor (Air cooled) 6” foam
insulation and insulated divider
Electric Salt and Fresh water pump feeds to sink.
Switch for propane solenoid safety valve- Ne solenoid 2021.
Deck & Equipment

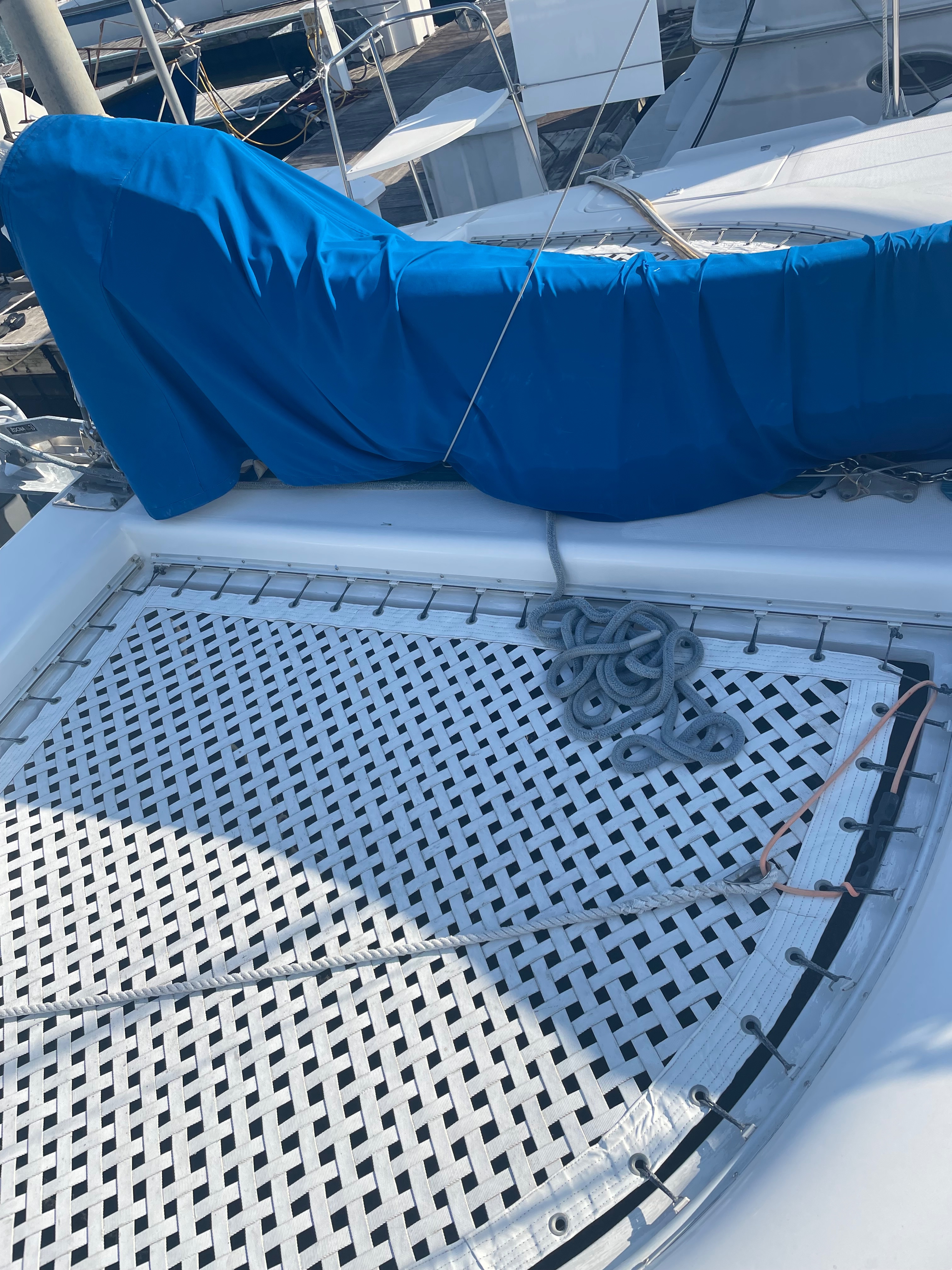

Covers:
Bimini Top
Mainsail Cover
Lazy Bag
Cockpit Cover
Lazy jacks
Genoa Cover
Inside Equipment:
Electrical bilge pump
Oven
Manuel Bilge Pump
Microwave Oven
Marine Hear
Air Conditioning: 2 16000 BTU units
Hot Water
Refrigerator
Fresh Water Maker
Deep Freezer
Sea Water Pump
Battery Charger
Outside Equipment/Extras:
Outboard Engine Brackets: 18 HP
Davit(s)
Radar Reflector
D 400 Wind Generator

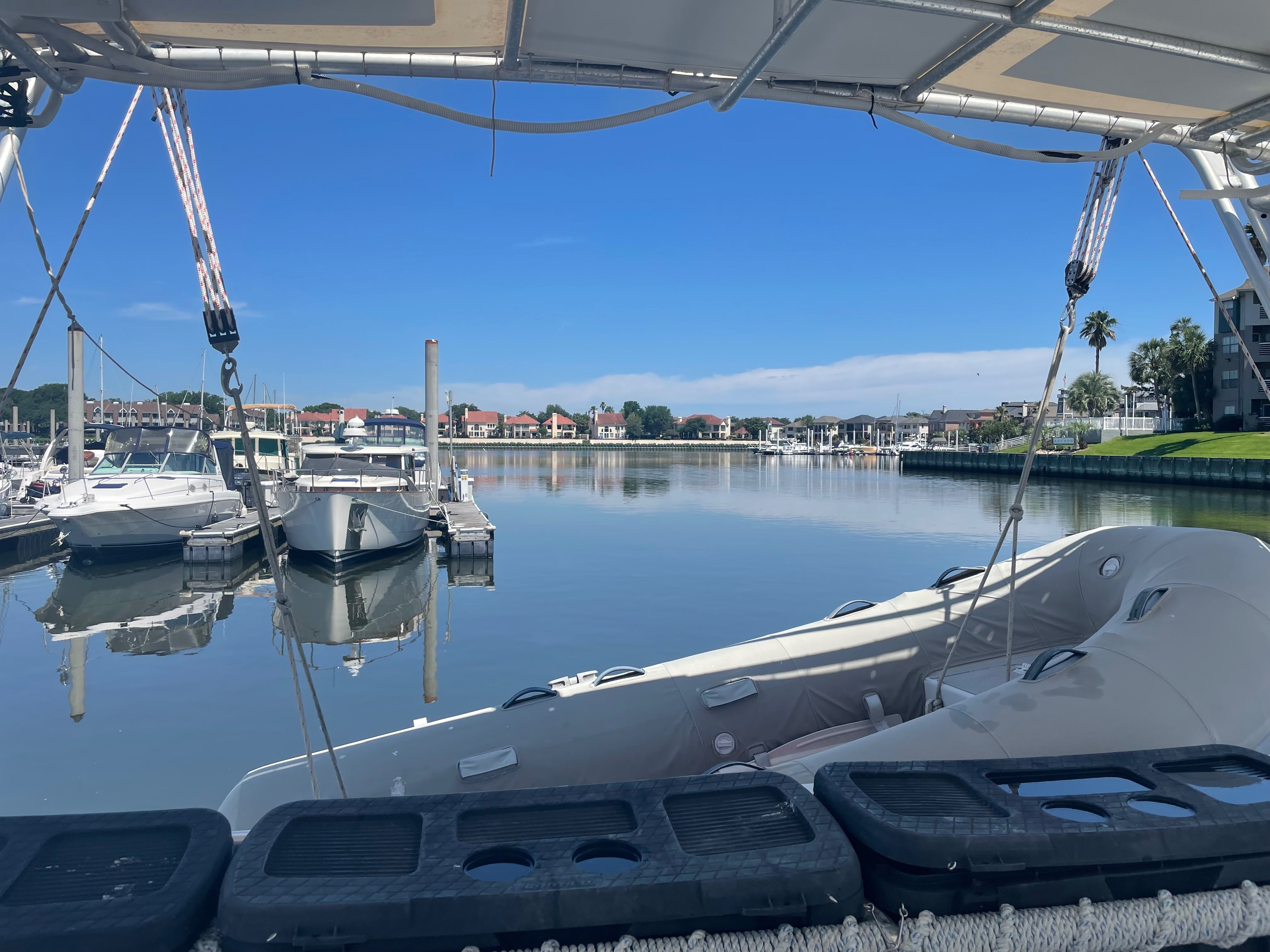

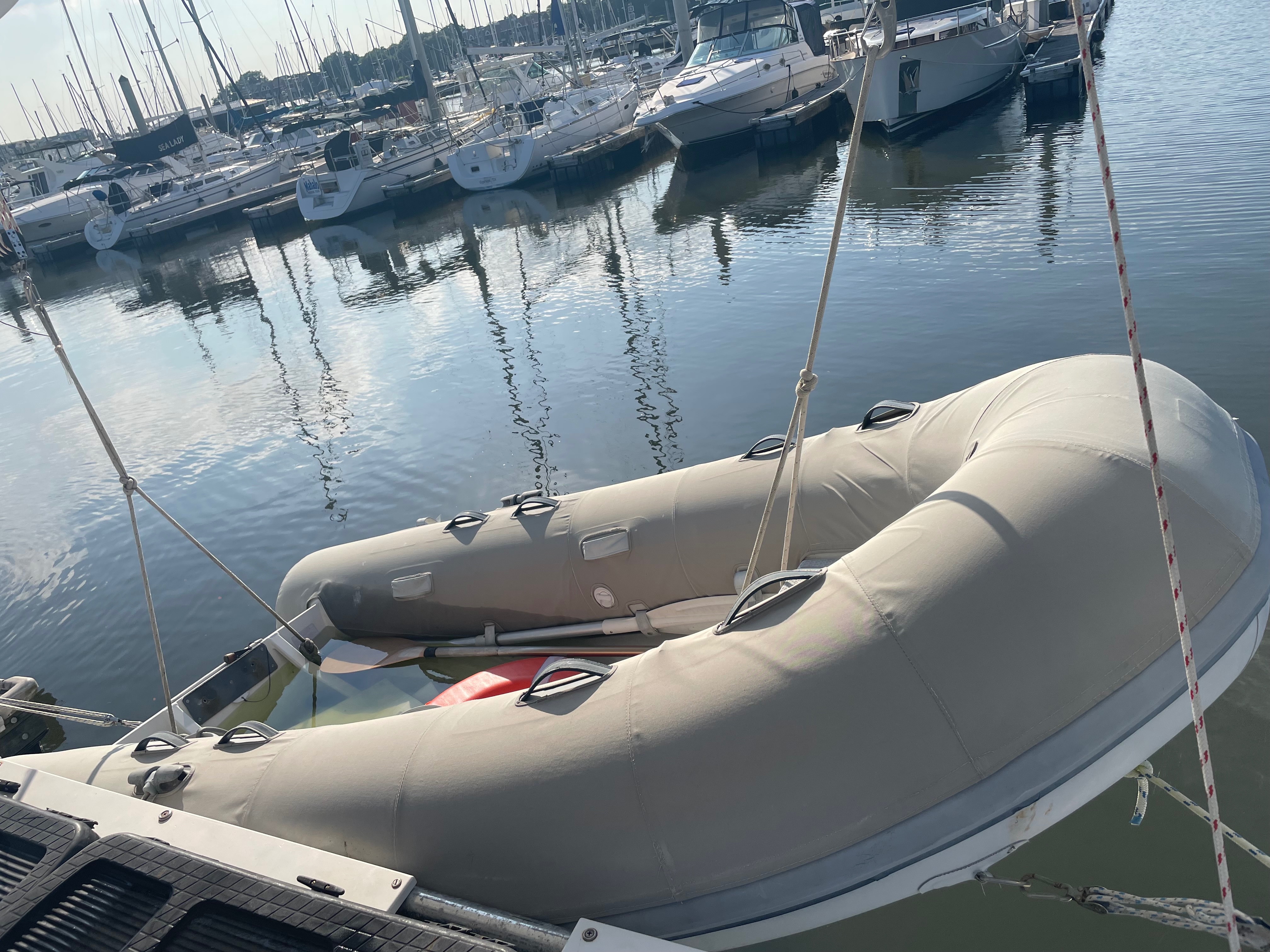

Tender
3x 250W Solar Panel

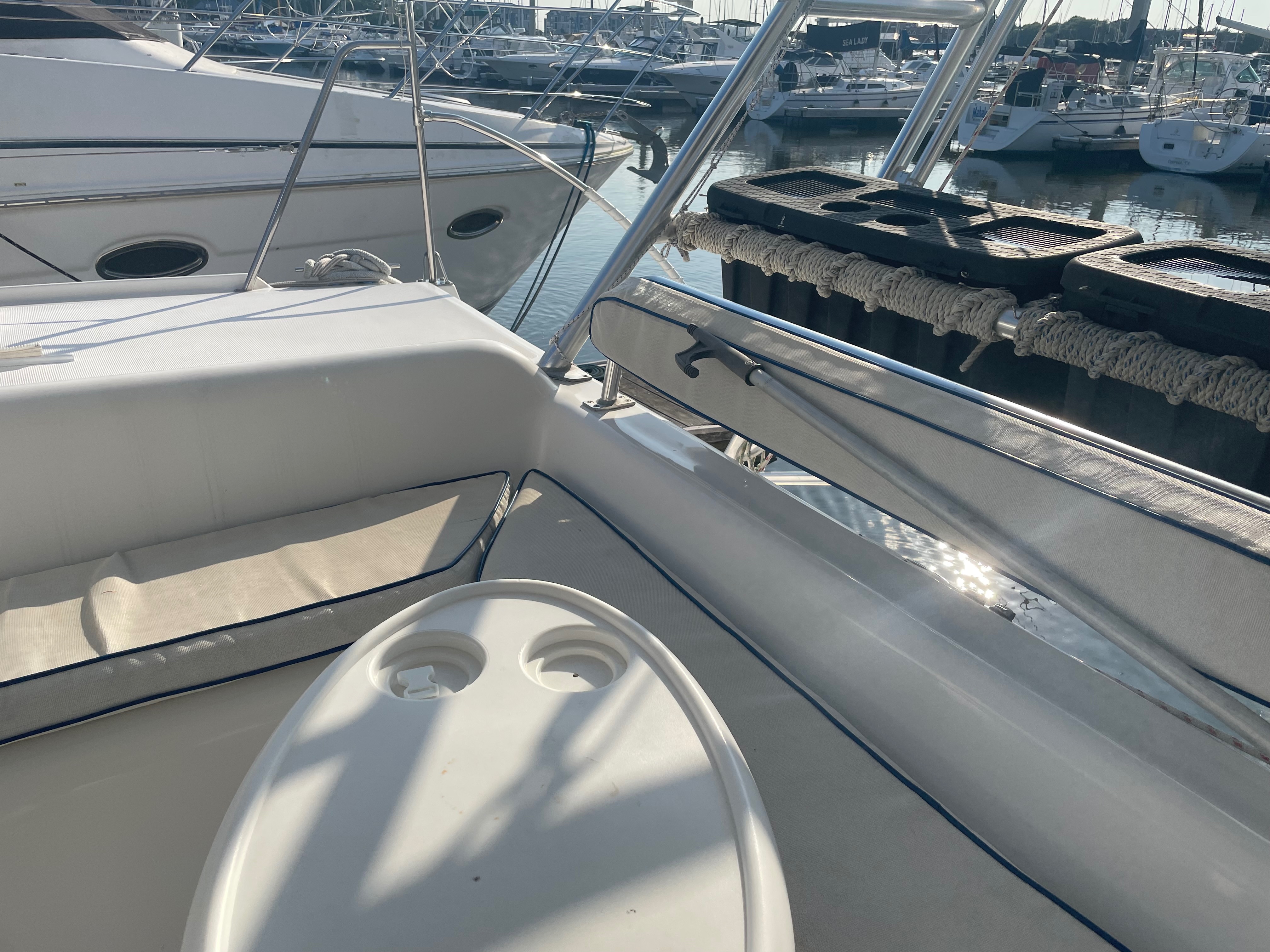

Cockpit Cushions
Cockpit Table
Swimming Ladder

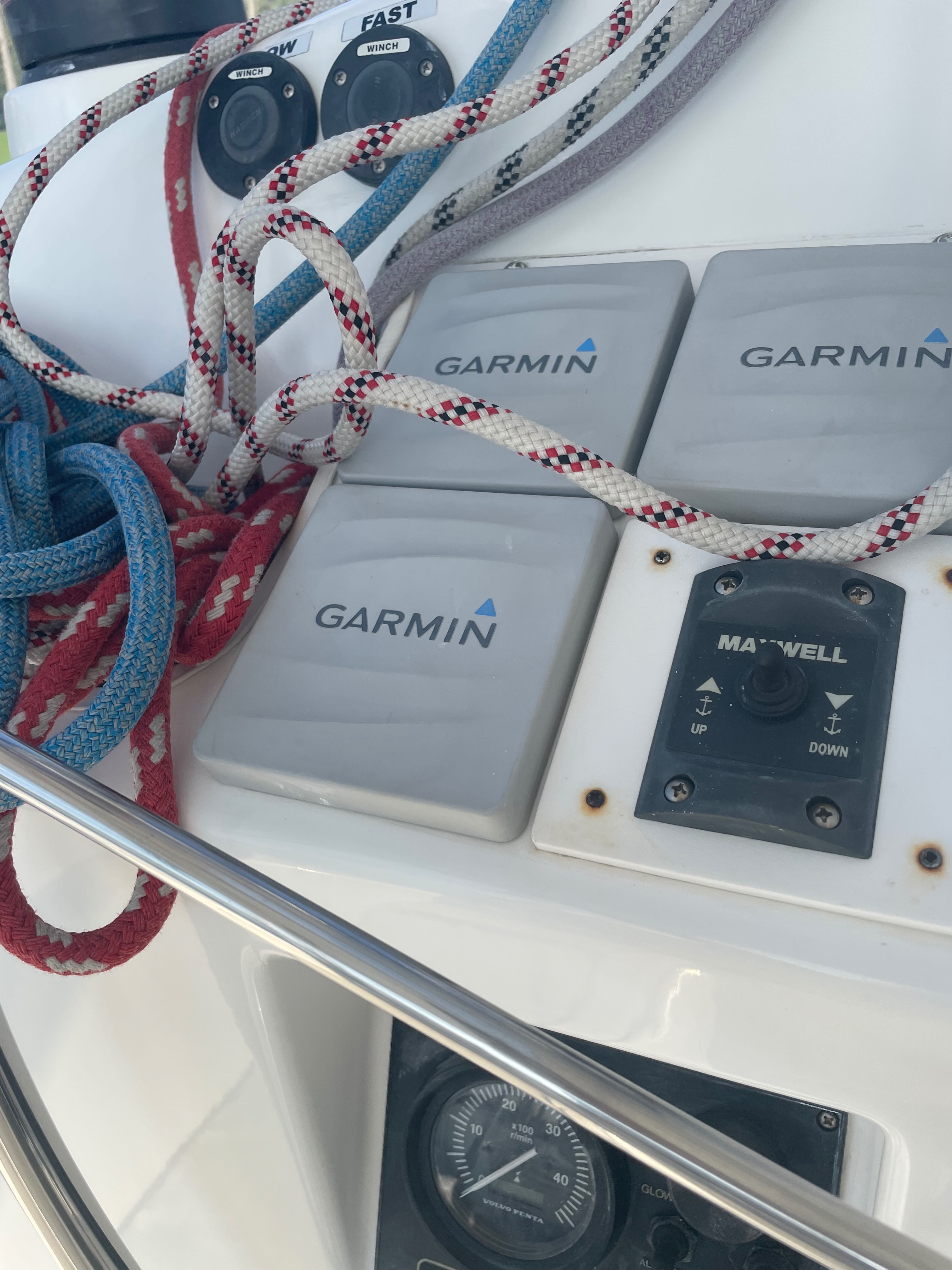

Electronics & Navigation
Navigation:
NMEA2000 network
Chart plotter – Garmin GPSMAP 742XS
Garmin Electronic Charts included!
VUS513L – Jacksonville – Bahamas G3 Vision Charts
HXUS030R Southeast Caribbean G3 Charts
AIS – Garmin AIS600 with dedicated Garmin GPS Antenna
Autopilot- Garmin GHP Reactor and GHC20
Radar — Garmin GMR HD18 Radar Dome
VHF — Standard Horizon GX2100 AIS Radio with Ram3+ Mic.
SSB — ICOM IC-M802 SSB with ICOM auto tuner and starboard shroud antenna
GNX20 readout displays
Airman D200 Depth transducer
Fusion Marine Stereo which can be controlled from chart plotter
+EPIRB, handheld VHF radio, paper charts for ALL Caribbean with all hand held compass and
hand navigation tools included
Samsung 10” A6 tablet + waterproof case + helm mount arm included to run Avionic on New
2021
Masthead LED Tri Color for at anchor and sailing
Front facing streaming + deck light
LED Nav lights on bow seats for motoring/sailing
Electronics:
Depthsounder
Radar
Wind Speed and Direction
Repeater(s)
Navigation Center
Plotter
Autopilot
Radio
Compass
GPS
Cockpit Speakers
VHF
Electrical, Power & Plumbing
Electrical Equipment:
Shore Power Inlet
Generator
Inverter
Sails & Rigging
Rigging:
Steering Wheel
Electric Winch
Sails:
Fully Battened Mainsail
Battened Mainsail: 2 reef points.
Genoa
Additional Information
New Upgrades:
New US Spars mast, boom and vang installed by FKG Rigging in Saint Maarten
New 2021 North Sails main and jib sail and mainsail stack pack installed by Tropical Sail Loft
Sint Maarten.
All new 12 mm S/S standing rigging including all deck connections and turnbuckles
All new running rigging. Dyneema Mega Twin07 main, jib and spinnaker halyard and topping
lift.
All new mast electronics—VHF antenna, SSB Shroud Antenna, tricolour masthead light, Garmin
GWIND Wireless instrument, deck steaming light.
New Top Quality Bottom Paint—SeaHawk Island 44+ Harder with Tin boost. 2 full coats
New S/S lifelines
New 6 x Trojan T105+ 220ah Deep Cycle batteries
Garmin GPS742XS Chartplotter
Cruisair EDC 16K Air conditioner- new May 2021
Port engine room insulation reinstalled May 2021
New Lewmar Escape Hatch
Harken Electric Winch Motor overhauled.
All new S/S sink faucets and kitchen plumbing
