2025 Lagoon 60

Kemah, TX, US

Lagoon 60 60ft

Kemah, TX, US

...

Chris Block

 Office:215-508-2704
  Mobile:954-300-6411
 chris.block@multihullcompany.com

About

THE SCENERY OF YOUR DREAMS

Step aboard, onto the wide steps of the Lagoon 60! Her inviting aft cockpit instantly reveals its full potential. Life on board has never been so promising.

AWARDS

Design Innovation Awards 2024

British Yachting Awards 2024 - Winner

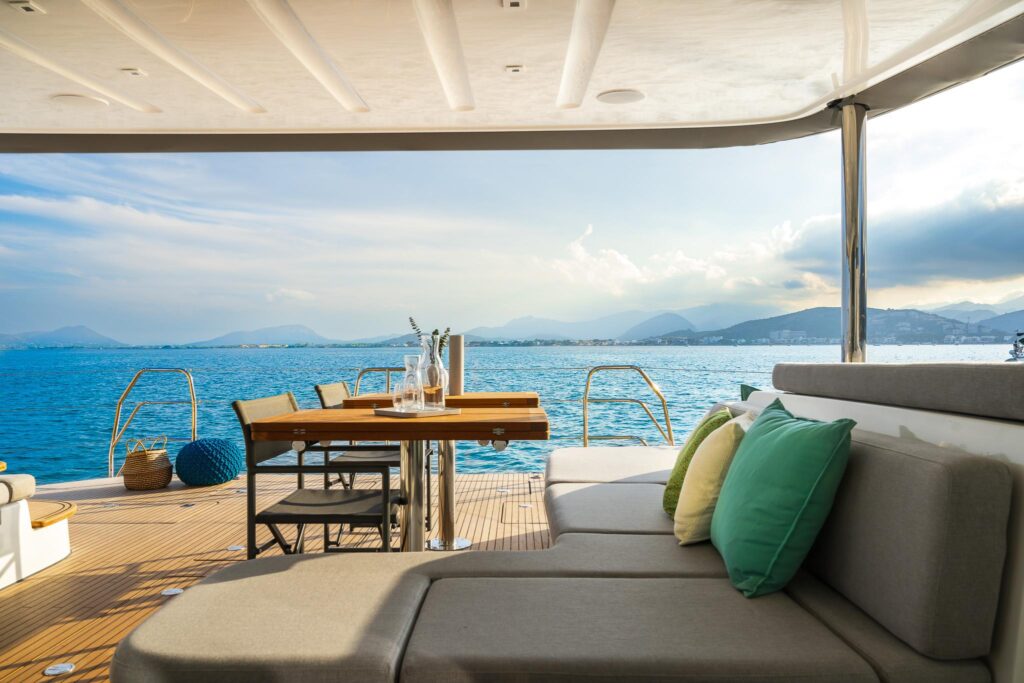

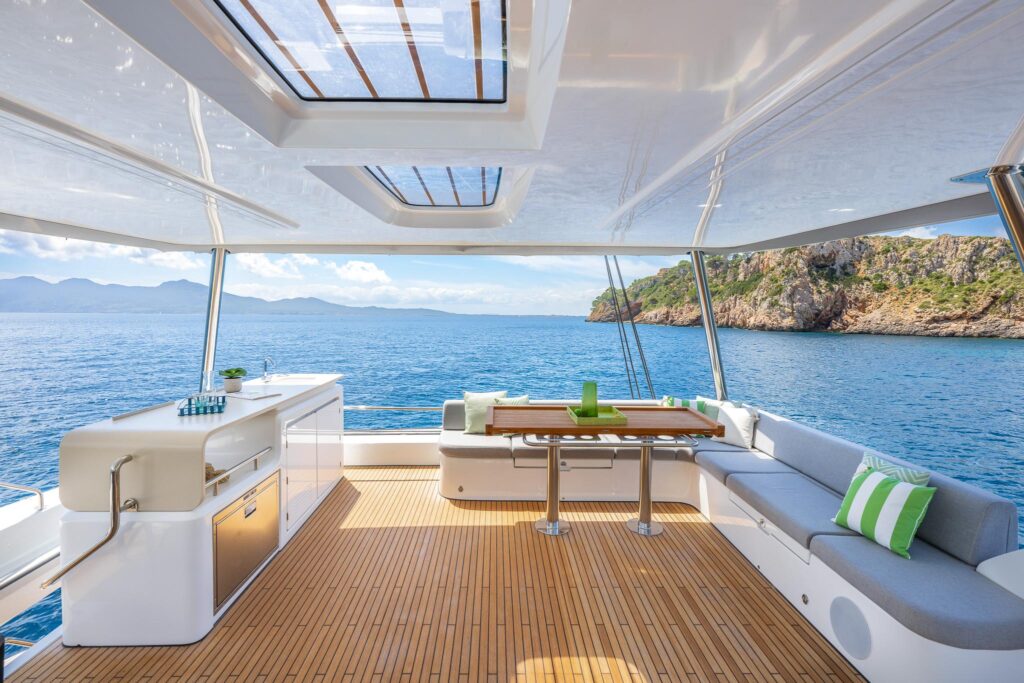

VIEW OF THE HORIZON

Entirely open to the sea, the aft cockpit of the Lagoon 60 affords exceptional freedom of movement. Its opening terraces provide immediate access for swimming. Designed to become your favorite living space, the aft cockpit benefits from the safety and ease of access of gently angled steps.

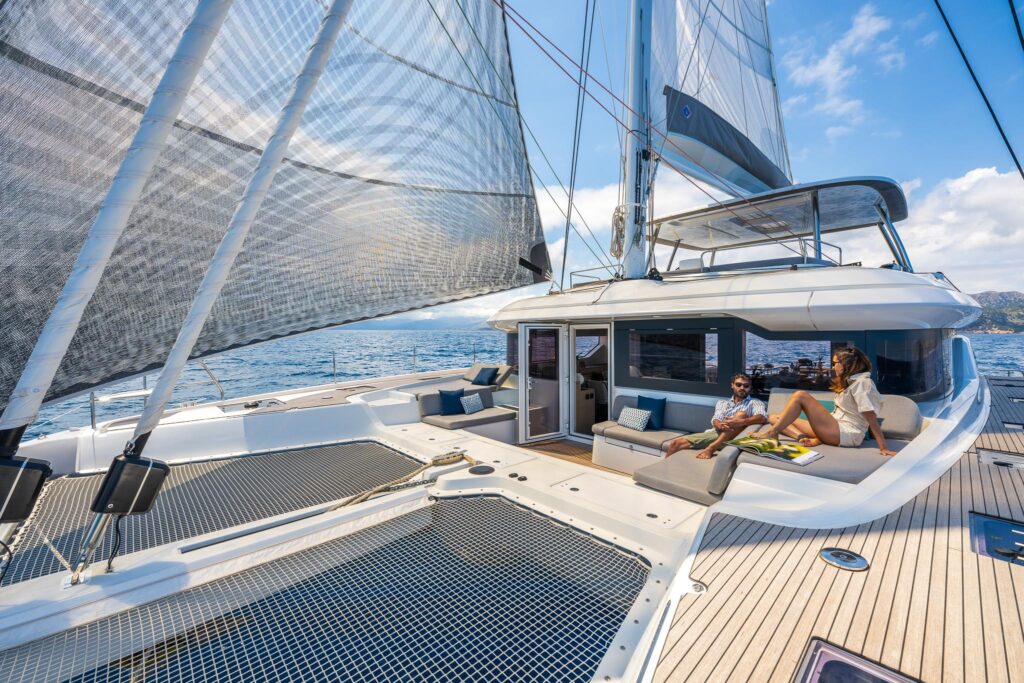

FLUID MOTION

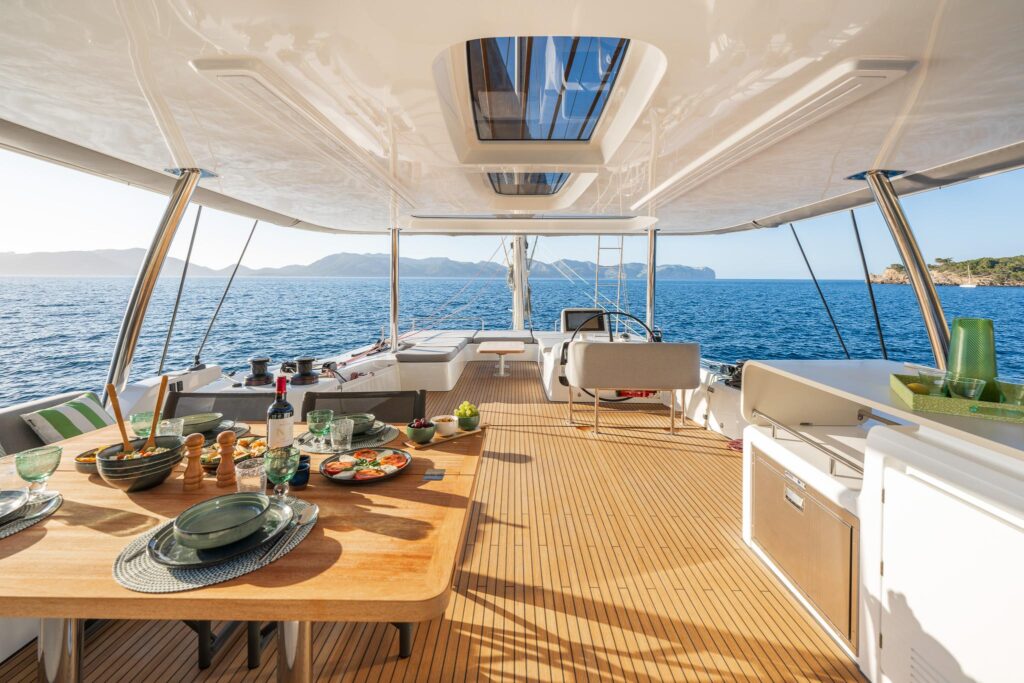

Accessed by a door forward of the saloon, and with flush flooring, the vast forward cockpit offers a comfortable, inviting space for relaxation. Upon entering each living space, you are greeted with a panoramic view. Movement about the catamaran is fluid, without obstacles.

"A vast forward cockpit, flush with the saloon, reinforces the harmony between interior and exterior living spaces." VPLP Design

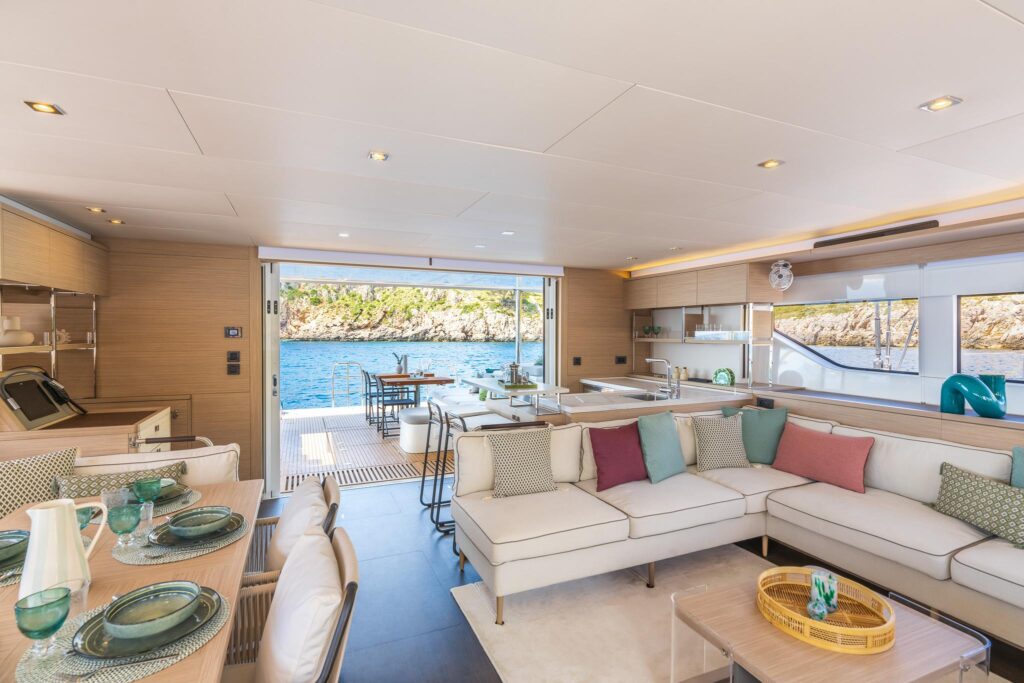

CONNECTION AND INVITING LIVING SPACES

Modular, spacious, and turned toward the exterior, the saloon is adaptable to suit all preferences. Available in versions with a galley or a bar, it benefits from abundant natural lighting, with large vertical windows.

Specifications

  • Length: 60ft
  • Builder: Lagoon Catamarans
  • Beam: 32' 5"
  • Year: 2025
  • Hull: Fiberglass
  • Status: Active

View More Specs

SPECS

  • Builder: Lagoon Catamarans
  • Designer: Van Peteghem & Lauriot Prevost
  • Keel: Twin Keel

MEASUREMENTS

  • Length Overall: 59.92 ft
  • Bridge Clearance Measure: 98' 5"
  • Beam Measure: 32' 5"

ENGINE(S)

  • Total Power: 300
  • Engine Brand: Yanmar
  • Engine Model: 4LV150
  • Engine Type: Inboard
  • Engine/Fuel Type: Diesel
  • Engine Power: 150 hp

  • Total Power: 300
  • Engine Brand: Yanmar
  • Engine Model: 4LV150
  • Engine Type: Inboard
  • Engine/Fuel Type: Diesel
  • Engine Power: 150 hp

TANKS

  • Fresh Water Tanks: 1 (172 Gallons)
  • Fuel Tanks: 2 (172 Gallons)

North American Specifications

ONLY FOR BOATS SOLD IN US

  • 110V electric panel and electric equipment
  • US 110V outlets

Construction

  • Polyester and high quality anti-osmotic resin
  • Hull, deck and coachroof laminated by infusion
  • Balsa core hull and deck, solid laminated under waterline, white gel coat
  • Laminated or glued plywood composite bulkheads

Steering Gear

  • 2 suspended rudder blades
  • Hydraulic steering transmission
  • Emergency tiller

Sails and Rigging

SAILS

  • High roach mainsail in Dacron with battens
  • Genoa in Dacron with UV protective band

STANDING RIGGING

  • Anodized aluminum mast
  • Anodized aluminum boom
  • 2 spreaders rigs
  • Coated shrouds
  • Electric furling forestay for genoa
  • 2 forestay chainplates and 1 shroud chainplates
  • Adjustable lazy-jacks

RUNNING RIGGING

  • Mainsail halyard
  • Genoa halyard
  • Mainsheet
  • 2 genoa sheets
  • 3 reefing lines
  • Genoa furling line
  • Mainsail traveler on electric furler
  • Boom uphaul
  • Mainsheet fuse

Hardware

  • 3 manual winches size 70.2 STA
  • 1 electric winch size 70.2 STA
  • Footblocks & clutches for halyards, reefing lines and sheets
  • Genoa car on port and starboard
  • Anodized aluminum crossbeam with fixing point for the genoa forestay

Mooring

Composite longitudinal crossbeam with integrated chain run and mooring cleat

10 mooring cleats

3000W / 24V electrical windlass with vertical axis, chain 14 mm

Engines

  • 2 diesel engines YANMAR 4LV150 150CV SailDrive
  • Fixed 4-blade propeller
  • Sea water filter
  • Electrical engine throttles at the helm station
  • Engine compartment ventilation: 24V electrical extraction in the aft transom
  • Fuel circuit:
    • 2 tanks of de 650L / 172 US gal
    • Fuel filter systems
    • Fuel shut off valve
    • Gauge at the general control panel on touch screen

Plumbing

FRESH WATER CIRCUIT

  • Fresh water tank: 960L with gauge at the chart table
  • Fresh water circuit with 1 main water group 36L/mn
  • 4 and 5-cabin version: 2 water heaters 80L / 16 US gal water heater, 220V engine exchanger

GREY WATER CIRCUIT

  • Grey water drainage cockpit and salon direct to the sea
  • Shower and sink draining integrated into shower tray composite. Dedicated unitary pump.

BLACK WATER CIRCUIT

  • Black water holding tanks:
    • 4-cabin version: 4 x 110L + 50L (forward peak)
    • 5-cabin version: 5 x 110L + 50L (forward peak)
  • Tank drain by gravity or deck plate
  • Electric toilet freshwater

BILGE PUMP CIRCUIT

  • 1 manual bilge pump per hull
  • 1 automatic pump per forward peak
  • 1 automatic and electric bilge pump in each engine compartment
  • Connection of the engine compartments and forepeaks to the main pump and sump
  • Bilge pump management on general control panel
  • Self-draining cockpit compliant with CE certification

Electrical

  • Seanapps connectivity – Battery voltage and GPS position on mobile app

DC PPOWER CIRCUIT 24V

  • 2 engine batteries 50Ah (AGM)
    • 1 dedicated charger 25A
    • 2 alternators 12V – 130A
    • Battery shutoff switch in each engine compartment
  • 6 service batteries 210Ah (Gel)
    • 2 alternators 24V – 110A
    • Battery shutoff switch in each engine compartment

ELECTRIC DISTRIBUTION PANEL

  • 24V general distribution panel
  • USB socket 24V included in the electrical panel and helm station
  • Navicolor screen

220V AC CIRCUIT

  • Inverter 24/220V 50Hz 5000VA

LIGHTING

  • LED interior lighting and reading lights
  • Lighting in engine compartment
  • LED navigation lights

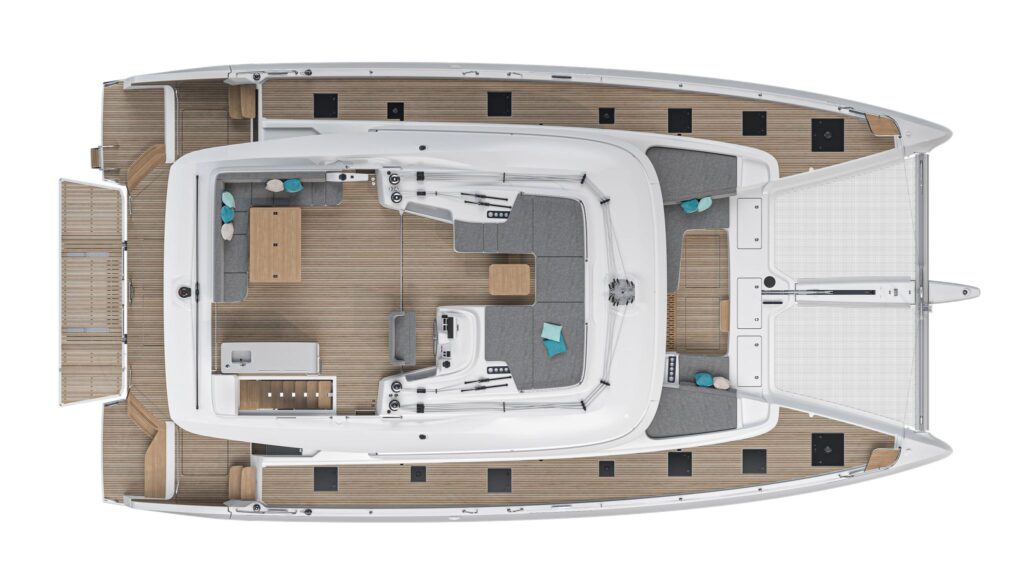

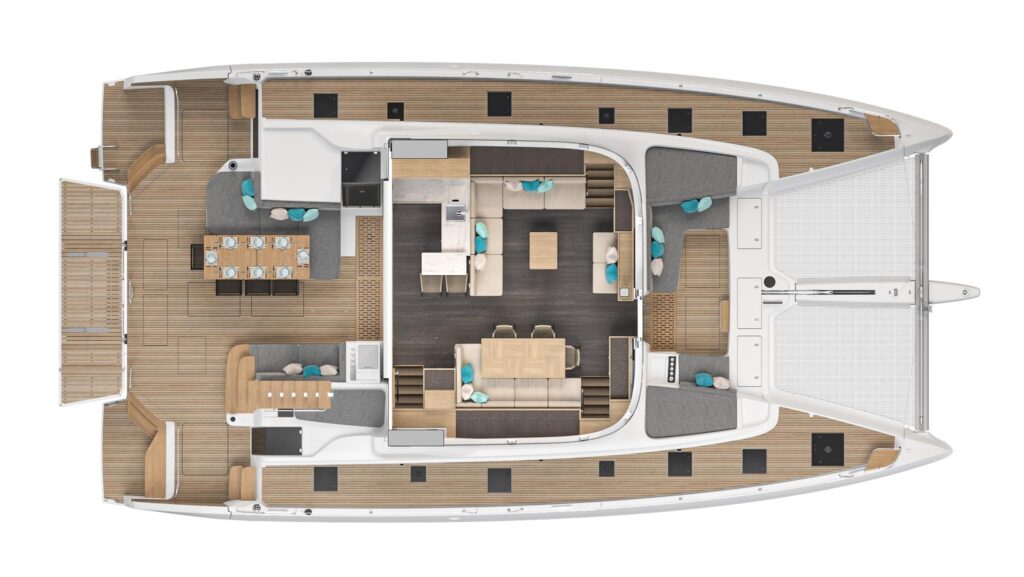

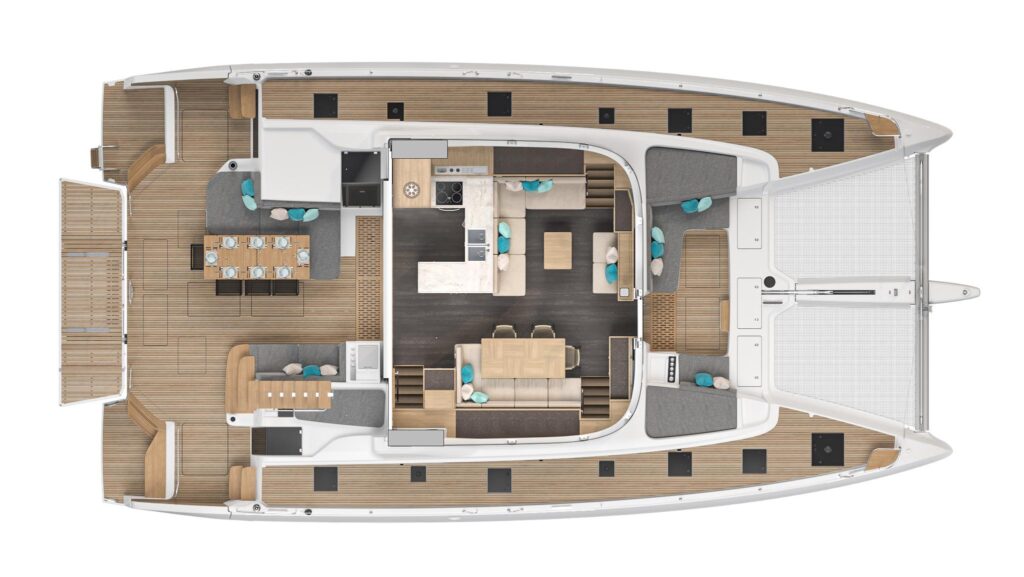

Deck Layout

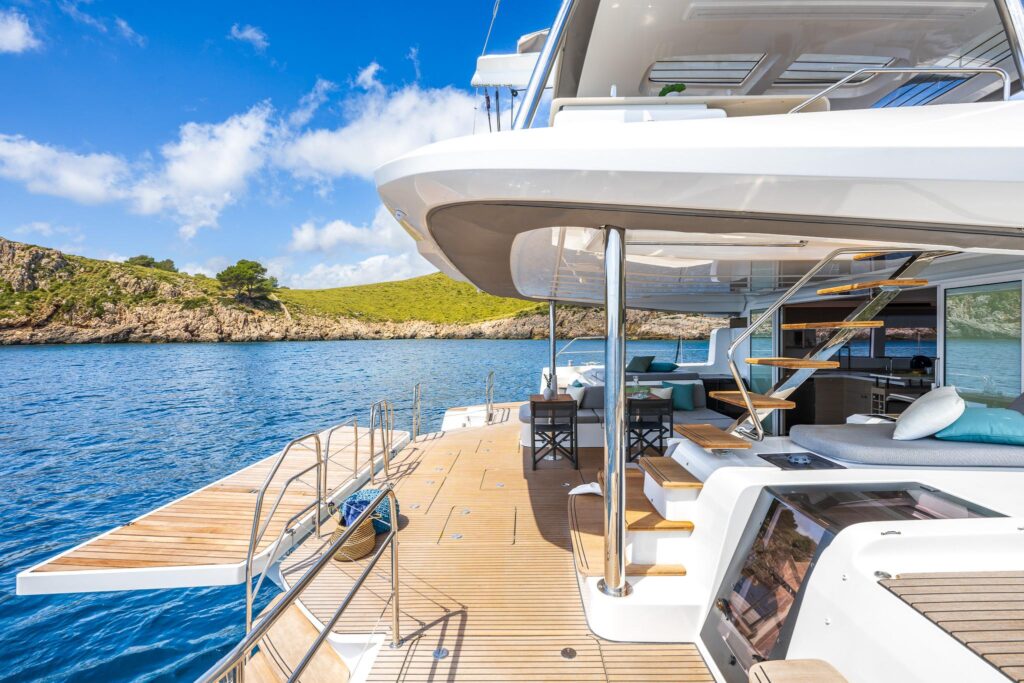

TRANSOM

  • Hot/cold deck shower on portside
  • S/S telescopic swim ladder with fixed handles on portside

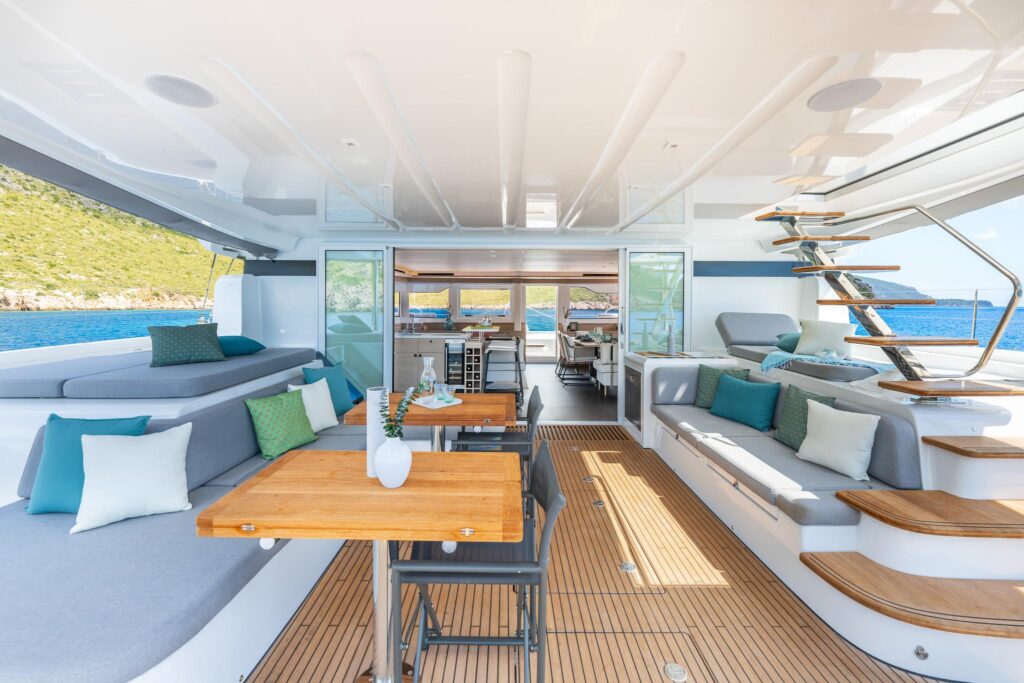

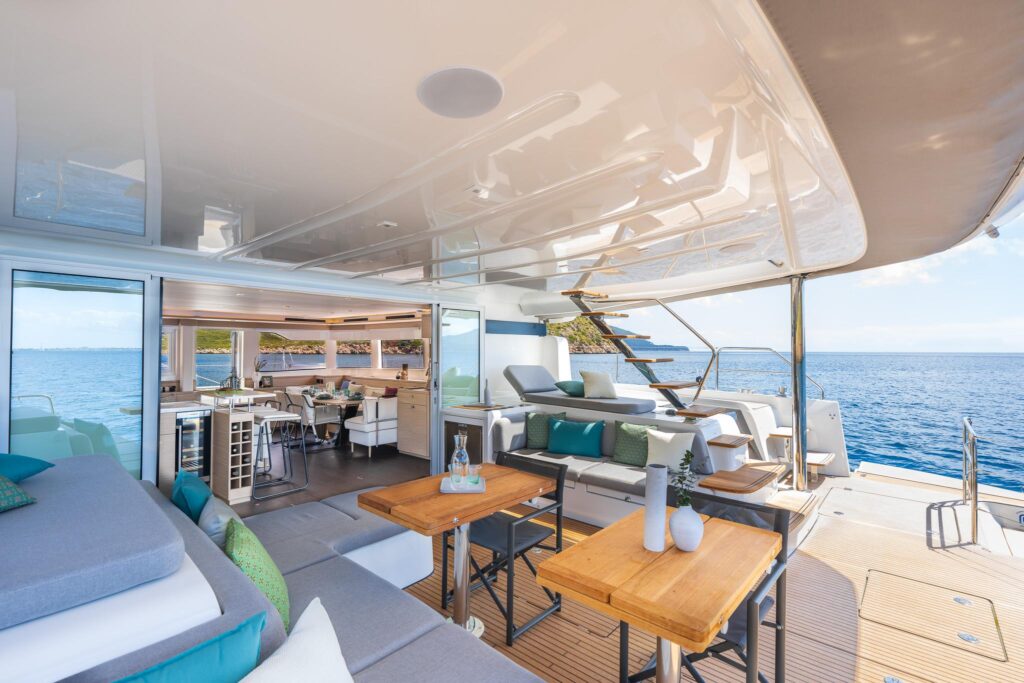

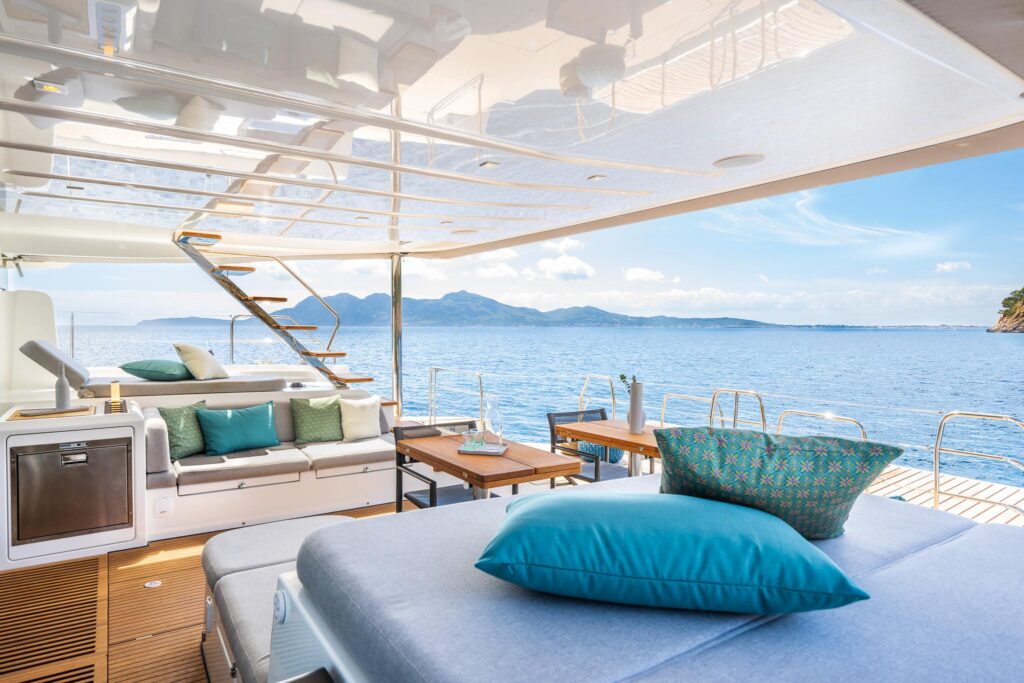

AFT COCKPIT

  • Seating and lounging area on port and starboard sides
  • Polyester cockpit table
  • Exterior furniture on starboard:
    • Chopping board
    • Tray and cup holder
    • Door with shelves
  • Cockpit flush-decked with saloon
  • Non-slip cockpit floor
  • Self-draining cockpit with wooden grating

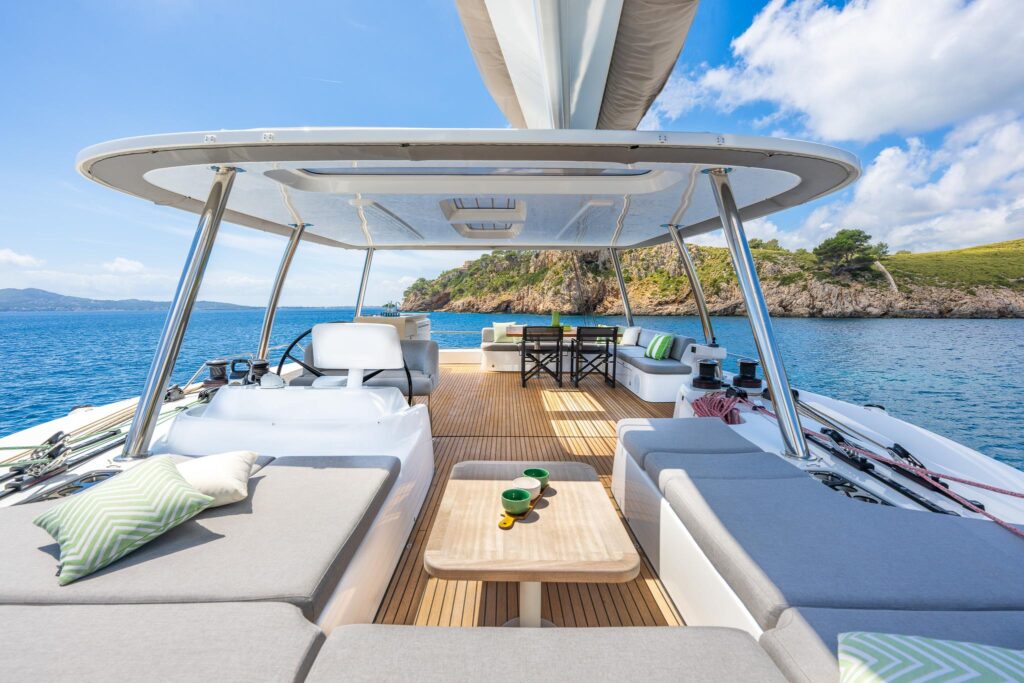

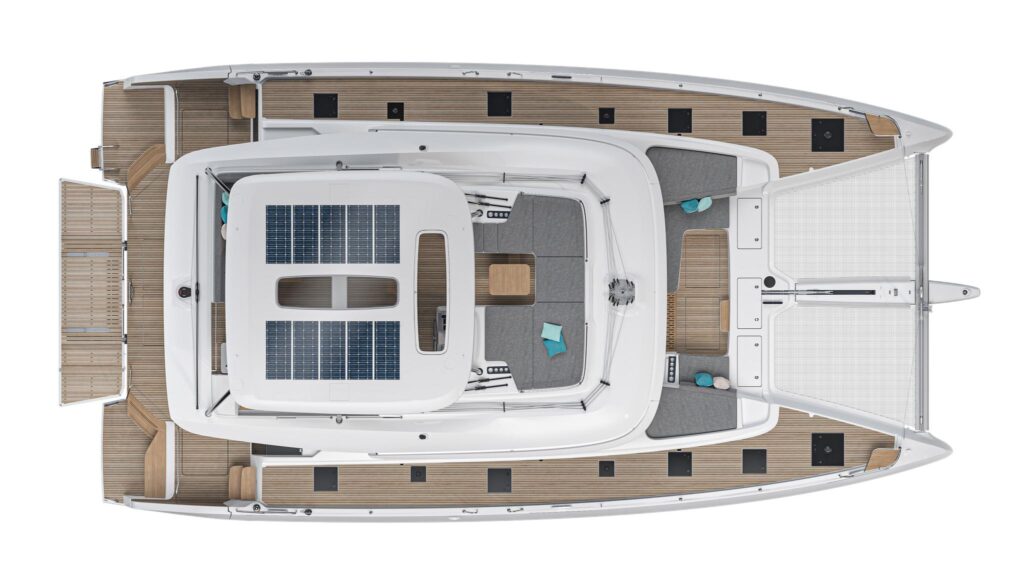

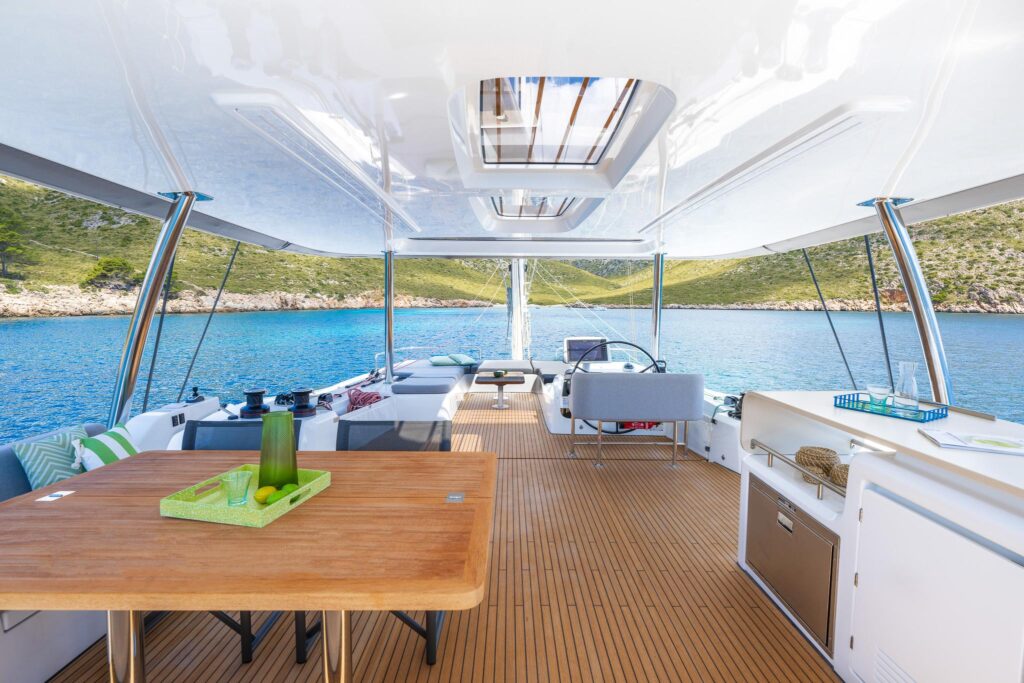

FLYBRIDGE

  • Stairway access from cockpit on starboard
  • Double helm seat
  • L-shaped seating area with storage lockers
  • Sunbathing area aft and forward of flybridge
  • Steering wheel 900mm
  • Engine throttles and panel
  • Console for screen and instrumentation
  • Storage bag for halyards

FORWARD COCKPIT

  • U-shaped seating and sunbathing area
  • Nylon netting

BOW LOCKERS

  • Access through LEWMAR T70 deck hatches
  • Grey non-slip floor
  • LED lighting

STANCHIONS AND LIFELINES

  • Pushpits: H850 mm / 29
  • Stanchions and forward pushipts: H700 mm / 24
  • Double S/S lifelines

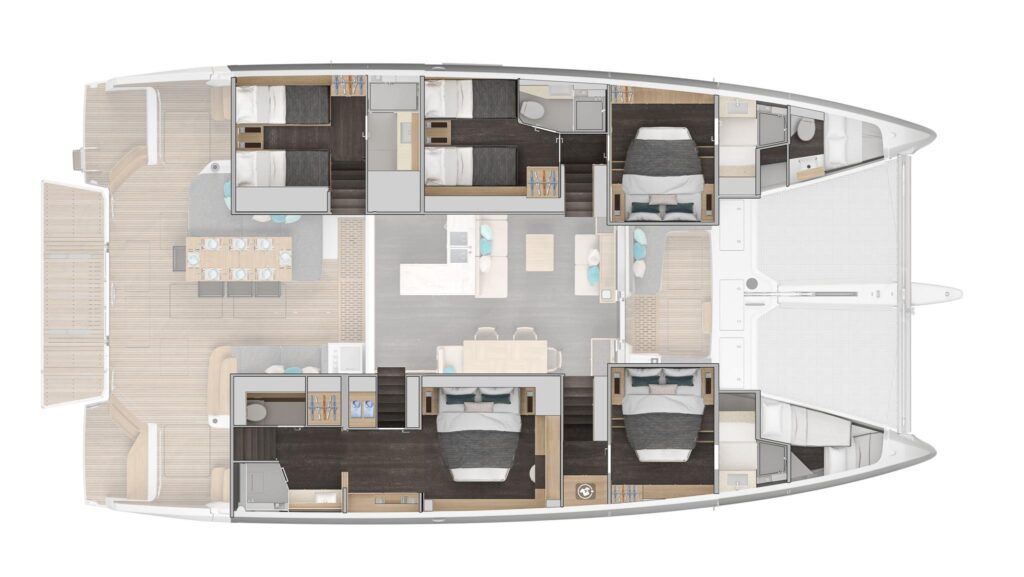

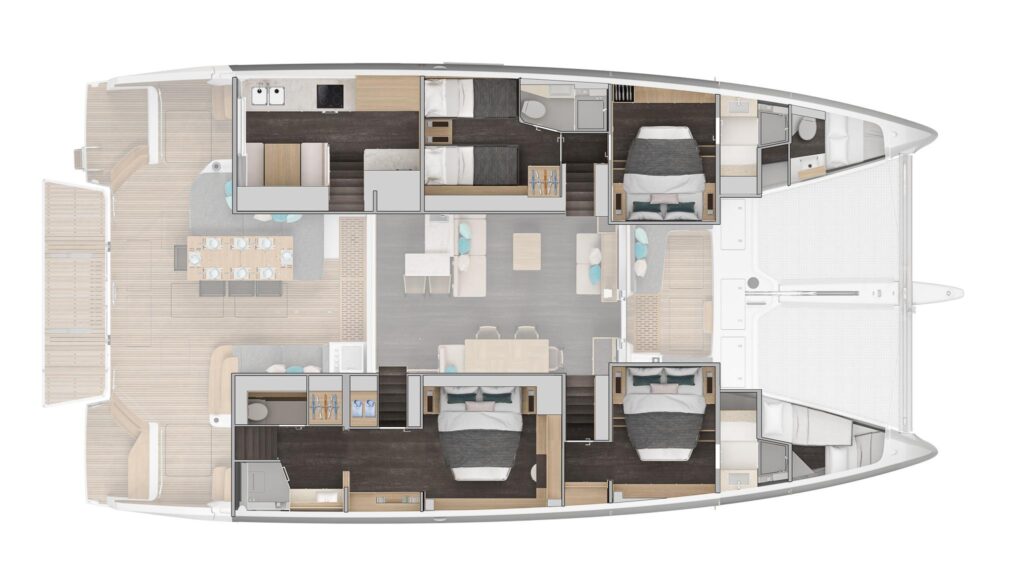

Interior Layouts

GENERAL

  • Construction in Alpi Sand Oak UV finish plywood, horizontal grain
  • Laminated floor: Dark Oak
  • 100% recycled upholstery, adapted to the marine environment
  • PVC foam ceiling, upholstered plywood linings
  • Eco-Cleaning Pack
  • Furniture interiors in Alpi Sand Oak UV finish

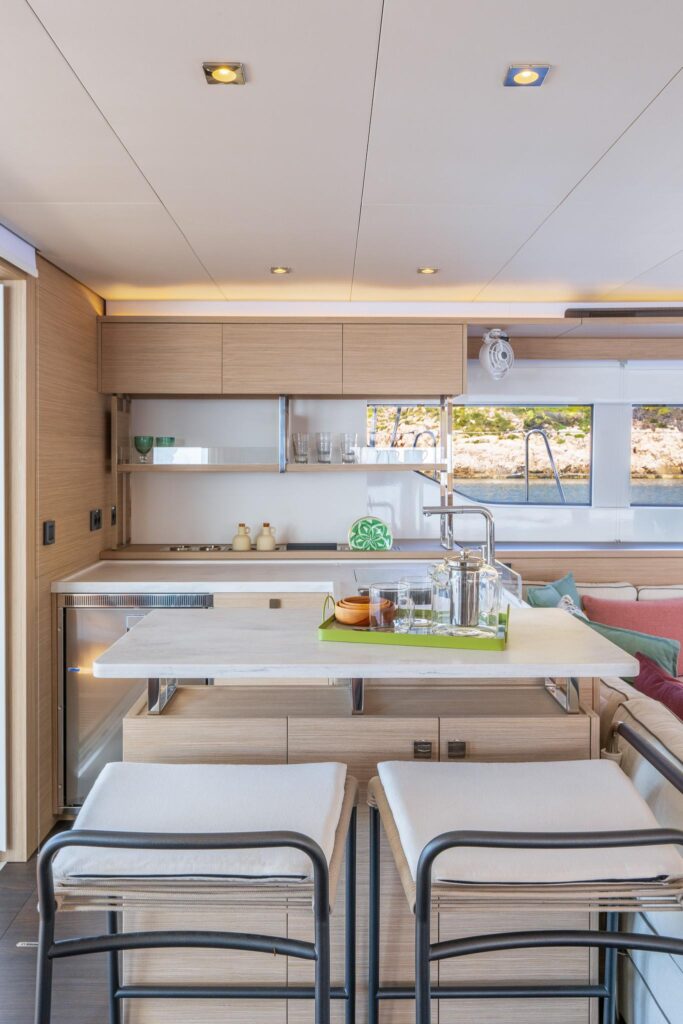

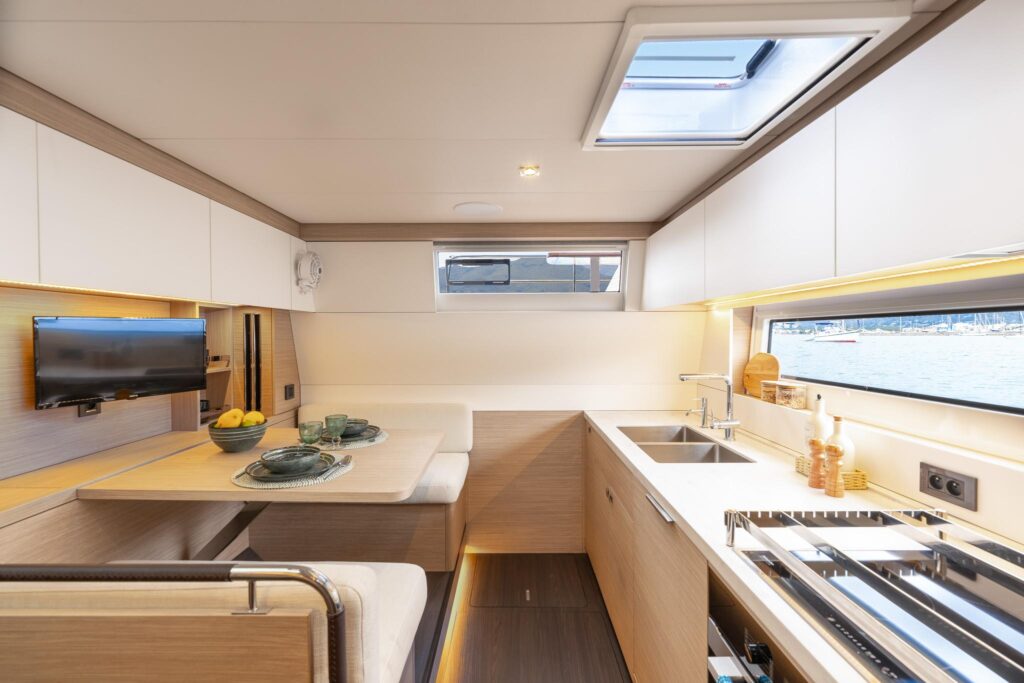

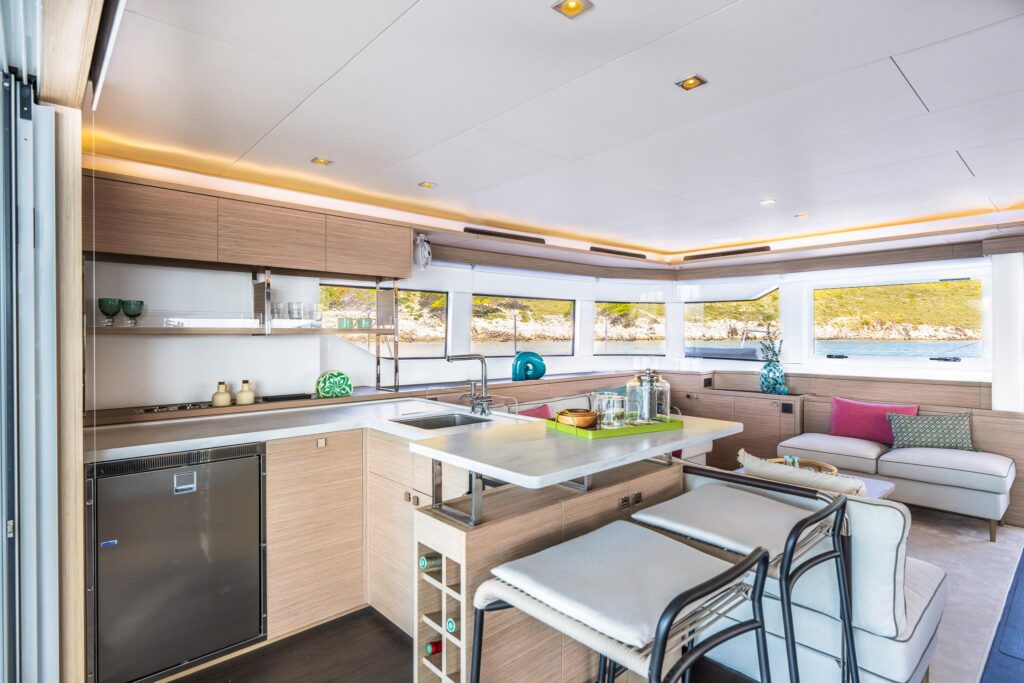

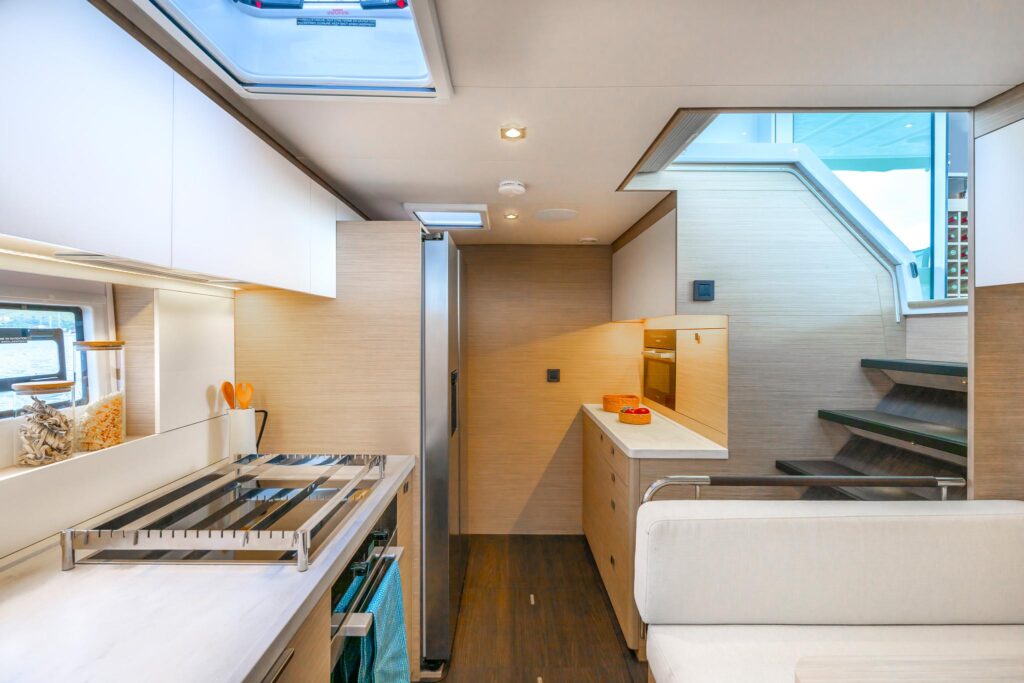

LATERAL GALLEY 4-CABIN VERSION

  • Direct access from the aft cockpit
  • Corian countertop
  • S/s sink with Corian cover
  • Hot/cold mixer tap
  • Miele induction cooktop
  • Miele electric oven
  • Bin 42L / 11 US gal
  • Fridge / Freezer 634L / 168 US gal 220V
  • High and low-level storage units

GALLEY 5-CABIN VERSION

  • U-shaped galley
  • Corian countertop
  • S/s sink with Corian cover
  • Hot/cold mixer tap
  • Miele induction cooktop
  • Miele electric oven
  • Bin 50L / 13 US gal
  • Fridge / Freezer 289L / 76 US gal 220V
  • High and low-level storage units

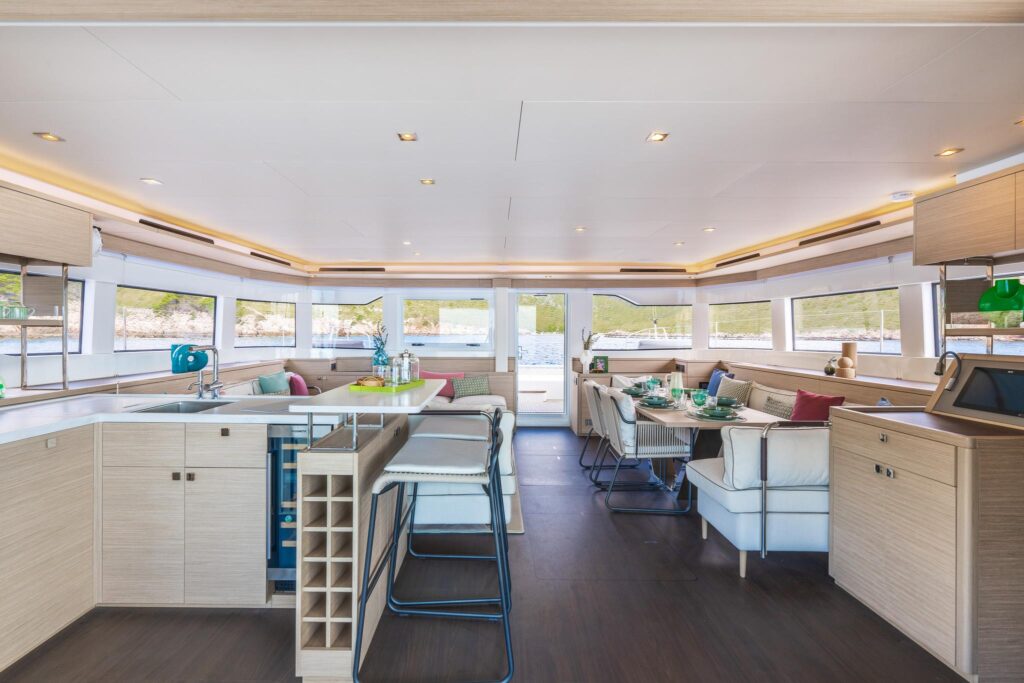

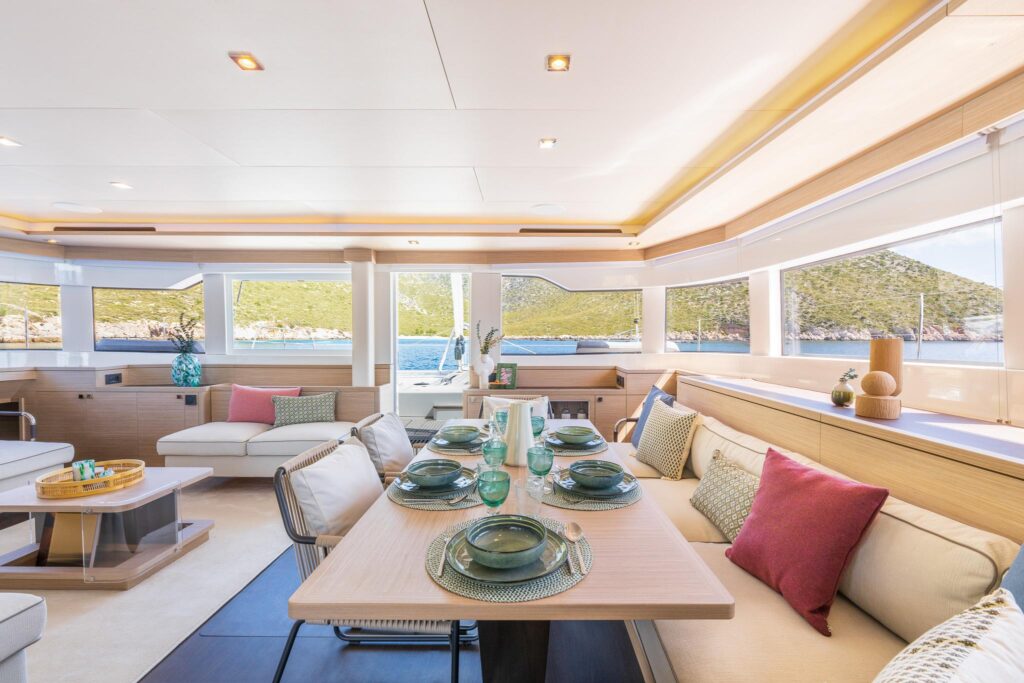

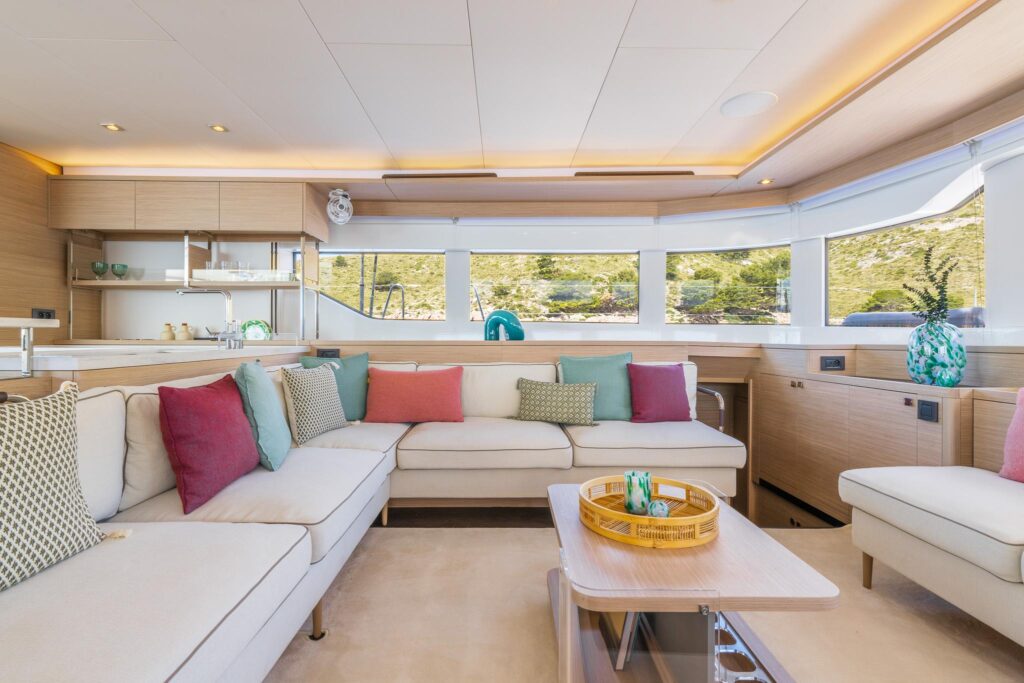

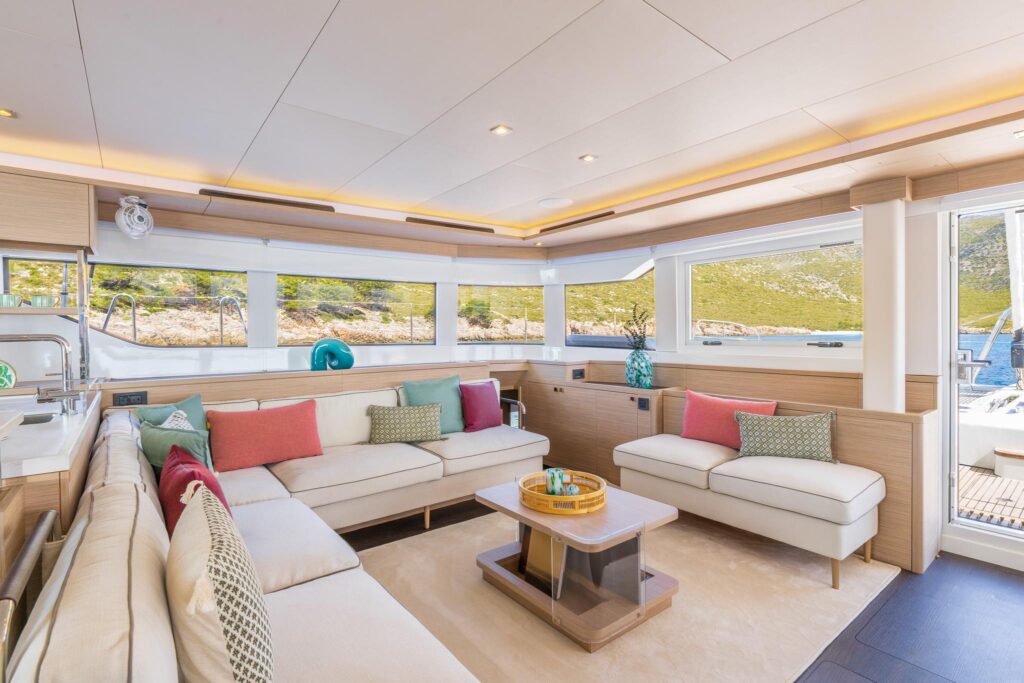

SALON

  • L-shaped benches
  • High and low wooden table
  • Console with navigation instruments on port side
  • High and low storage units and bottle rack
  • 4-cabin version only:
    • Bar unit with Corian worktop

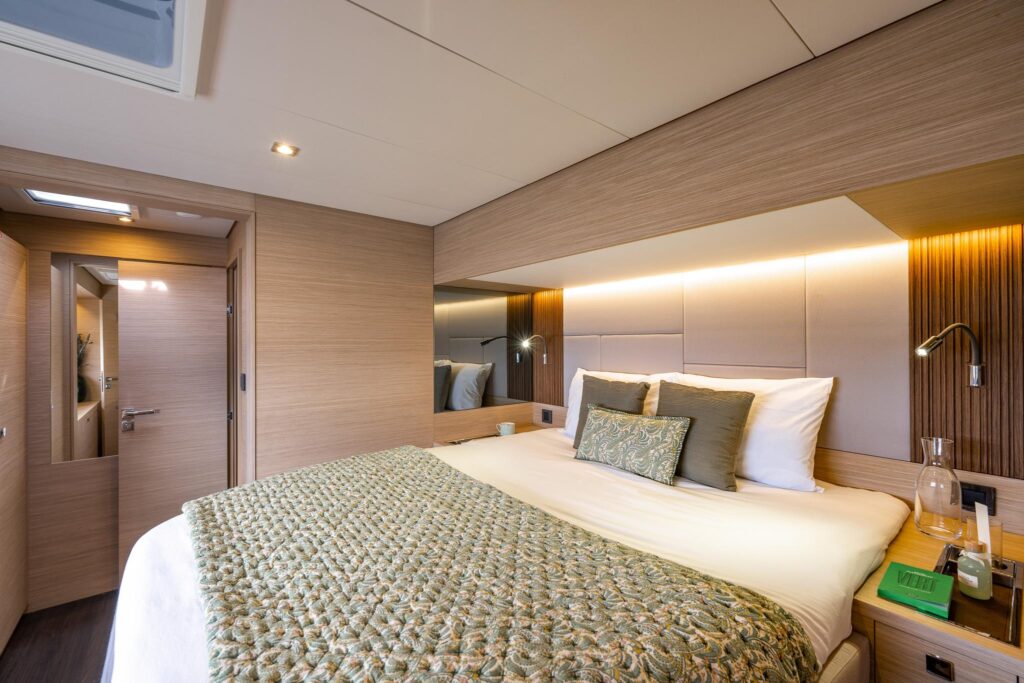

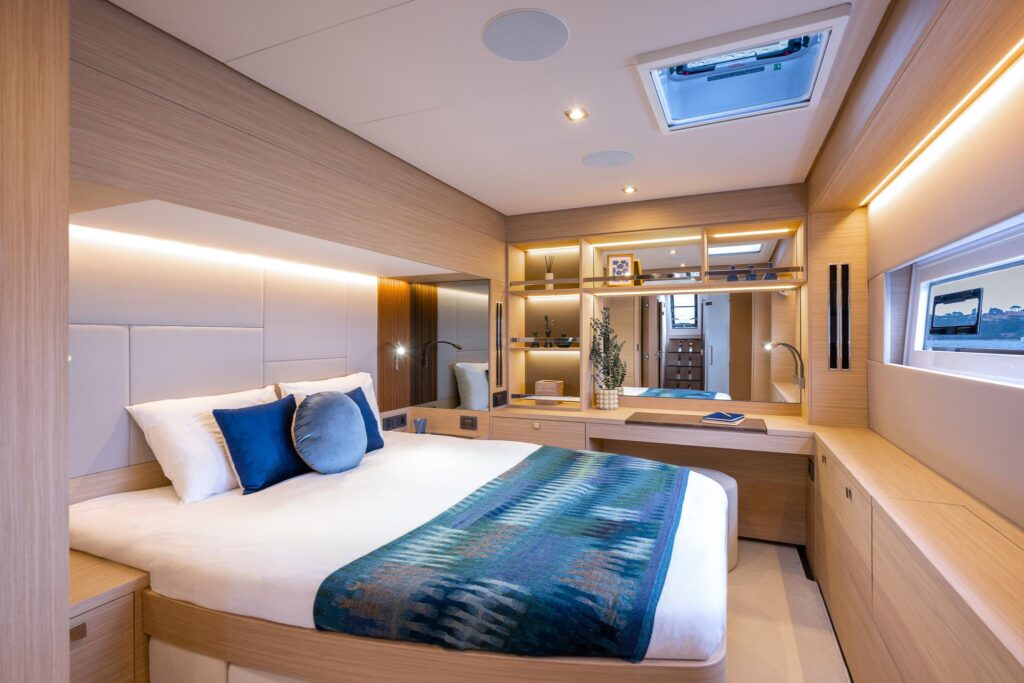

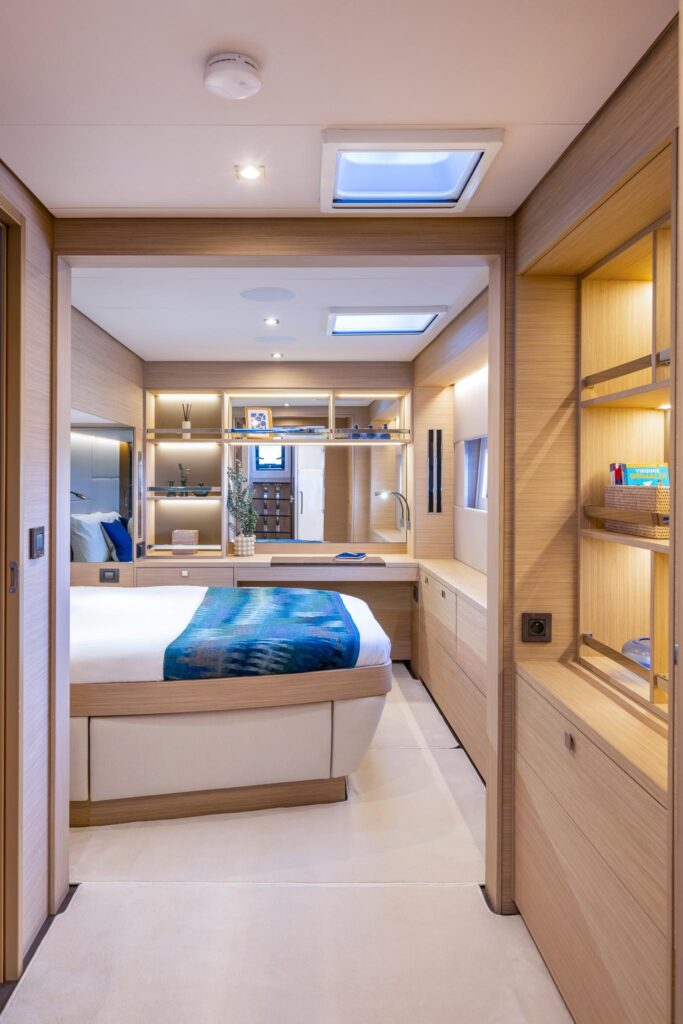

OWNERS CABIN

  • Private access from the aft cockpit
  • Double bed with lateral access (2,00 x 1,70 m / 67 x 57)
  • Treated cellular foam mattress
  • Bedside tables
  • Under bed storage
  • Storage units with shelves, drawers and wardrobe
  • Desk with 1 stool
  • T10 and T44 opening flush deck hatches
  • Fixed hull window in PMMA with integrated opening portholes and roller blinds

OWNERS HEAD

  • Private access from the Owners cabin
  • Corian countertop
  • Integrated sink with hot/cold mixer tap
  • High and low-level storage units
  • Separated shower with PMMA door
  • Separate electric toilet with storage space
  • Panneaux de pont ouvrants flush T10 et T44
  • T44 and T10 opening flush deck hatches
  • Fixed hull window in PMMA with integrated opening porthole and roller blinds

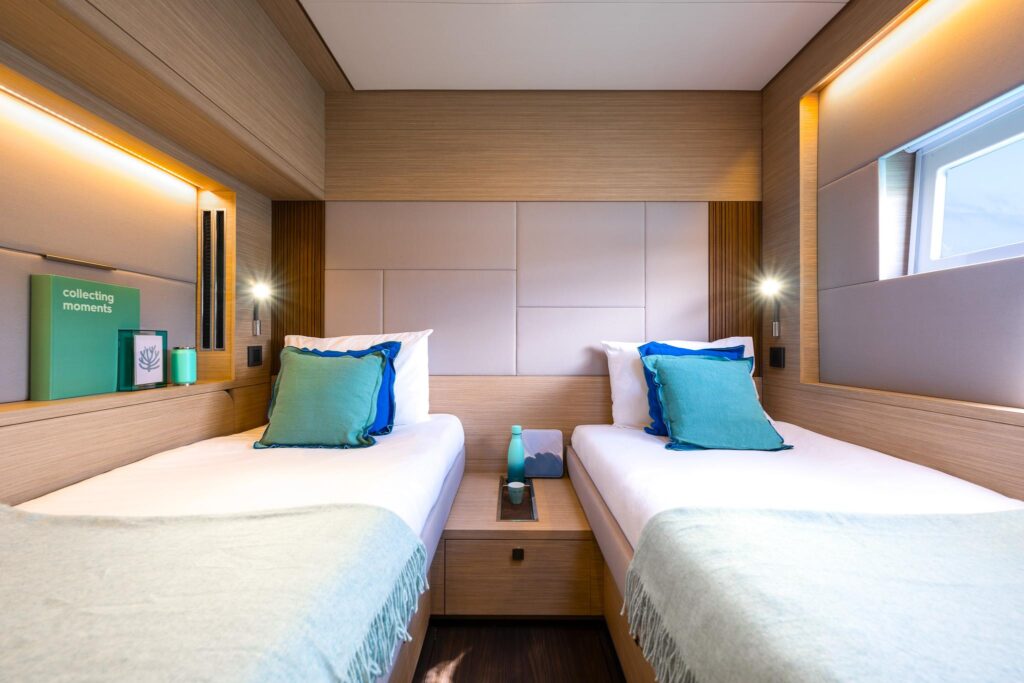

AFT CABINS 5-CABIN VERSION

  • Modular single beds (2,00 x 0,85 m / 67 x 29)
  • Treated cellular foam mattress
  • Bedside table
  • Storage units with shelves and wardrobe
  • T44 and T10 opening flush deck hatches
  • Fixed hull window in PMMA with integrated opening porthole and roller blinds
  • Private access to the dedicated head

LATERAL CABIN

  • Modular single beds (2,00 x 0,85 m / 67 x 29)
  • Treated cellular foam mattress
  • Bedside table
  • Storage units with shelves and wardrobe
  • T44 opening flush deck hatche
  • Fixed hull window in PMMA with integrated opening porthole and roller blinds
  • Private access to the dedicated head

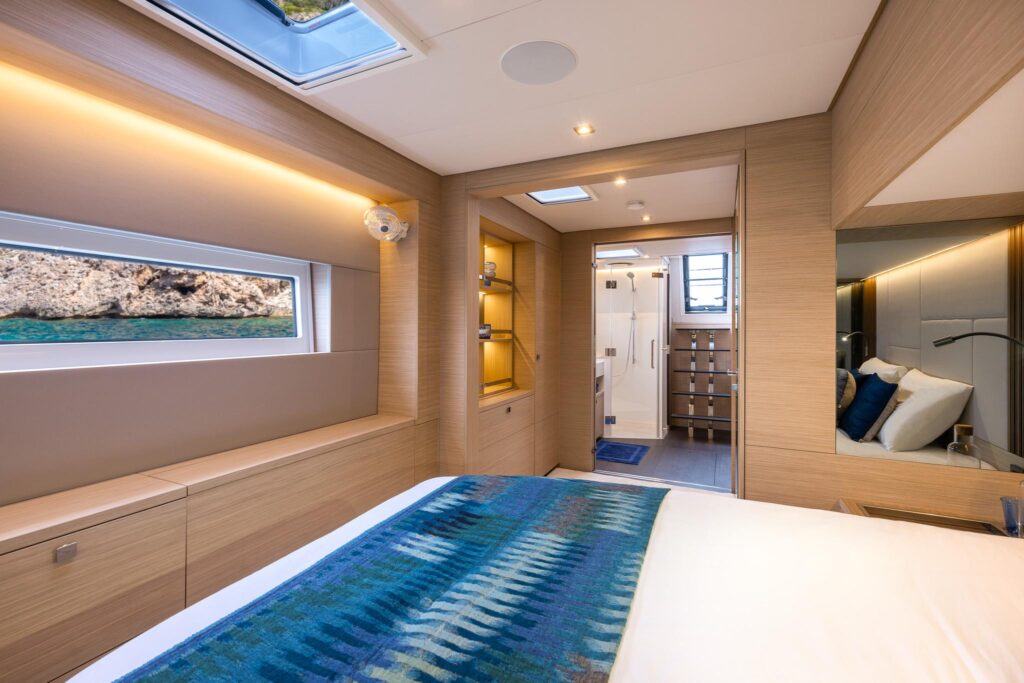

FORWARD CABINS

  • Double bed with lateral access (2,00 x 1,60 m / 67 x 53)
  • Treated cellular foam mattress
  • Bedside shelves
  • Under bed storage
  • Storage units with shelves, drawers and wardrobe
  • T44 and T10 opening flush deck hatches
  • Fixed hull window in PMMA with integrated opening portholes and roller blind
  • Private access to the dedicated head

HEADS

  • Corian countertop
  • Integrated sink with hot / cold mixer tap
  • High and low-level storage units
  • Separated shower with PMMA door
  • Electrical toilet
  • T10 or T44 opening flush deck hatch (depending on the head)
  • Fixed hull window in PMMA

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
