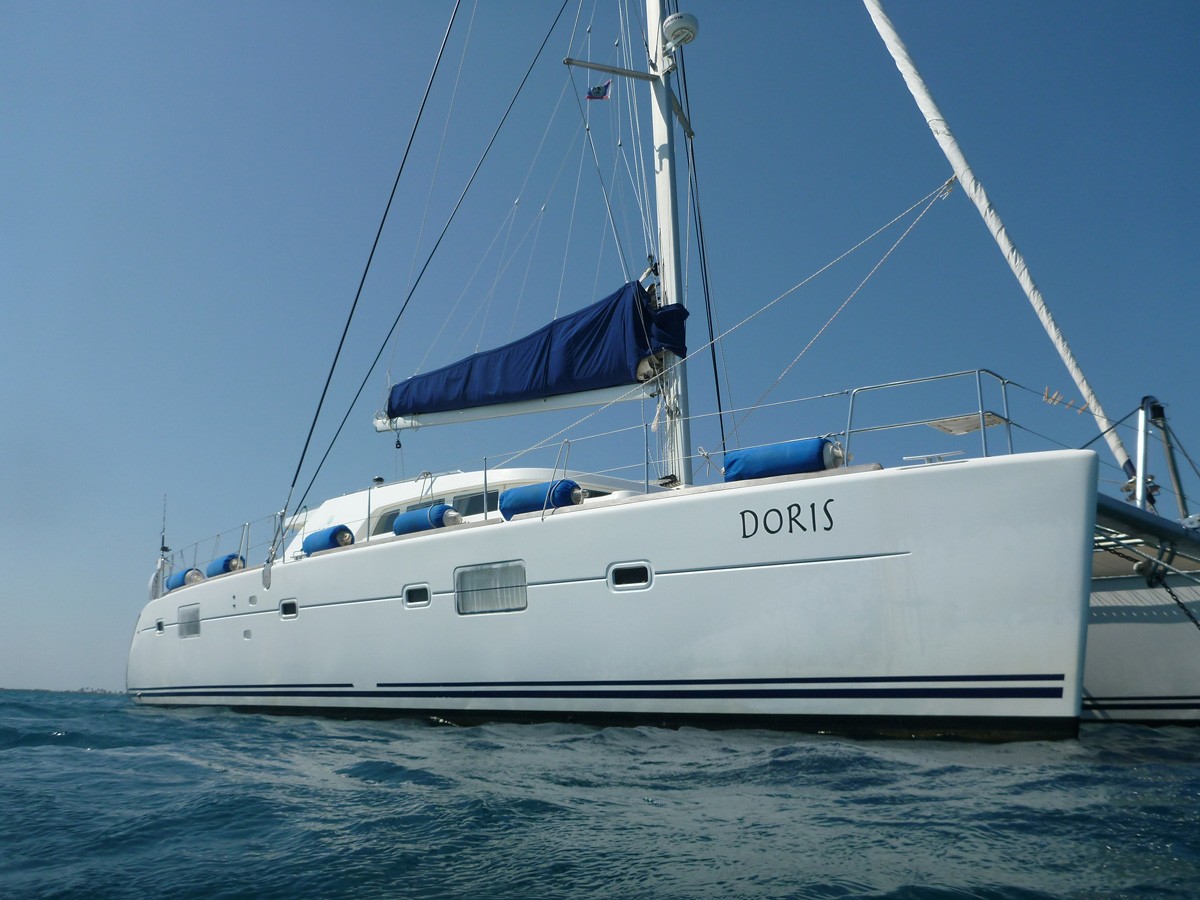

DORIS | 2007 Lagoon 500

Layout & Accommodations

Inside Equipment:
Electric Bilge Pump
Manual Bilge Pump
Washing Machine
Air Conditioning
Electric Head
Hot Water
Fresh Water Maker
Sea Water Pump
Battery Charger

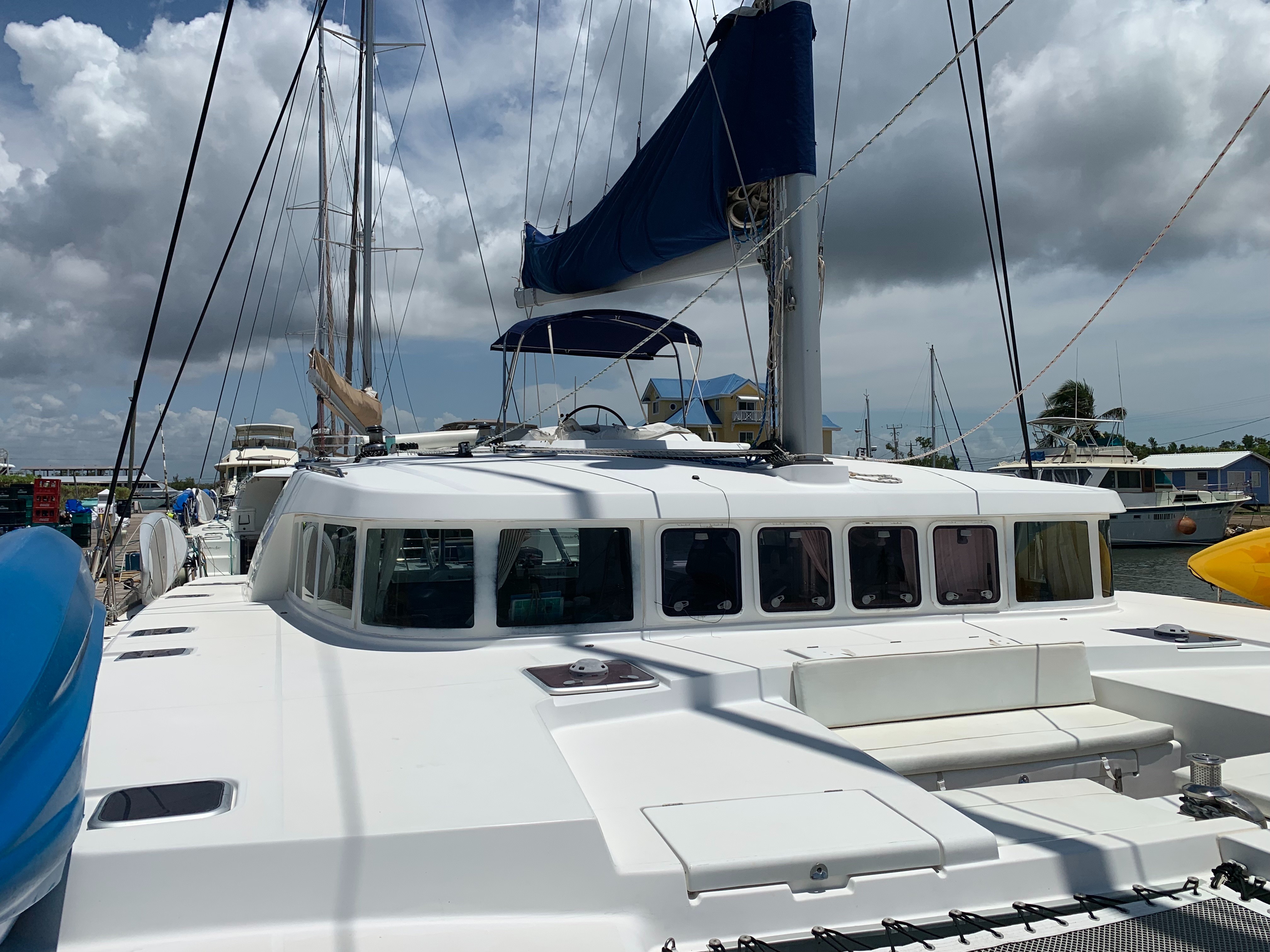

Forward Cockpit:

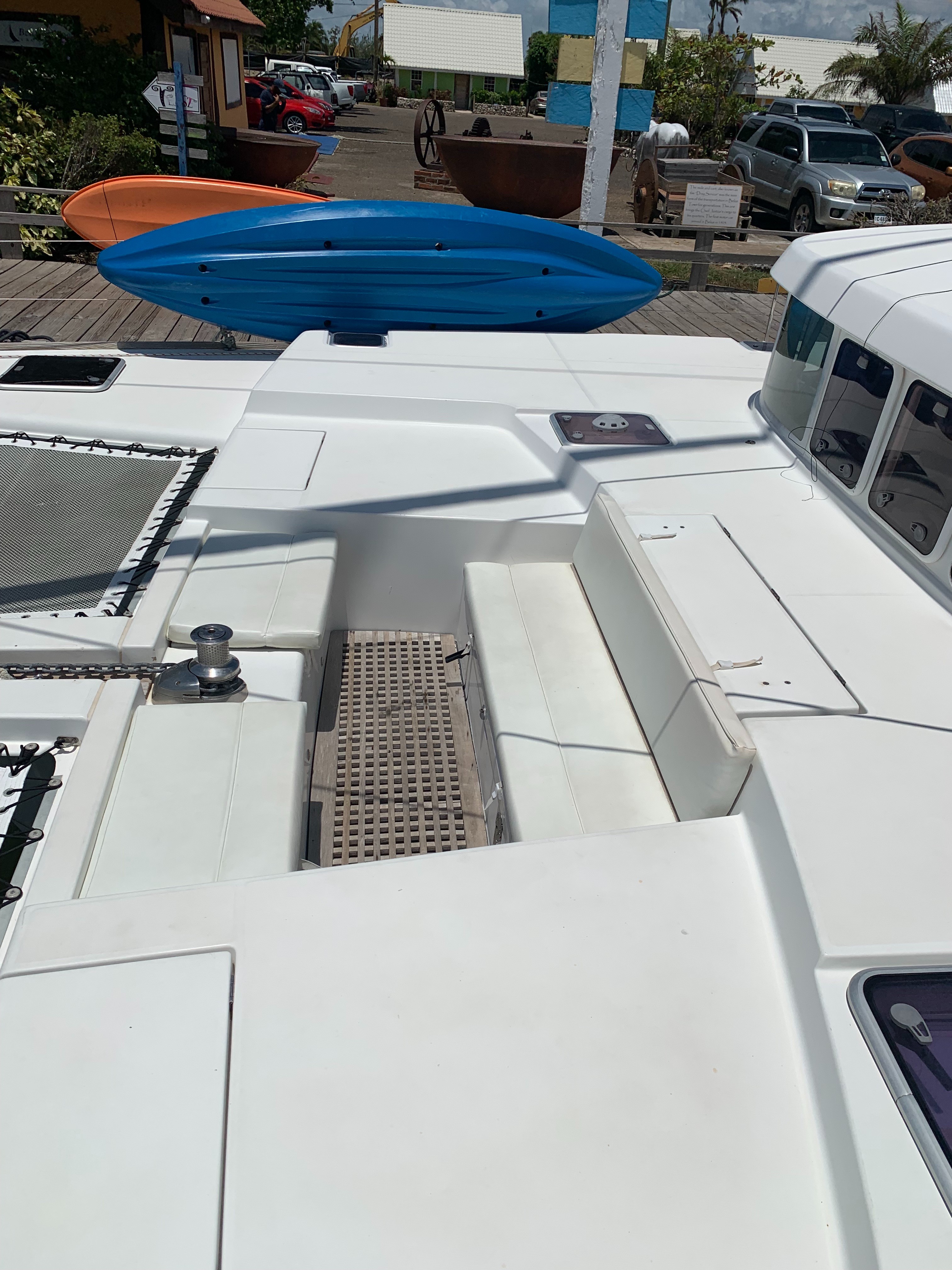

Large forward cockpit
Seating area
1 locker under seating: gas locker
1 anchor locker with 4 other lockers on either side

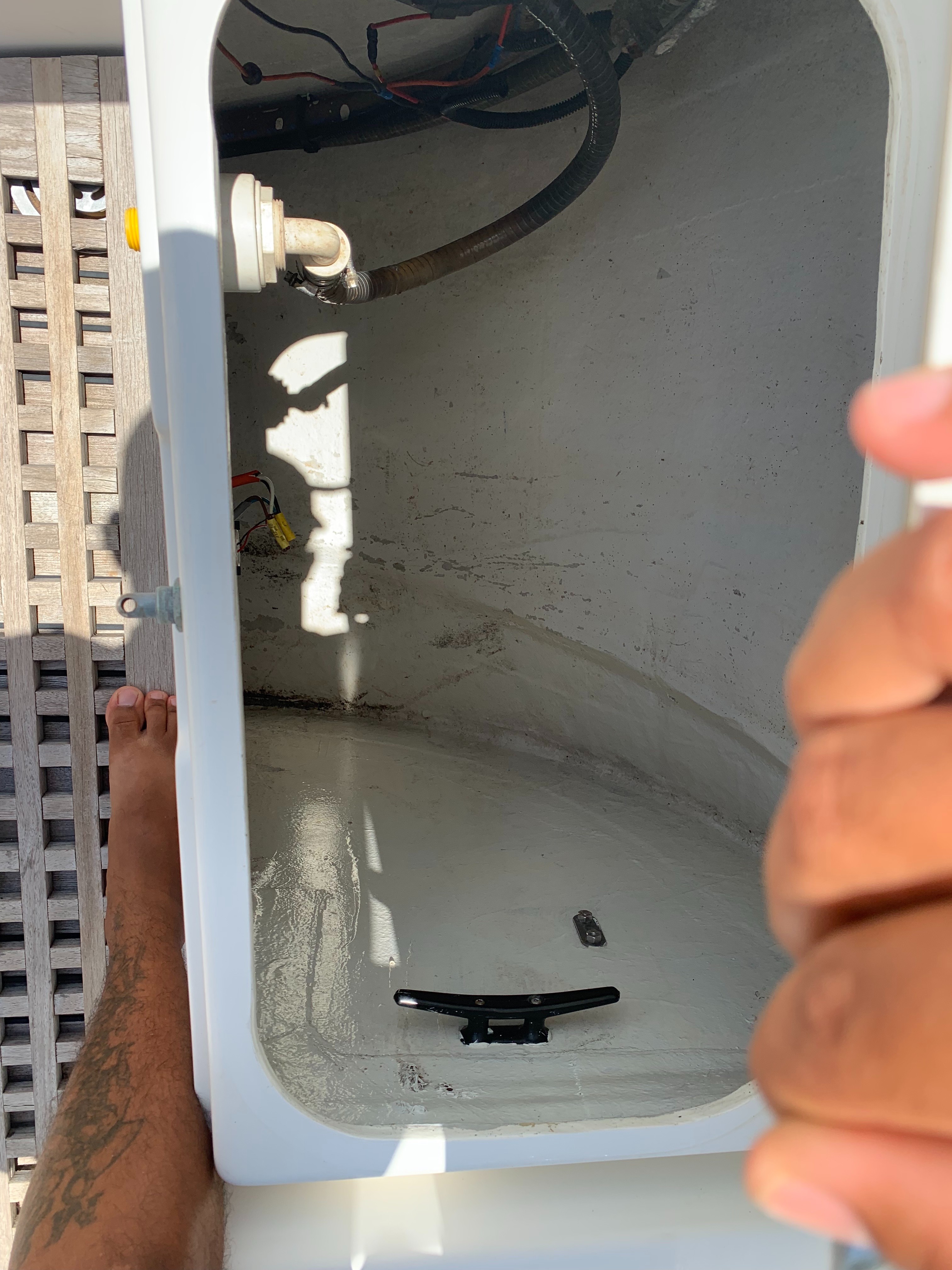

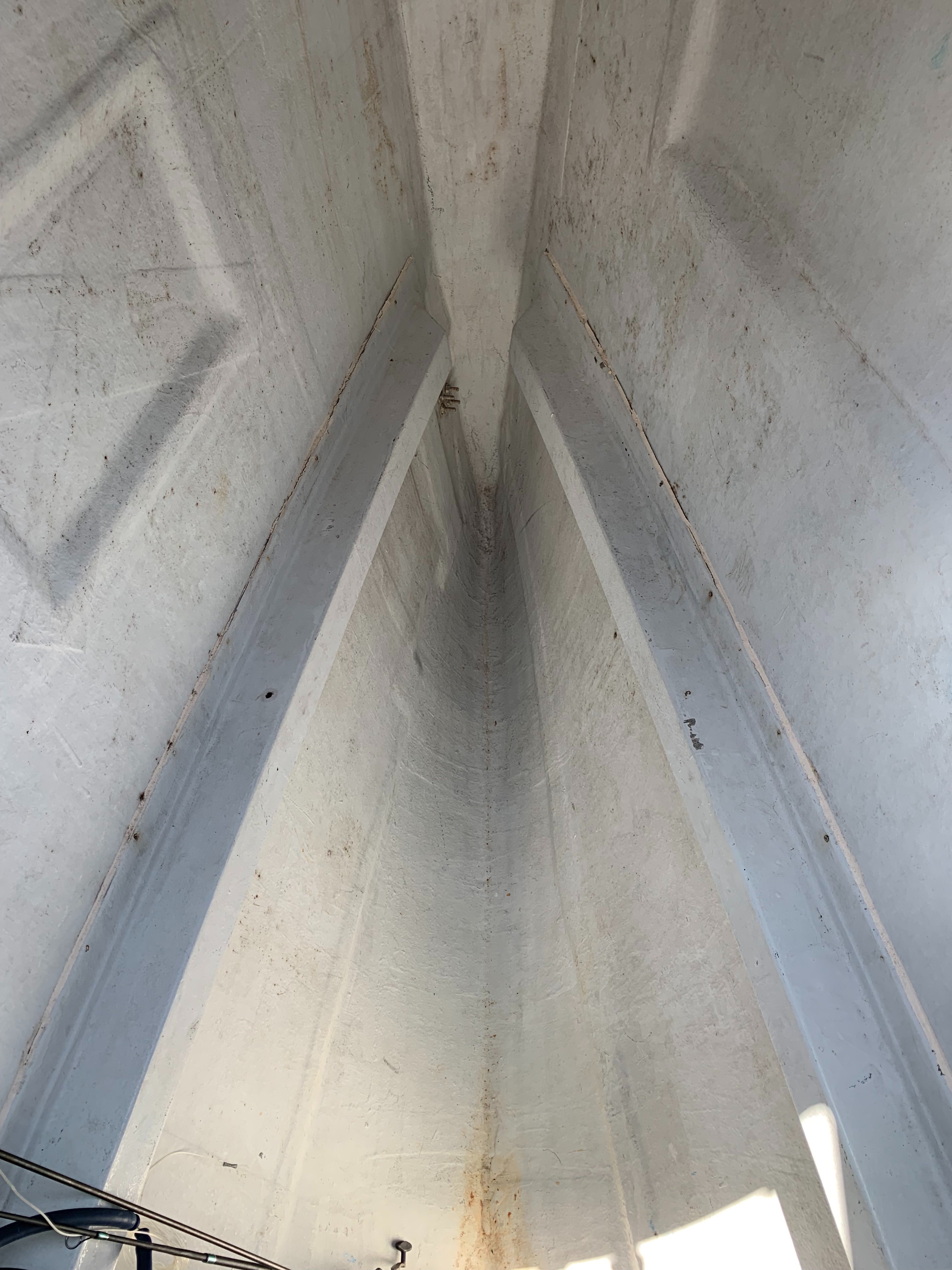

1 large forward locker forward of mast bulkhead with stainless steel gas strut

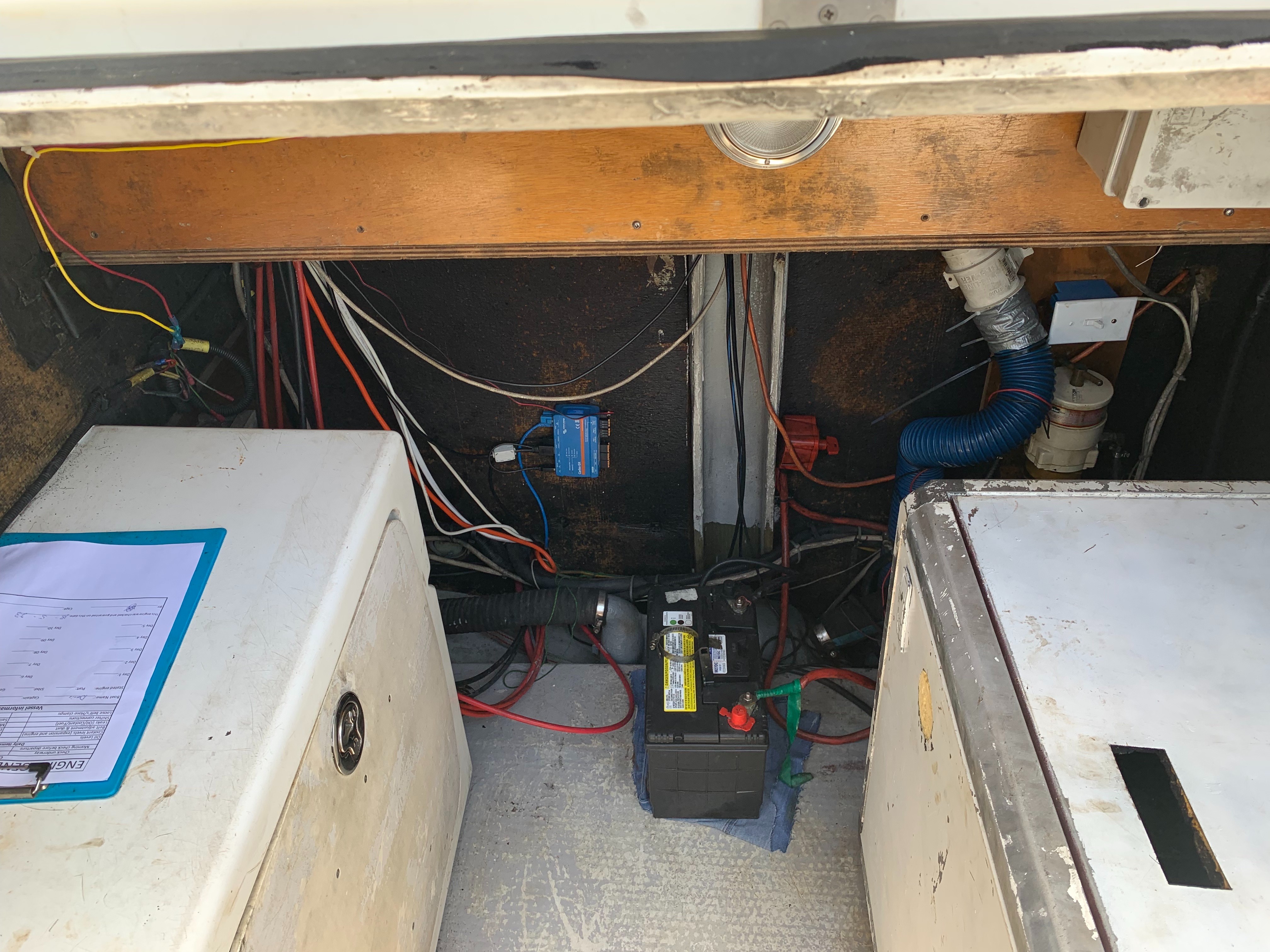

Generator compartment

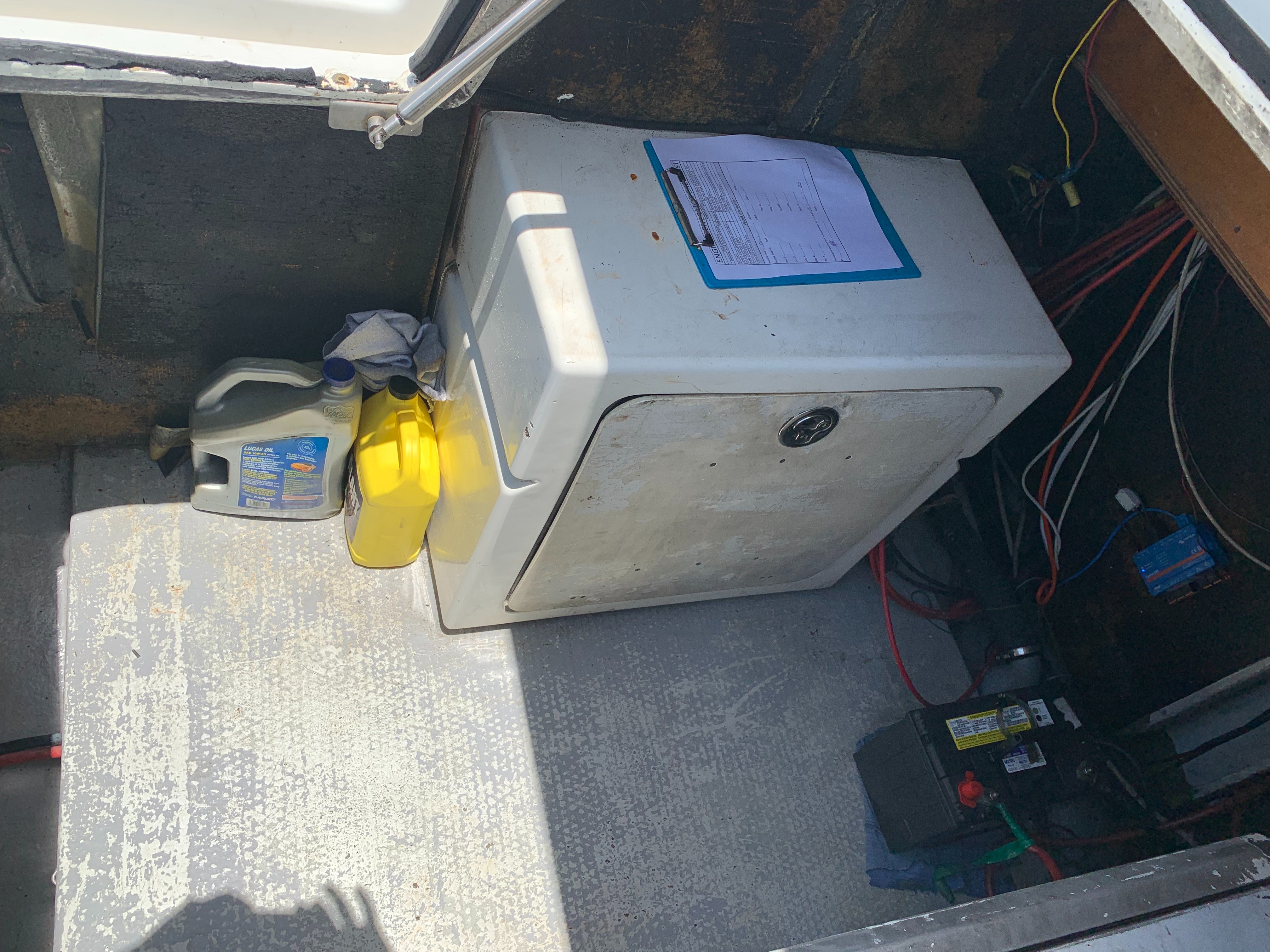

Propane storage compartment (for 2 x 13 kg standard tank)

Accommodations:

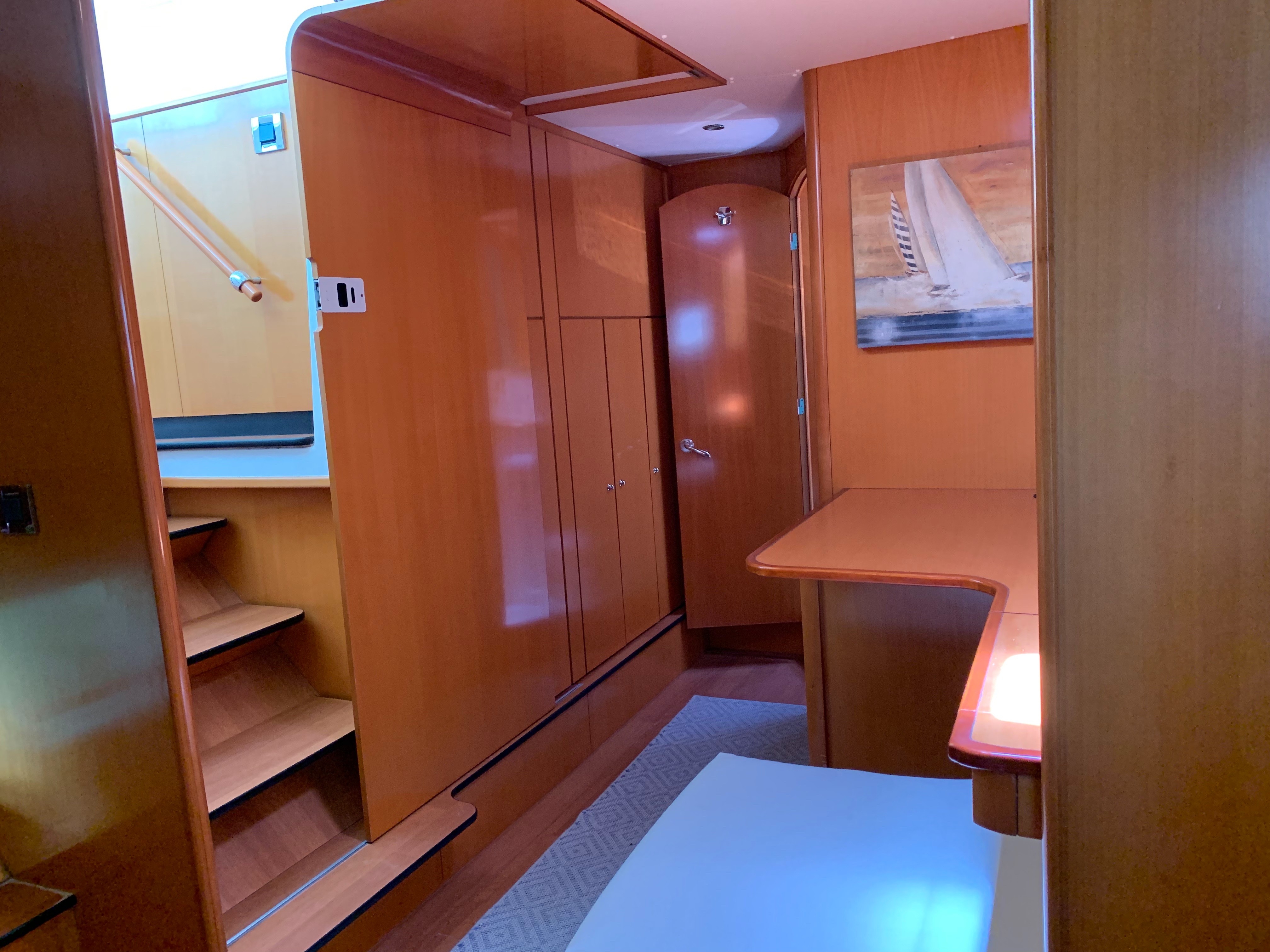

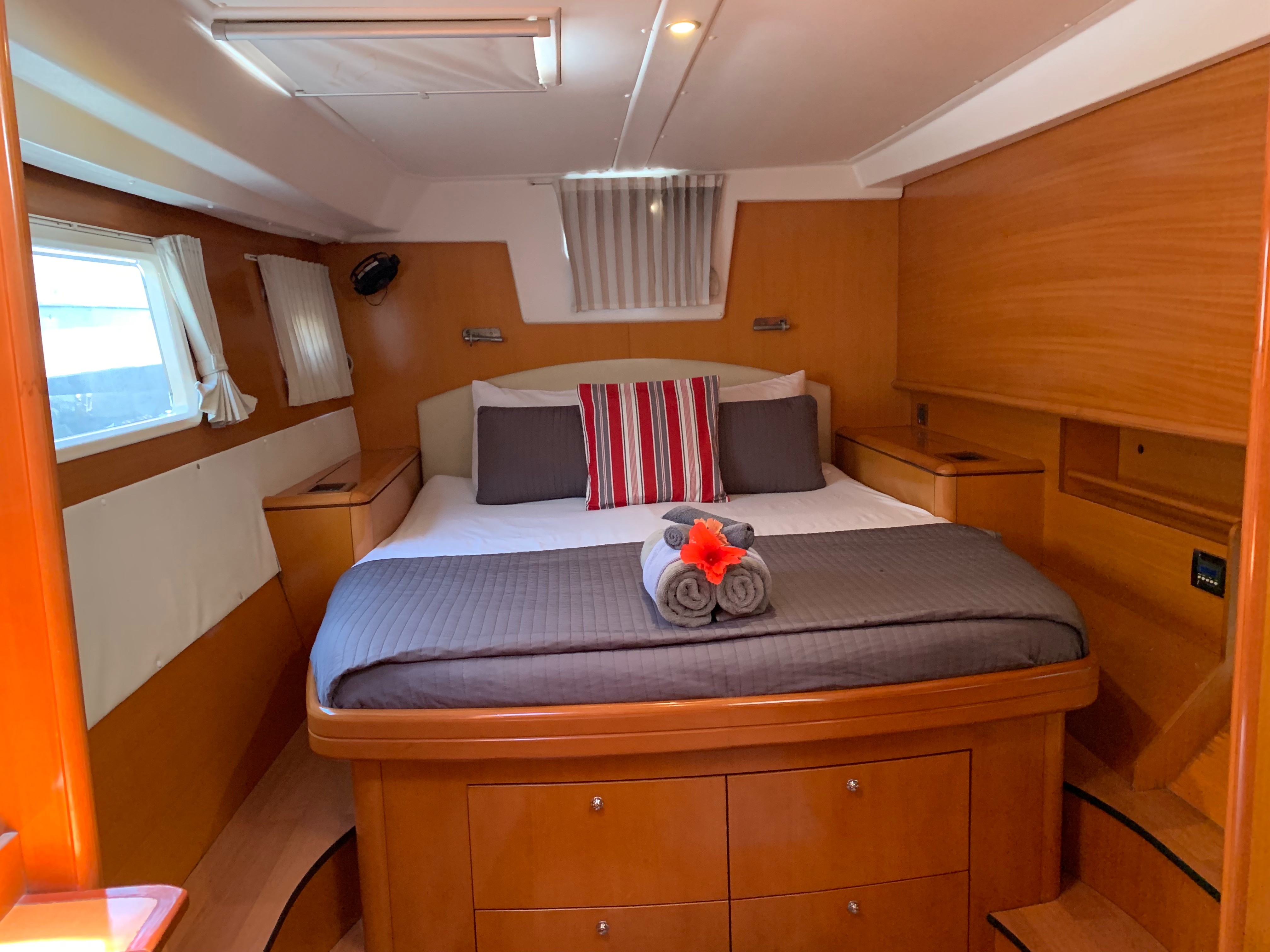

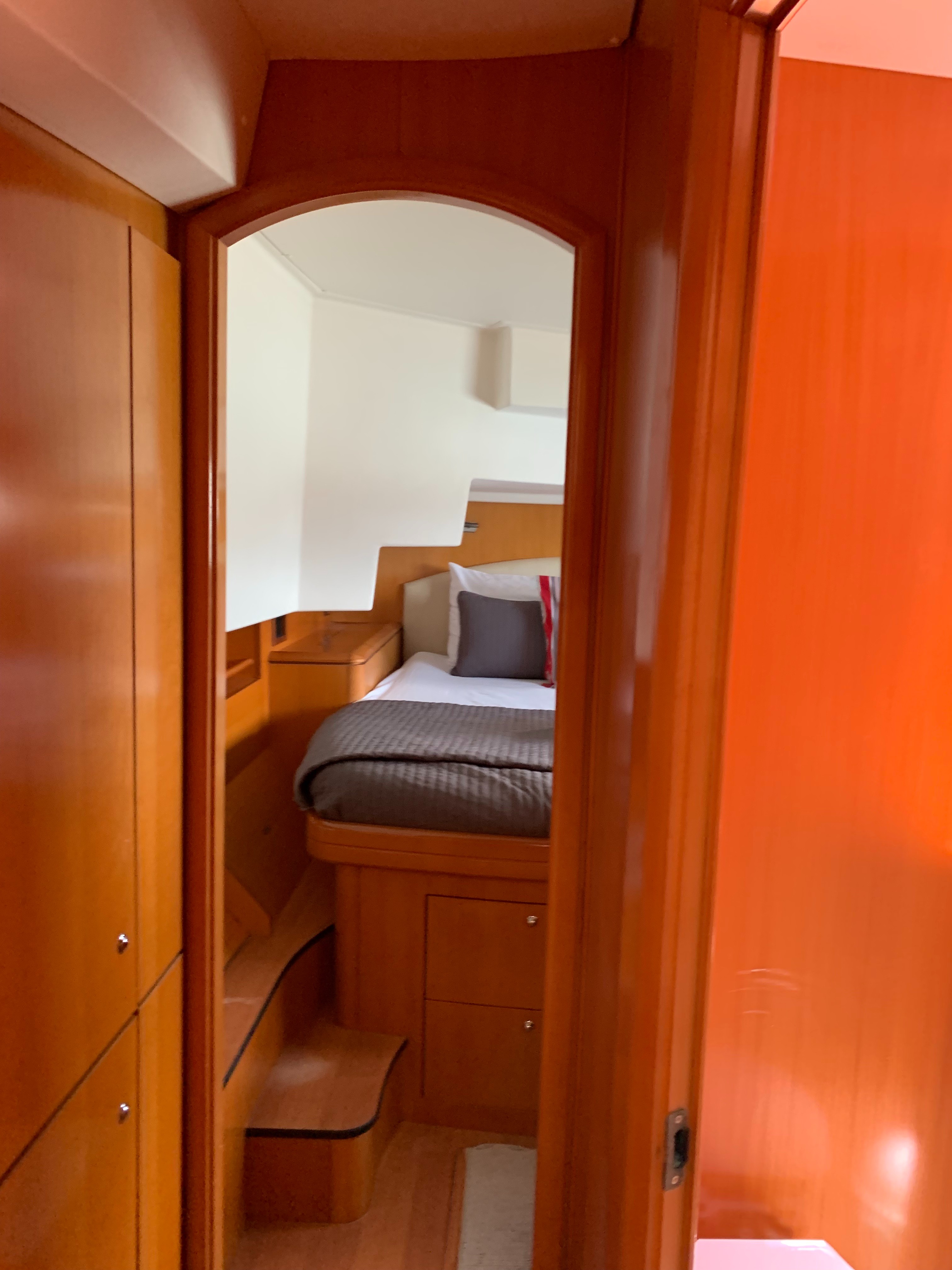

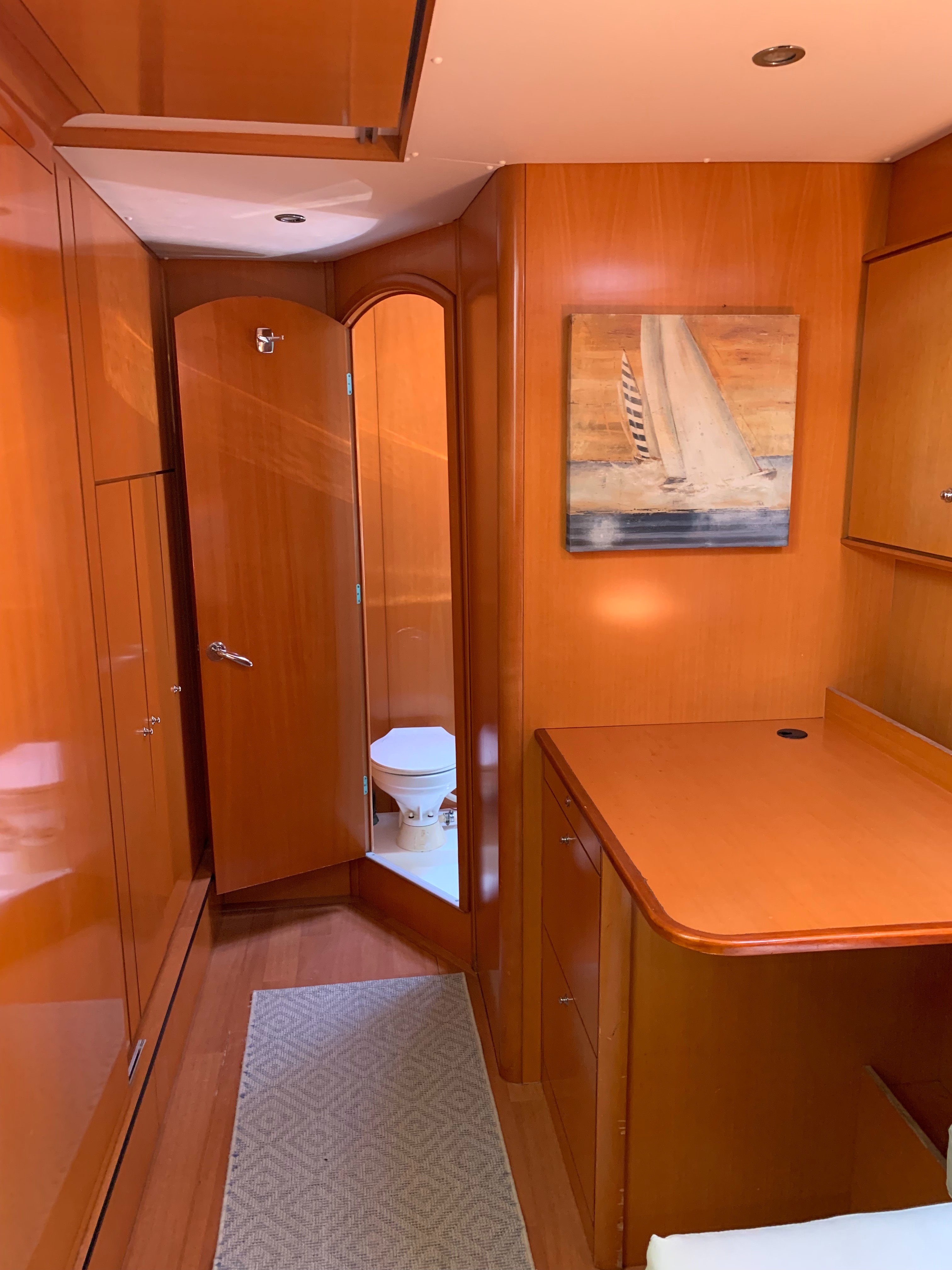

Aft cabin:
1 Queen size semi island bed (2,00m /6’ 7’’ x 1,60m/ 5’ 3’’)
Upholstered bed headboard
Forward facing lockers on bed front (drawers on sliders)
Headboard shelves
Wardrobe with lighting, additional locker
Shelving unit on inboard side above bed
1 opening porthole
1 large fixed Plexiglass window with one way view
1 opening deck hatch with integrated fly and sun screens
Direct access door to head and shower with large mirror on cabin side
Minimum head-room 2,05 m / 6’9’’
1 x 110V outlet

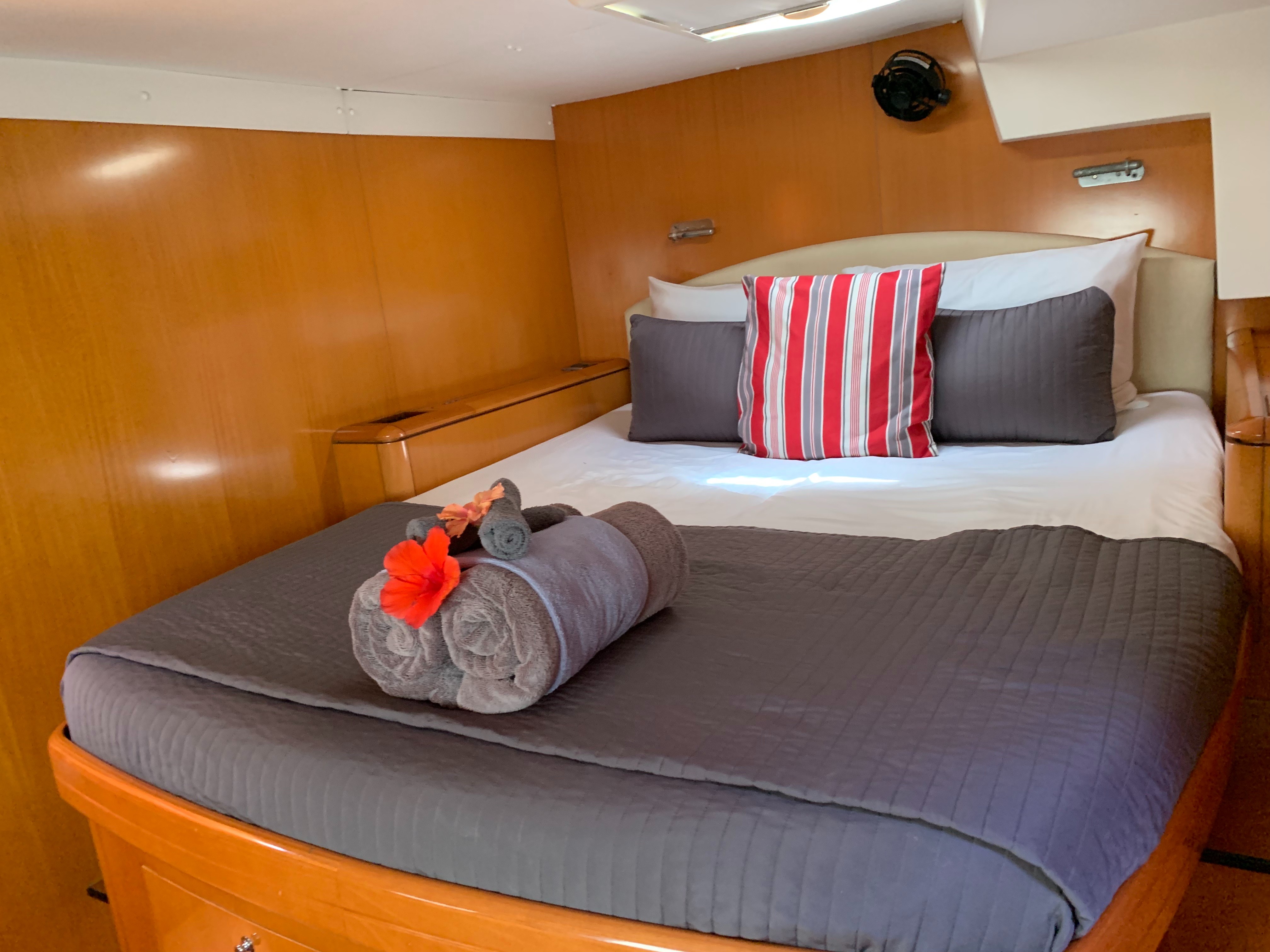

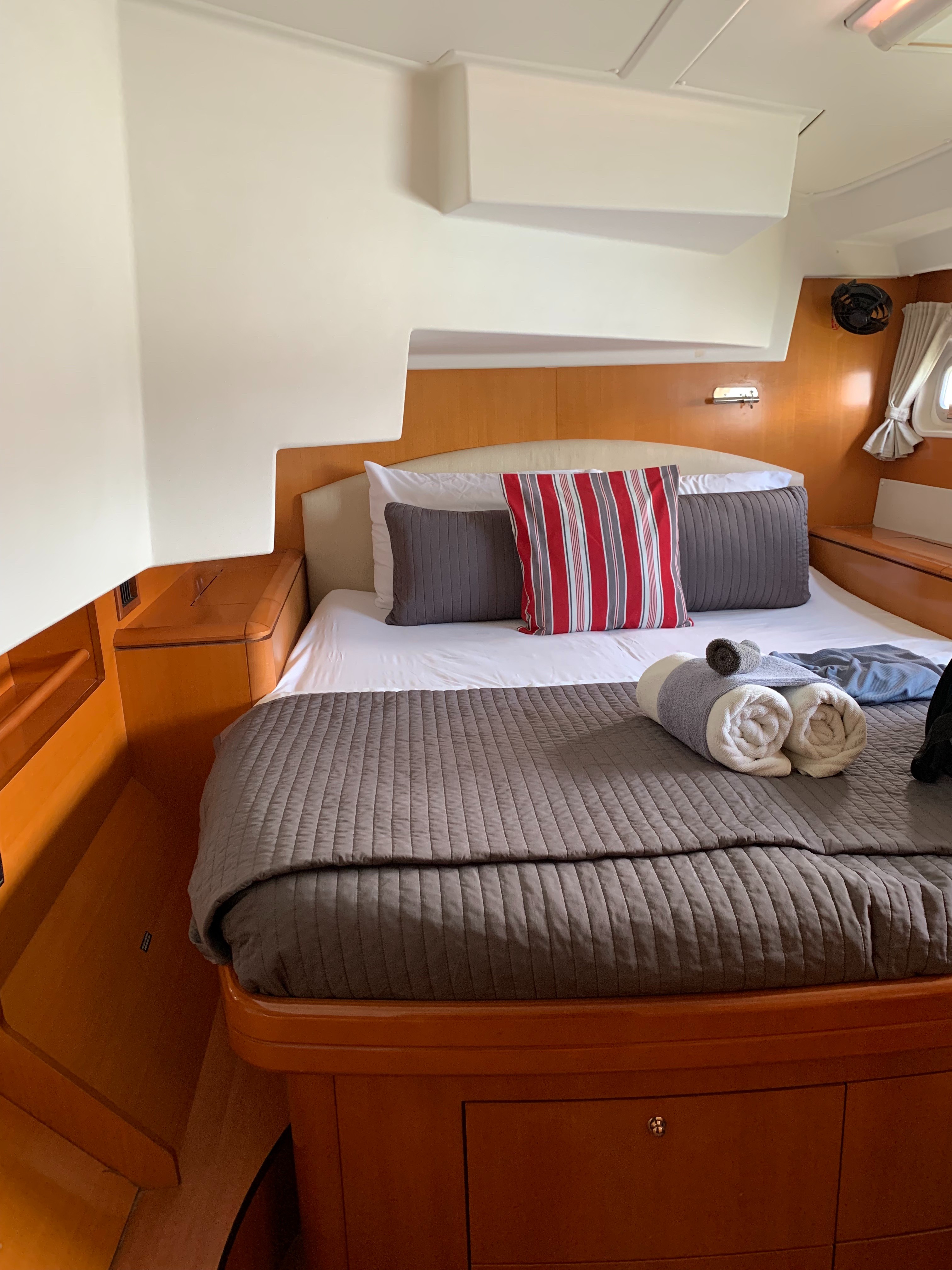

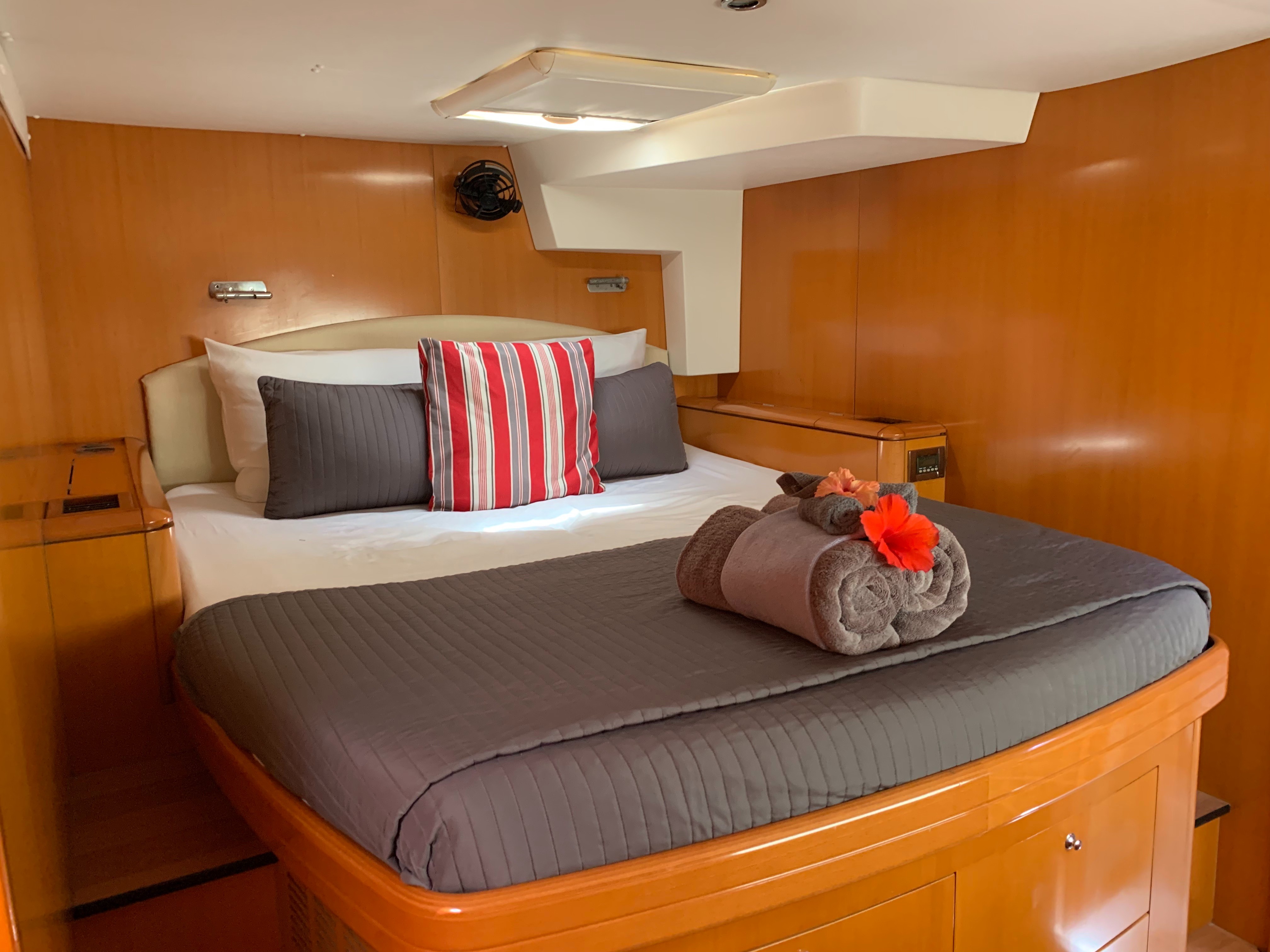

Forward cabins:
1 Queen size semi island bed – 2.00 x 1.60 m (6’ 9’’ x 5’ 3’’)
Upholstered bed headboard
Forward facing lockers on bed front (drawers on sliders)
Headboard shelves
Wardrobe with lighting, additional locker
Shelving unit on inboard side above bed
1 opening porthole
1 large fixed Plexiglass window with one way view
Opening deck hatch with integrated fly and sun screens
Direct access door to head and shower with large mirror on cabin side
Minimum head-room 2.05m (6’9’’)
1 x 220V and 110V outlet

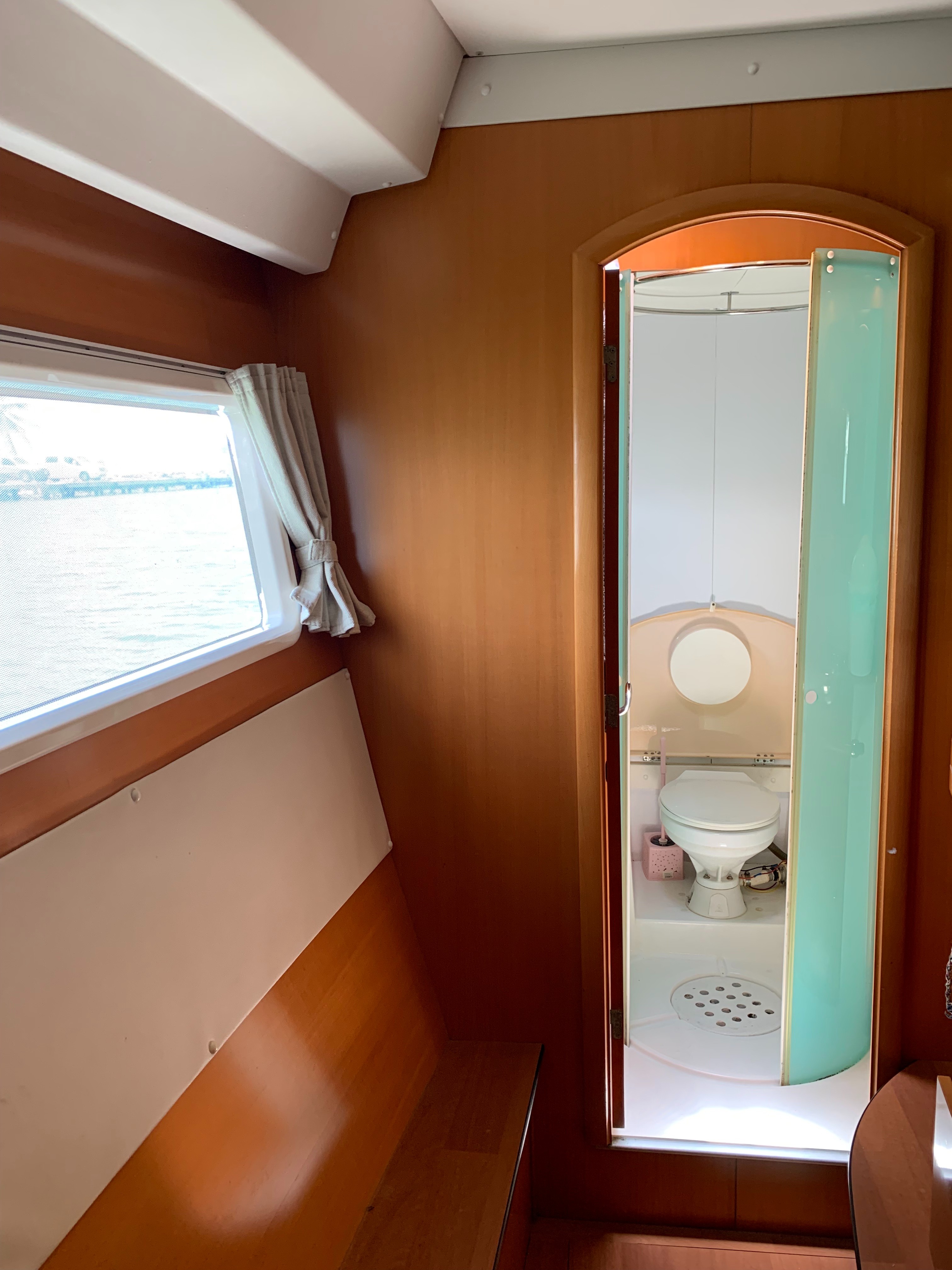

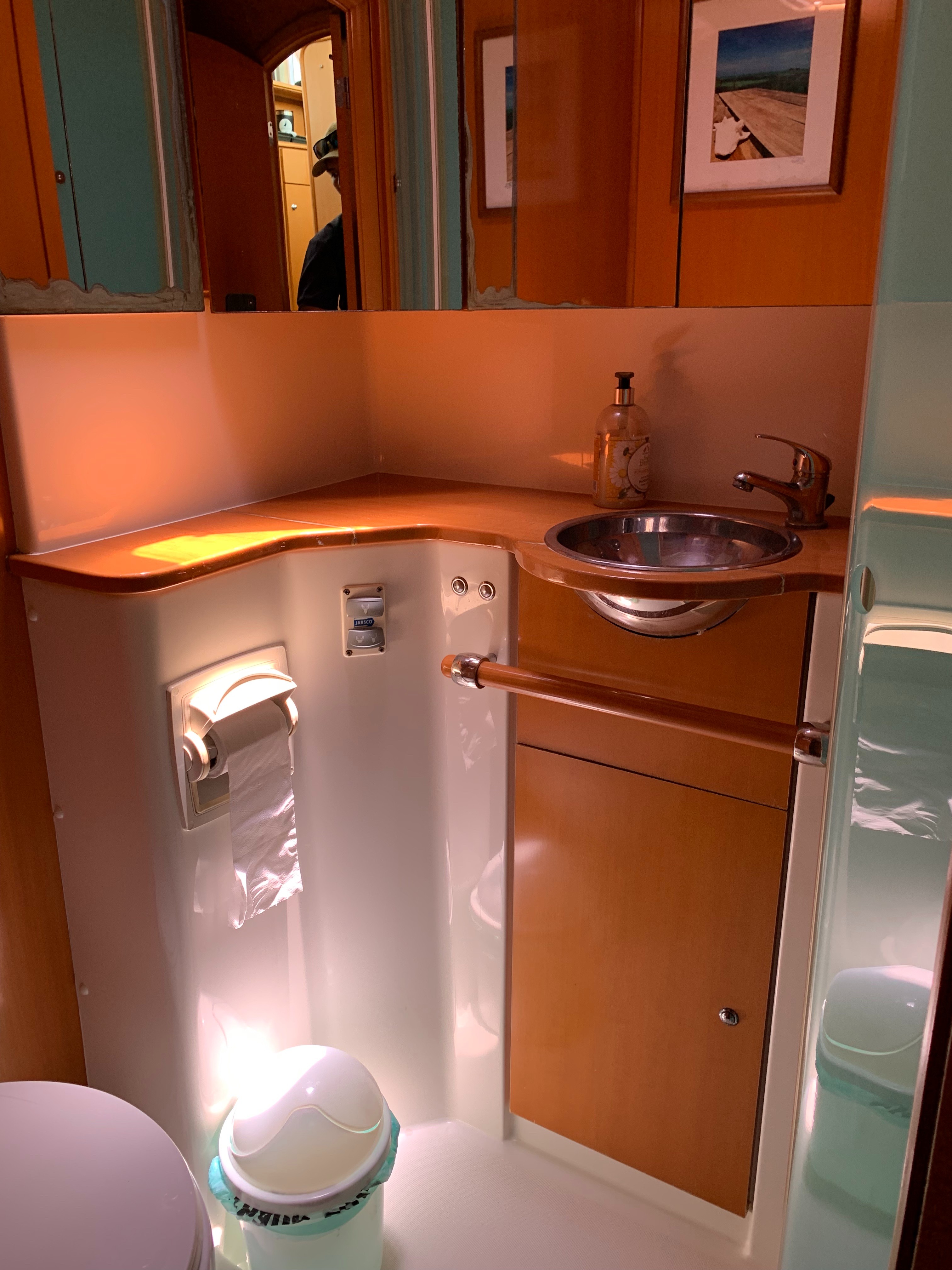

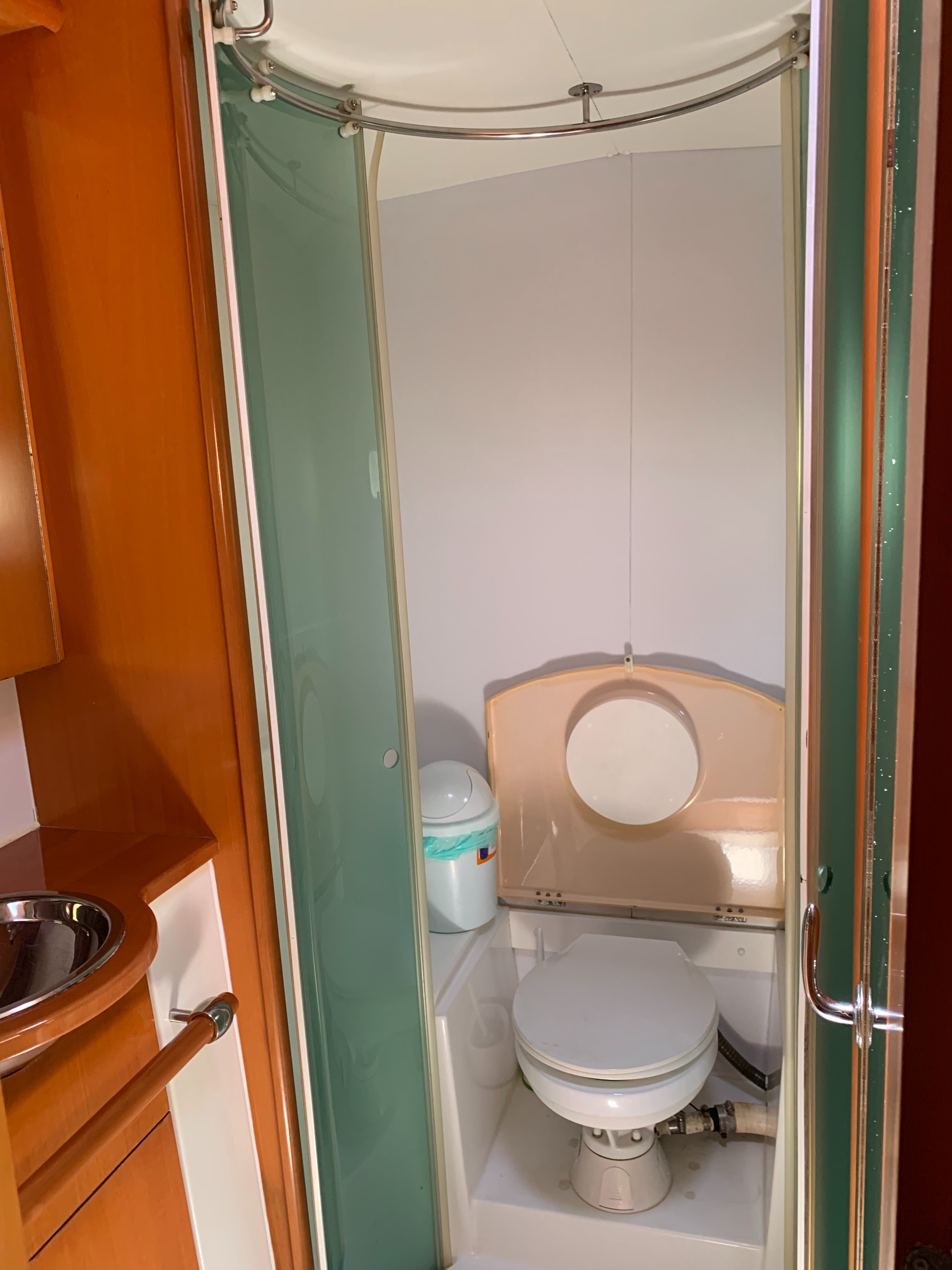

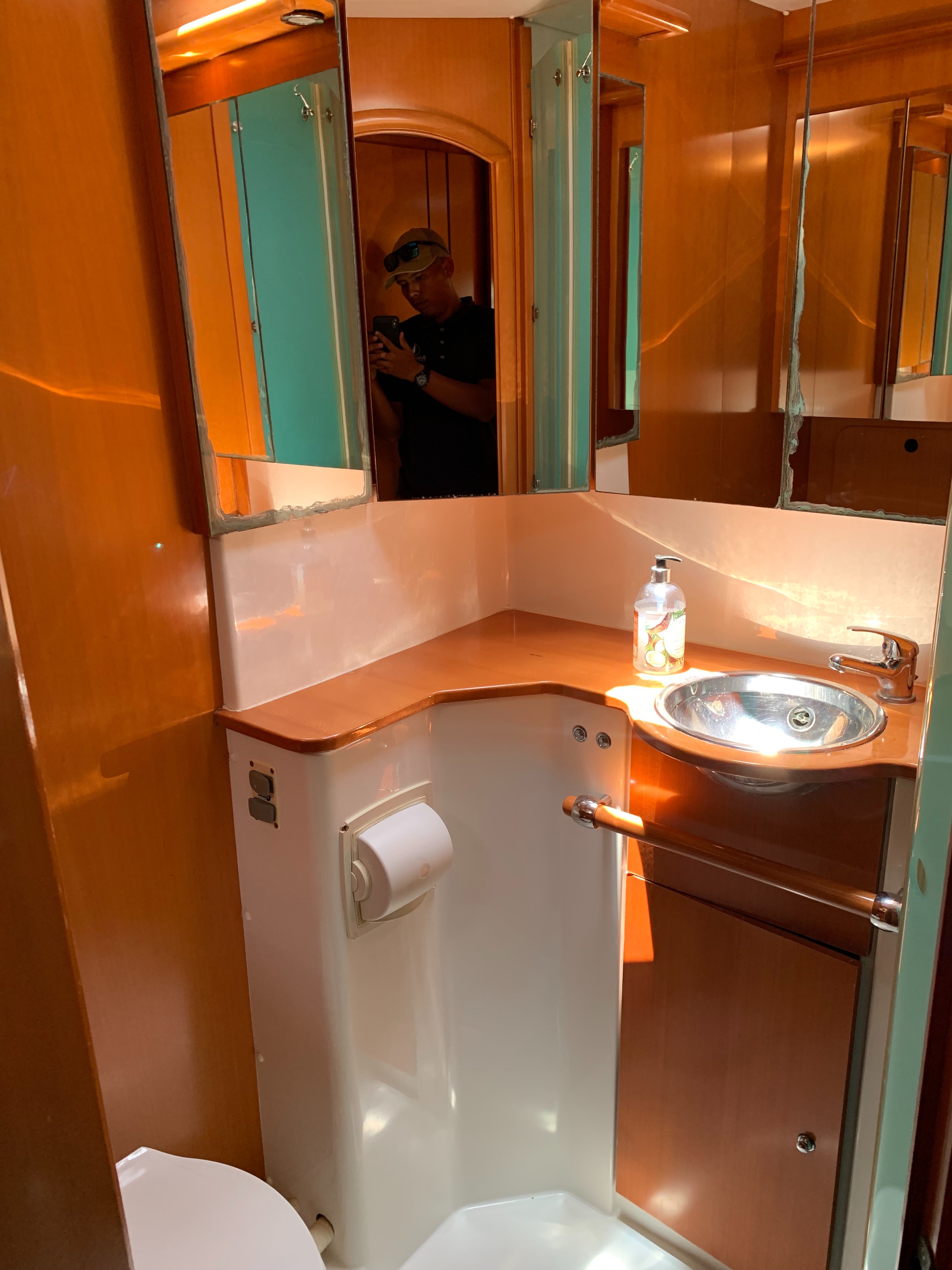

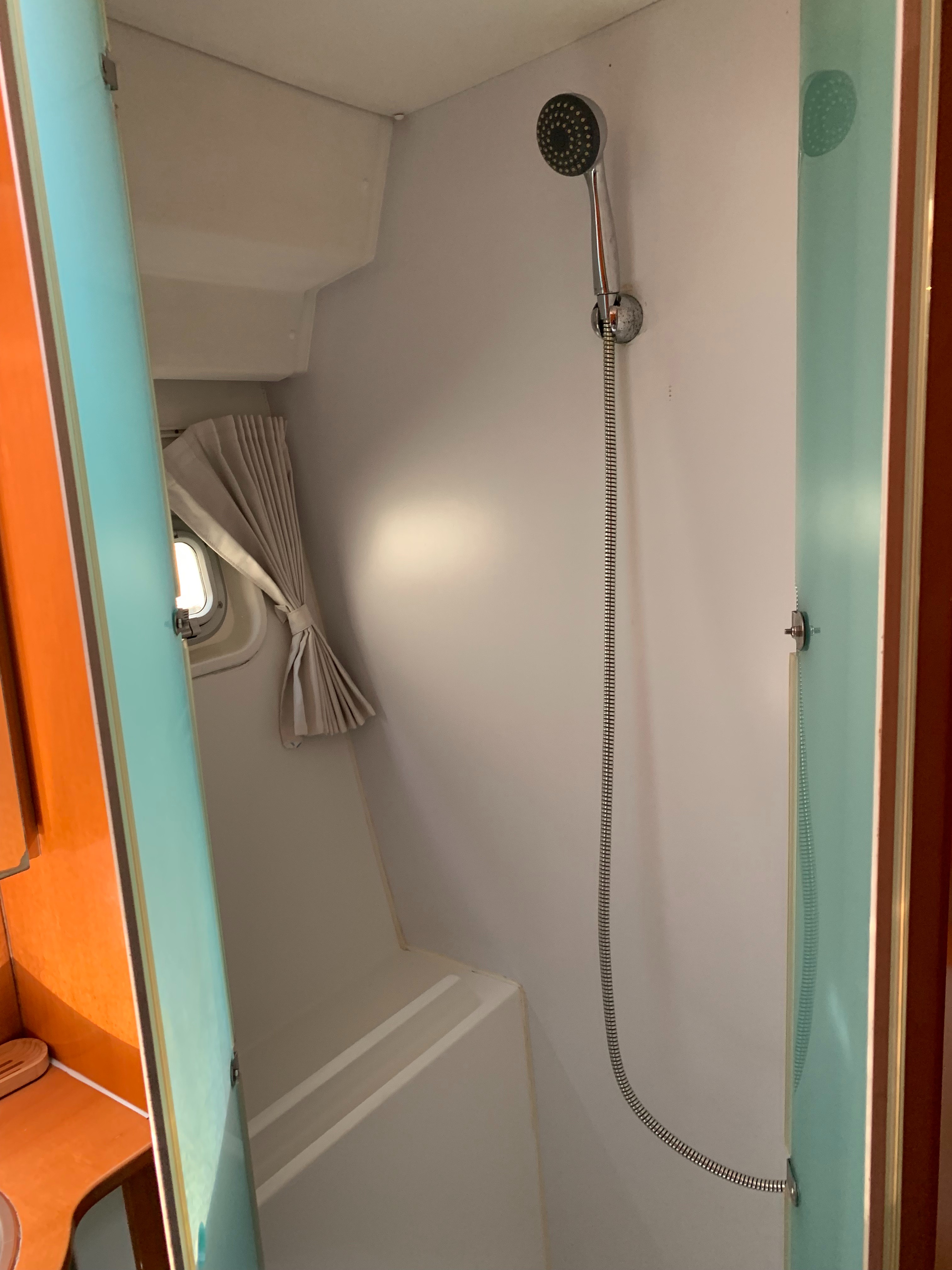

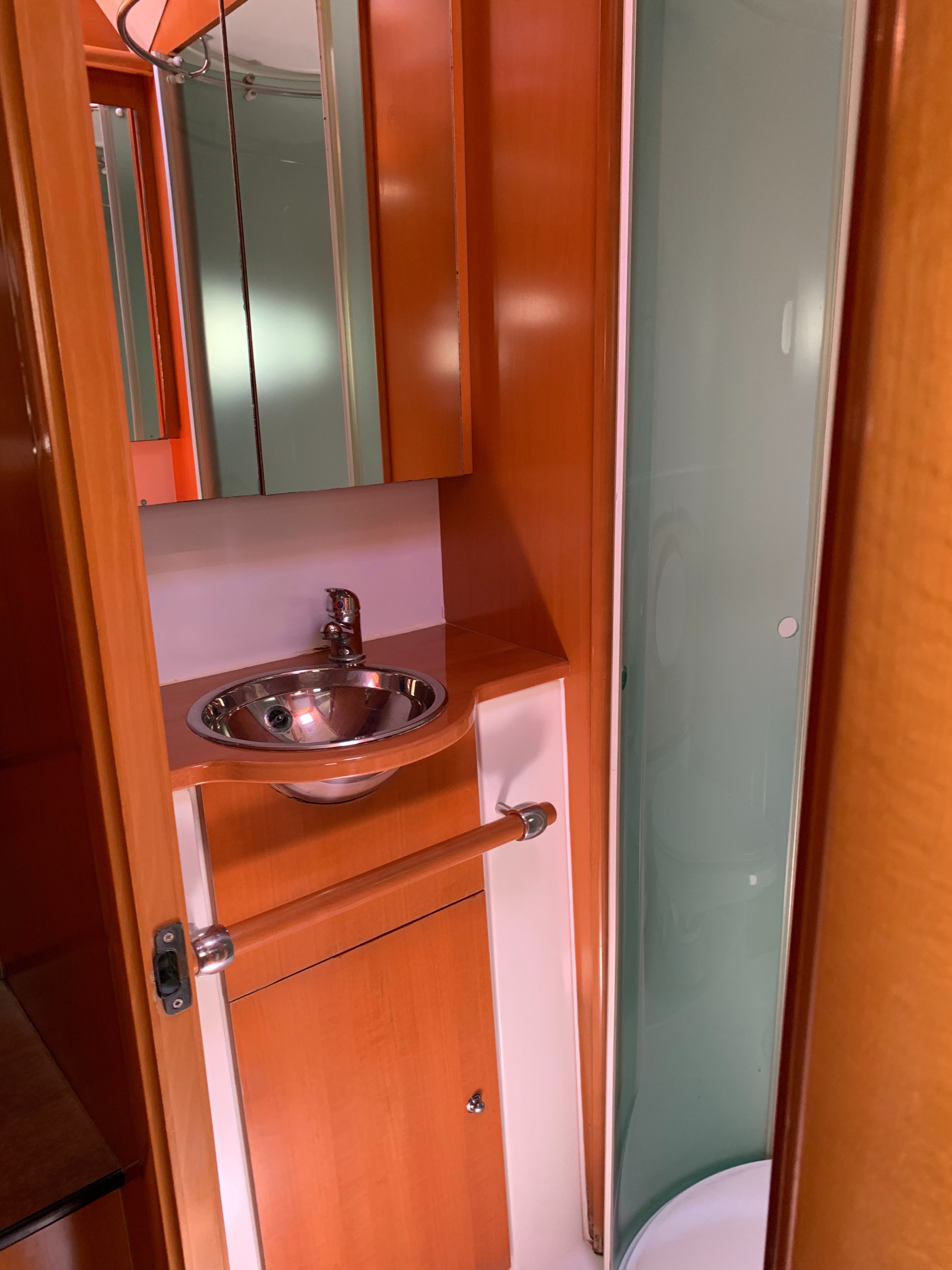

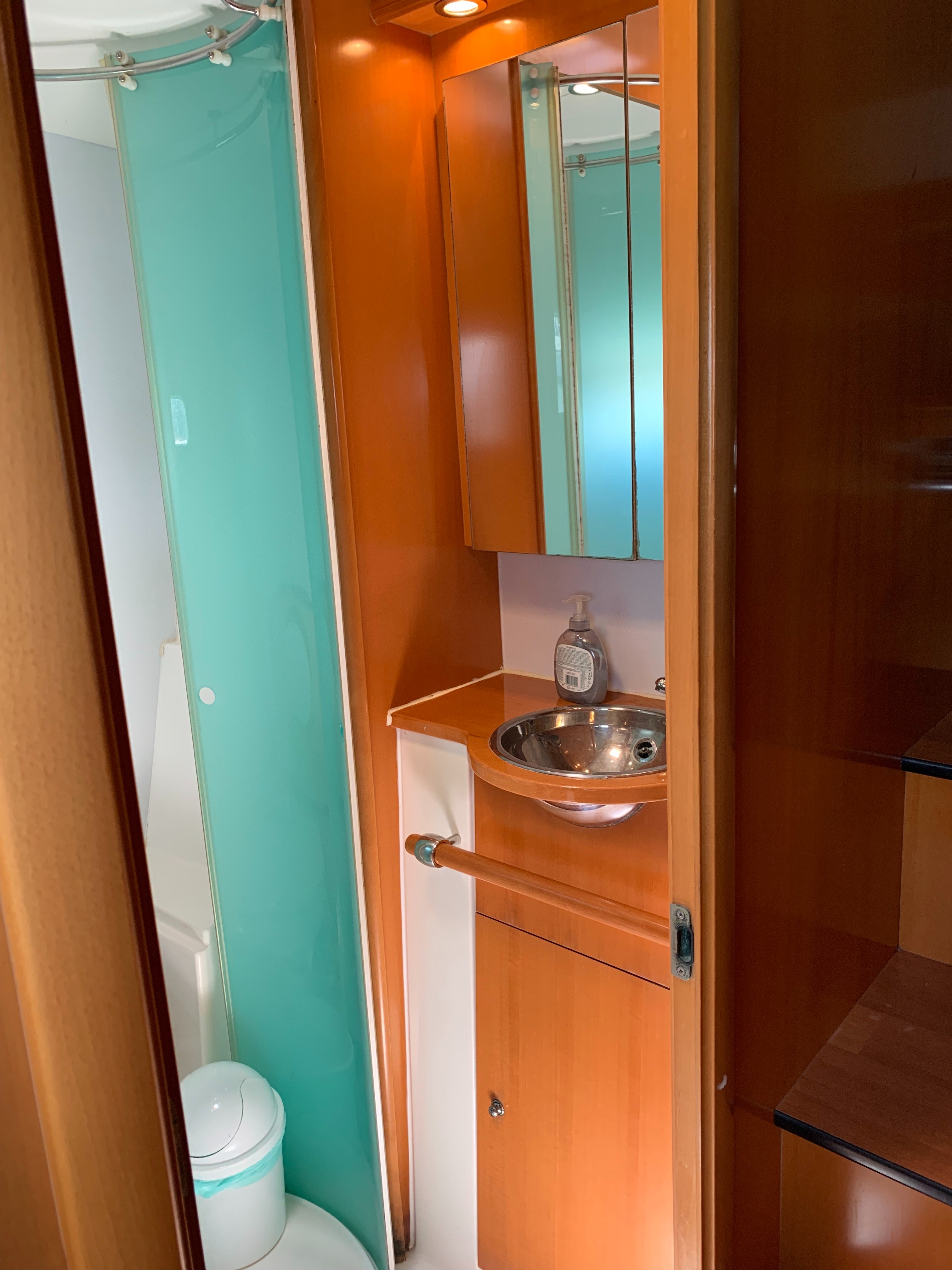

Head and shower:
S/S washbasin with synthetic resin IRO G120 countertop
Separate shower with door
Locker, mirror, 2 chrome towel hooks
Toilet roll holder

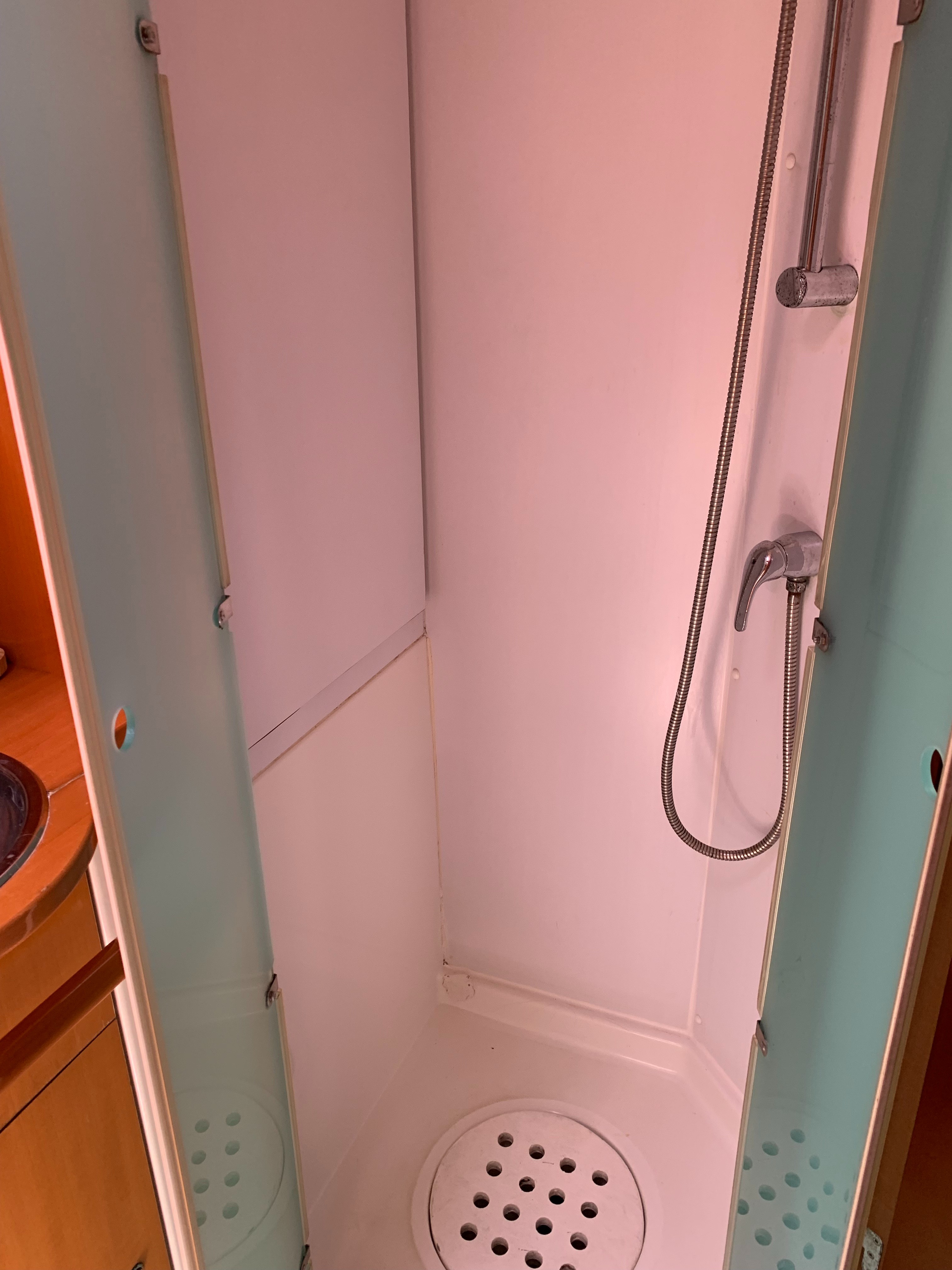

Large shower with non-skid fiberglass floor
Round fiberglass shower grating
Minimum headroom 2.05m.(6’9’’)
Opening deck hatch with integrated fly and sun screen
Handwash faucets changed October 2021

Galley

Oven
Microwave oven
Refrigerator
Deep Freezer

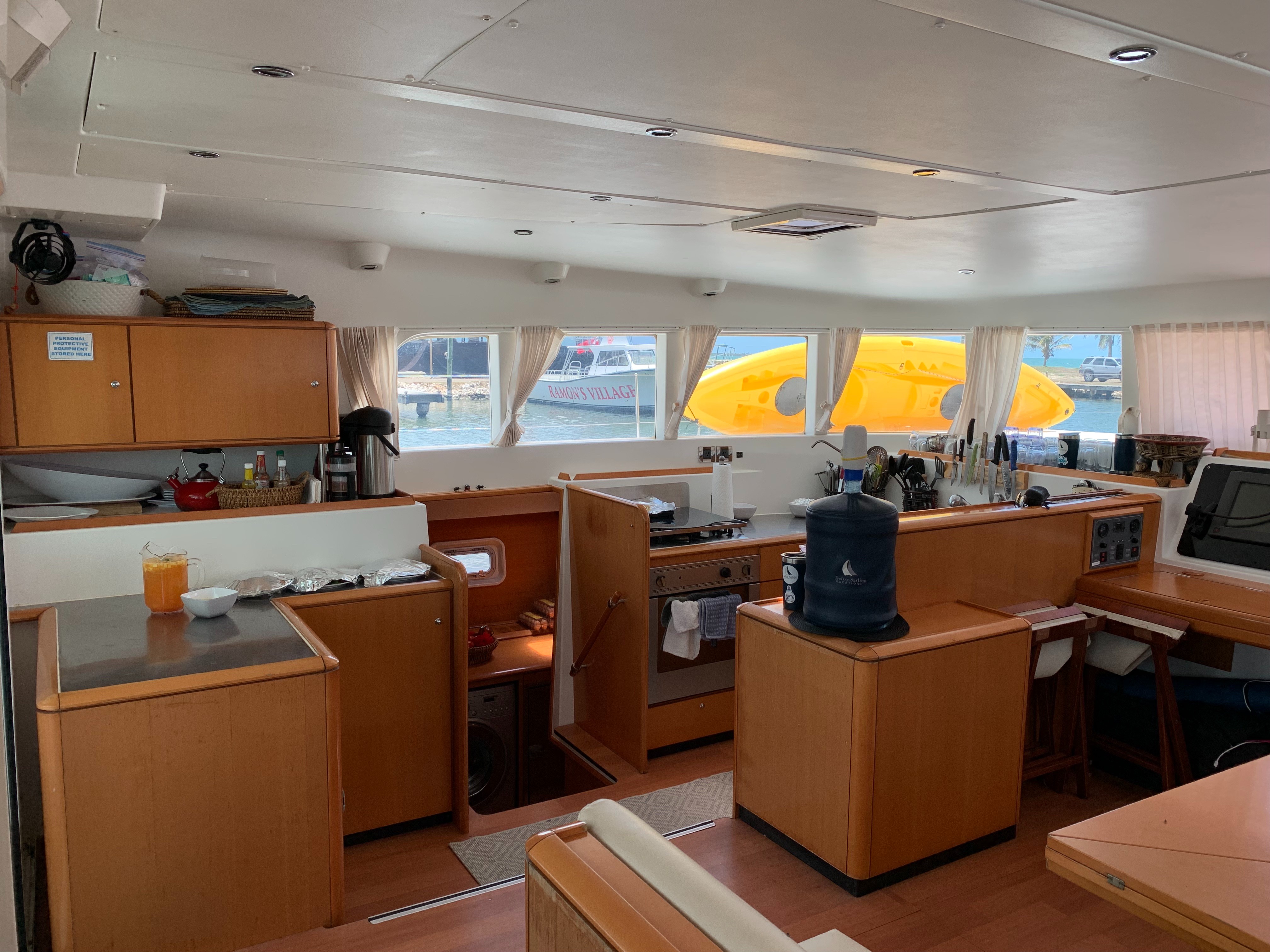

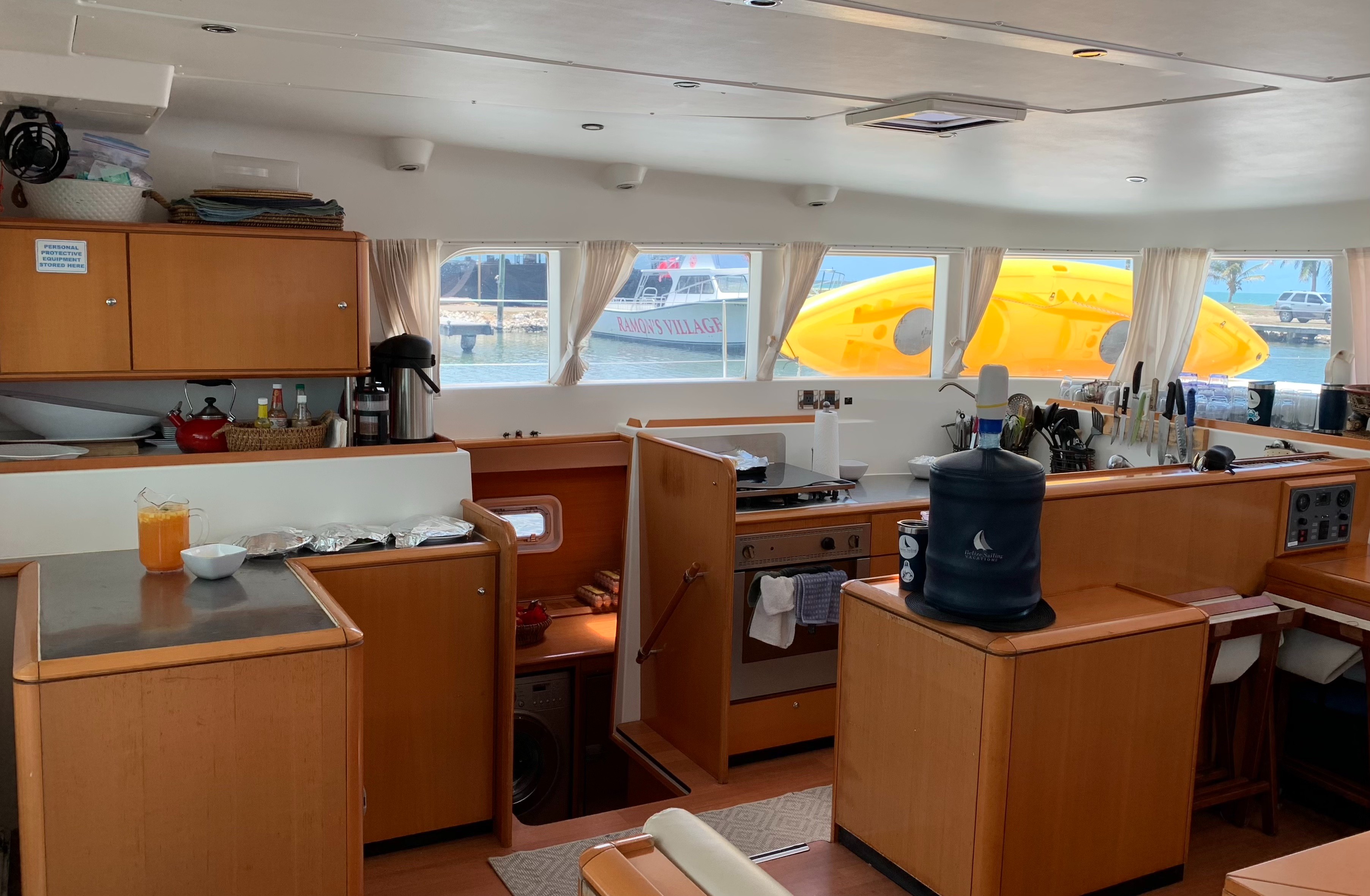

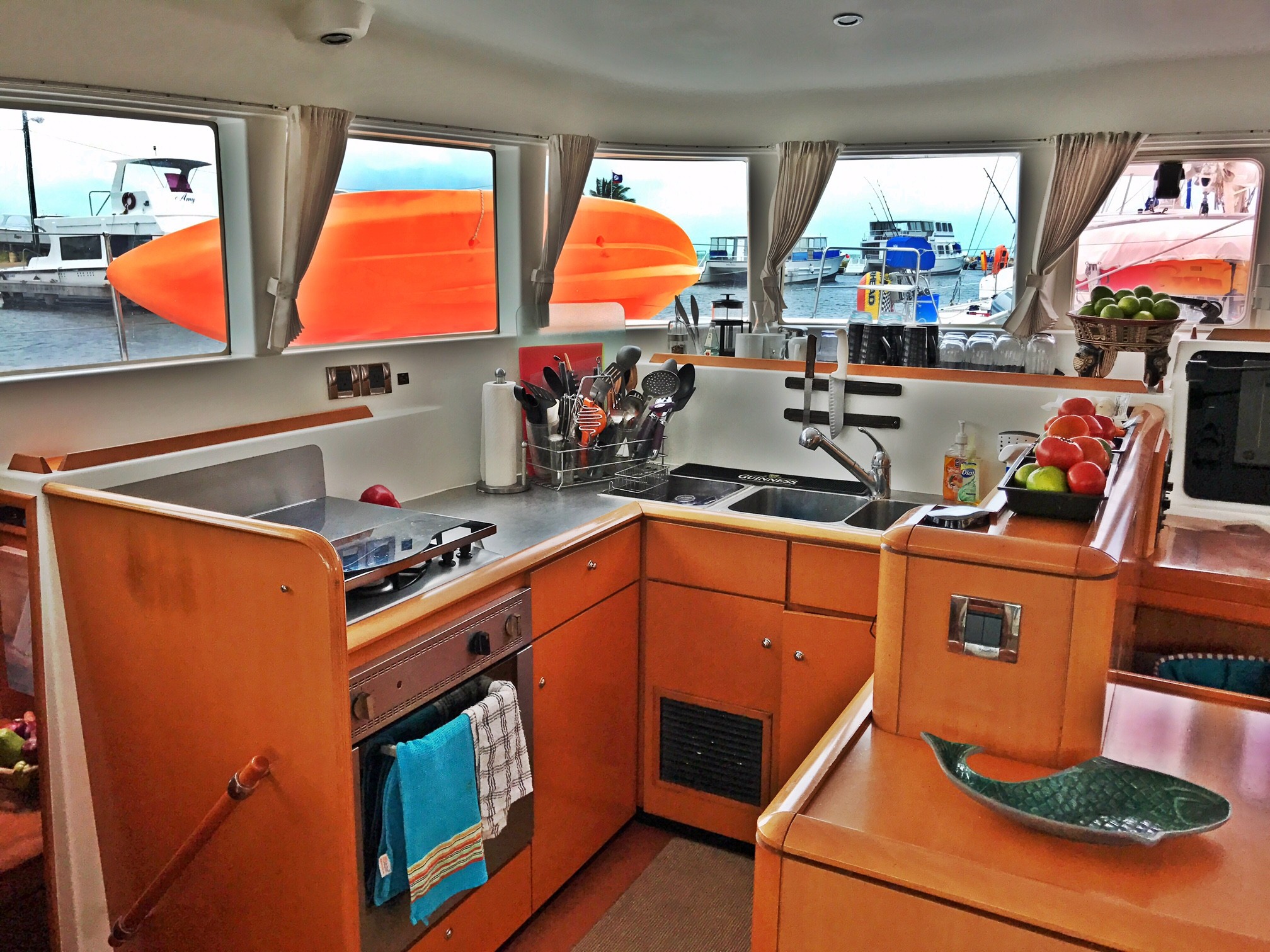

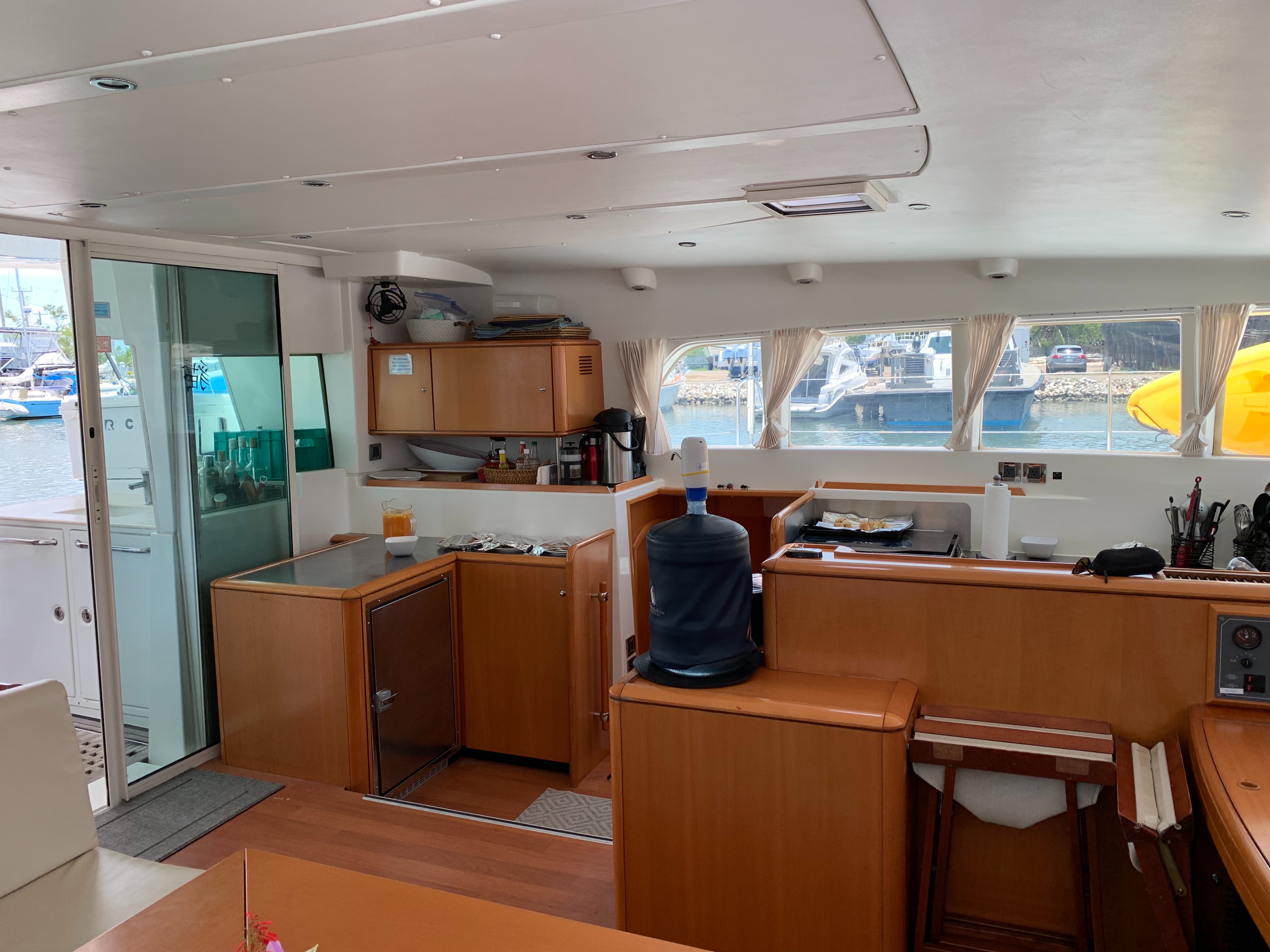

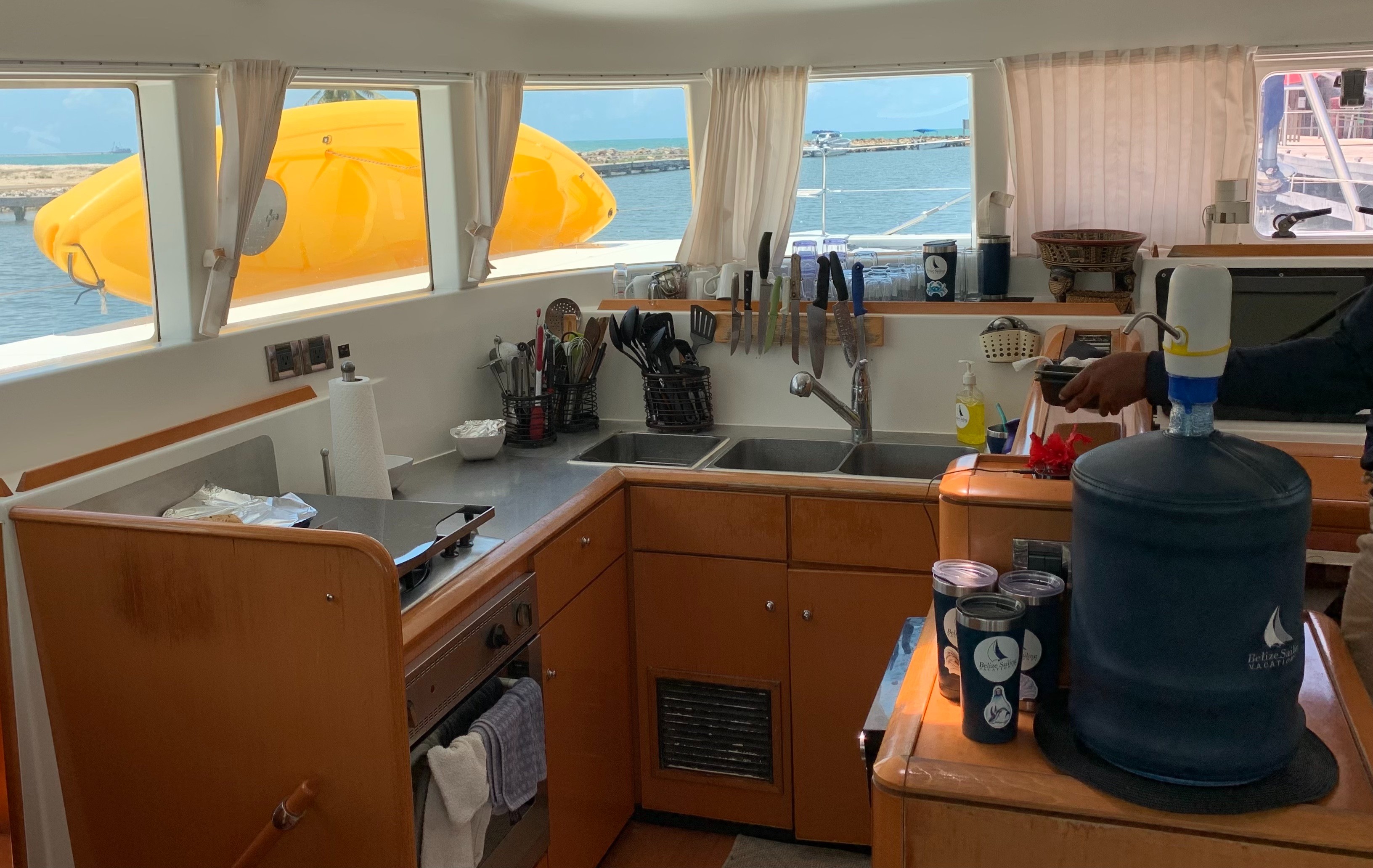

Galley:
4 Burner Stove/Oven/Grill
2 basin sink

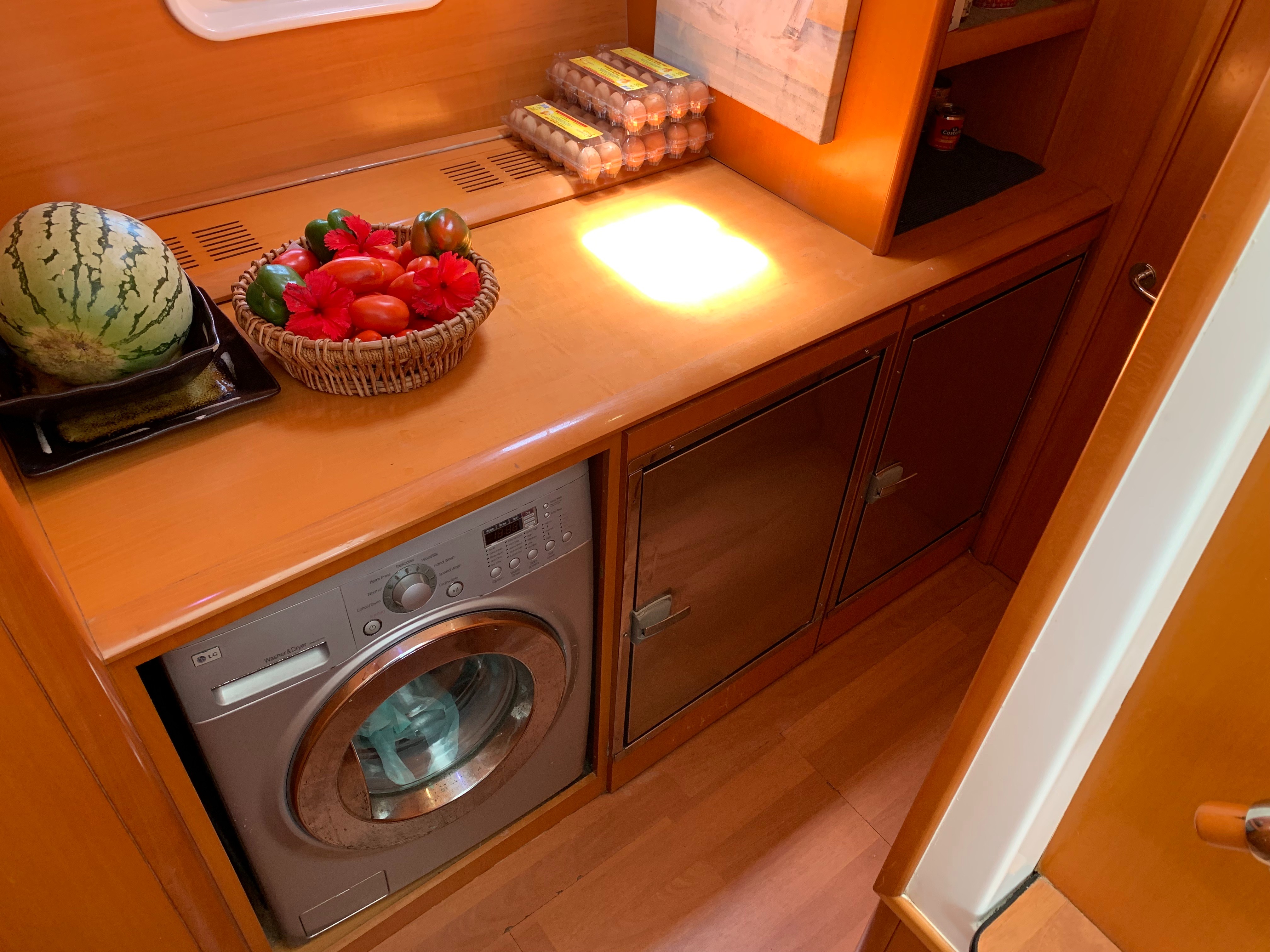

1 Freezer and 3 Fridges

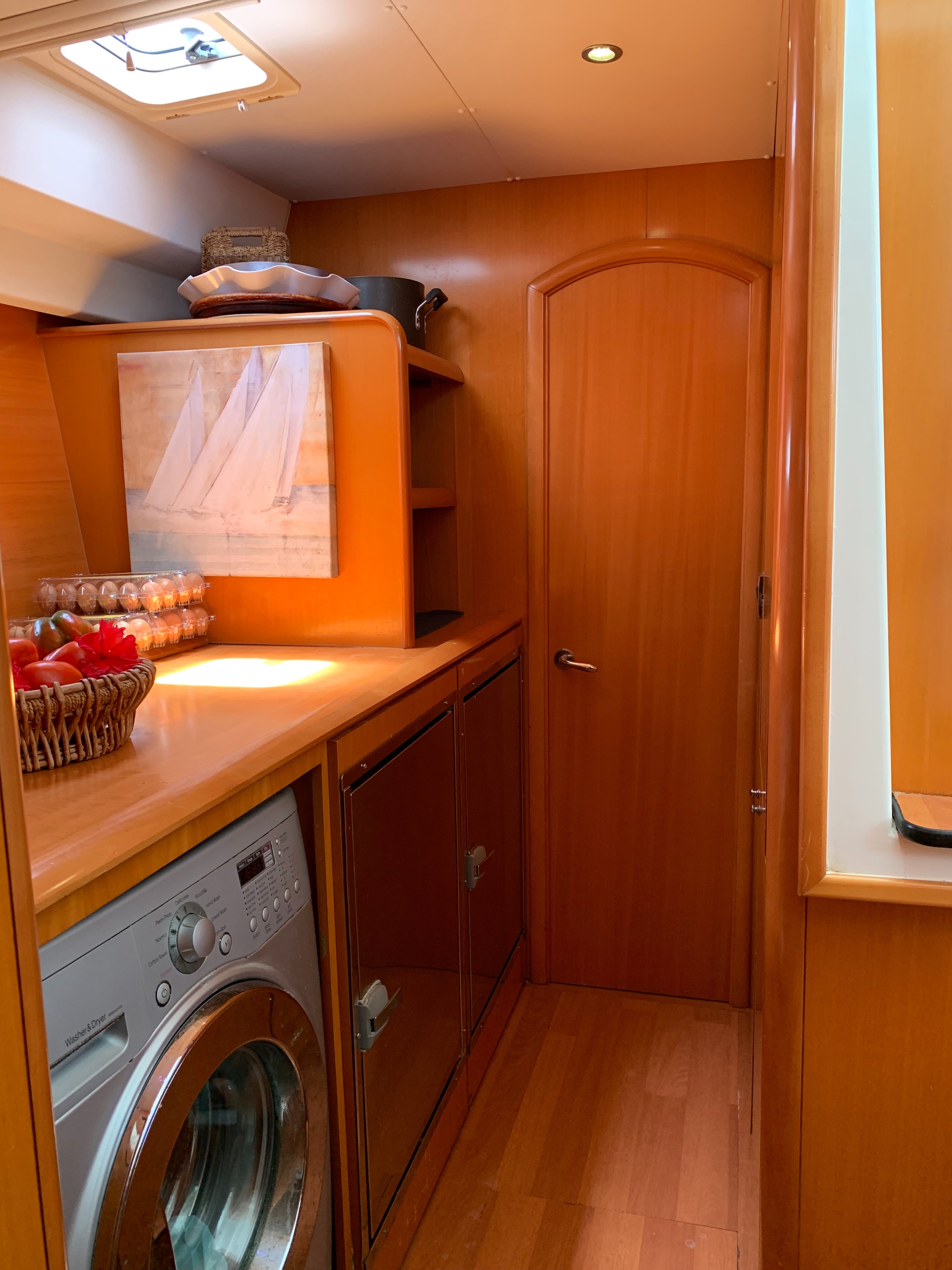

Washing Machine
Dish washer
Full complement of cooking appliances and dishes

Deck & Equipment

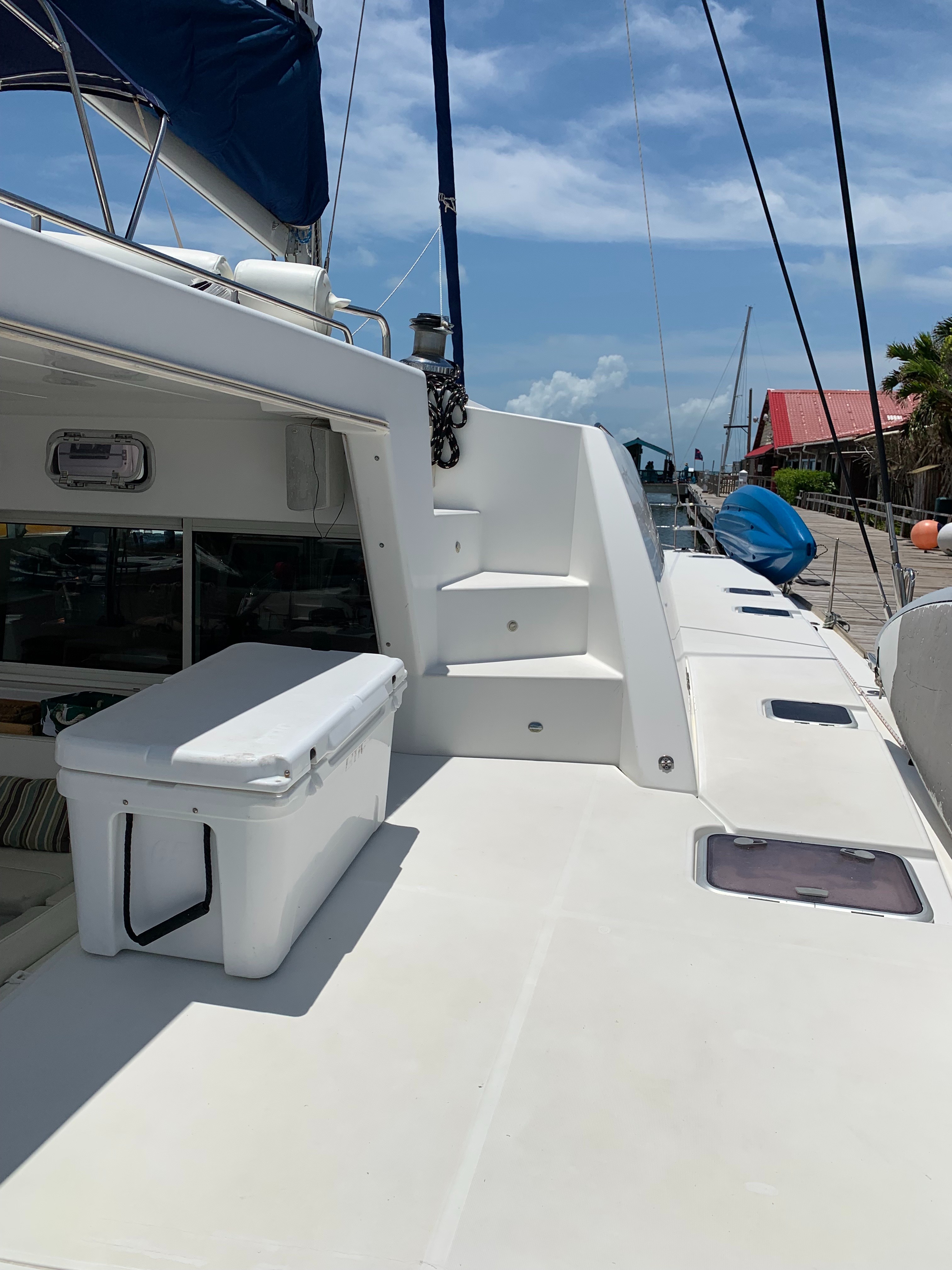

Deck Equipment:
Mooring cleats

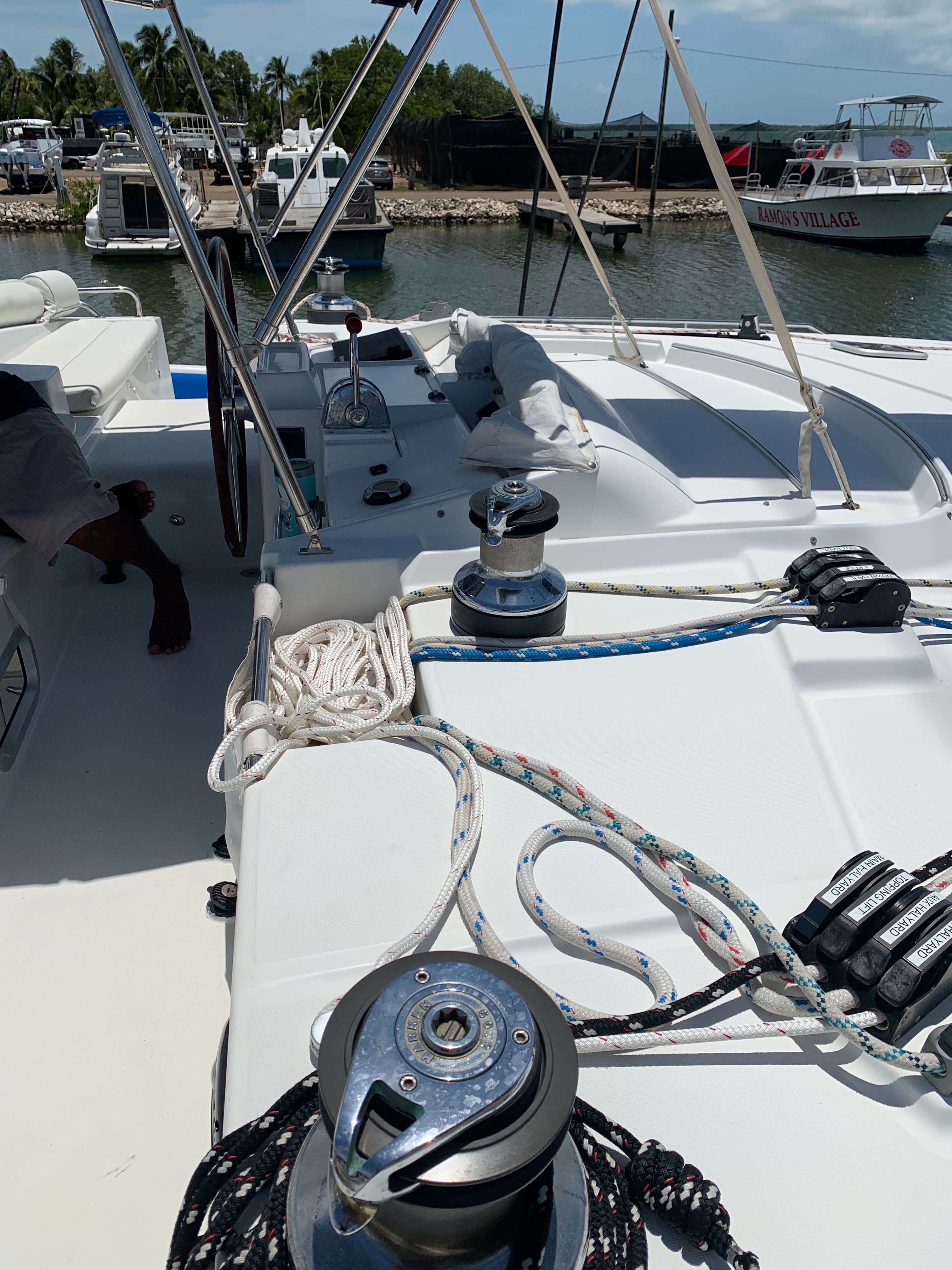

1 electric winch 48.2 STCEH starboard of helm for mainsail halyard, and reefing lines
1 winch 60.2 STC starboard of helm for genoa halyard, genoa sheet, and (optional) Spinnaker/Gennaker sheets and halyard
1 winch 60.2 STC port of helm station for genoa sheet and (optional) Gennaker /Spinnaker sheets
1 winch 53.2 STC behind helm station for main sheet, main traveller and genoa furling lines
1 winch 40.2 STC in cockpit for davits tackle (davits optional) and mainsheet safety release

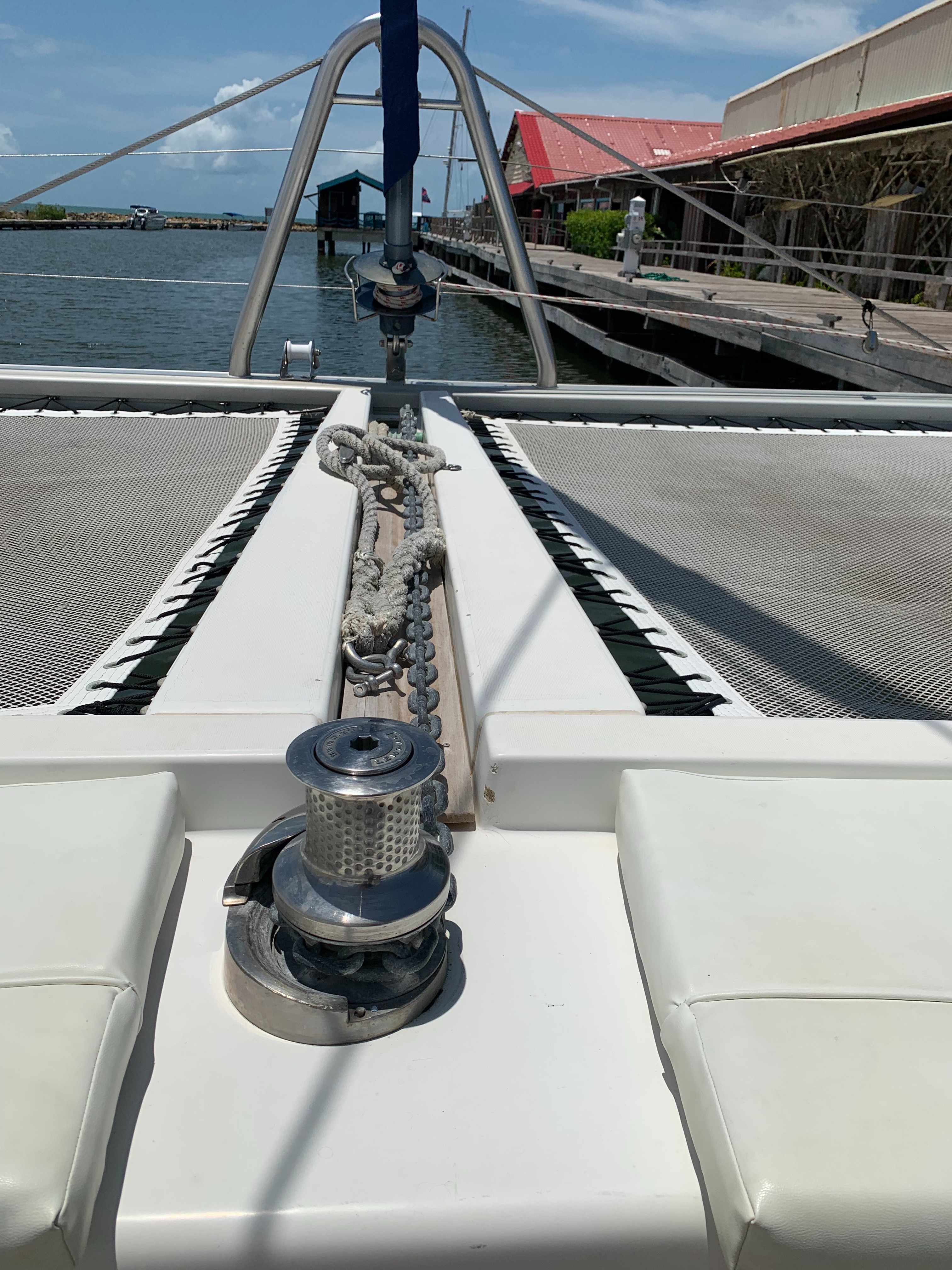

1 electric windlass 12V – 2000W in anchor locker with 12mm chain vertical gypsy. New motor installed in 2023.
Forward pulpits with wood seats
Bare s/s lifelines
Wooden foot rail
Bow safety net with knot-less nylon netting replaced 2018
Stainless steel outboard stern pulpits including one with horseshoe buoy and
flagpole fittings and one with stern light
Stainless steel inboard stern pulpits
Composite forward longitudinal beam with recessed chain run and mooring cleat
Aluminum crossbeam with forestay chainplate, anchor roller
Mainsheet traveler track and ball-bearing cars
2 genoa tracks with genoa car and stopper

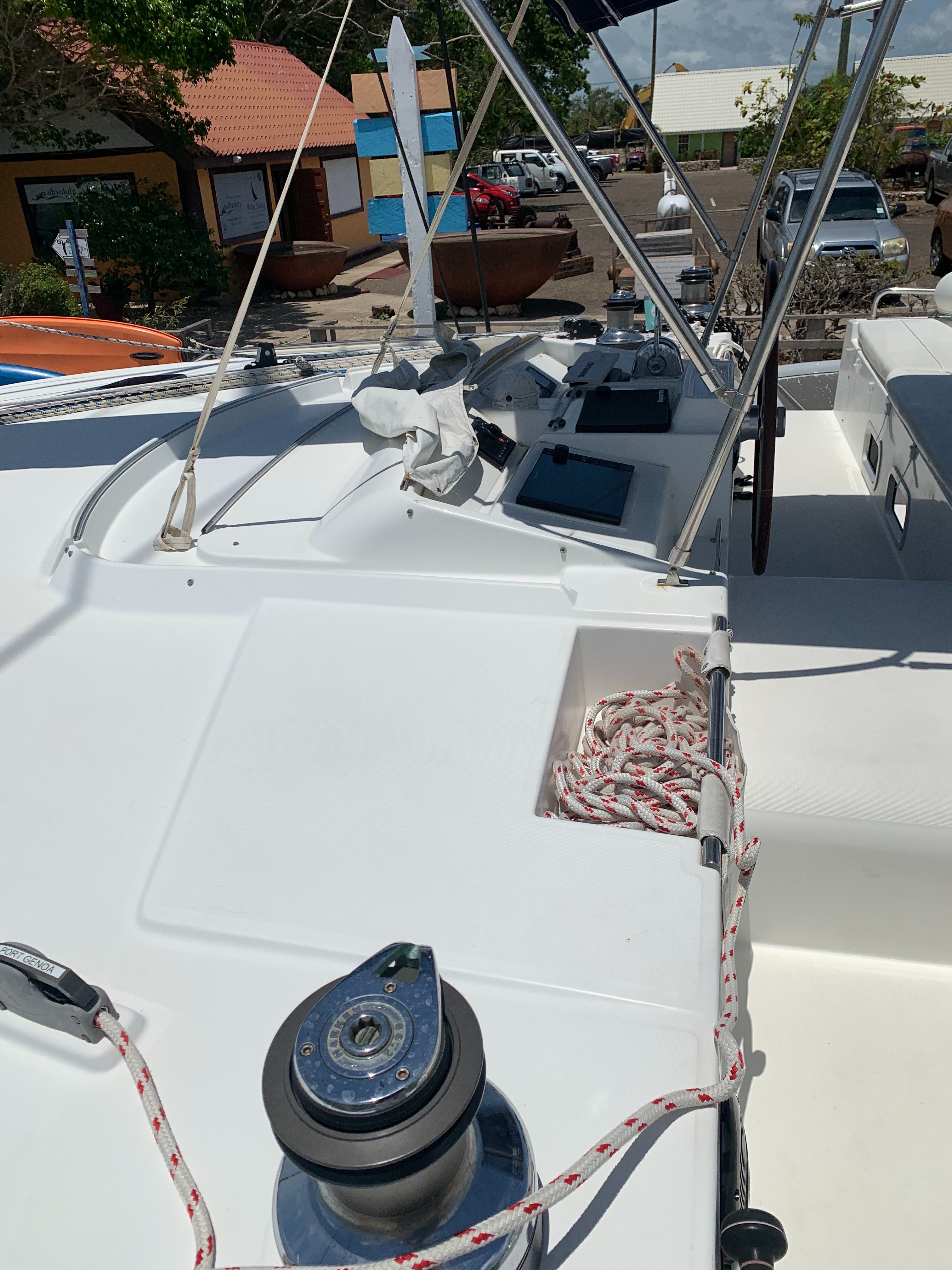

Flybridge:
Twin deck access stairways, one from each side
Large bench seat for 8 people with PVC cushions
Ergonomically-designed helm station with leathered wheel, engine throttles, engine panels hour meters, fuel gauges, compass, large instrument console for electronic displays, plexiglass protected chart storage, cup holders, rope storage
Stainless steel and foam back rest

Outside Equipment:
Cockpit Shower
Custom Davit
Radar Reflector

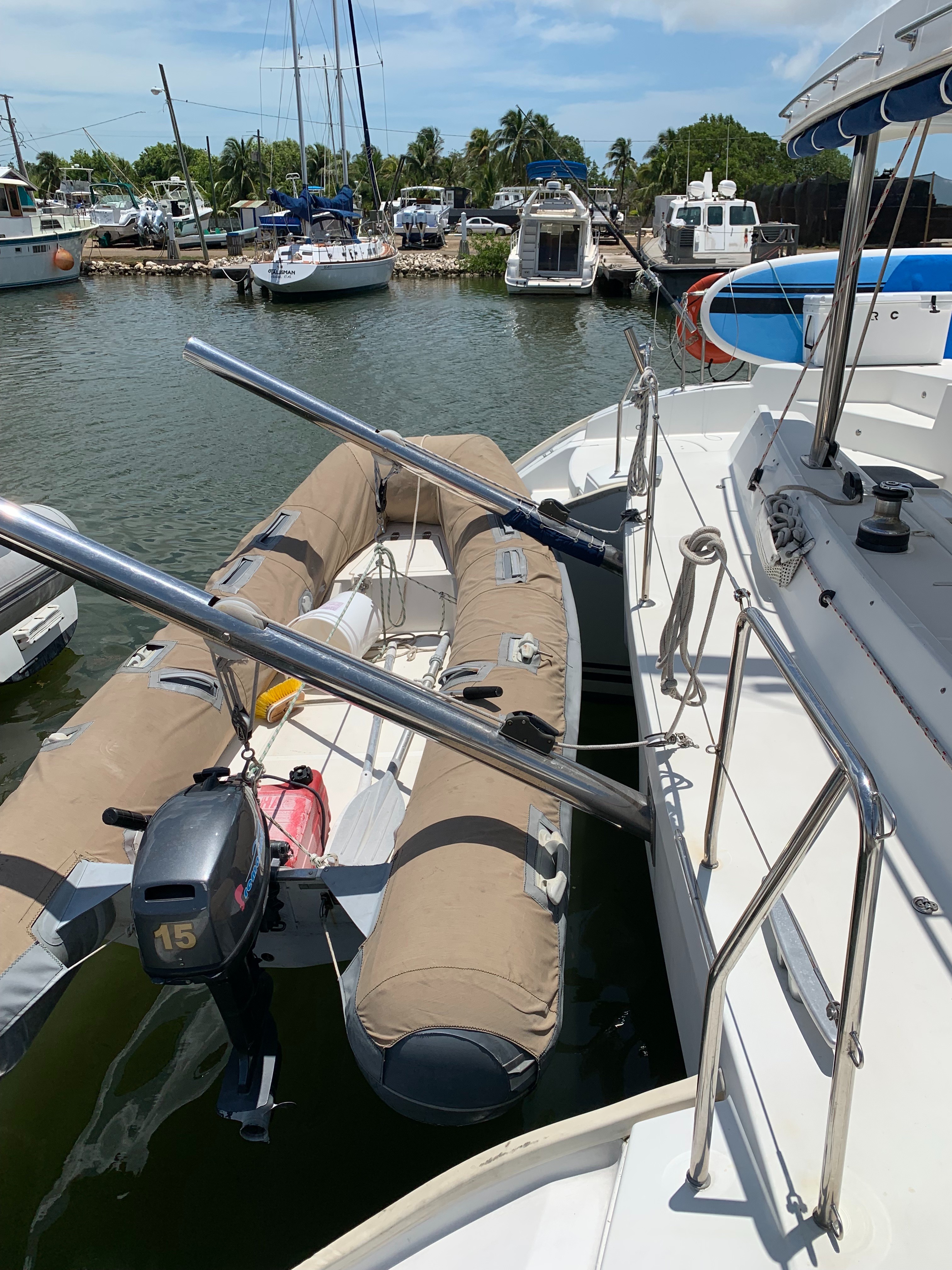

Tender
Life raft
Cockpit Cushions
Cockpit Table
Swimming Ladder

Electronics & Navigation

Electronics:
Depth sounder
Autopilot
Log-Speedometer
Radio
Wind Speed and Direction
Compass
Repeater(s)
Cockpit Speakers

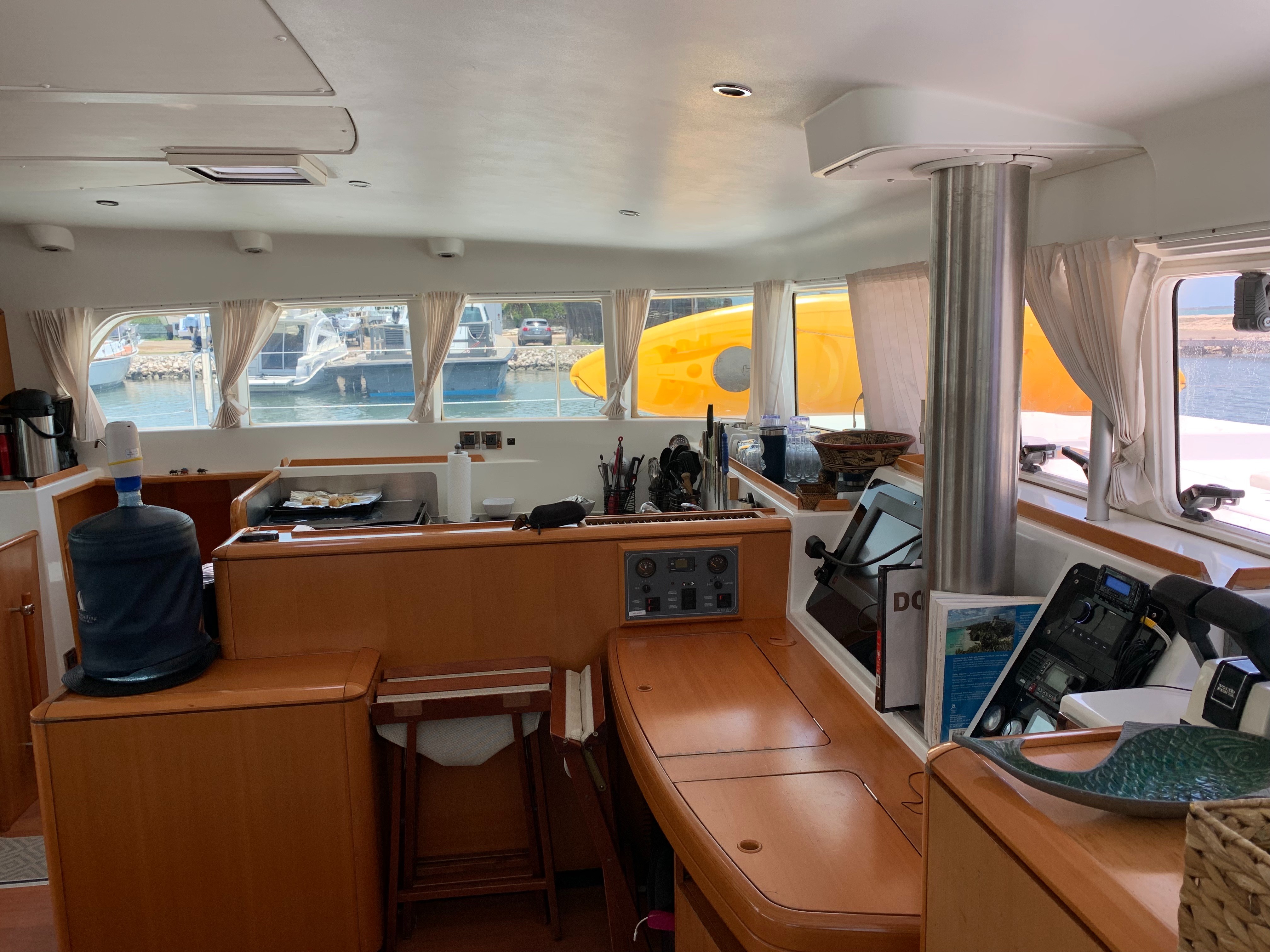

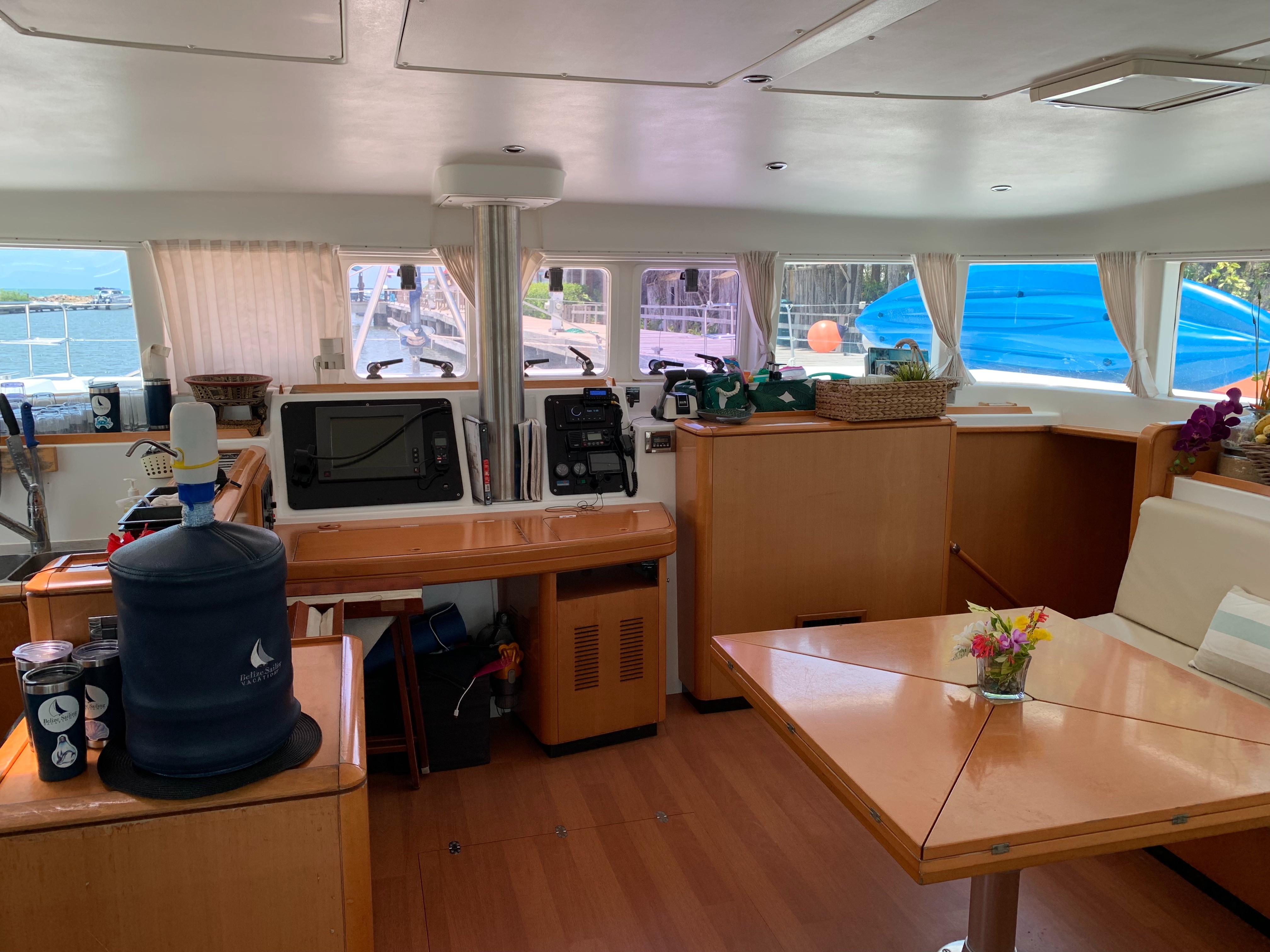

Navigation Center
VHF
Plotter

Electrical, Power & Plumbing

Electrical Equipment:
Shore Power Inlet
Generator
Inverter

Electrical:

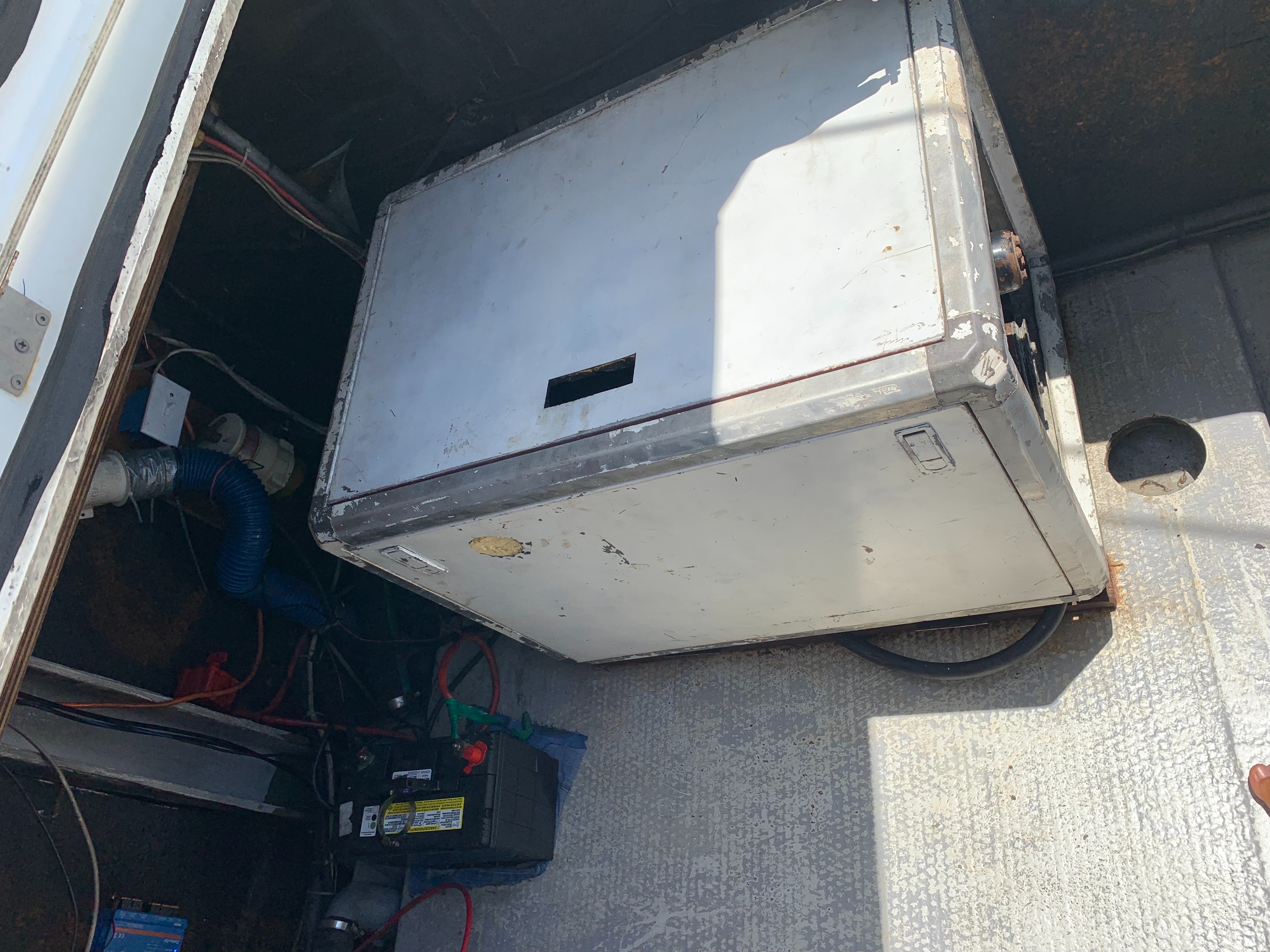

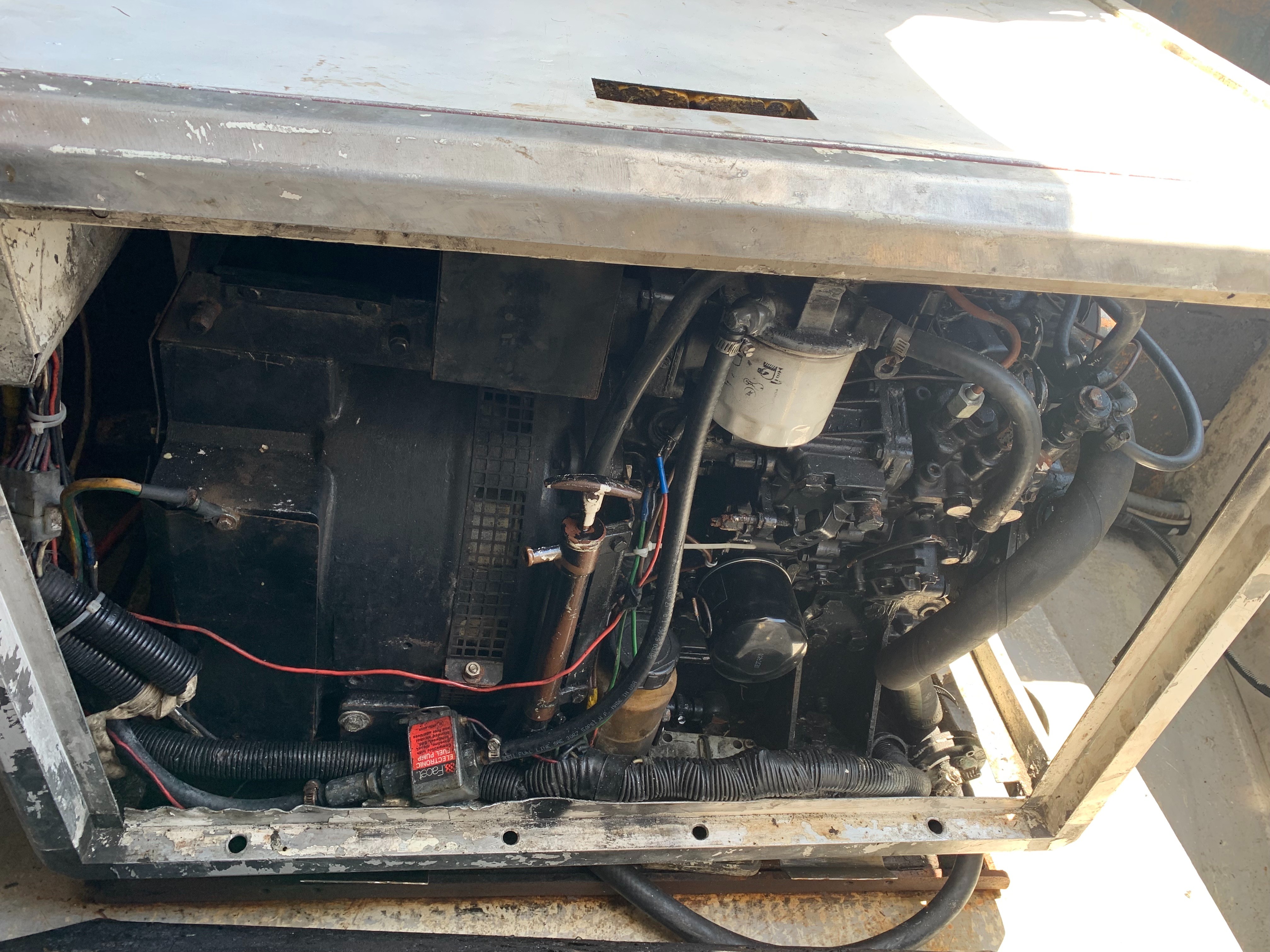

1 X Mase generator (Model #10.2/60Hz) – 12,726 hours
House Batteries lead acid replaced November 2022
12V DC electrical system controlled by breakers on an electrical panel
110V AC electrical system controlled by breakers on an electrical panel
Bilge pump with 2 independent switches
AC / DC electrical panels are located on the aft salon bulkhead and protected by a sliding plexiglass cover
Nav lights panel, gauges, battery control at nav station
LED interior spot lights
LED navigation lights including: aft navigation light on pulpit, 2 color light on forward crossbeam, motoring light, masthead mooring light
Over the water lights

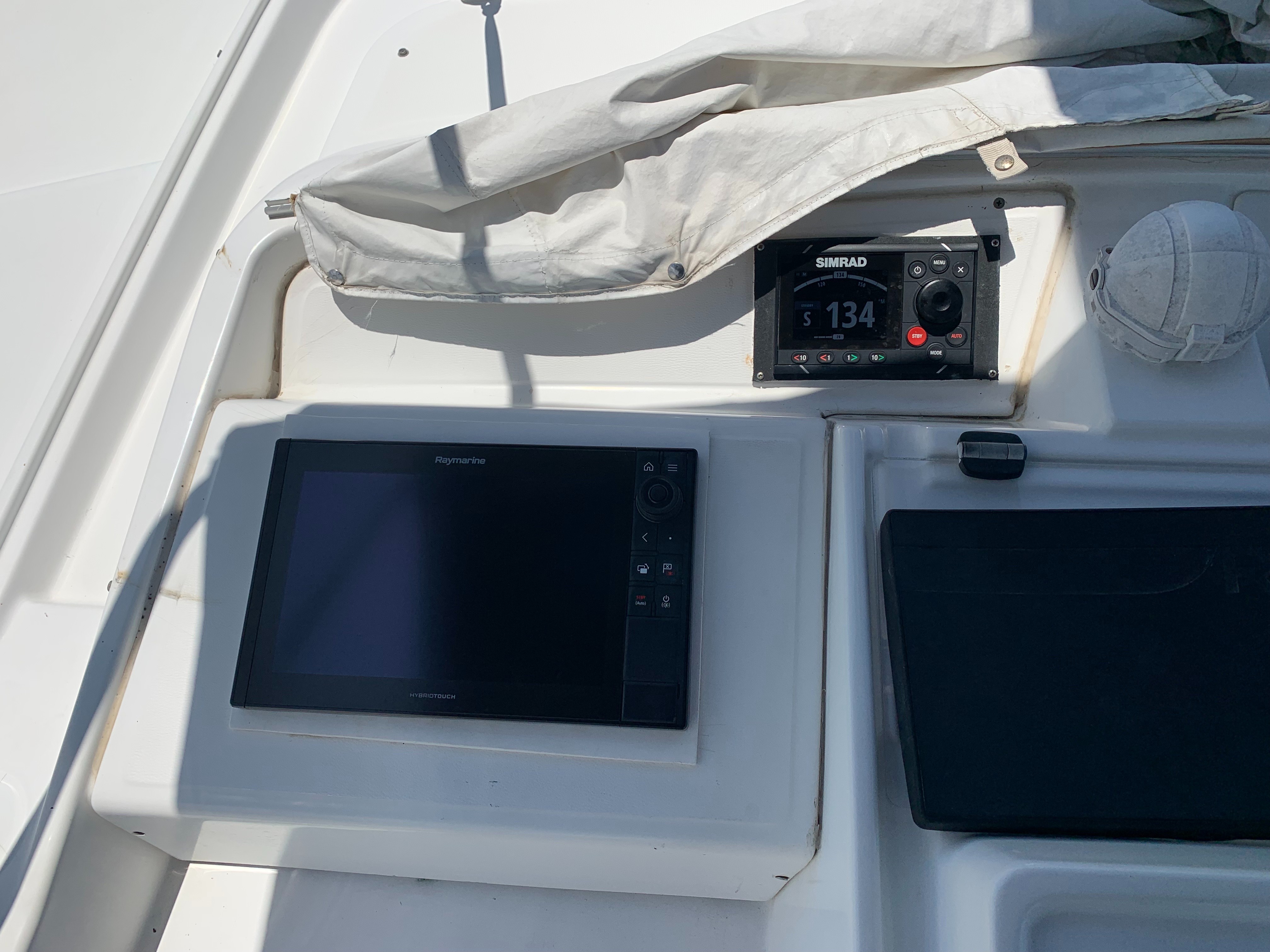

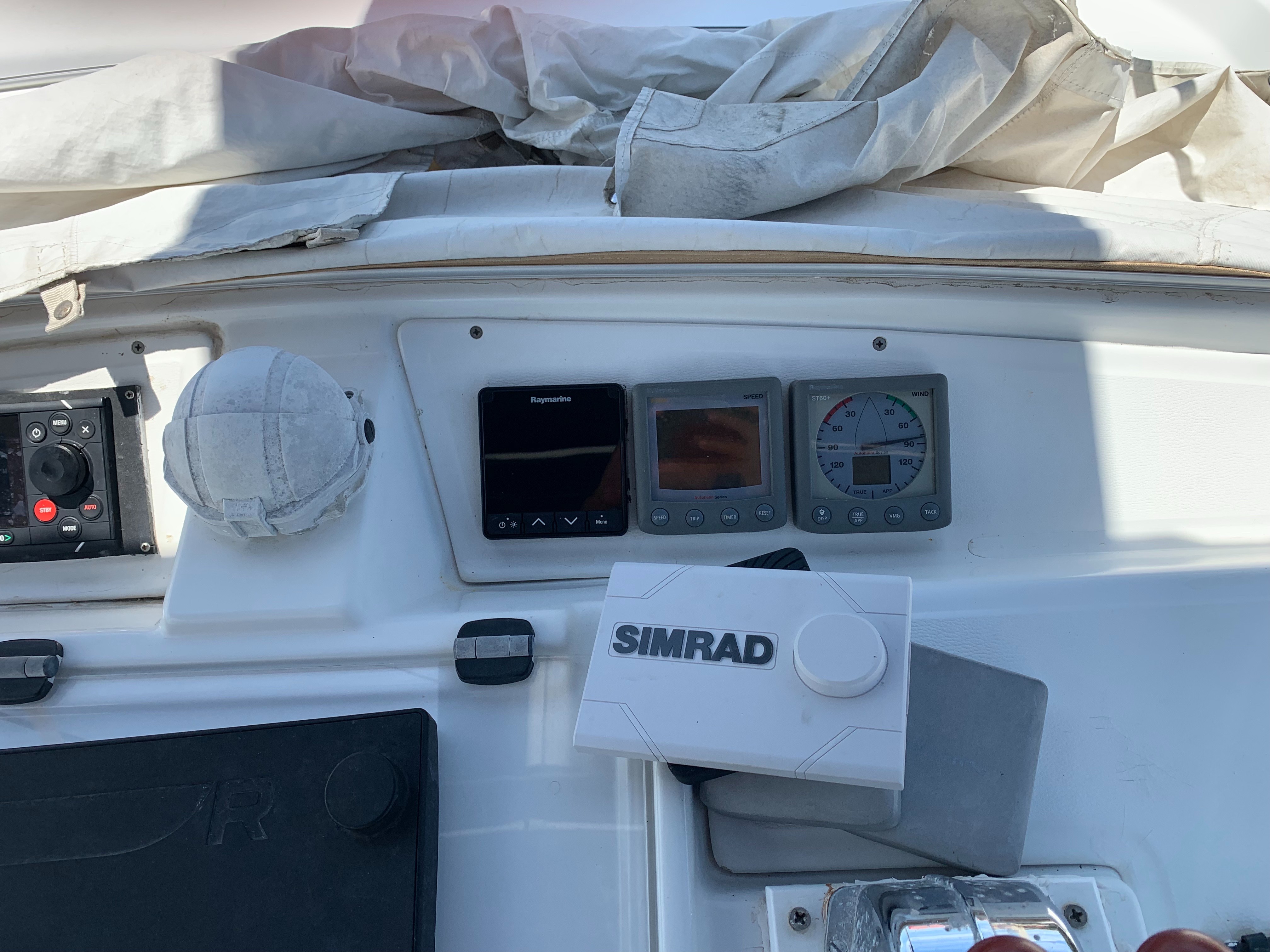

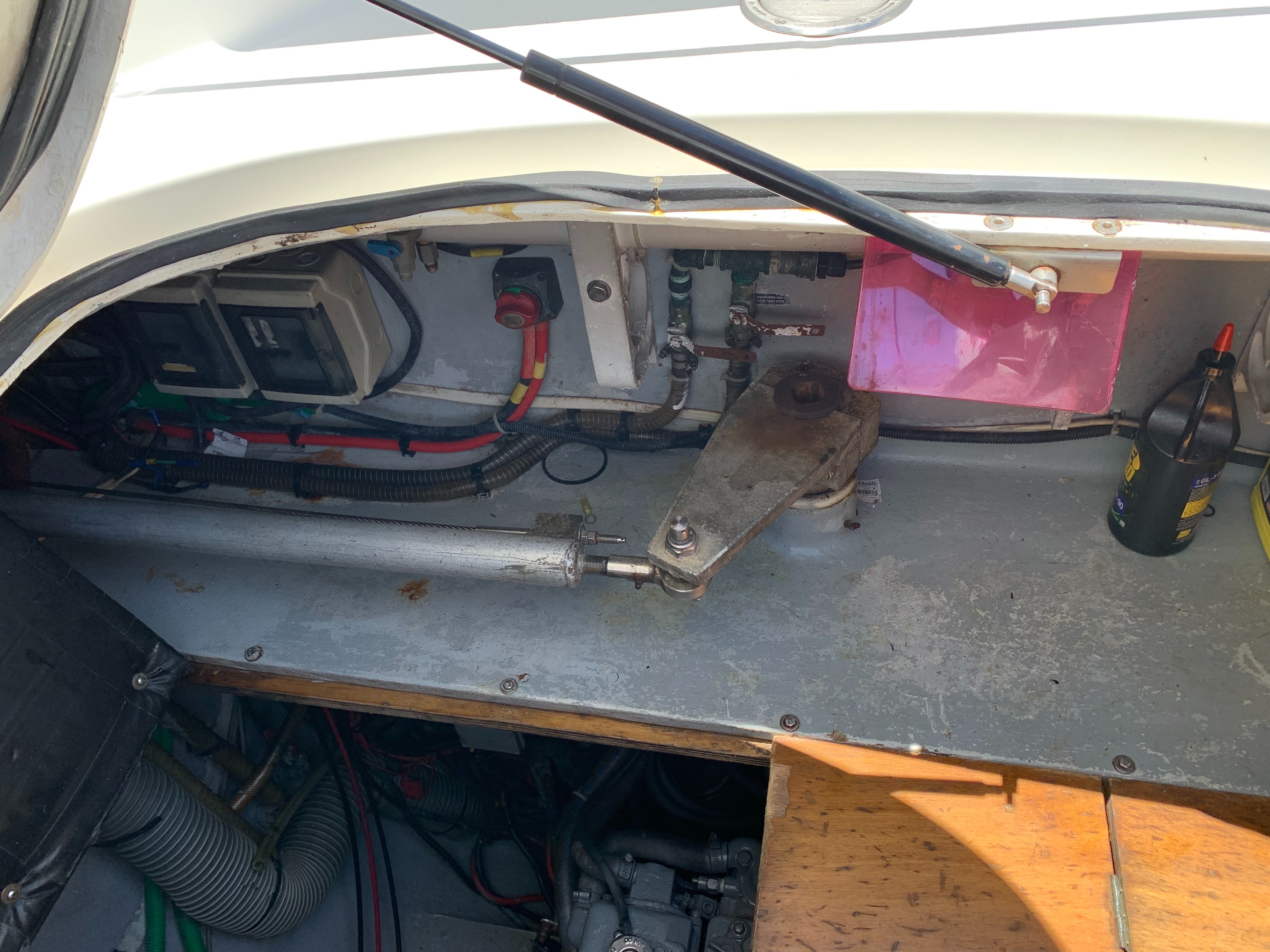

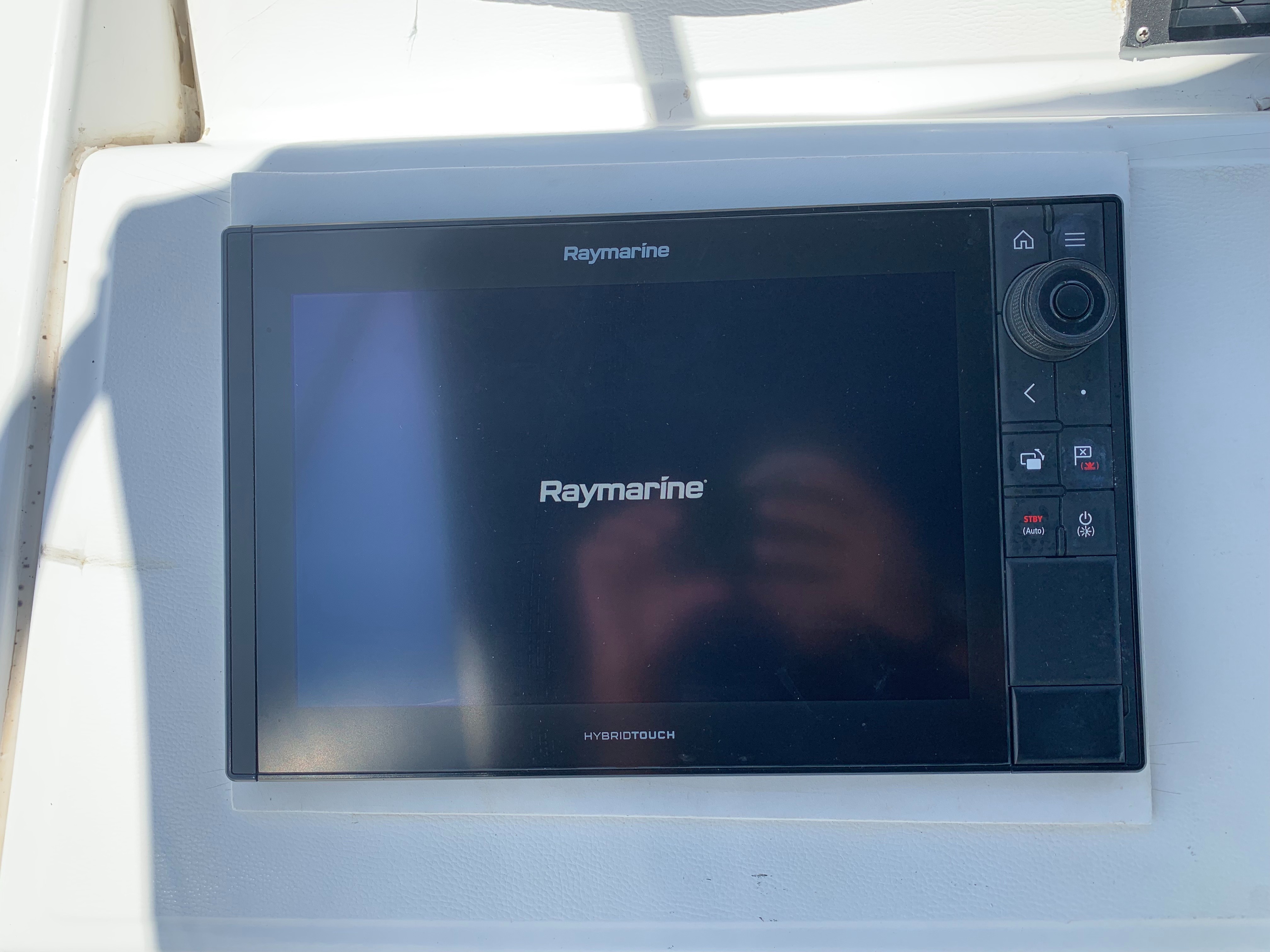

Raymarine electronics installed in 2023 including chart plotter, depth sounder, anemometer. New Simrad Autopilot control head, CPU and ram installed in November 2022.

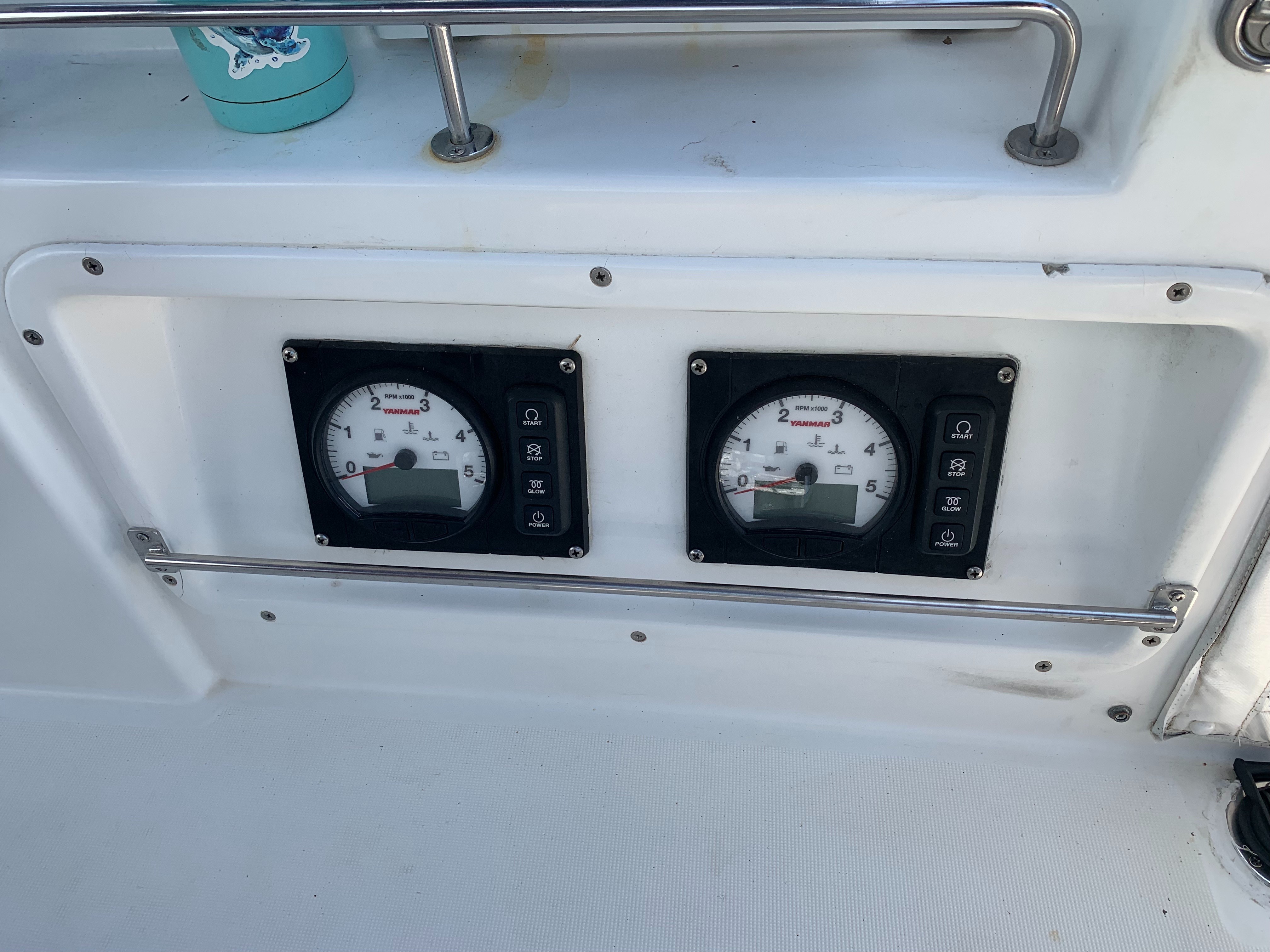

Engine start panels replaced in March 2023
Sound System Replaced November 2022: Fusion Sound System

Engine & Mechanical

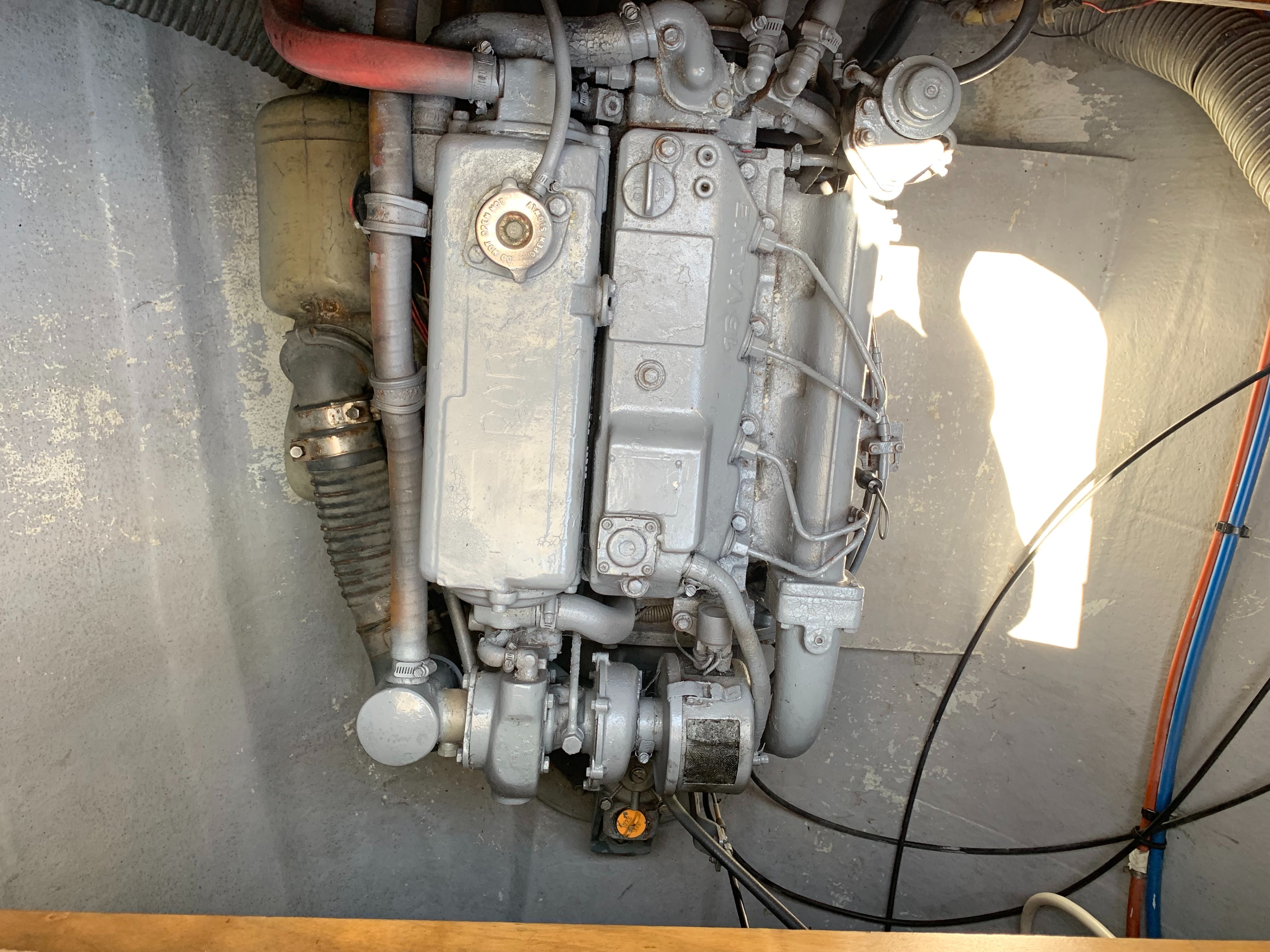

Engines:

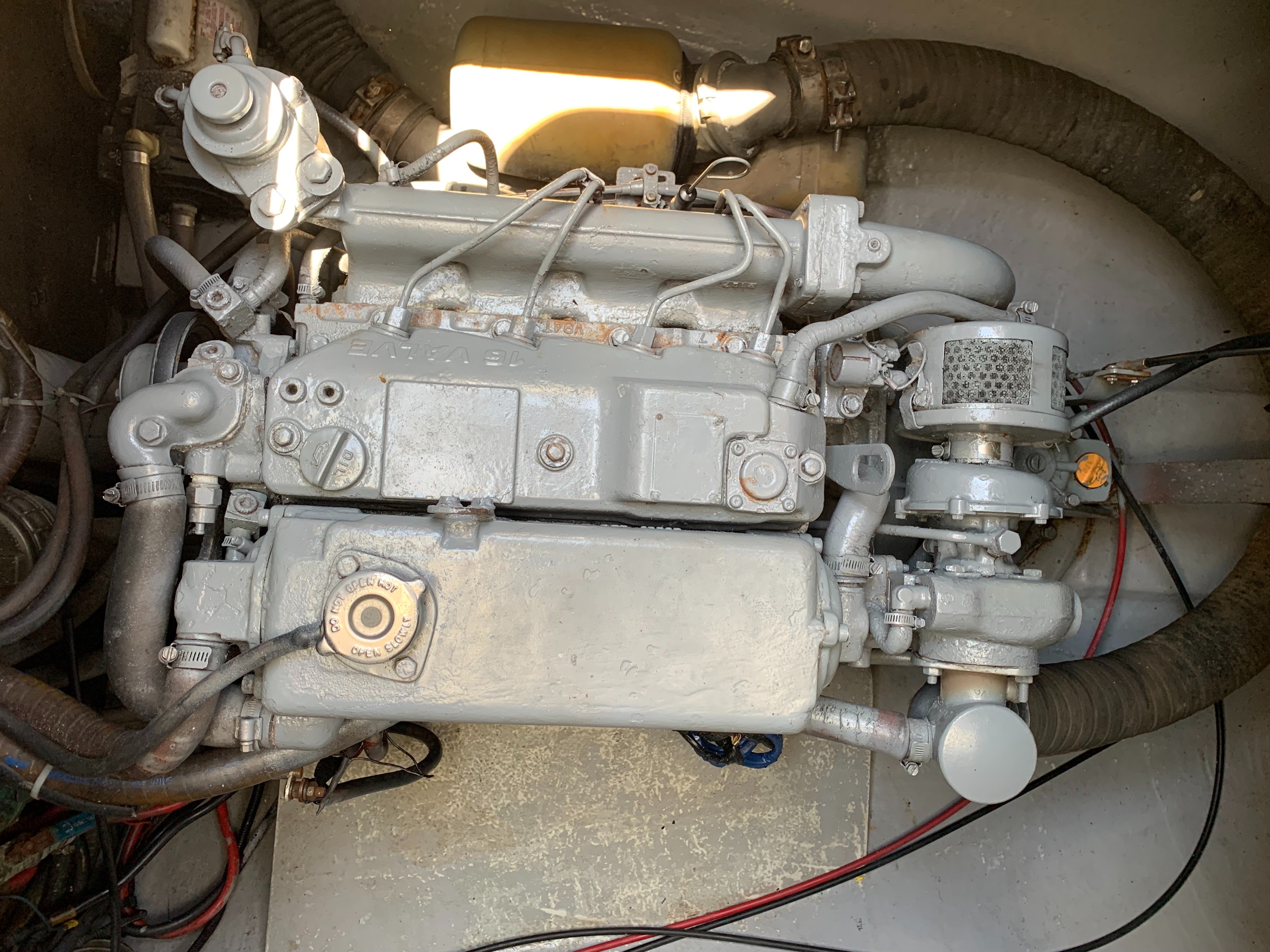

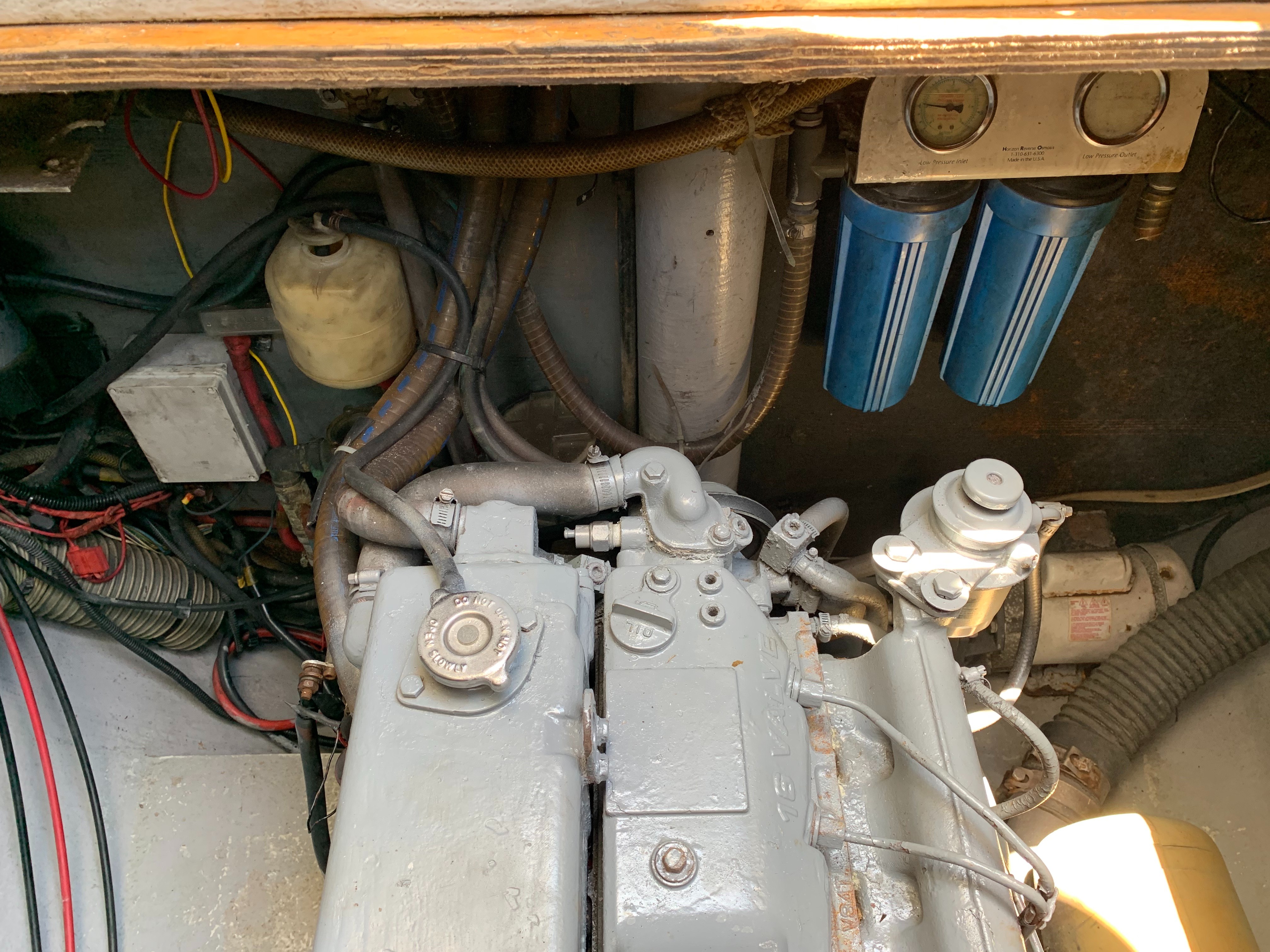

2 Yanmar 75 HP engines (approximately 8,000 hrs on both) with saildrive transmission. Sail drive service October 2021, cone service February 2023
Engine throttles at steering station and in salon
Engine start panels replaced in 2023
2 three bladed fixed propellers
Engines accesses by hatch at top of transom steps. 2 gas struts per hatch
Compartments ventilation system with entry and exhaust on rear cross beam
Sea water filter
Sound insulation of engine compartments
Insulation foam on bulkheads and hull sides
Sound shield on cover above engine (cocoon)
2 rudders (foam sandwich), composite rudder shafts
Cable Steering adjustable with turnbuckle.

Propulsion:
Engine 1
Engine Make-Yanmar
Engine Model-4JH4-TE
Engine Year-2007
Total Power-75hp
Engine Hours-8236
Engine Type-Inboard
Drive Type-Sail Drive
Fuel Type-Diesel
Propeller Type-3 Blade
Propeller Material-Bronze

Engine 2
Engine Make-Yanmar
Engine Model-4JH4-TE
Engine Year-2007
Total Power-75hp
Engine Hours-8206
Engine Type-Inboard
Drive Type-Sail Drive
Fuel Type-Diesel
Propeller Type-3 Blade
Propeller Material-Bronze

Sails & Rigging

Sails:
Fully Battened Mainsail
Furling Genoa

Sails
Sail area main and genoa: 154,2m2 (1718 sq ft)
Full batten mainsail: 92m2 (990 sq ft)
Furling Genoa: 62.2m2 (669 sq ft)

Rigging:
Steering Wheel
Electric Winch

Standing Rigging:
Clear anodized aluminium mast(22m /72’2’’)
Clear anodized aluminium boom
Double spreader rig
2 shrouds with chafe guards
2 lower shrouds with chafe guards
1 forestay with furler
Adjustable lazy jacks
Deck light on mast
Rigging inspected annually

Running Rigging:
1 double-purchase mainsail halyard
1 genoa halyard
1 mainsail sheet
genoa sheets
3 mainsail reefing lines
1 genoa furling line
2 mainsail traveller car control lines

Additional Information

Miscellaneous:
Windlass
Electric Windlass
Electrical Circuit

Construction:
• Polyester and high quality anti-osmotic resin FRP construction
• Bridge deck and deck in balsa sandwich. Vacuum bagged and infused with high quality anti osmotic resin and polyester resin

Hulls:
• Below water line, and above decoration strip: solid glass vacuum bagged infused with vinylester & polyester resin
• Hull side and bridgedeck: balsa sandwich vacuum bagged infused with vinylester & polyester resin
• Balsa infused structural bulkheads
• White gelcoat hull
• White gelcoat deck with non-skid (diamond type)
• 2 steps amidships at gate level in hull side for easier access side
• Bottom paint, sail drive service, and wax/polish Oct ‘21.
