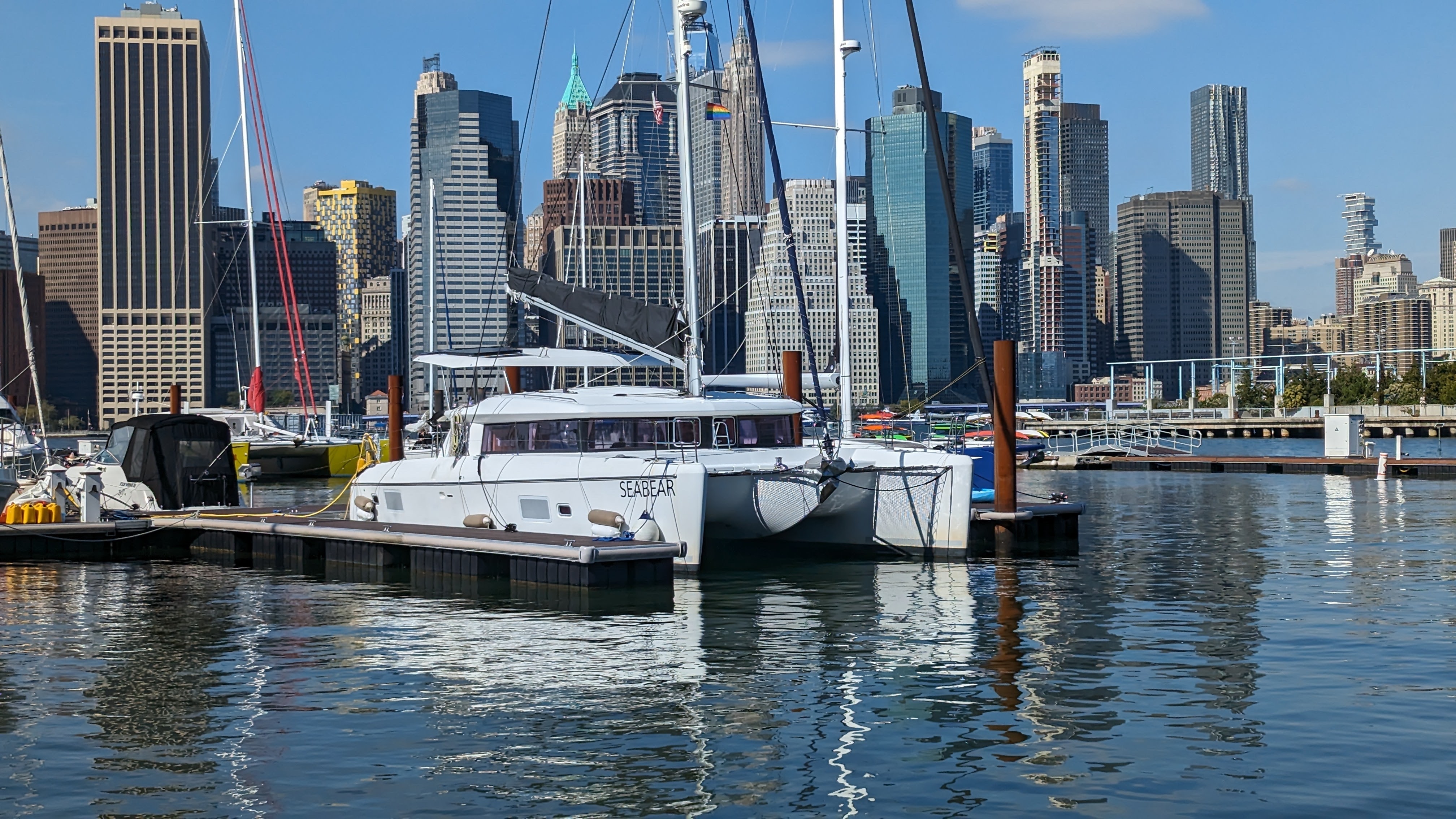

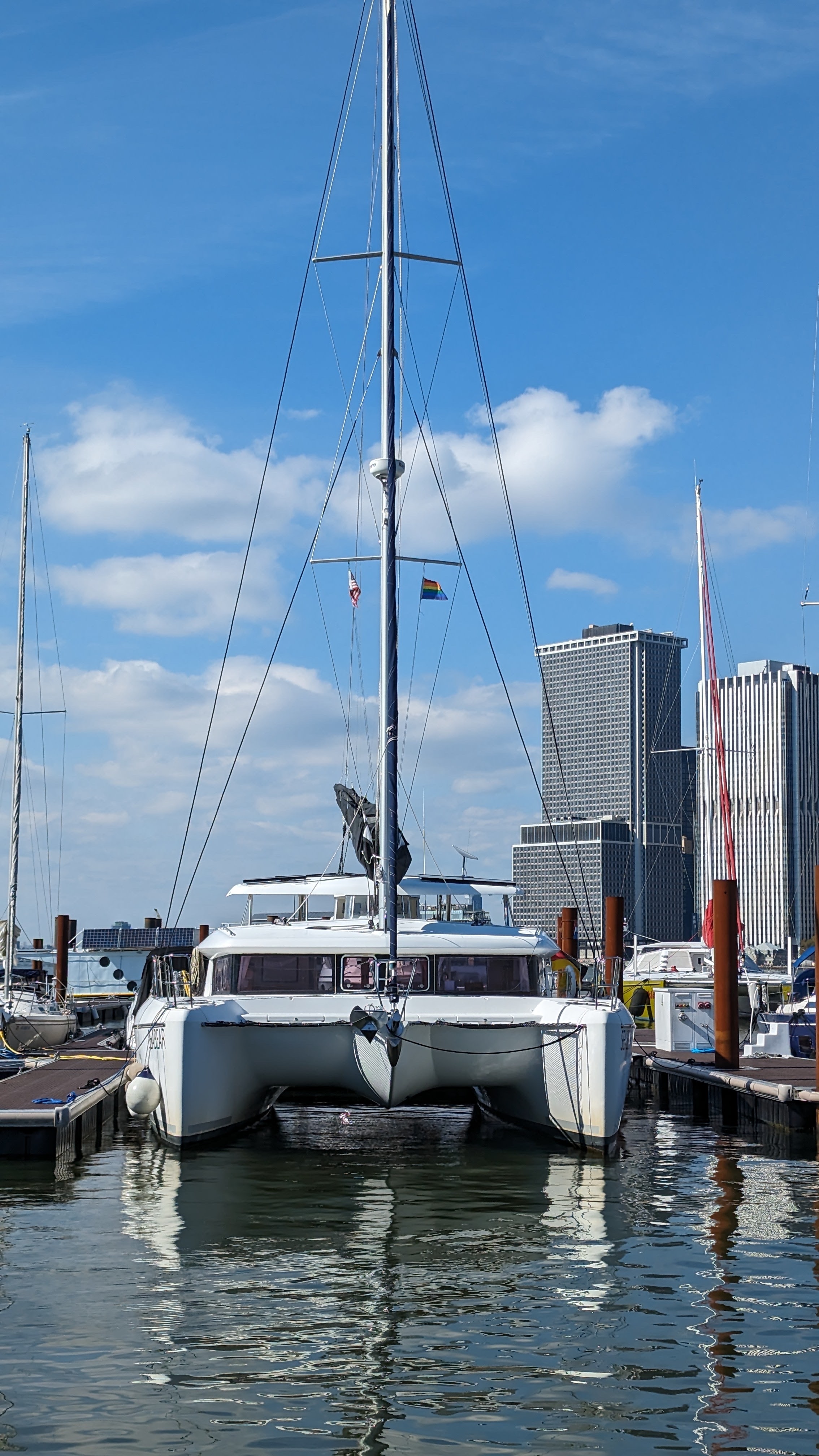

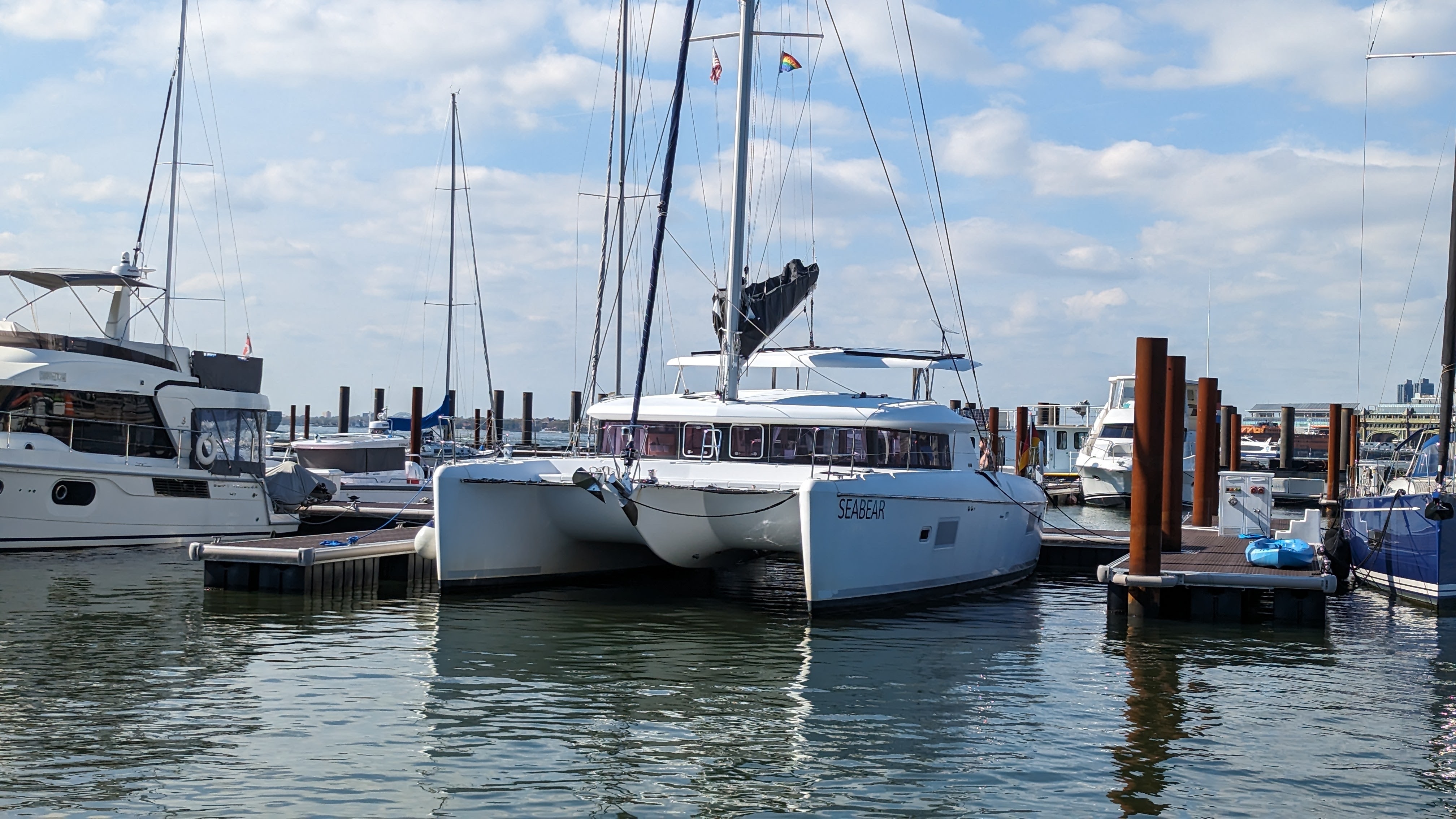

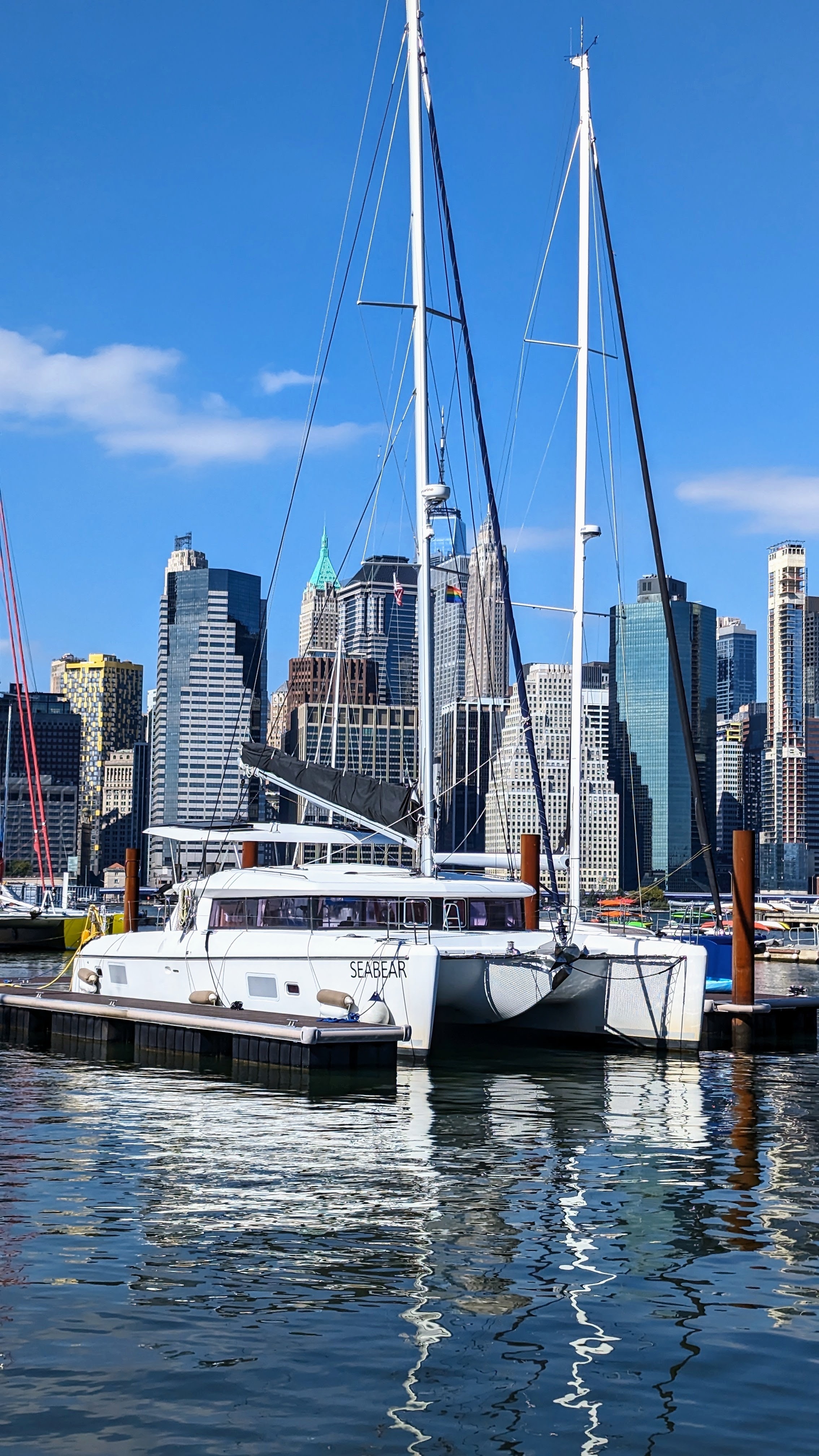

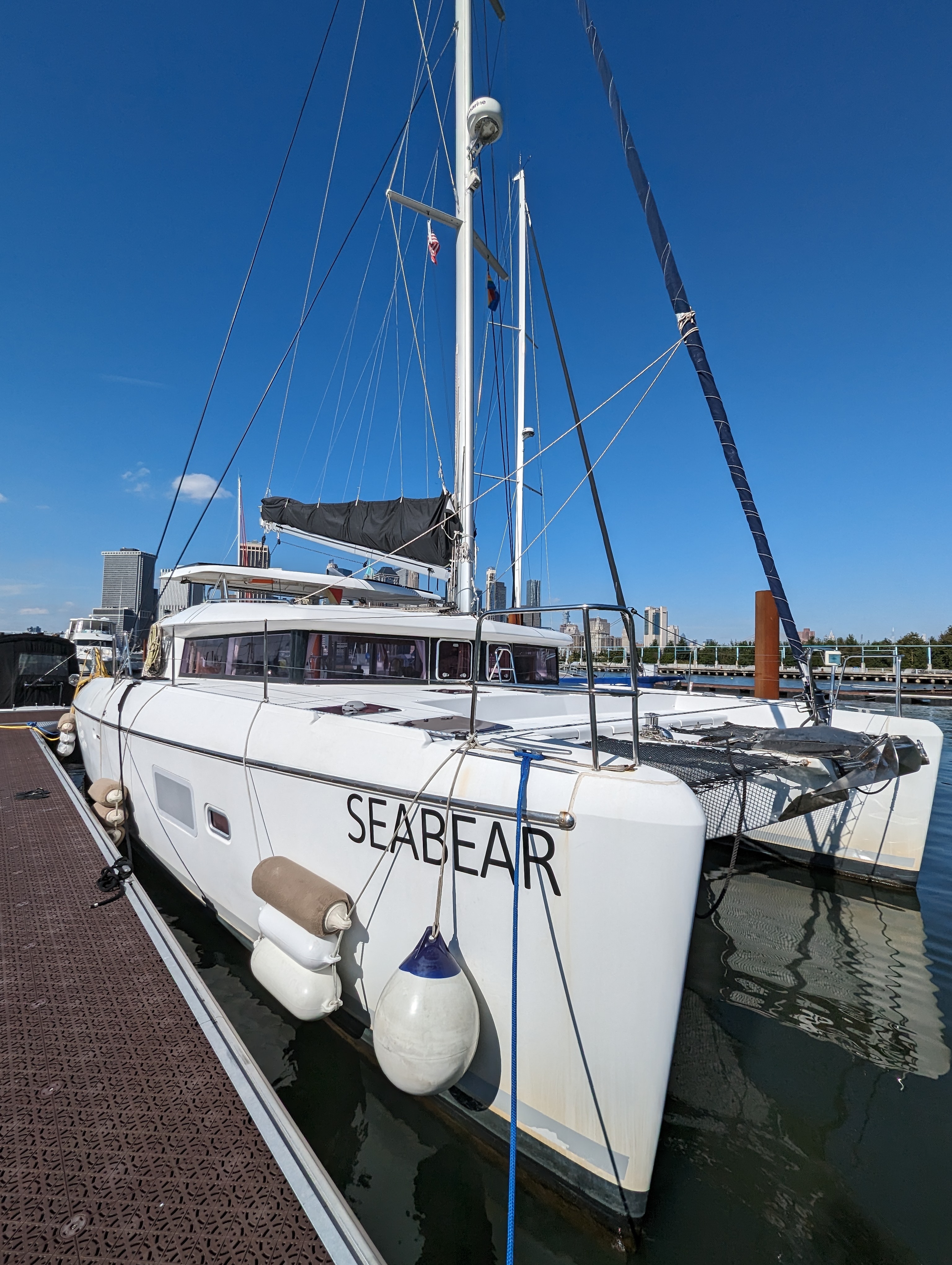

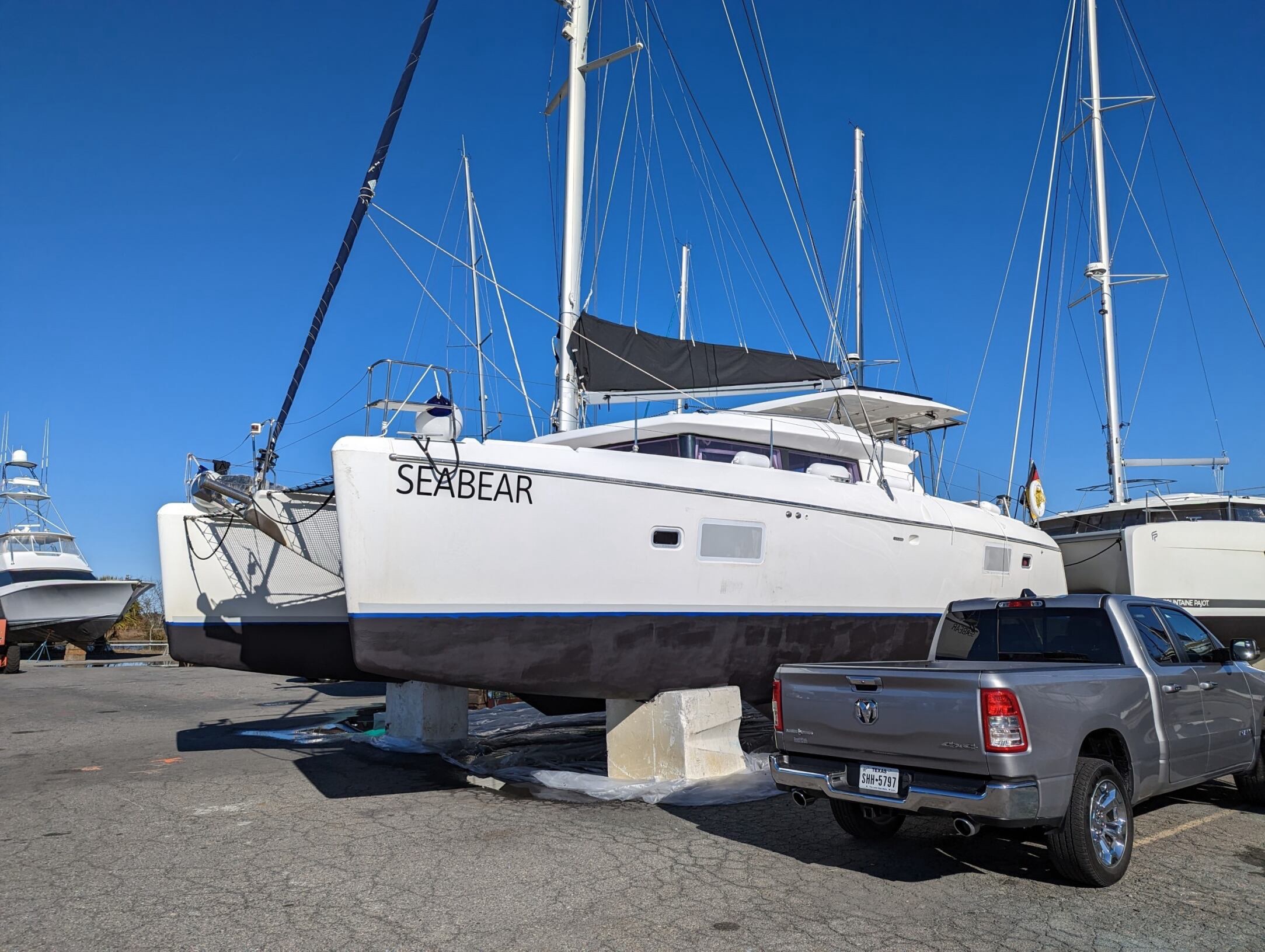

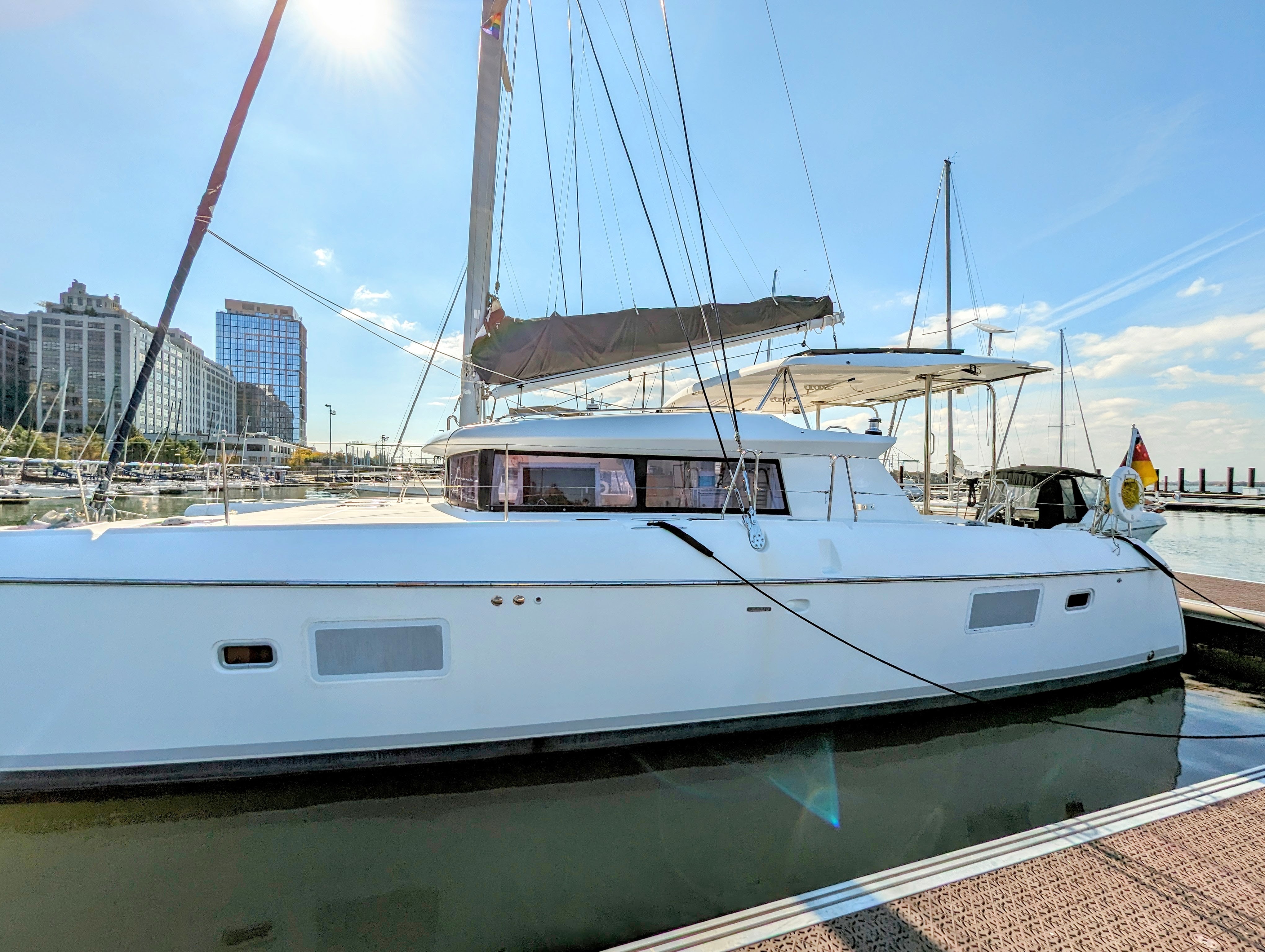

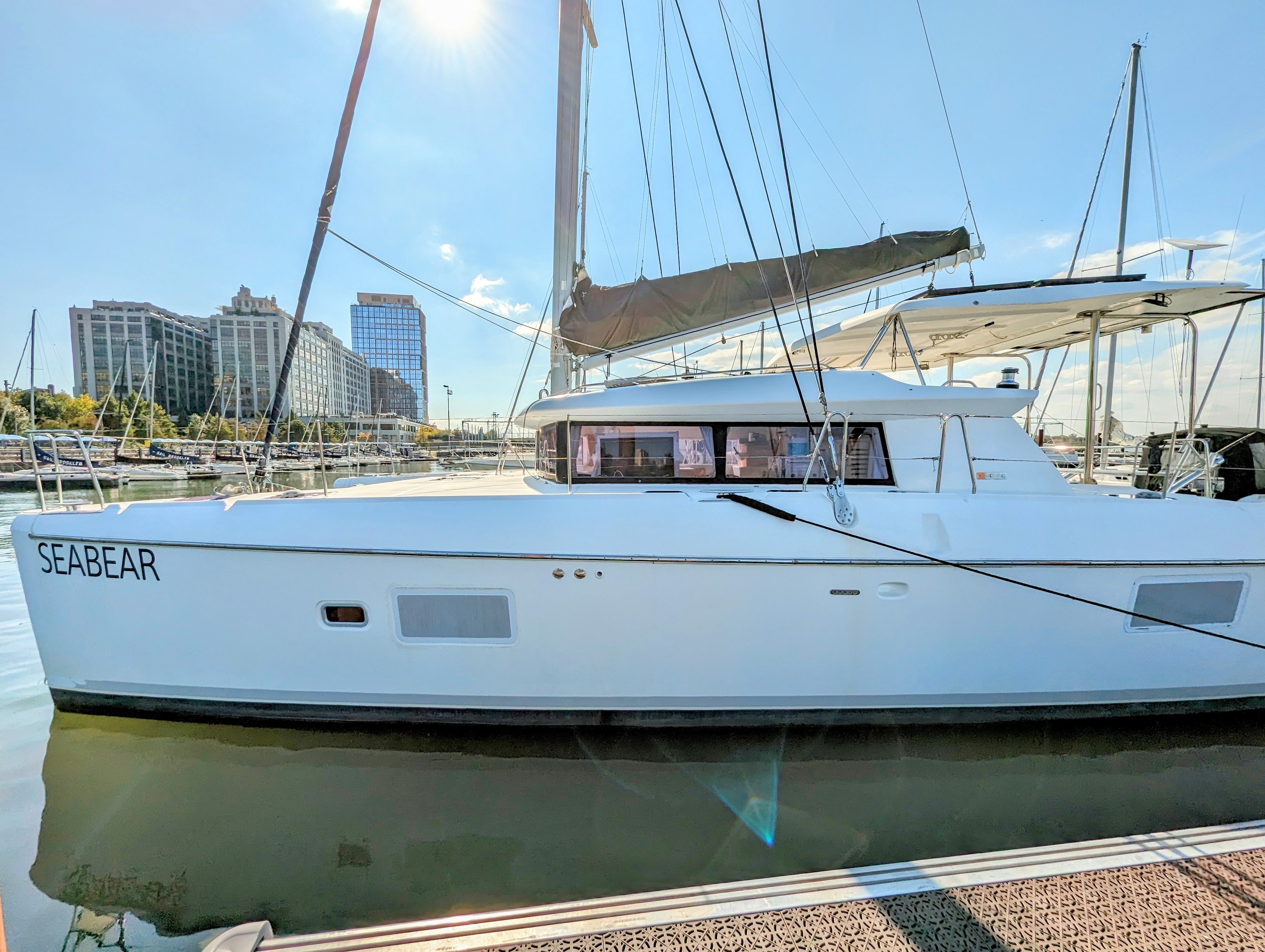

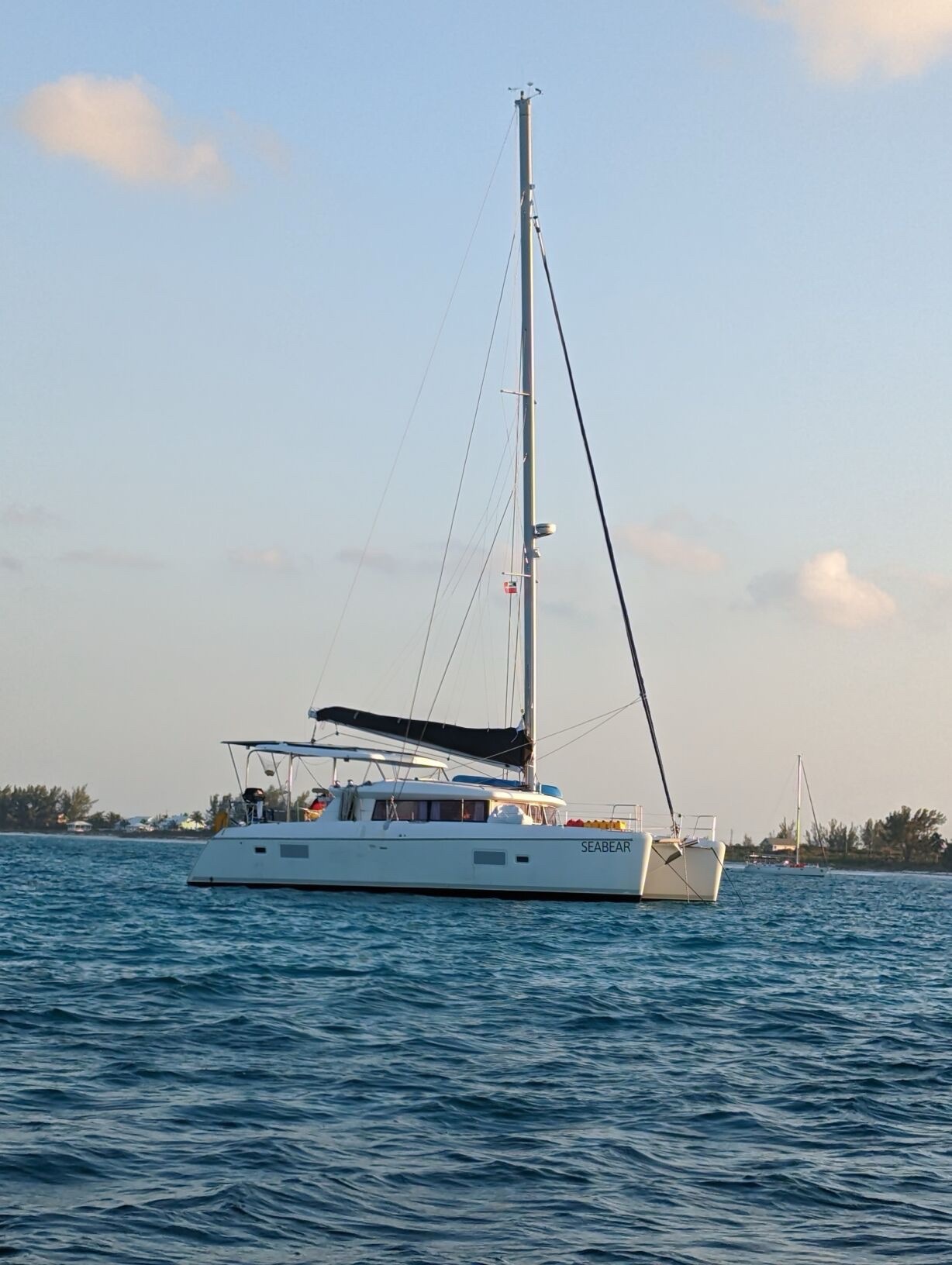

SEABEAR OWNERS VERSION | 2009 Lagoon 420

Layout & Accommodations

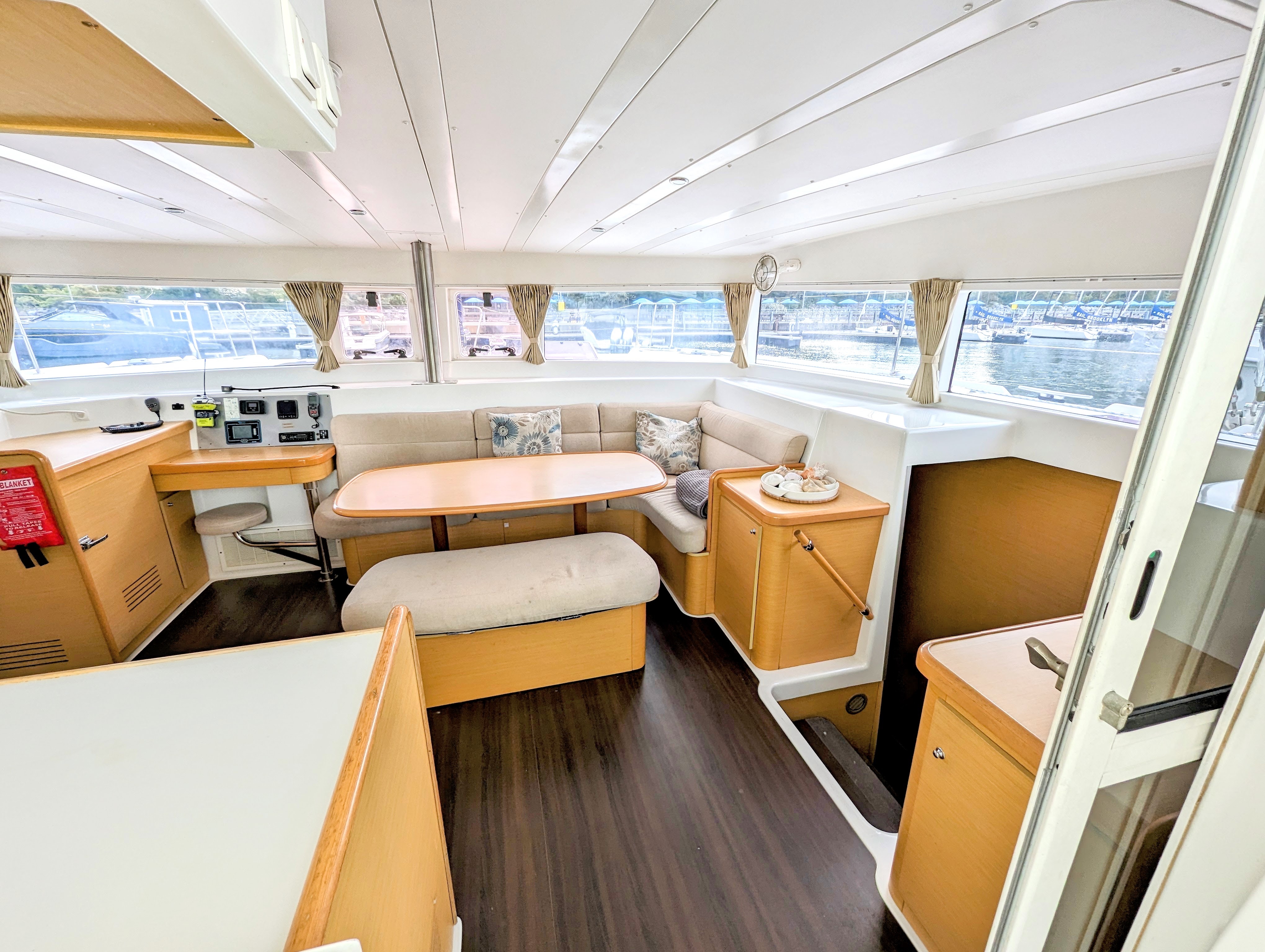

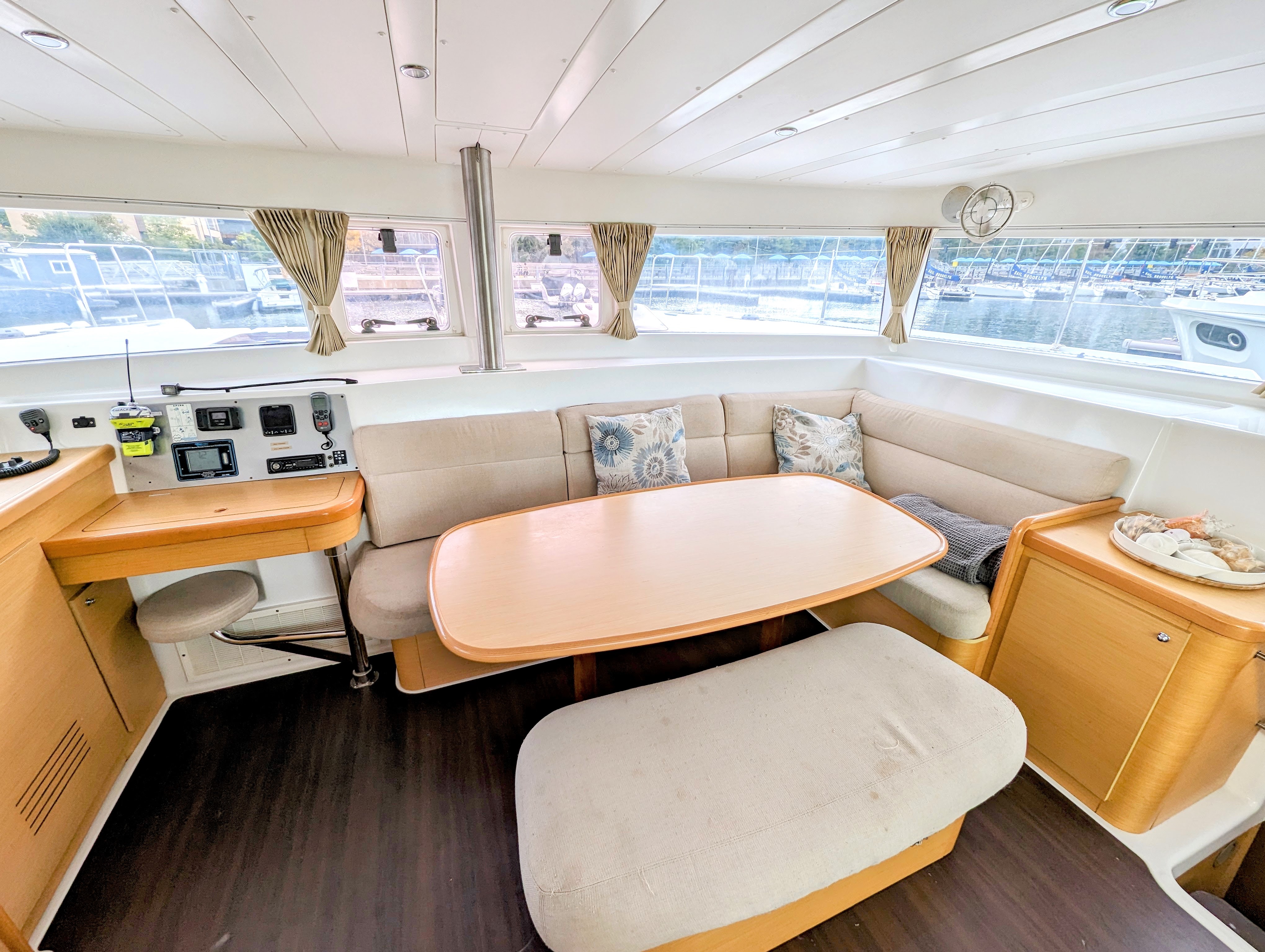

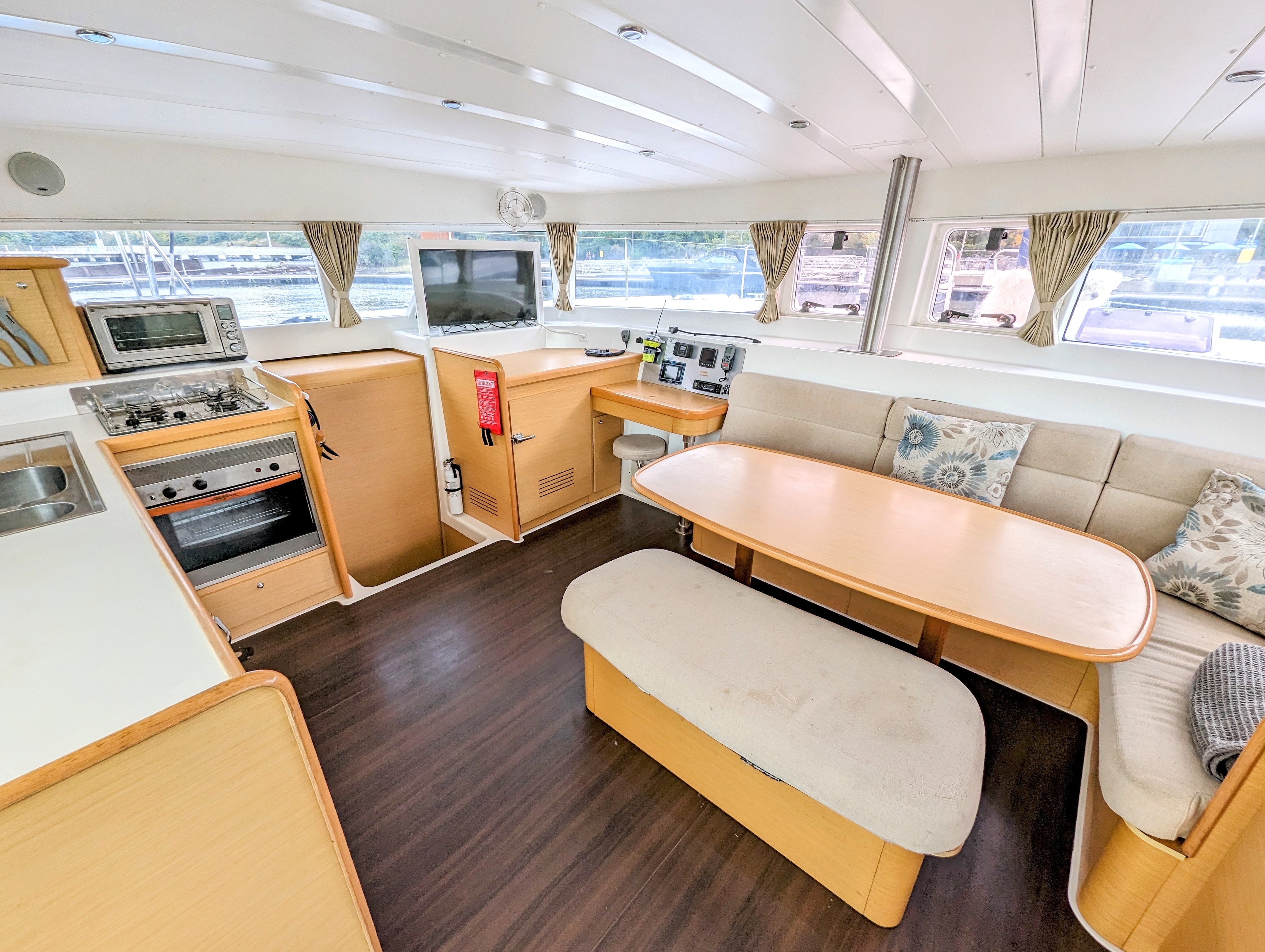

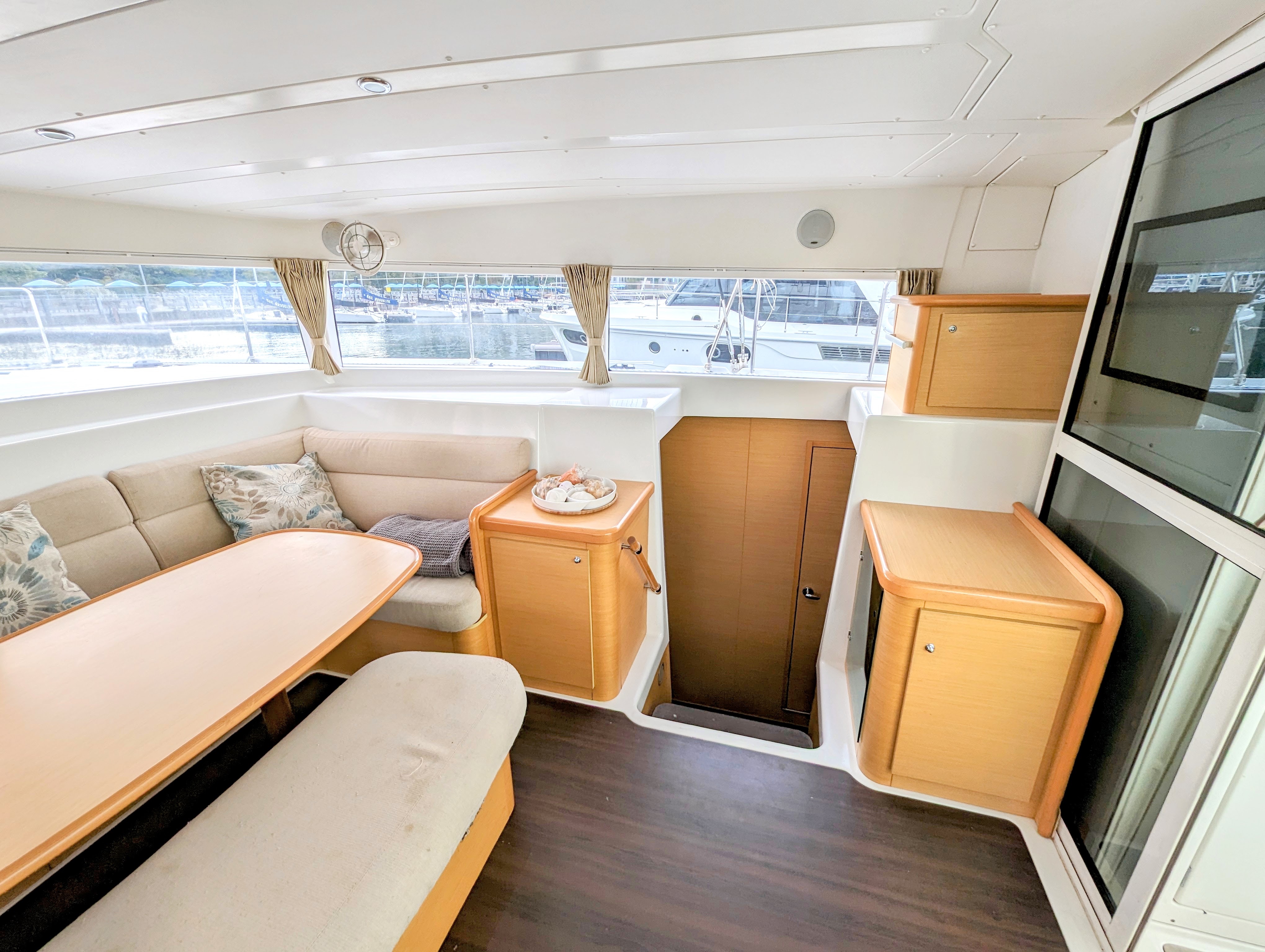

The Lagoon 420 features an inviting and roomy saloon with panoramic windows, providing stunning views and abundant natural light. The dining area comfortably seats you and your guests.

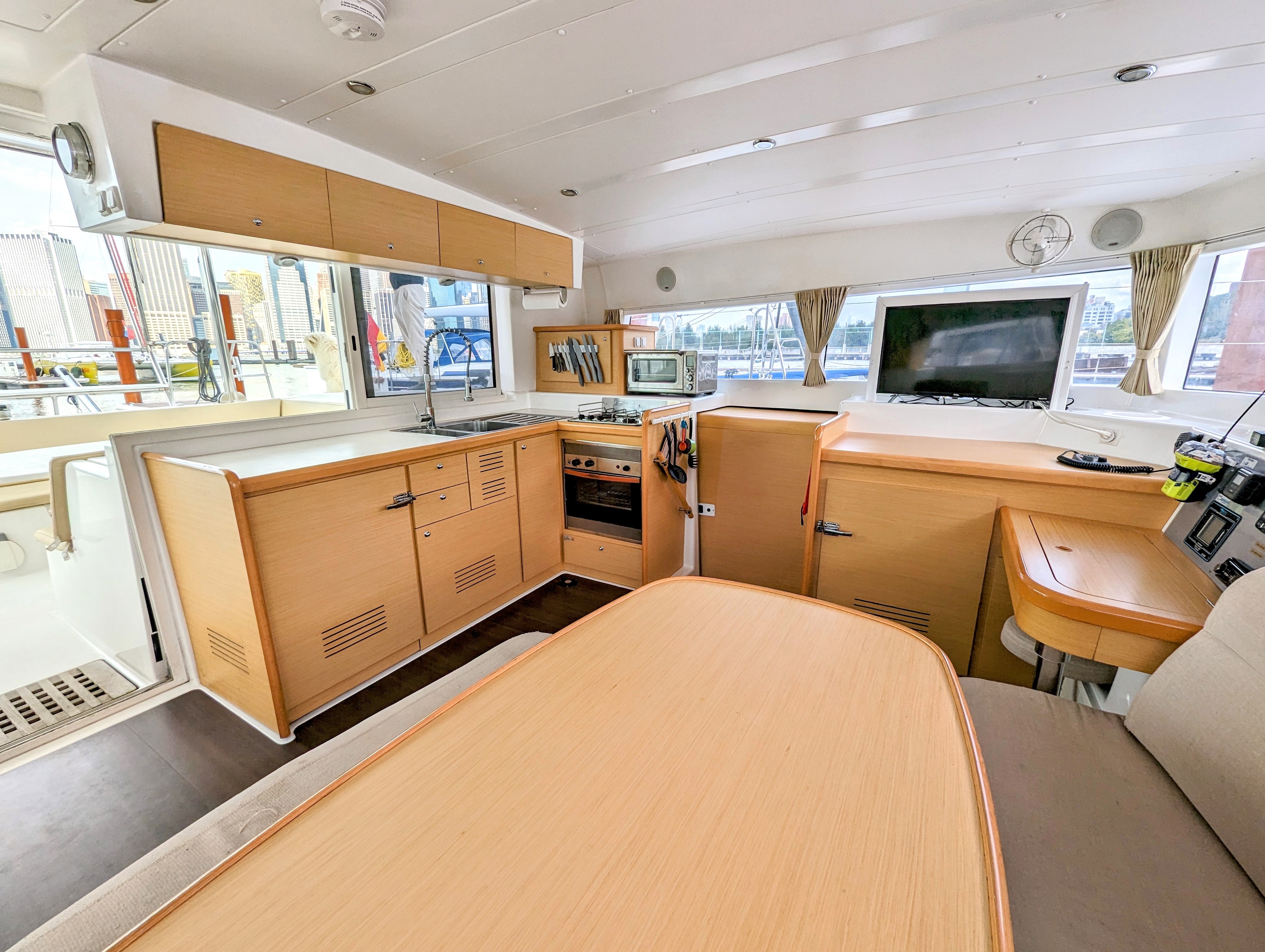

The galley is your culinary haven, equipped with a stove, oven/air fryer refrigerator, freezer, and ample counter space.

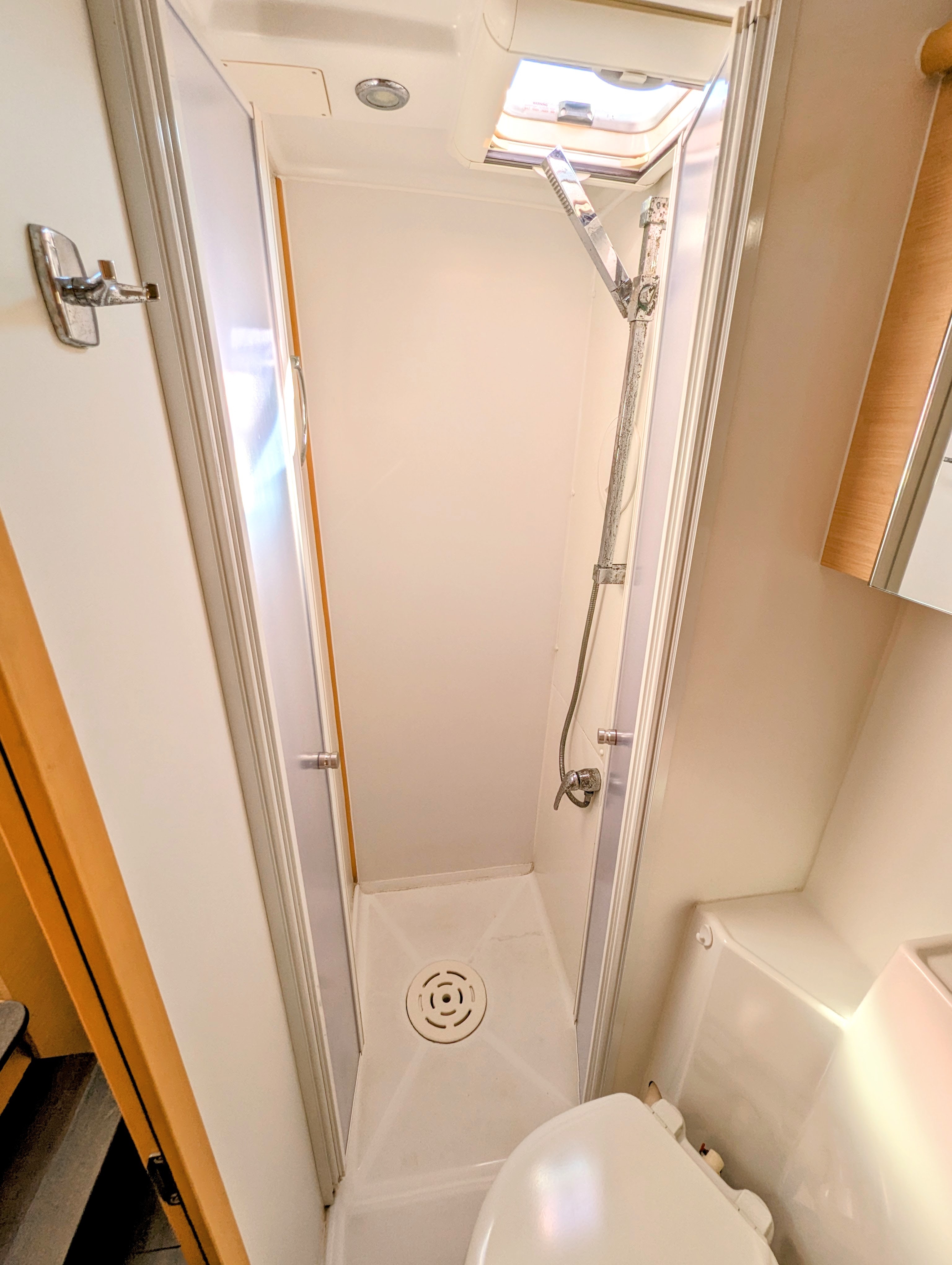

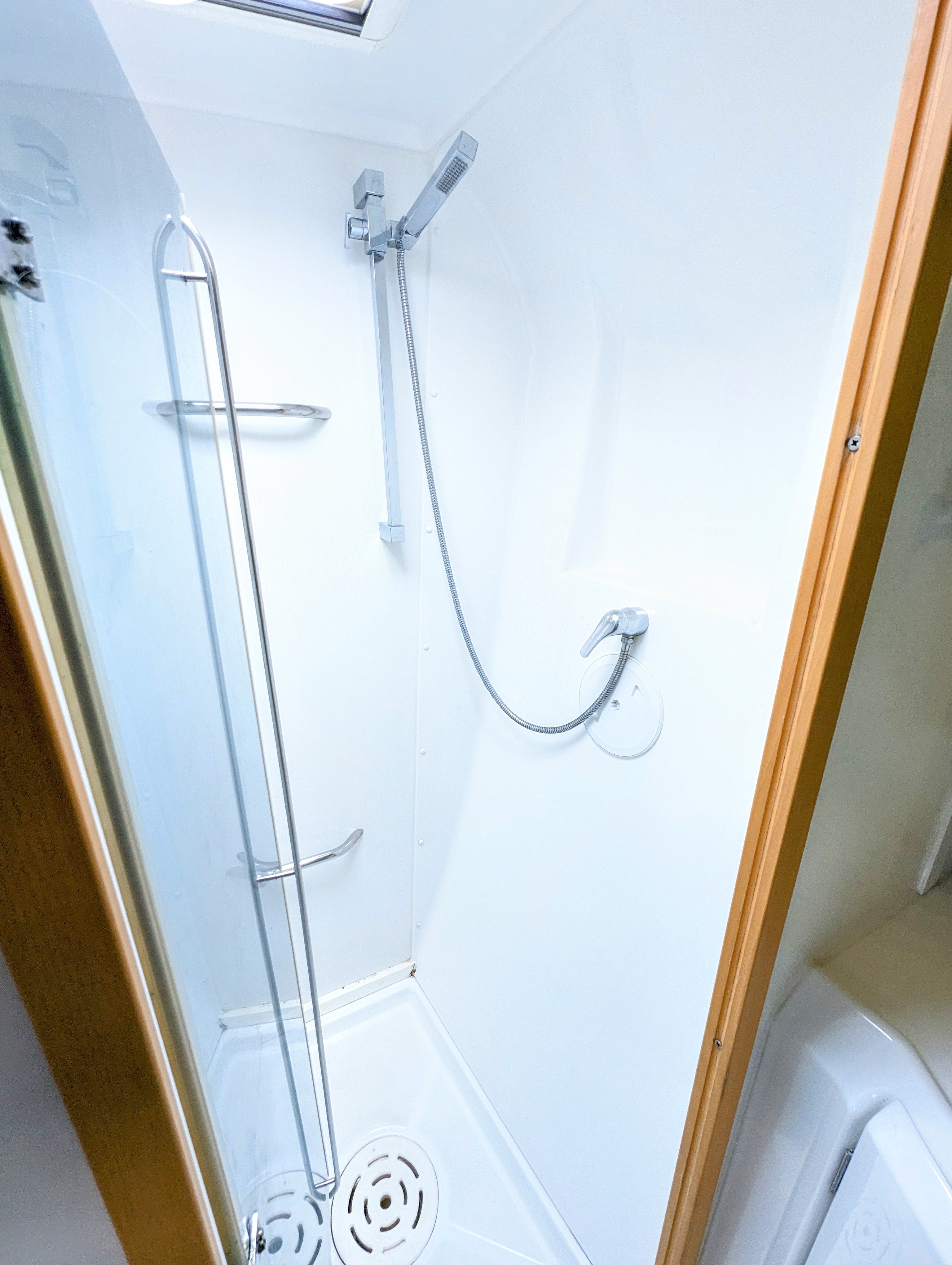

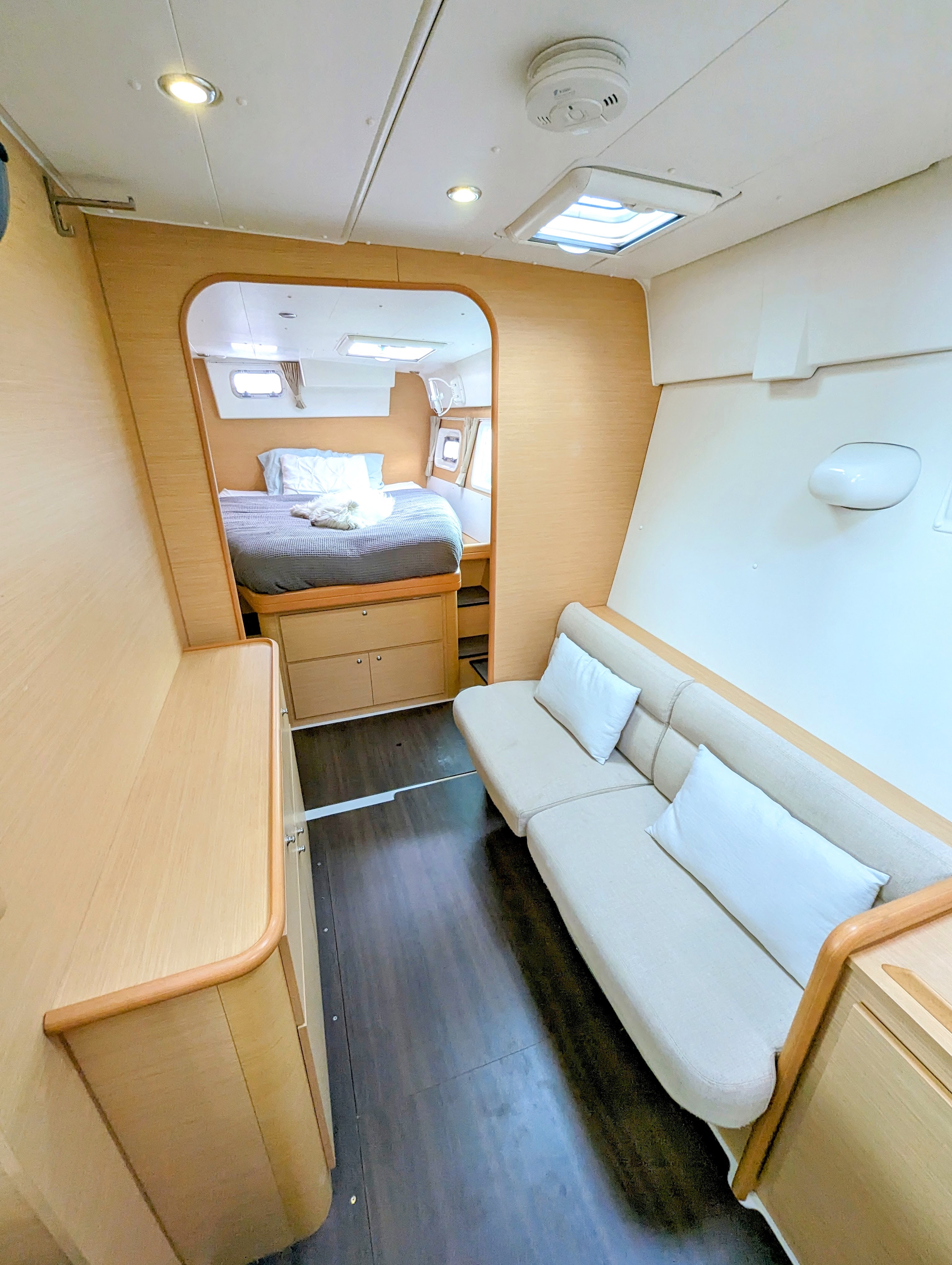

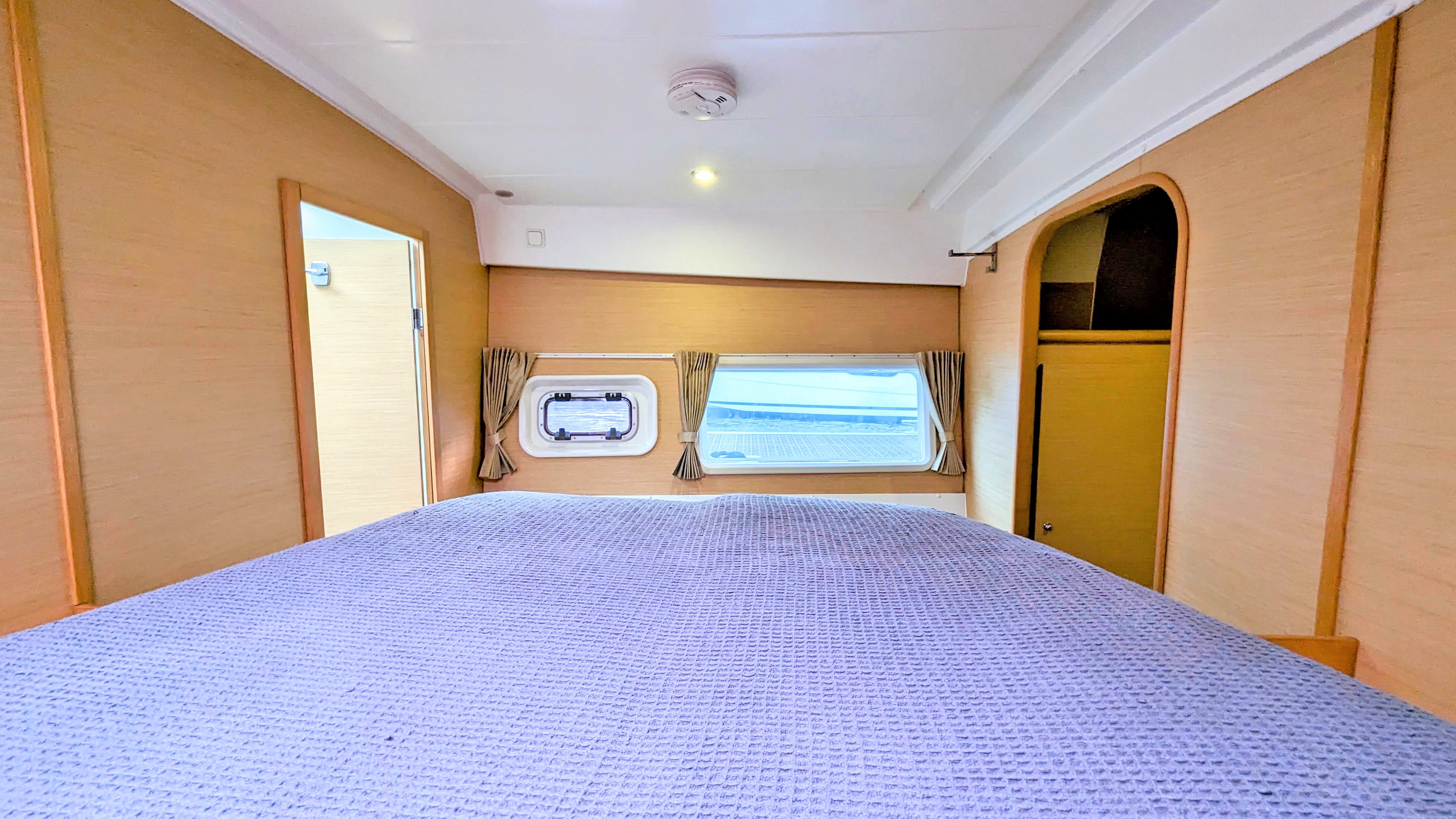

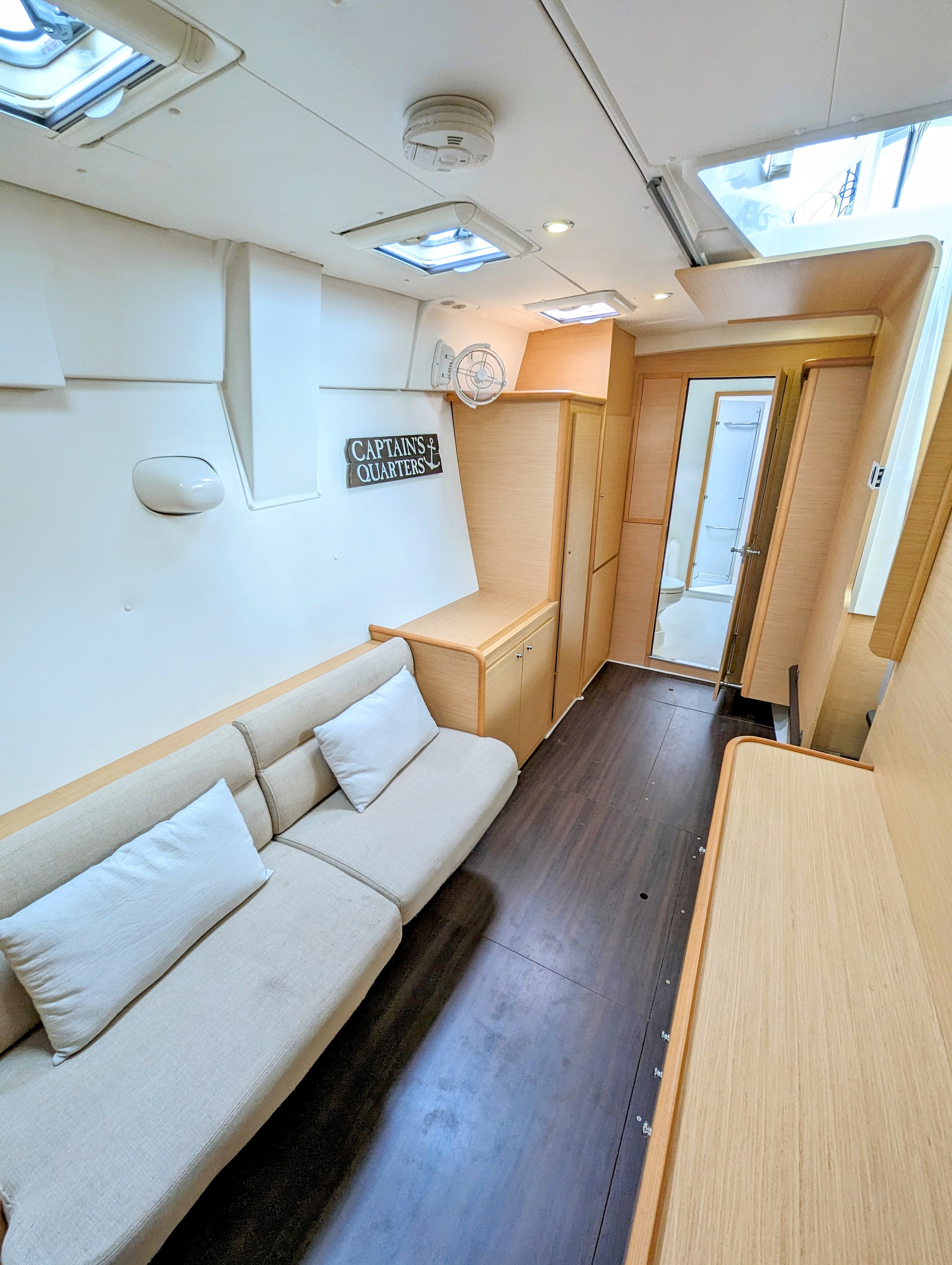

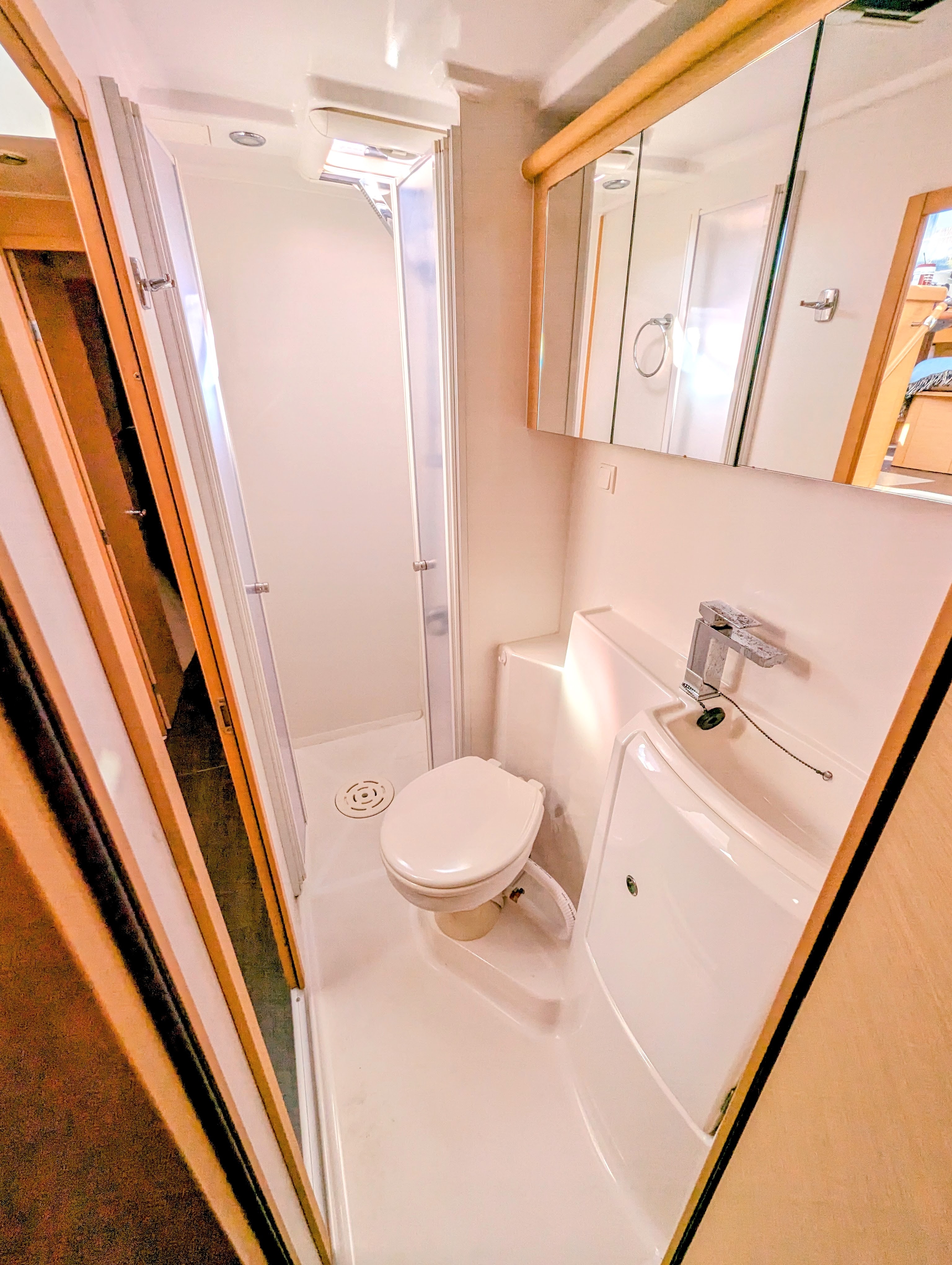

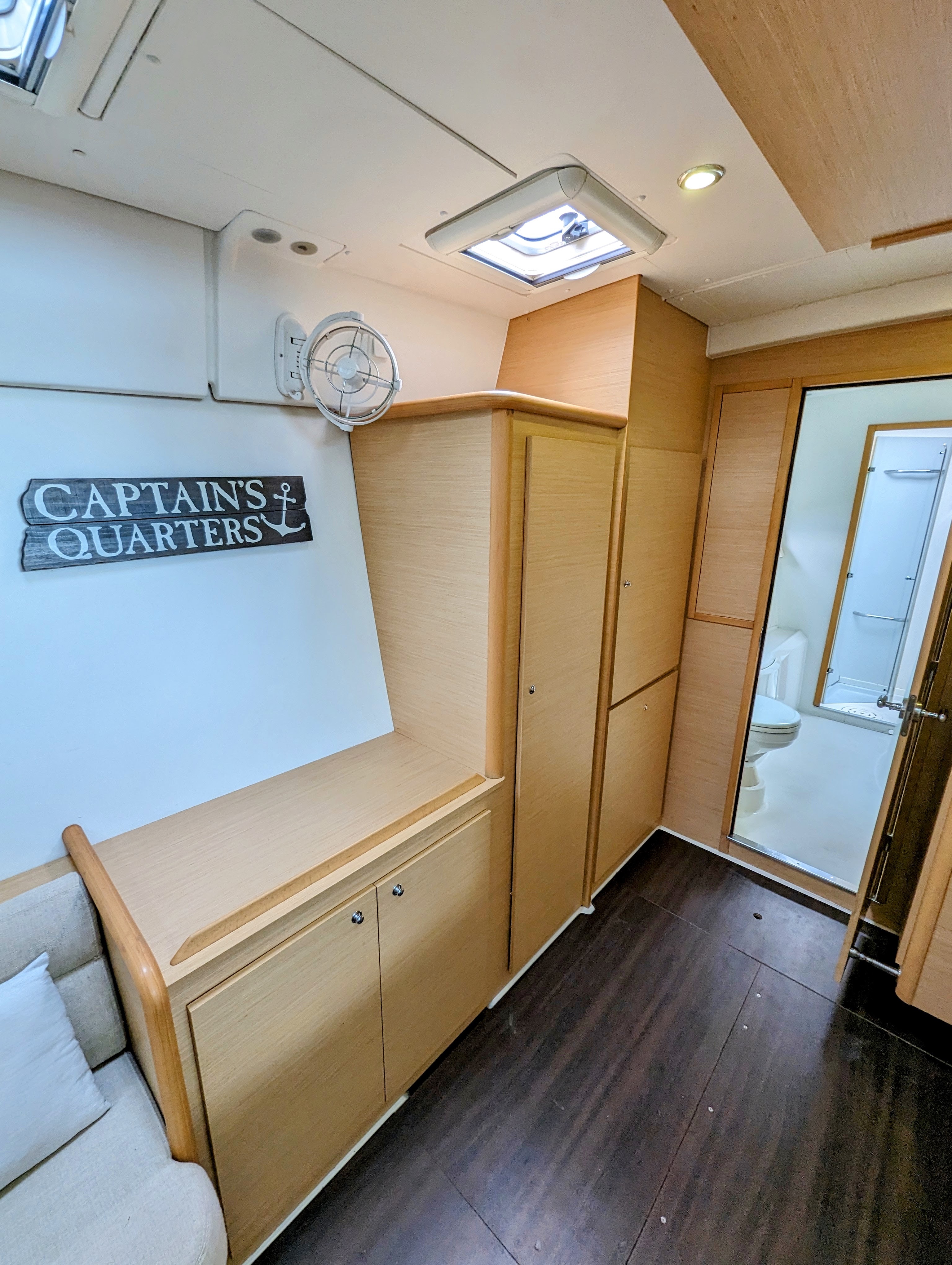

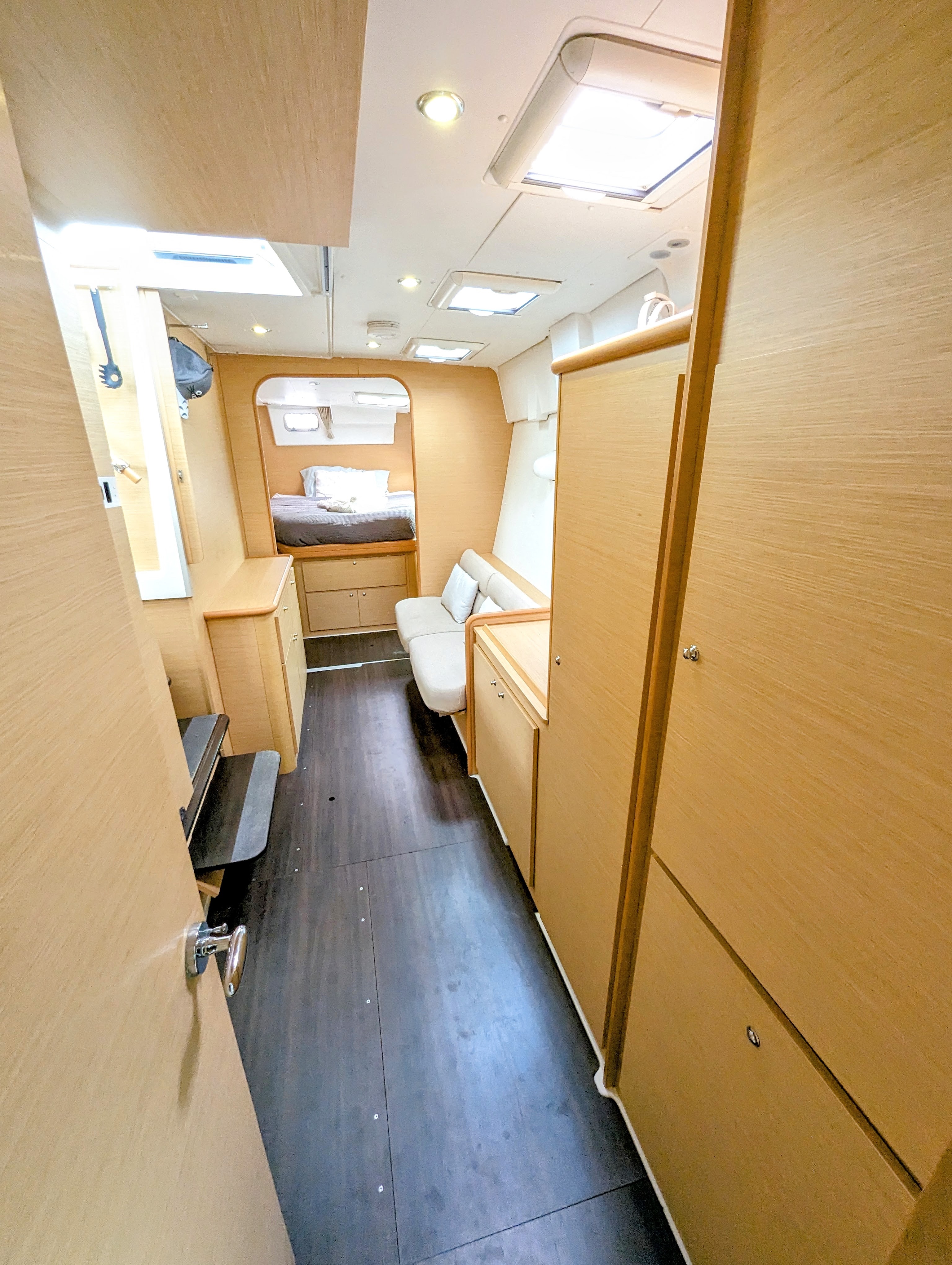

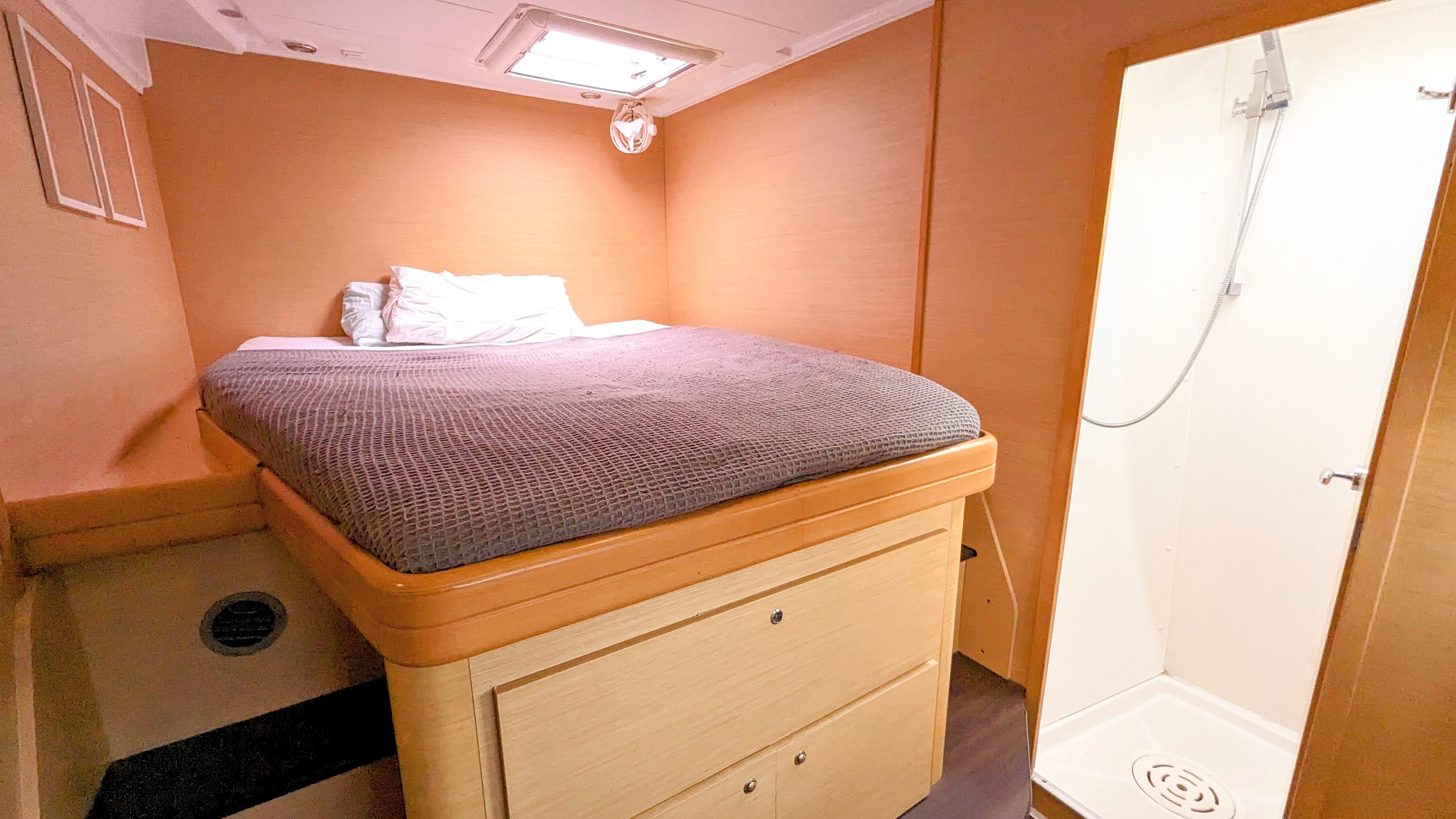

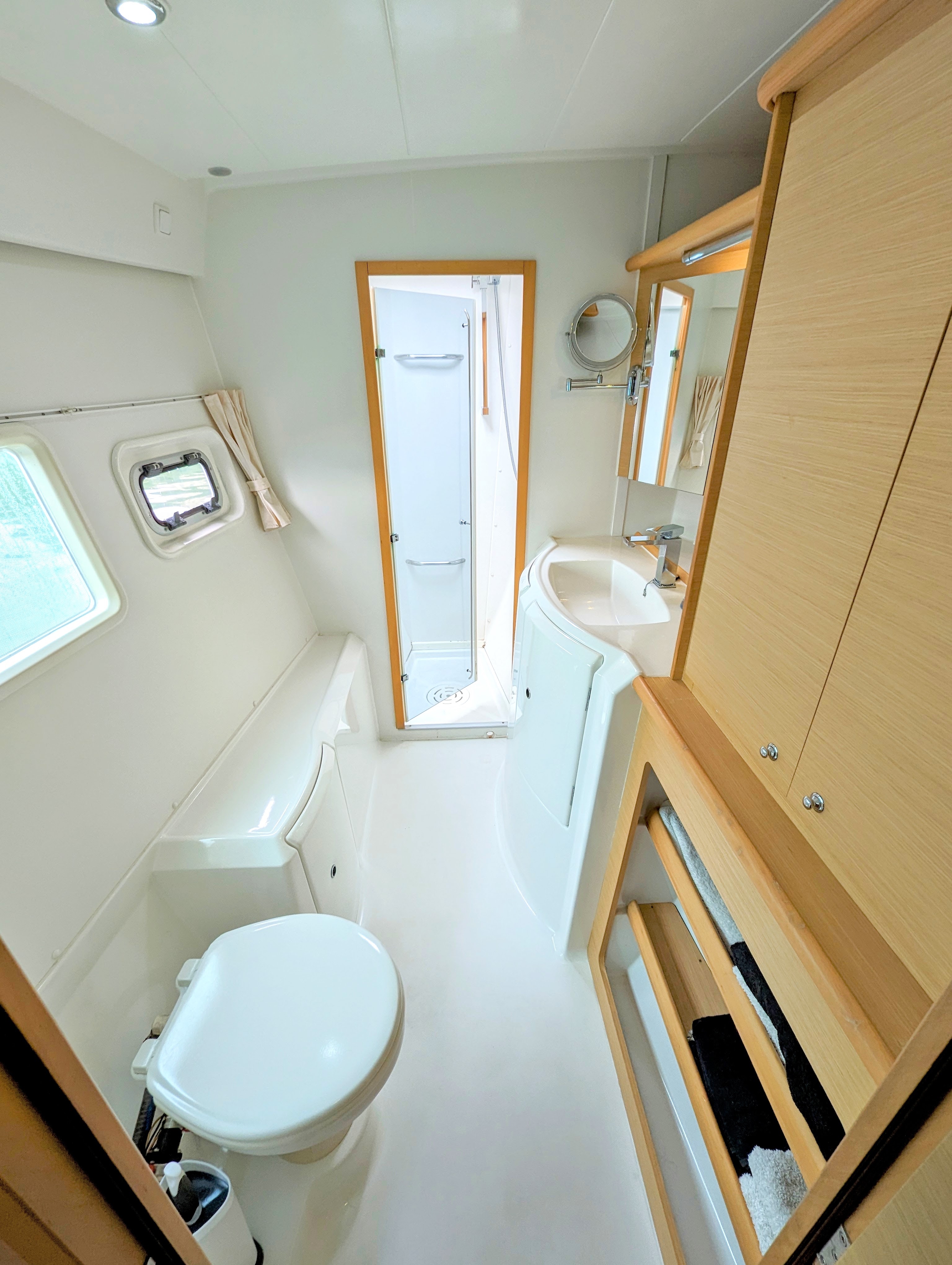

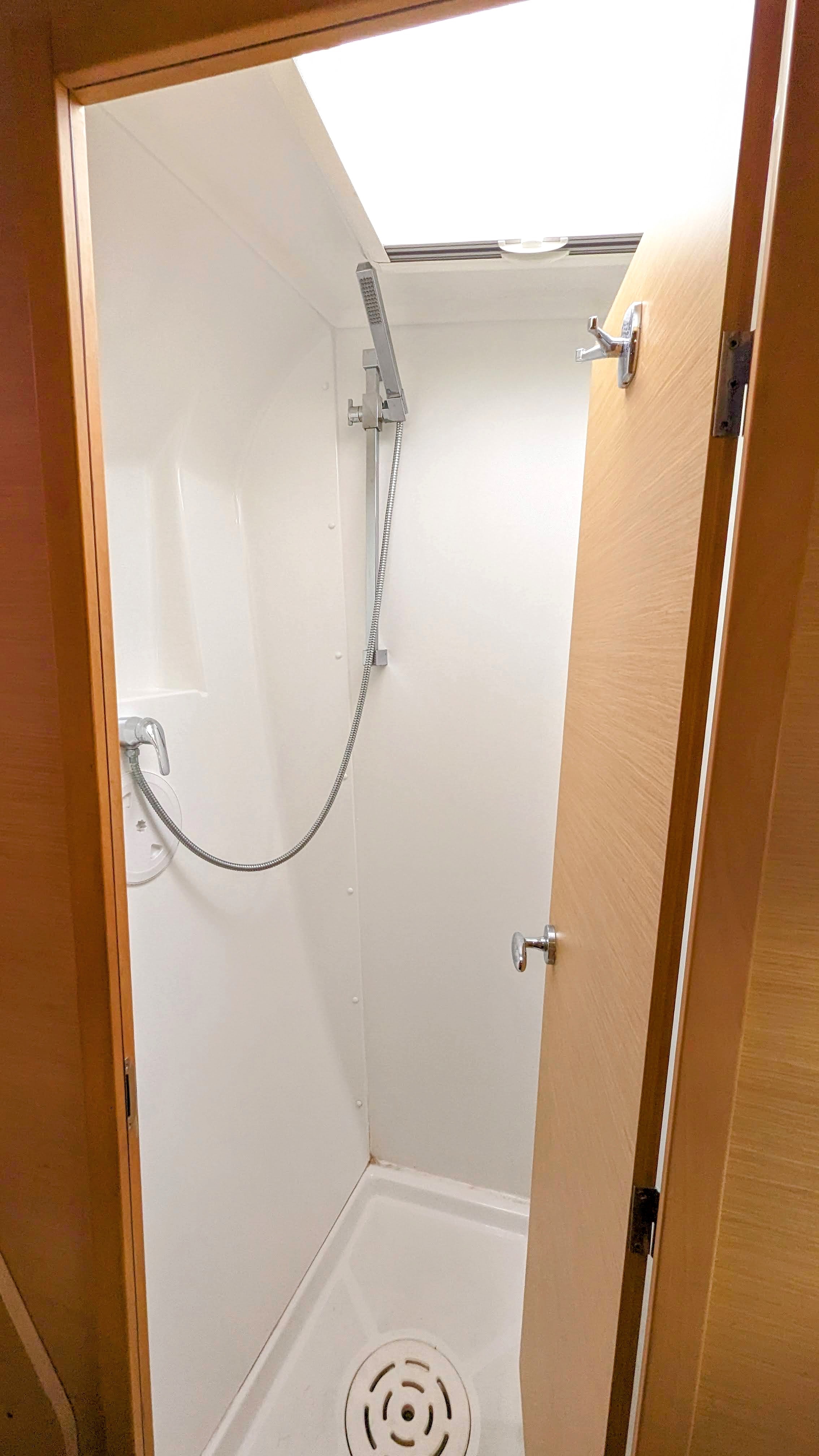

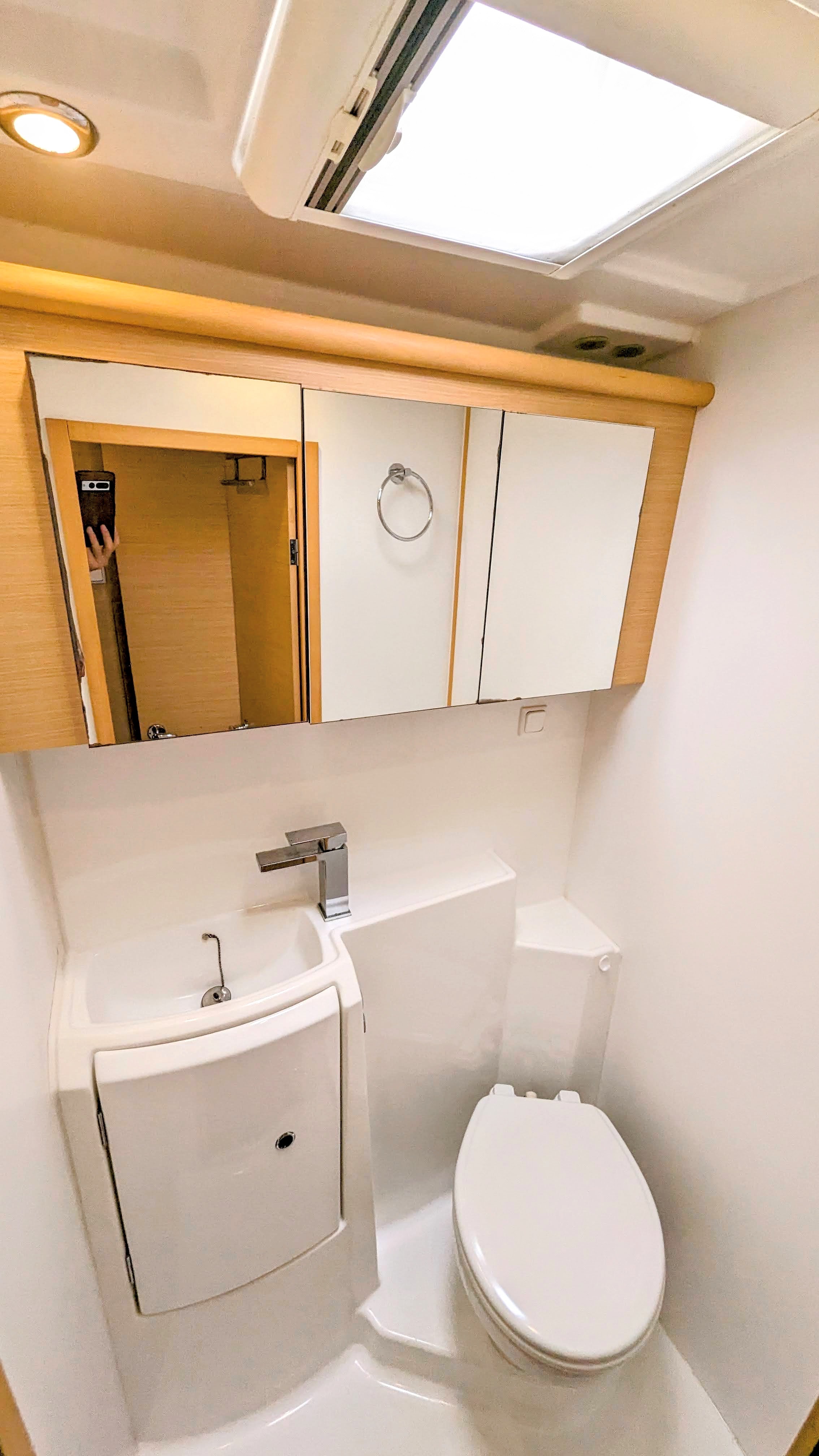

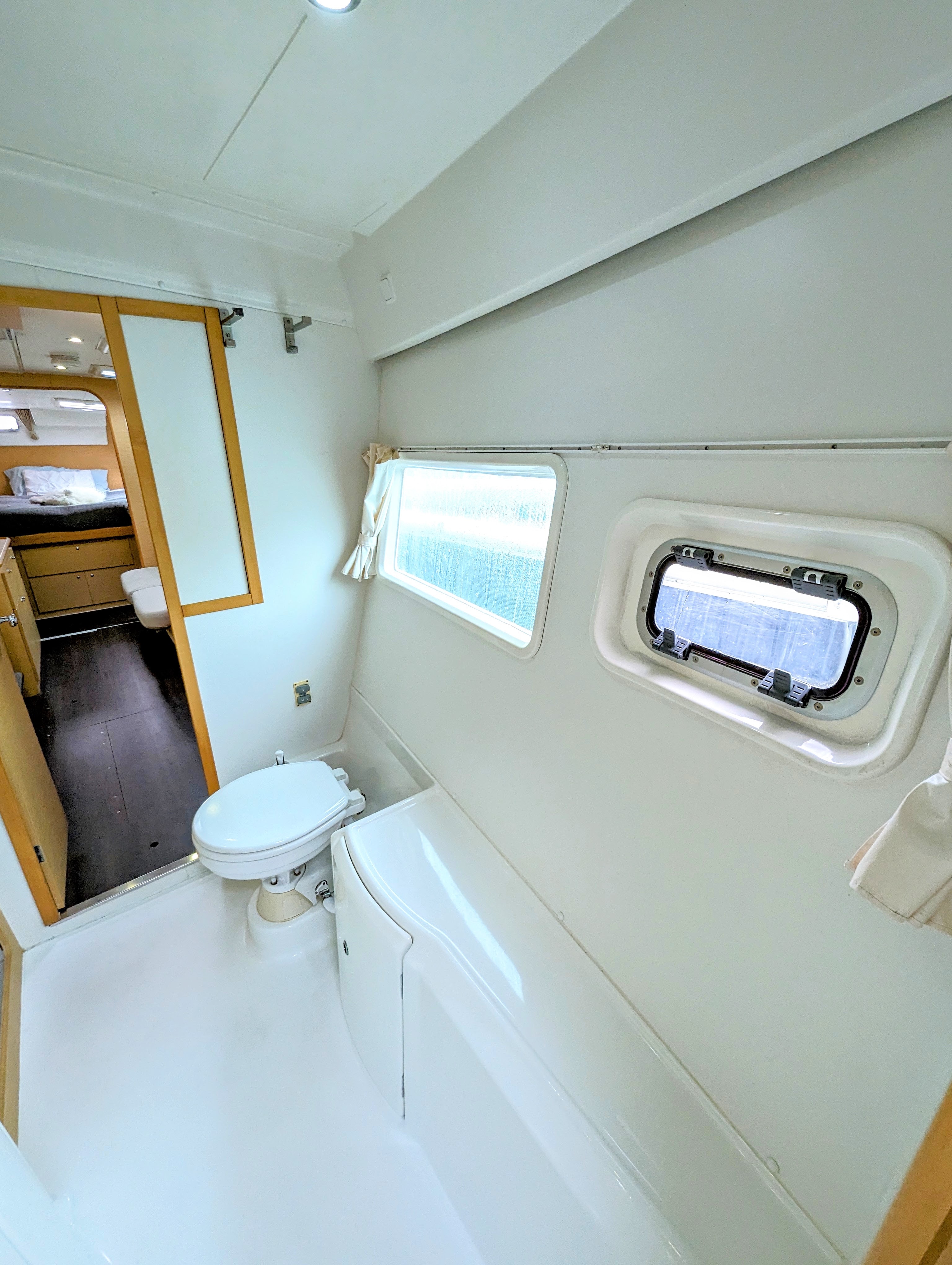

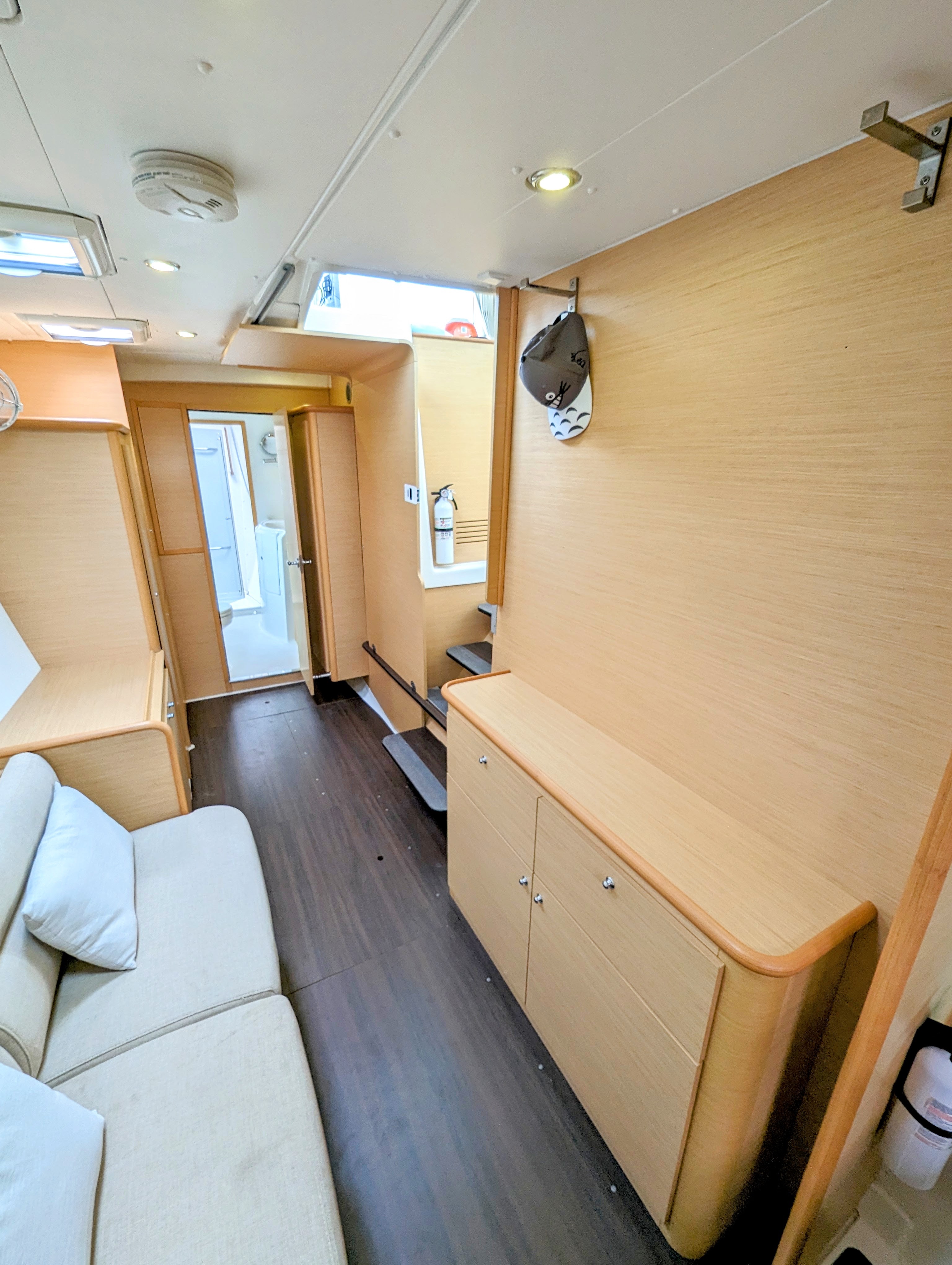

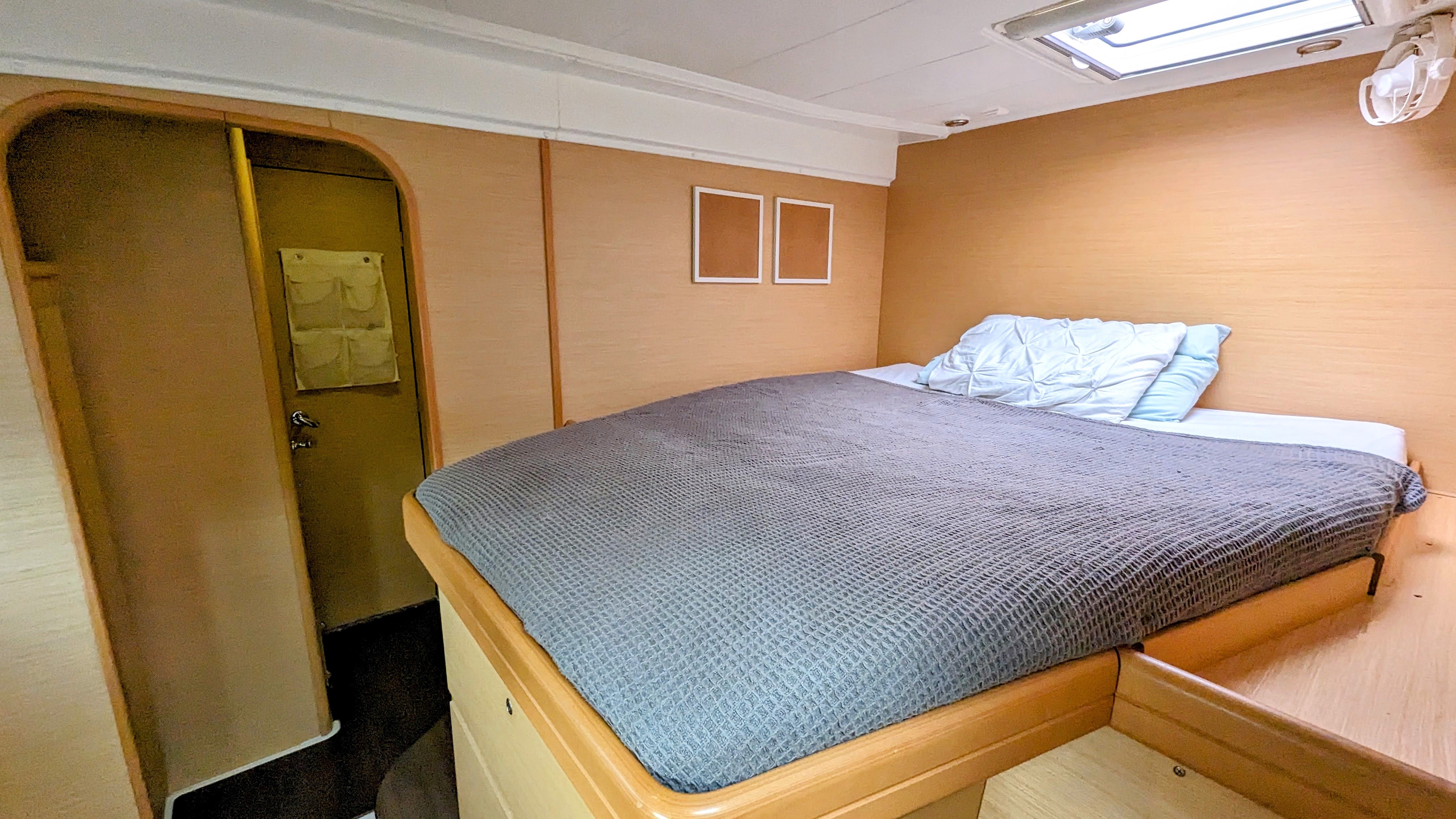

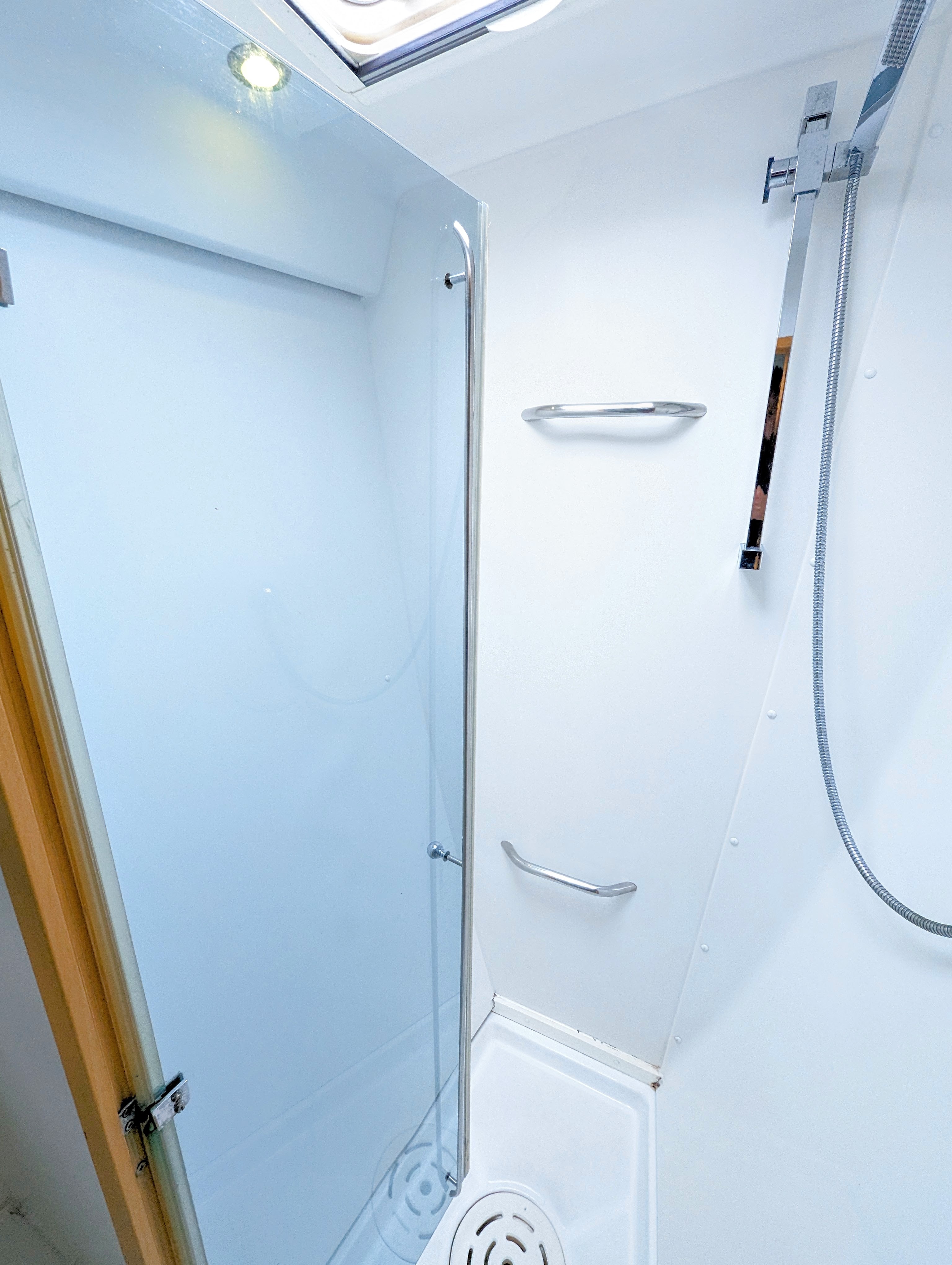

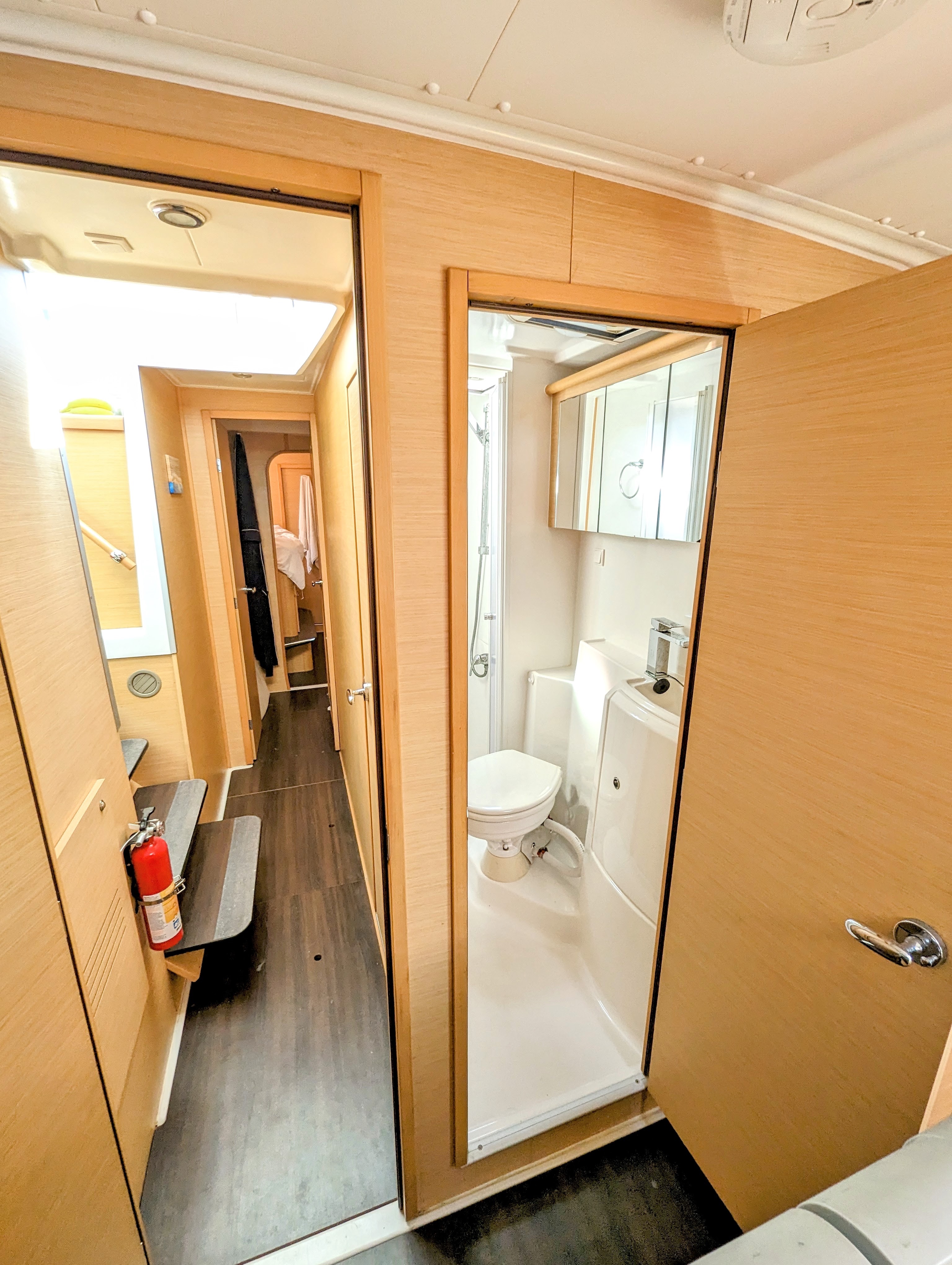

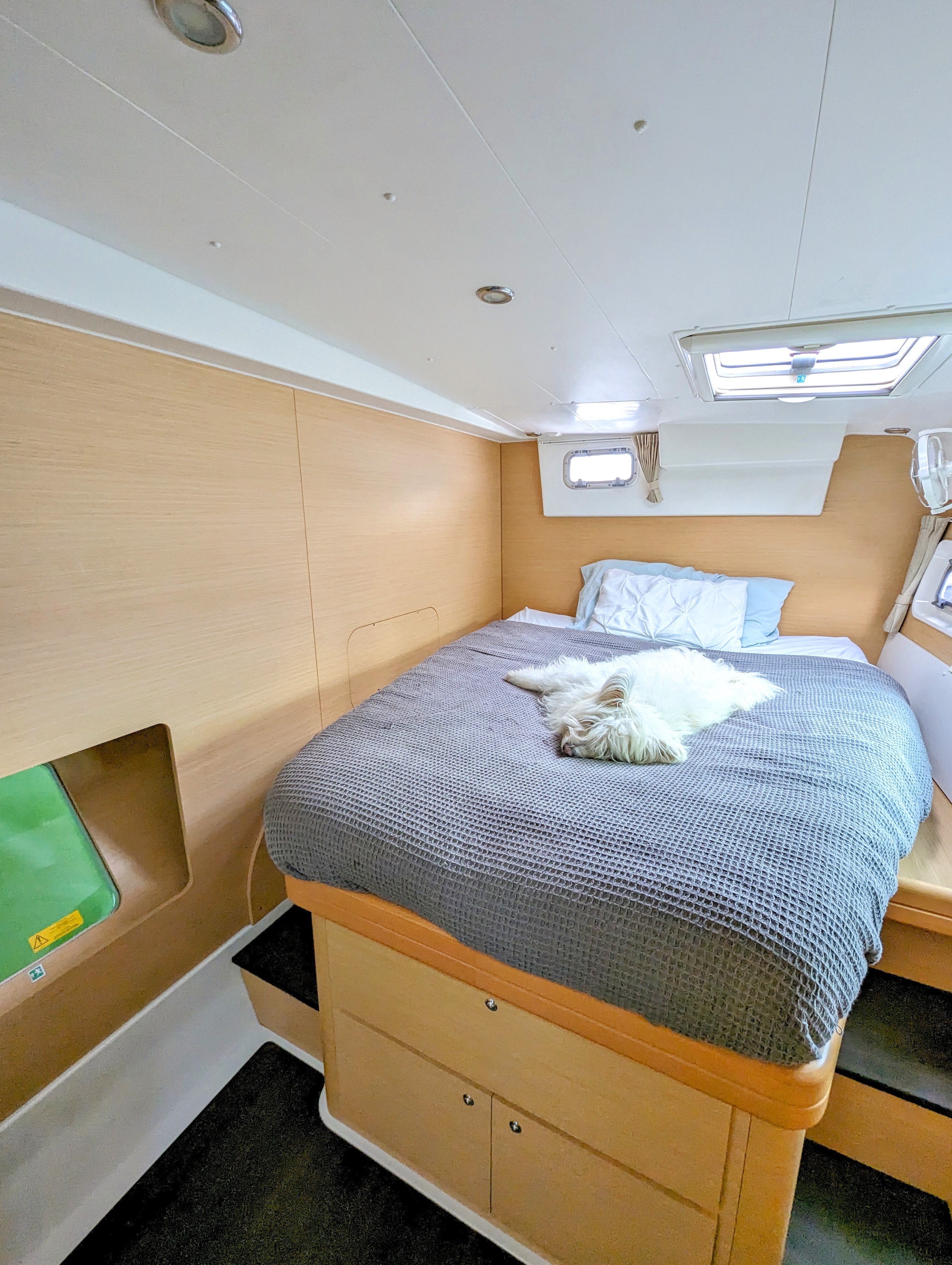

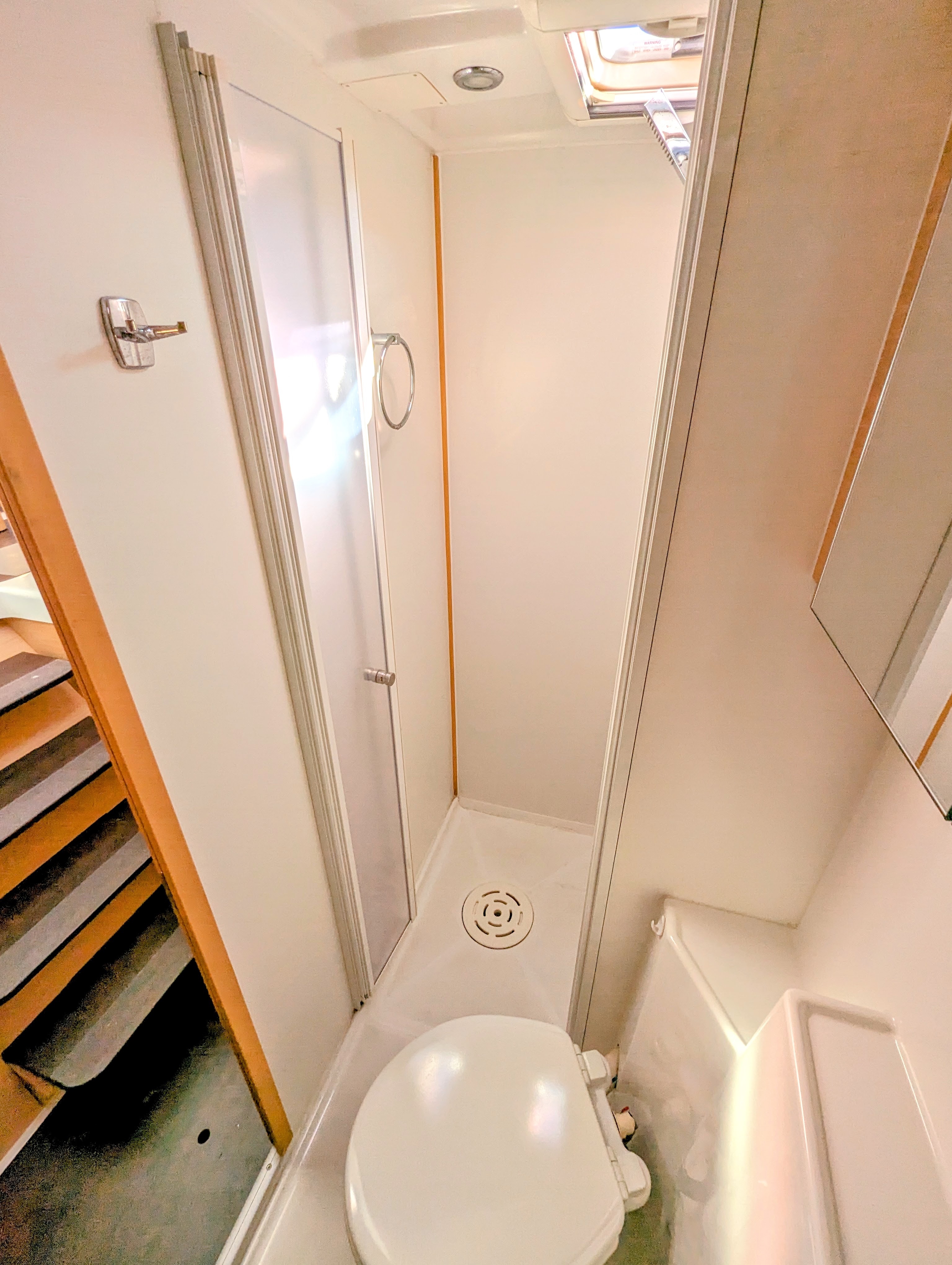

This owner’s version boasts the owner’s suite on the port hull as well as two private cabins in the starboard hull, each with a double bed, storage space, and its own en-suite bathroom. Comfort and privacy are paramount.

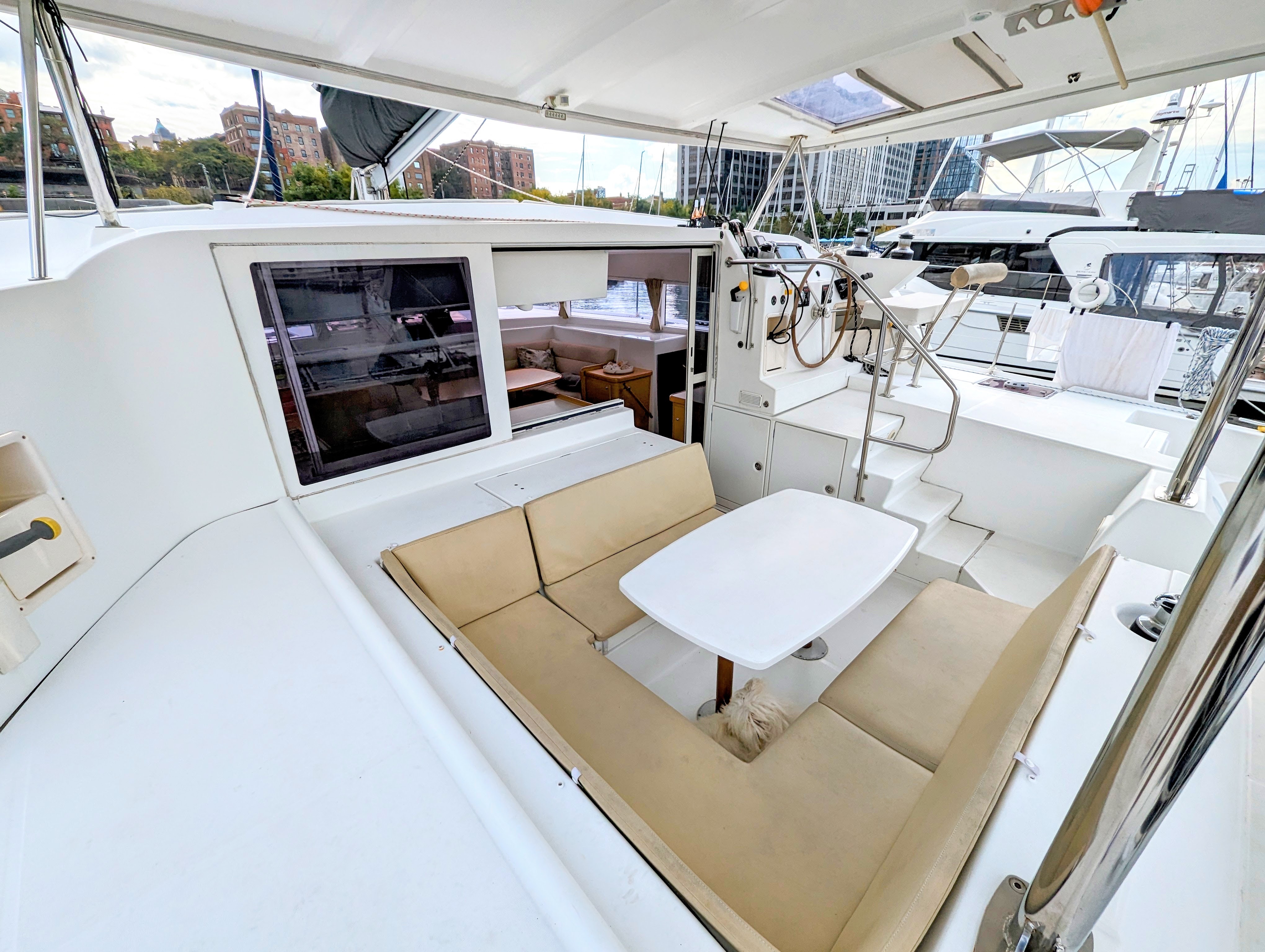

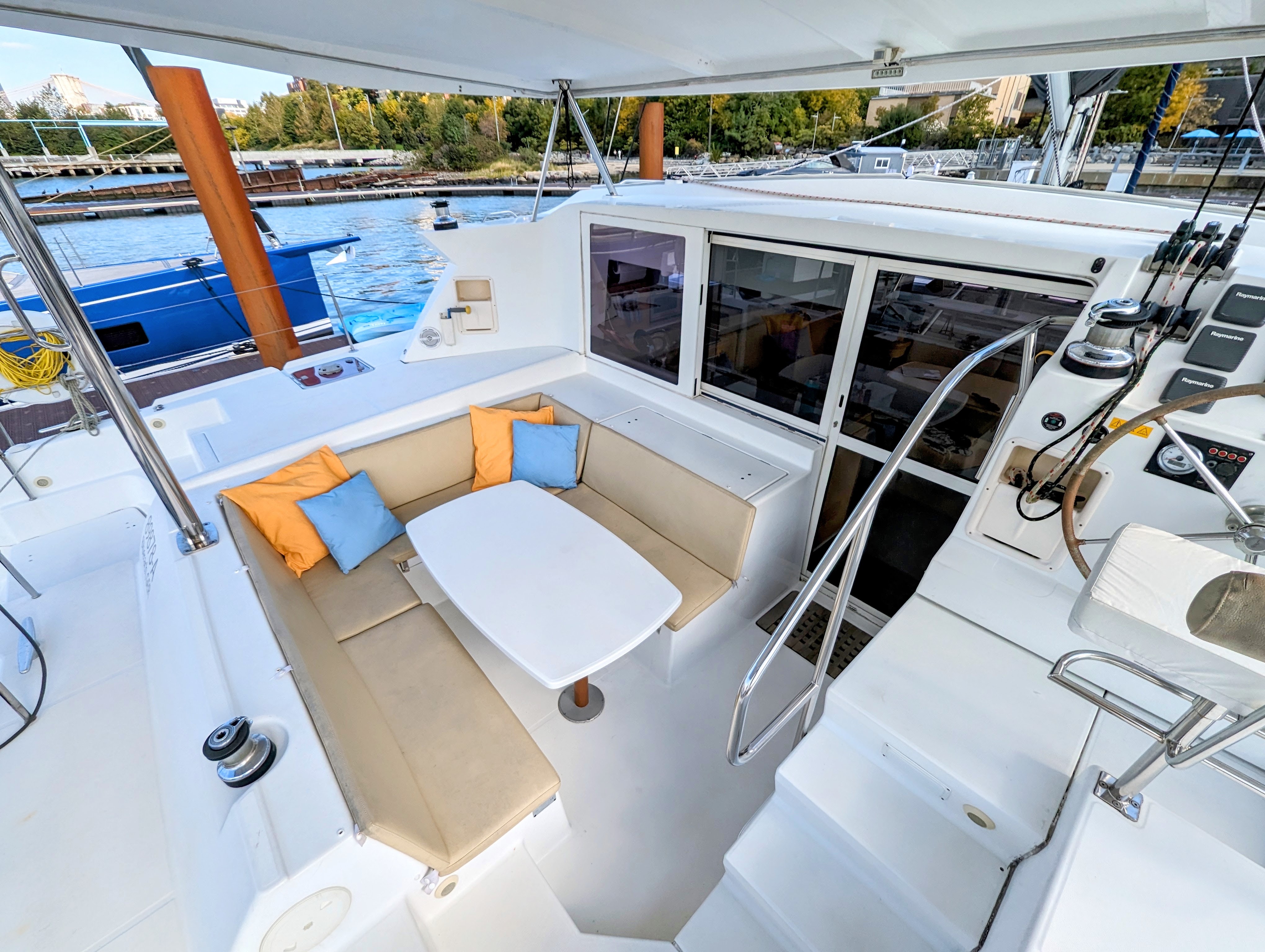

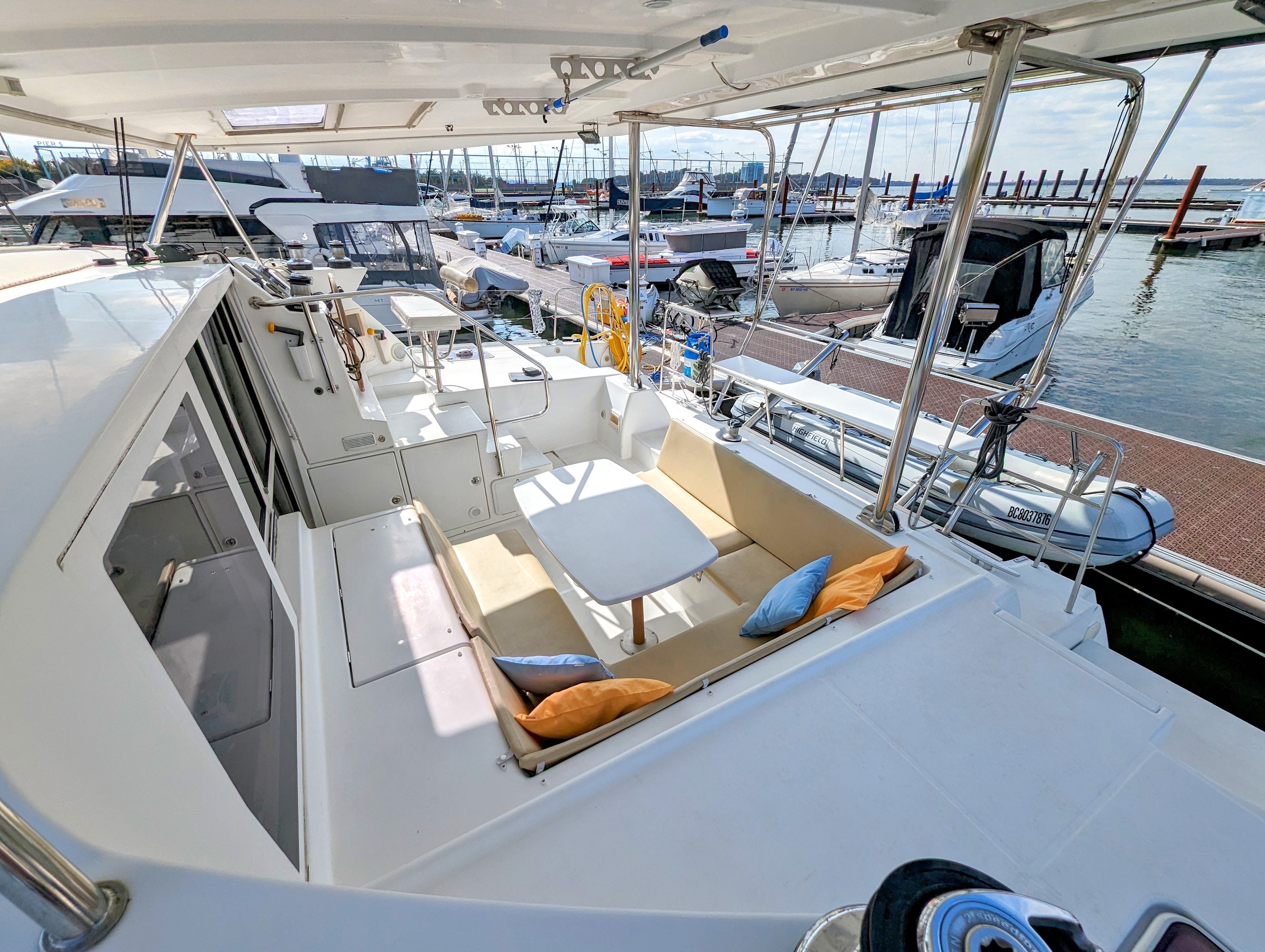

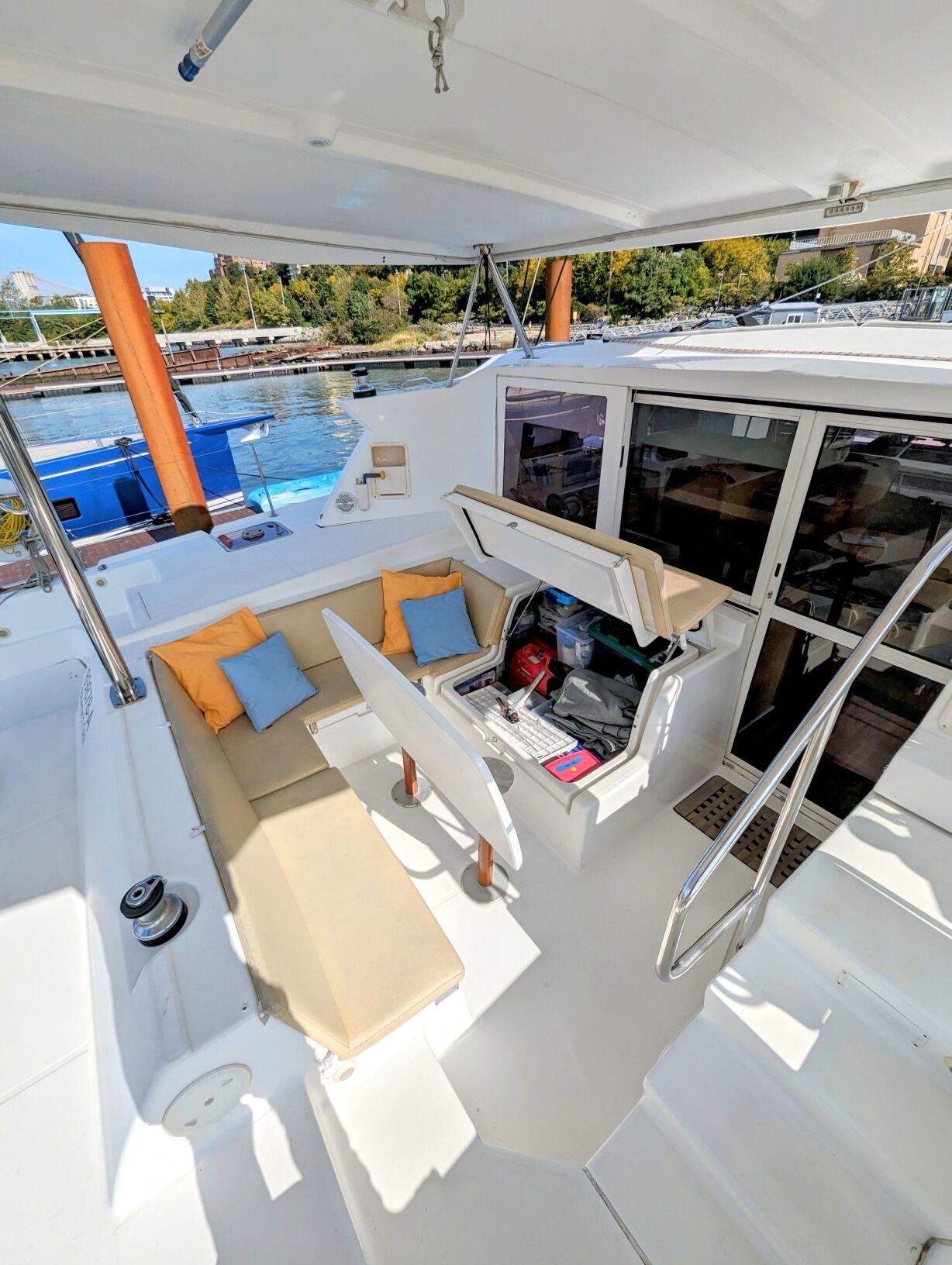

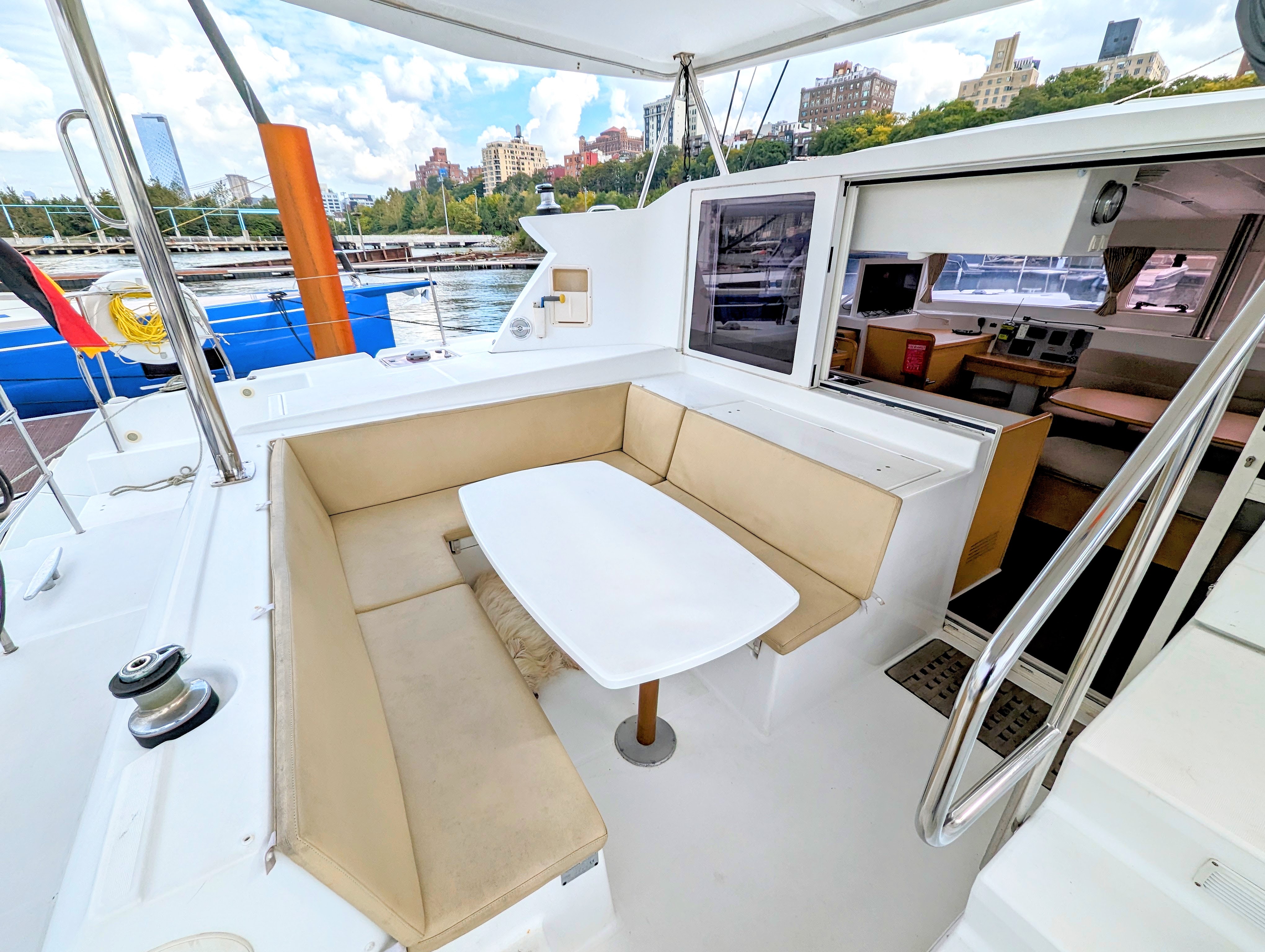

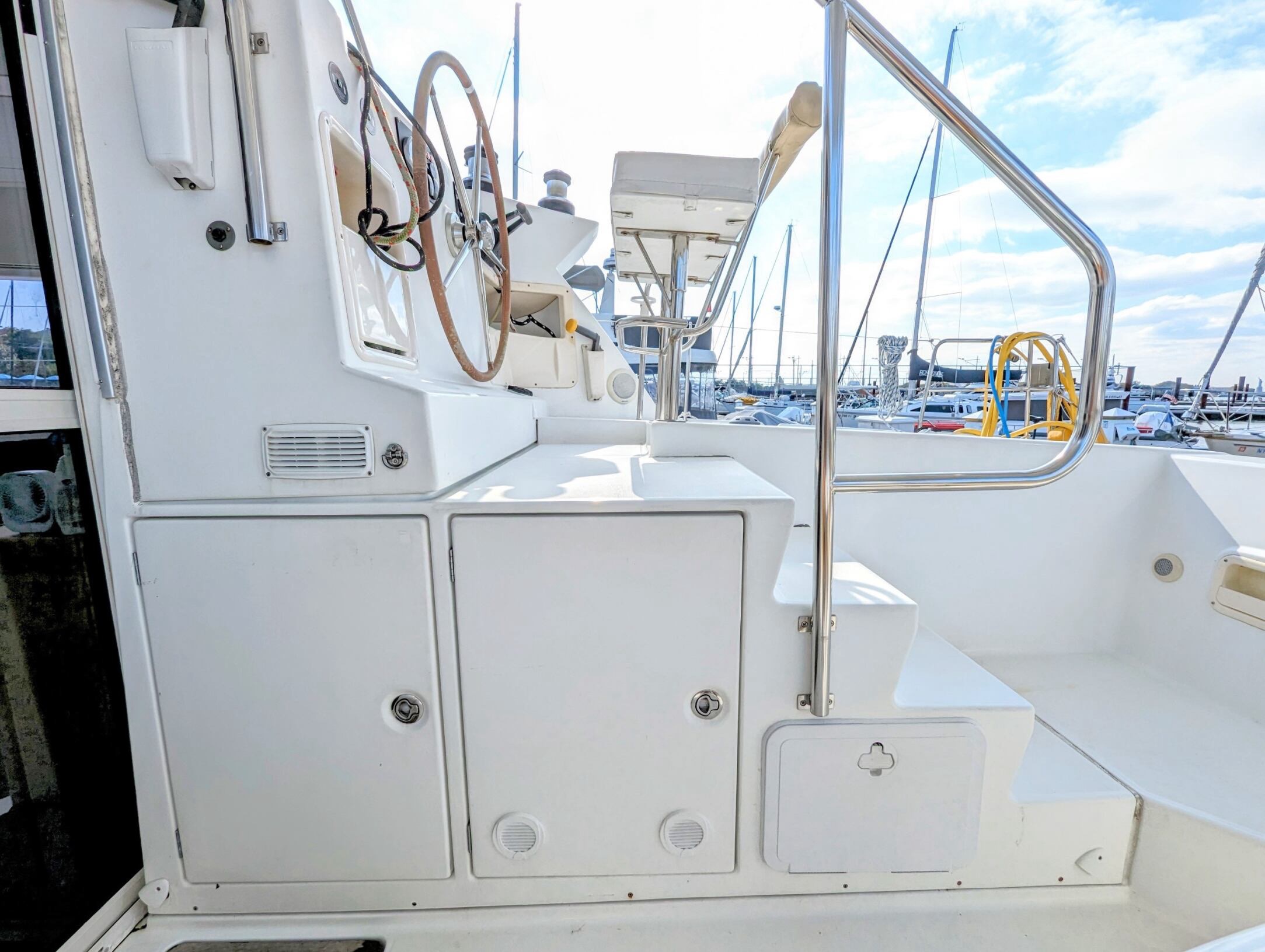

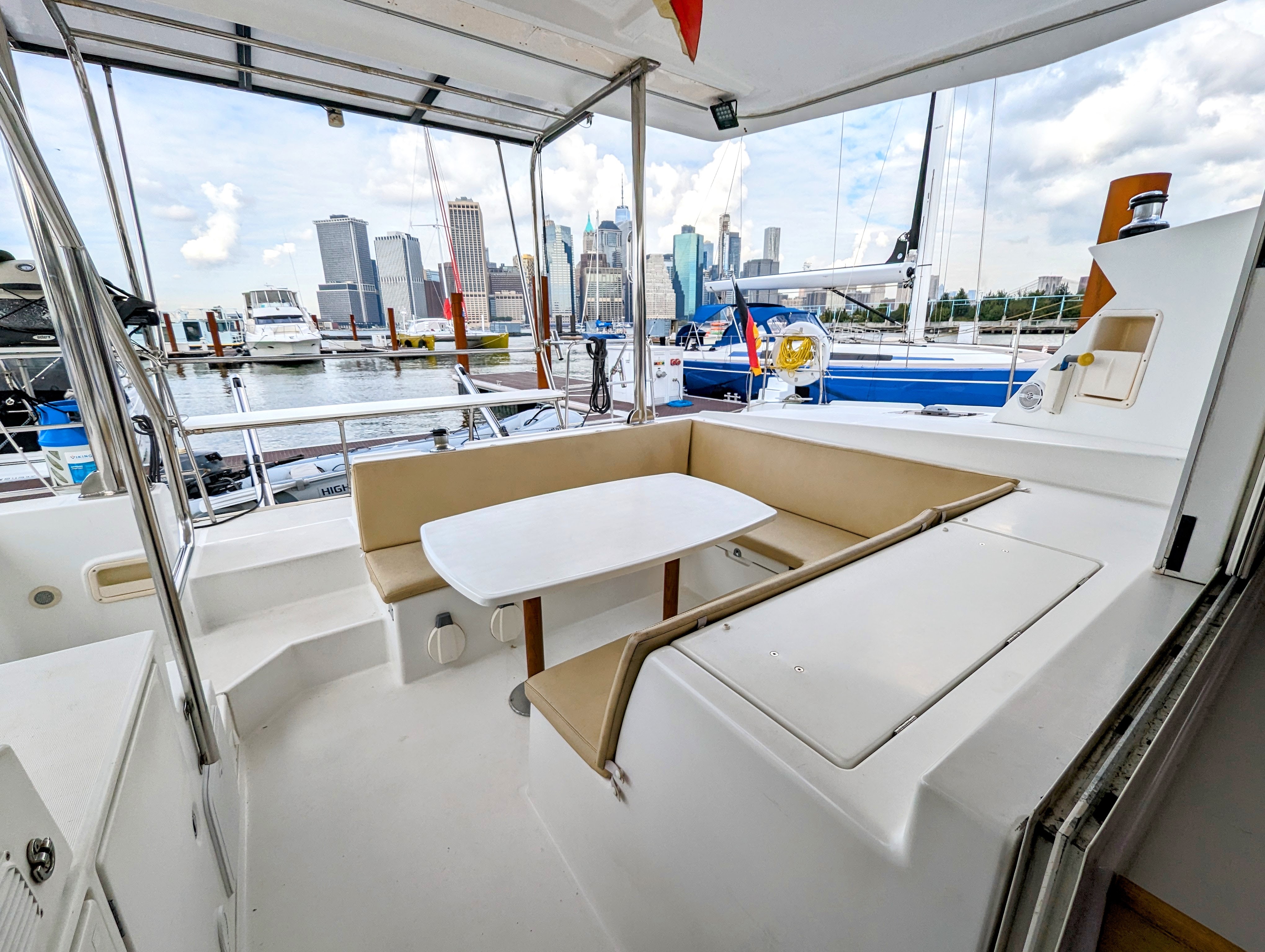

Your outdoor experience is equally exceptional. The spacious cockpit offers a dining area with a table for al fresco meals, and the helm station provides effortless control.

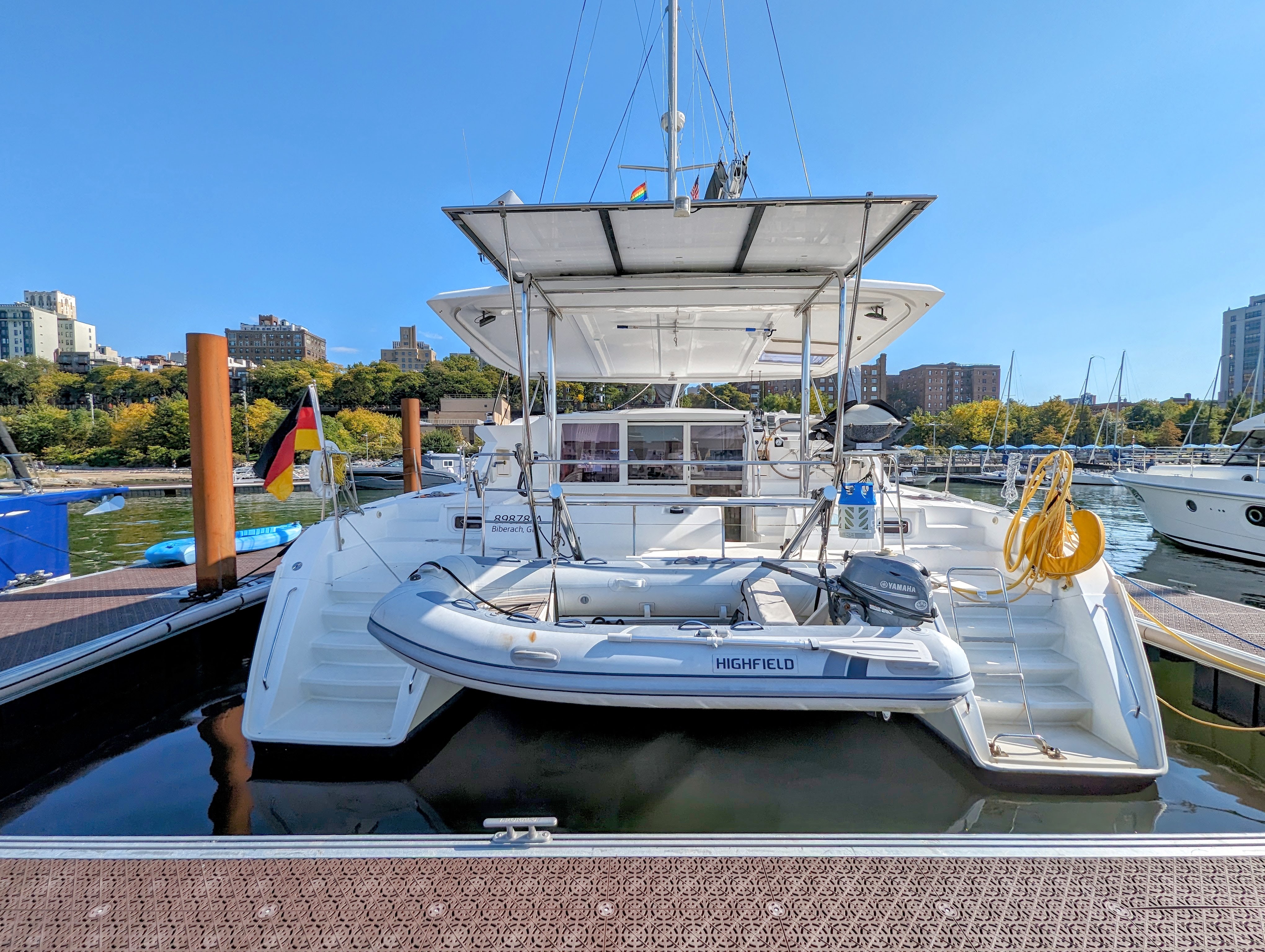

The convenient swim platform with a ladder offers easy access to the crystal-clear waters below, making it ideal for swimming and water activities.

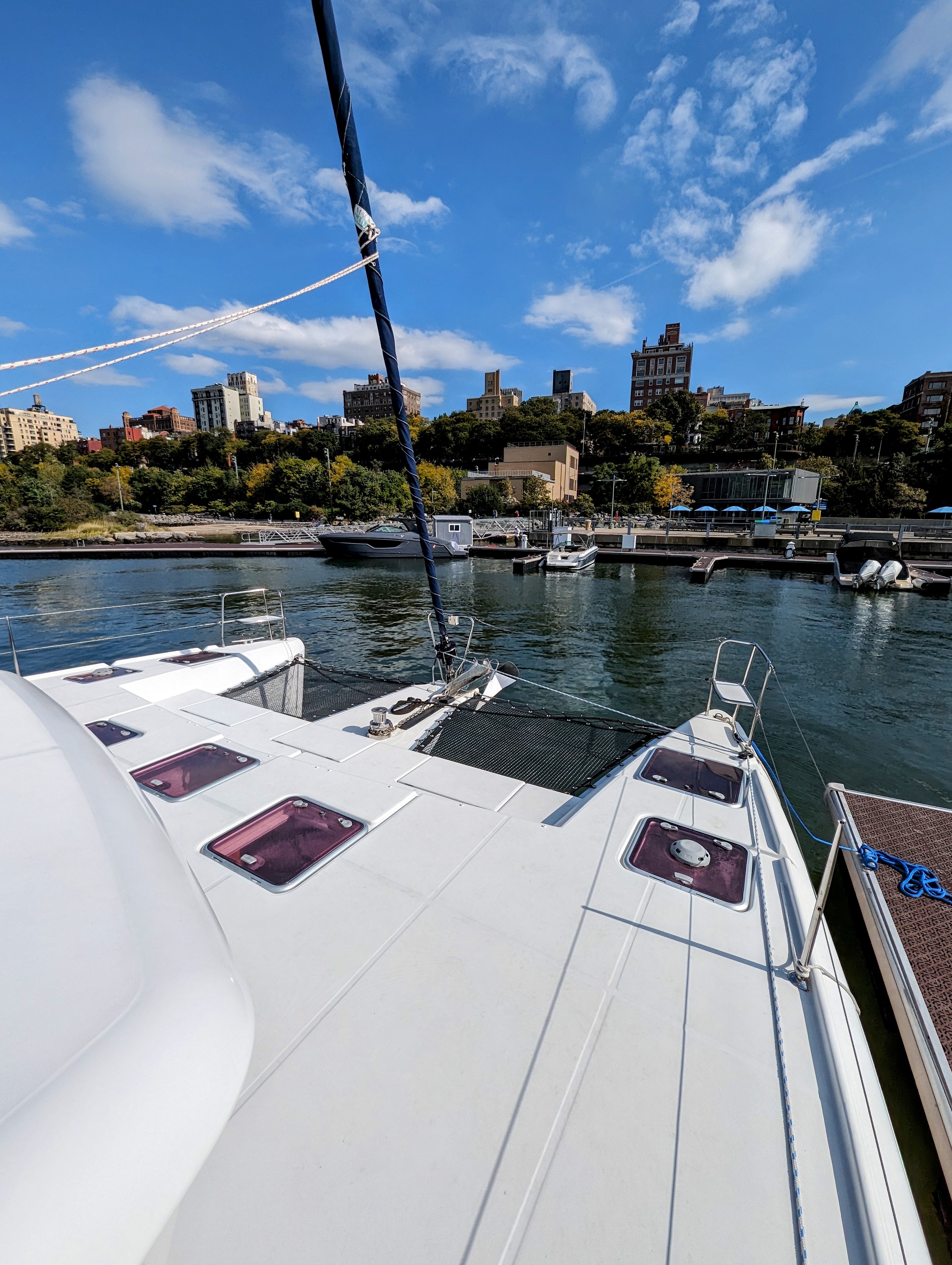

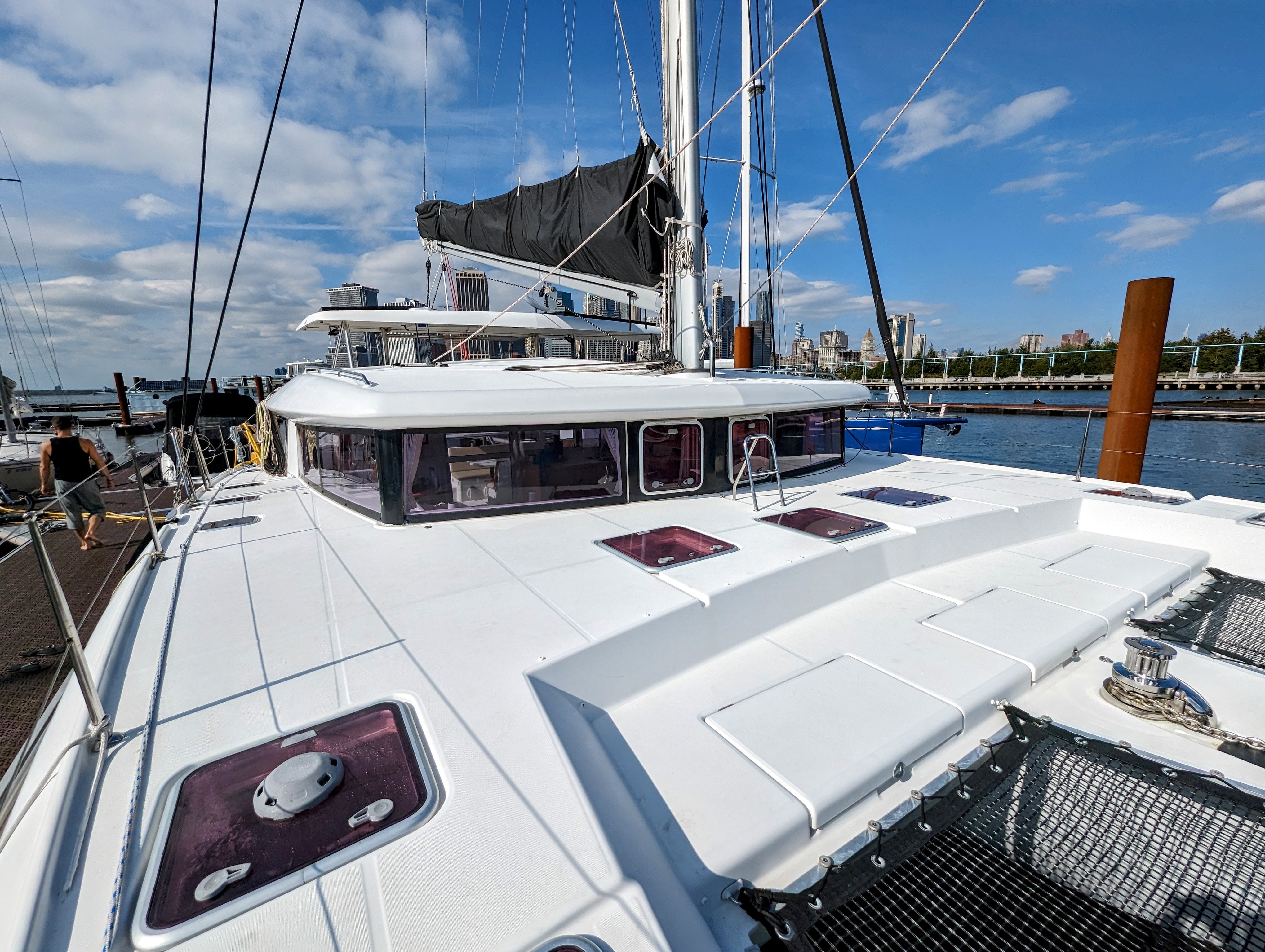

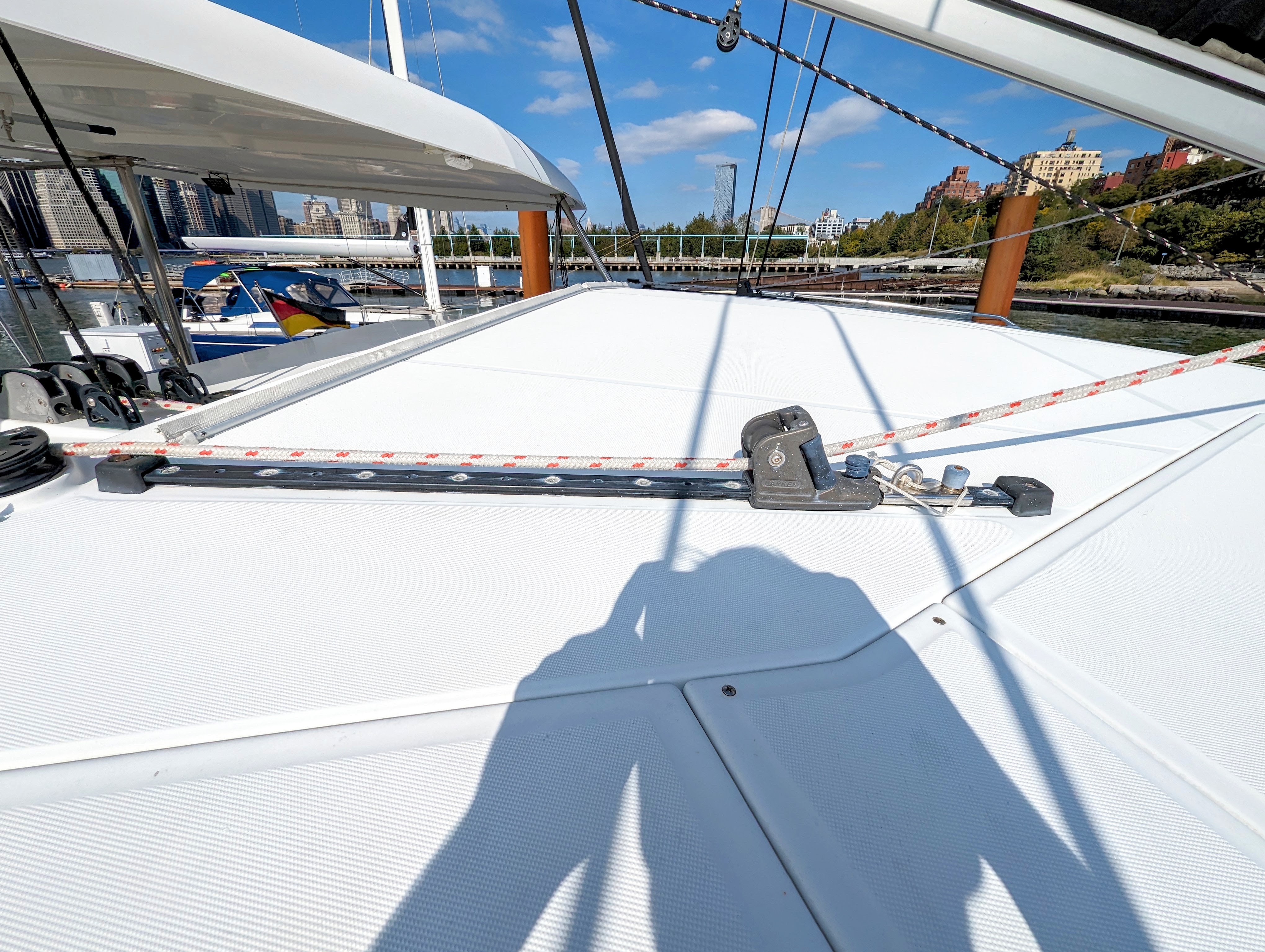

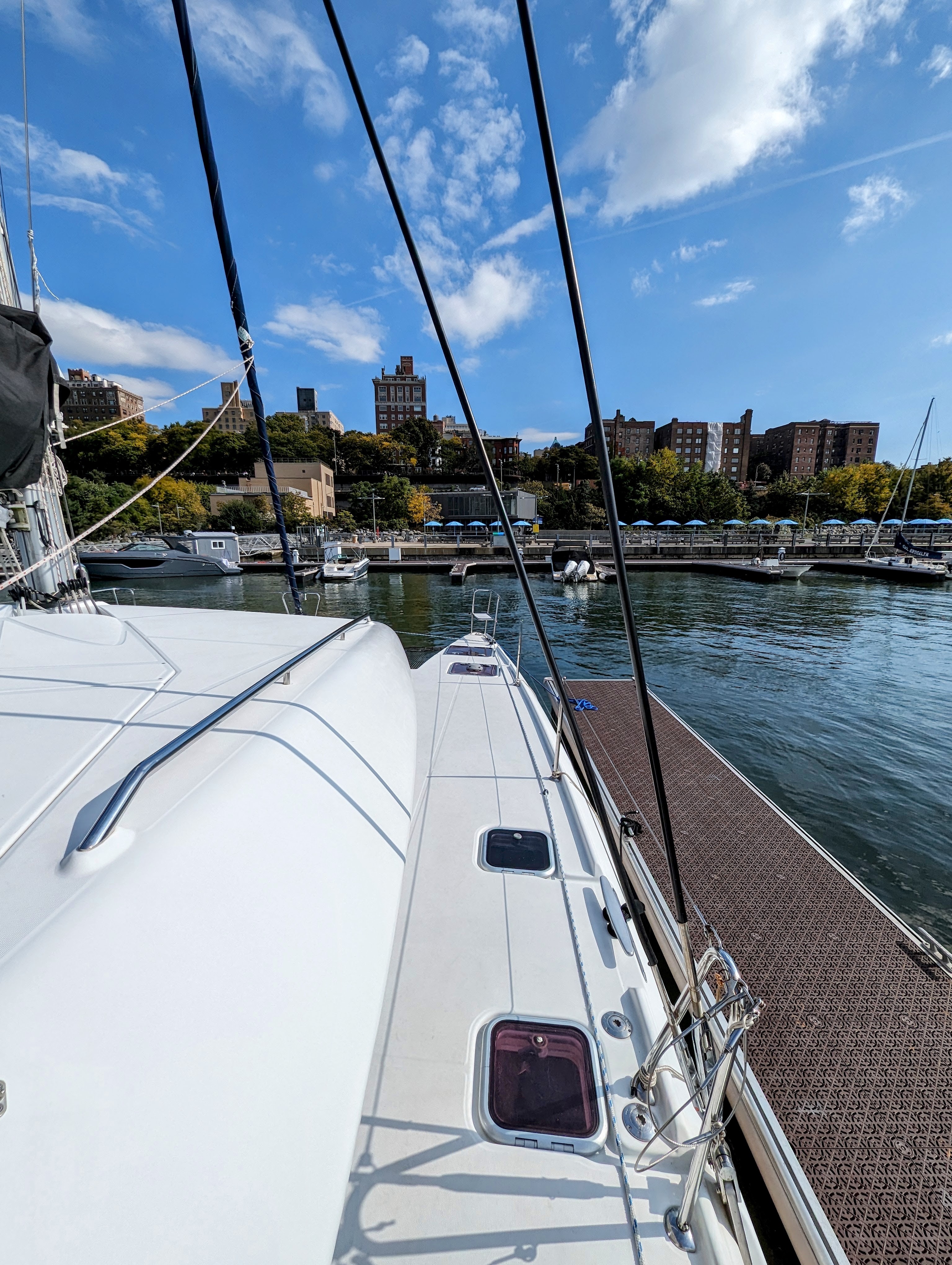

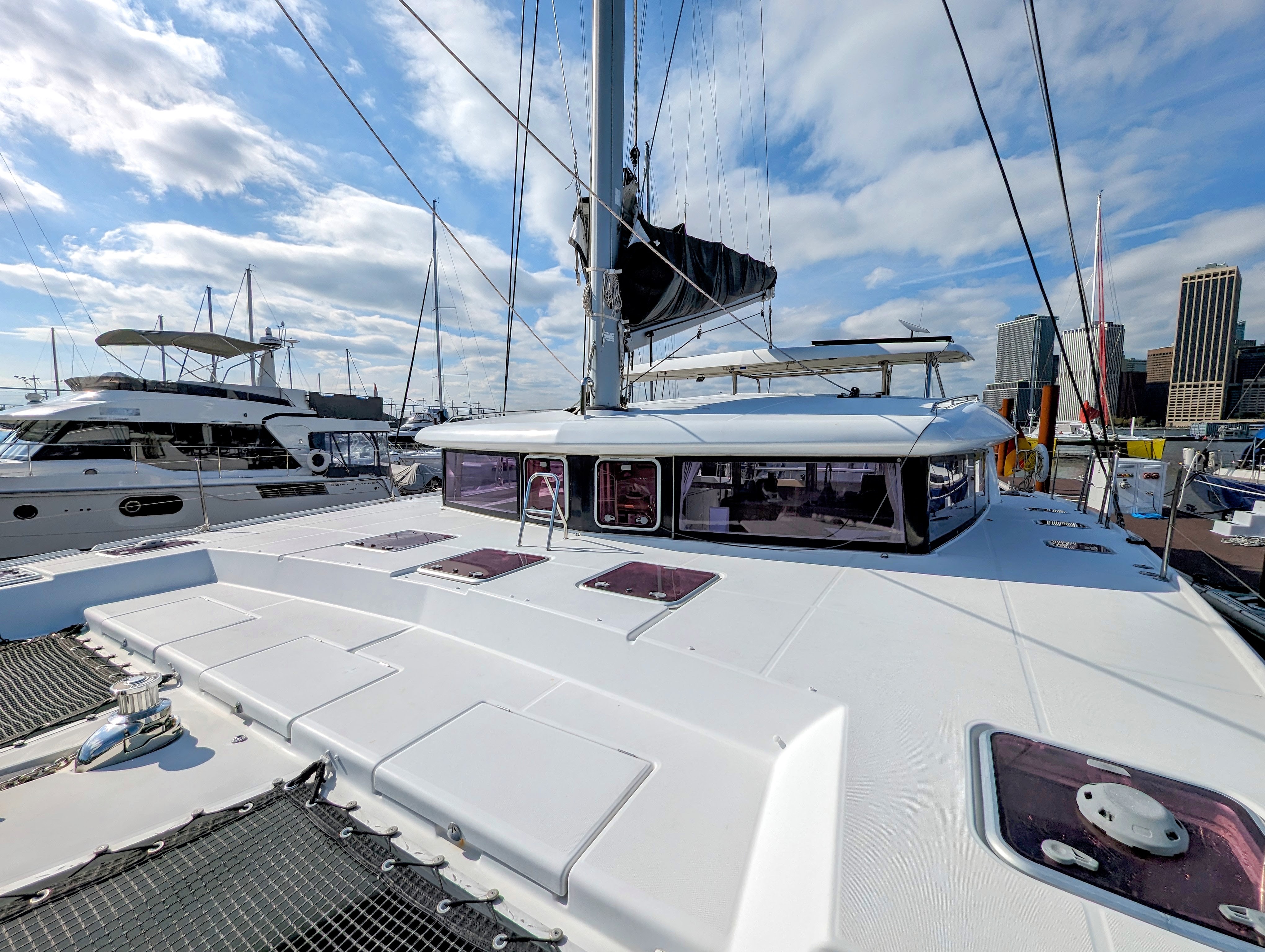

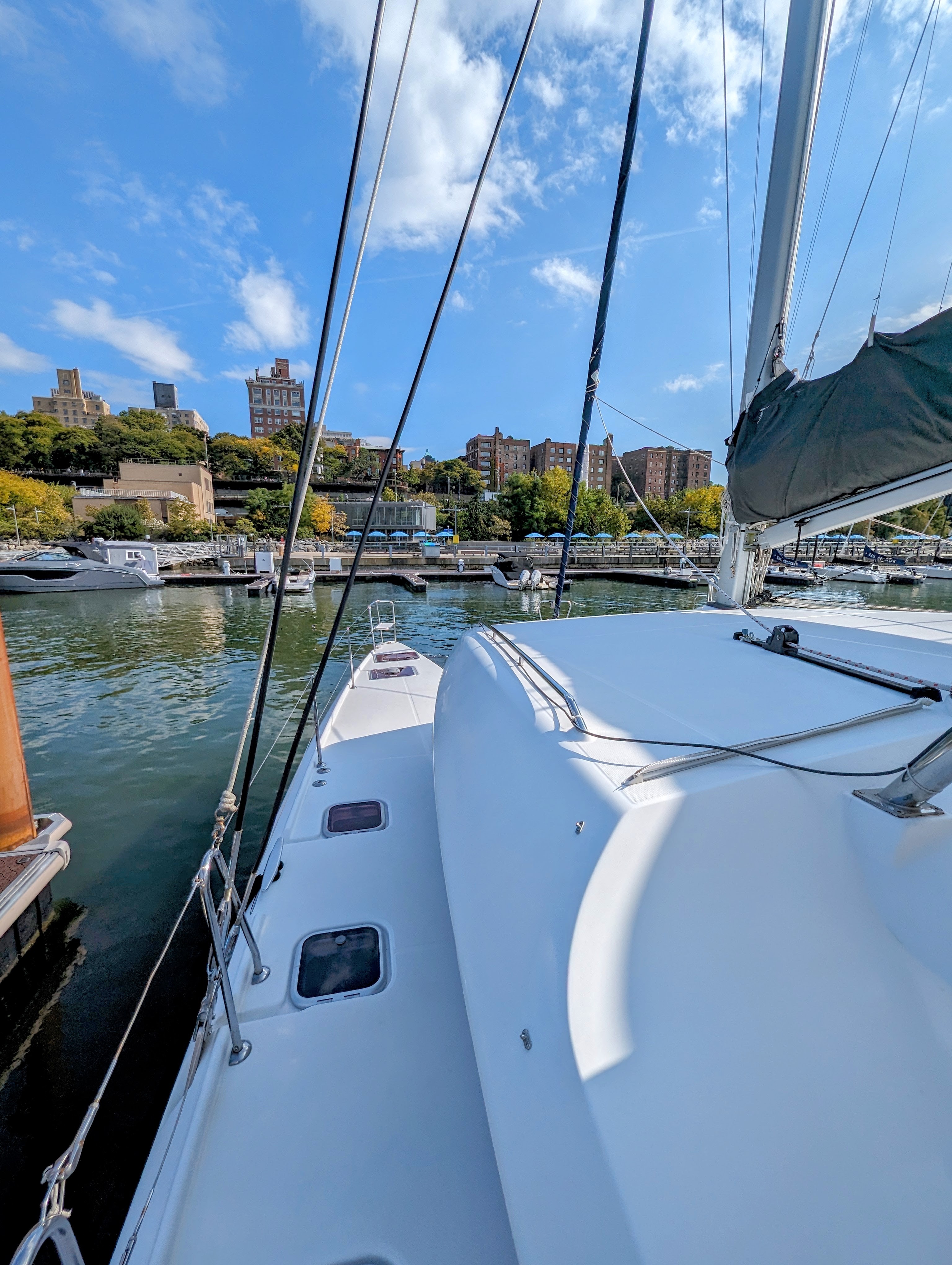

The foredeck features a spacious lounging area, perfect for soaking up the sun or stargazing at night.

Inside equipment
Electric bilge pumps
Manual bilge pumps
Air conditioning/heating: Ocean Breeze QU-800 110V
Hot water heater w/ new heating element/service kit (2022)

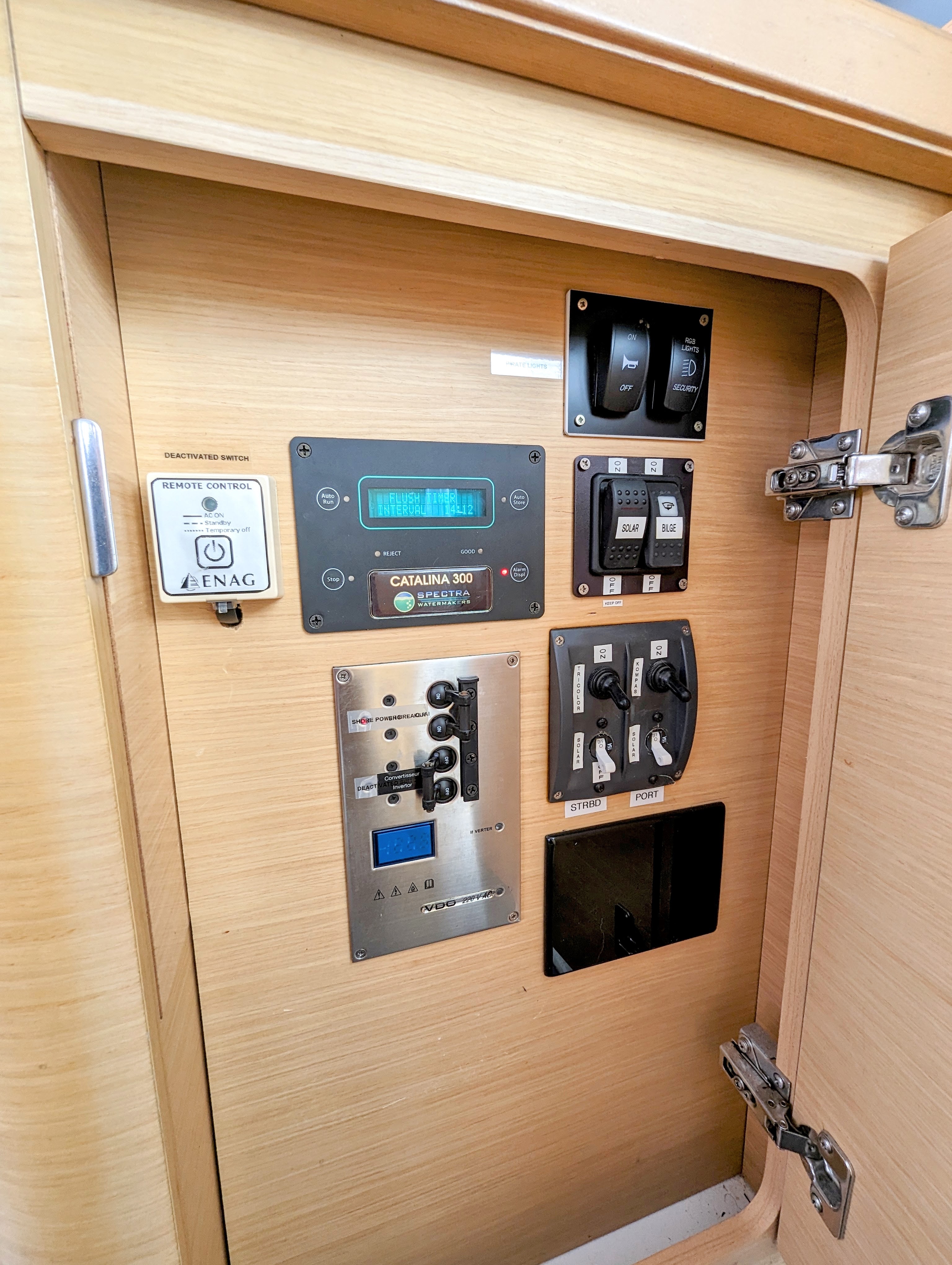

Fresh water maker: Spectra Catalina 300 mkII
Sea water pump

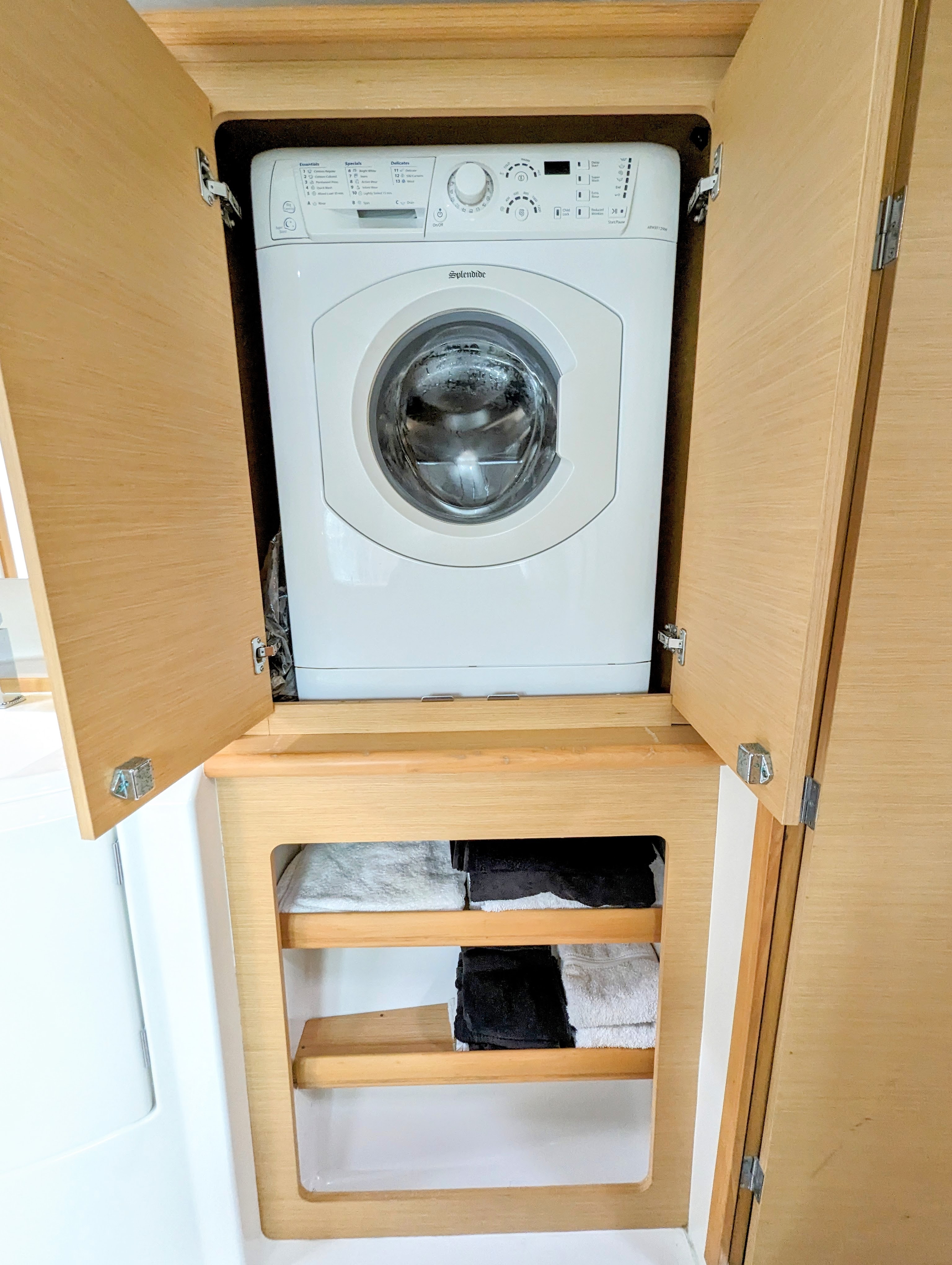

Washing machine: Splendide (2020)
Oven: Eno – 3 burner cooktop/oven
Microwave oven
Electric heads: serviced in 2022 w/ new hoses, new joker valves
Refrigerator
Deep freezer
Oven/air fryer w/ dedicated power line/breaker installed in 2022

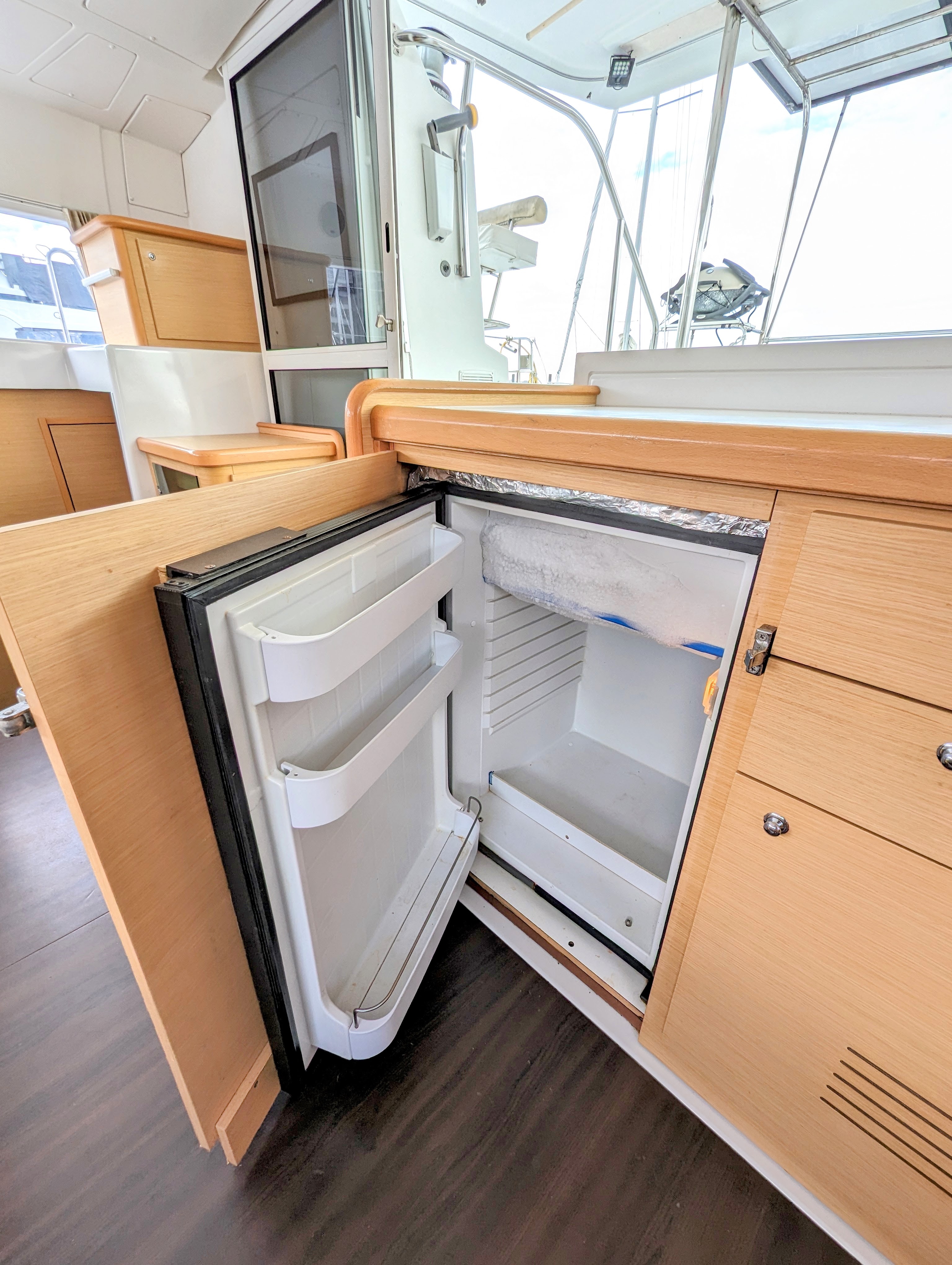

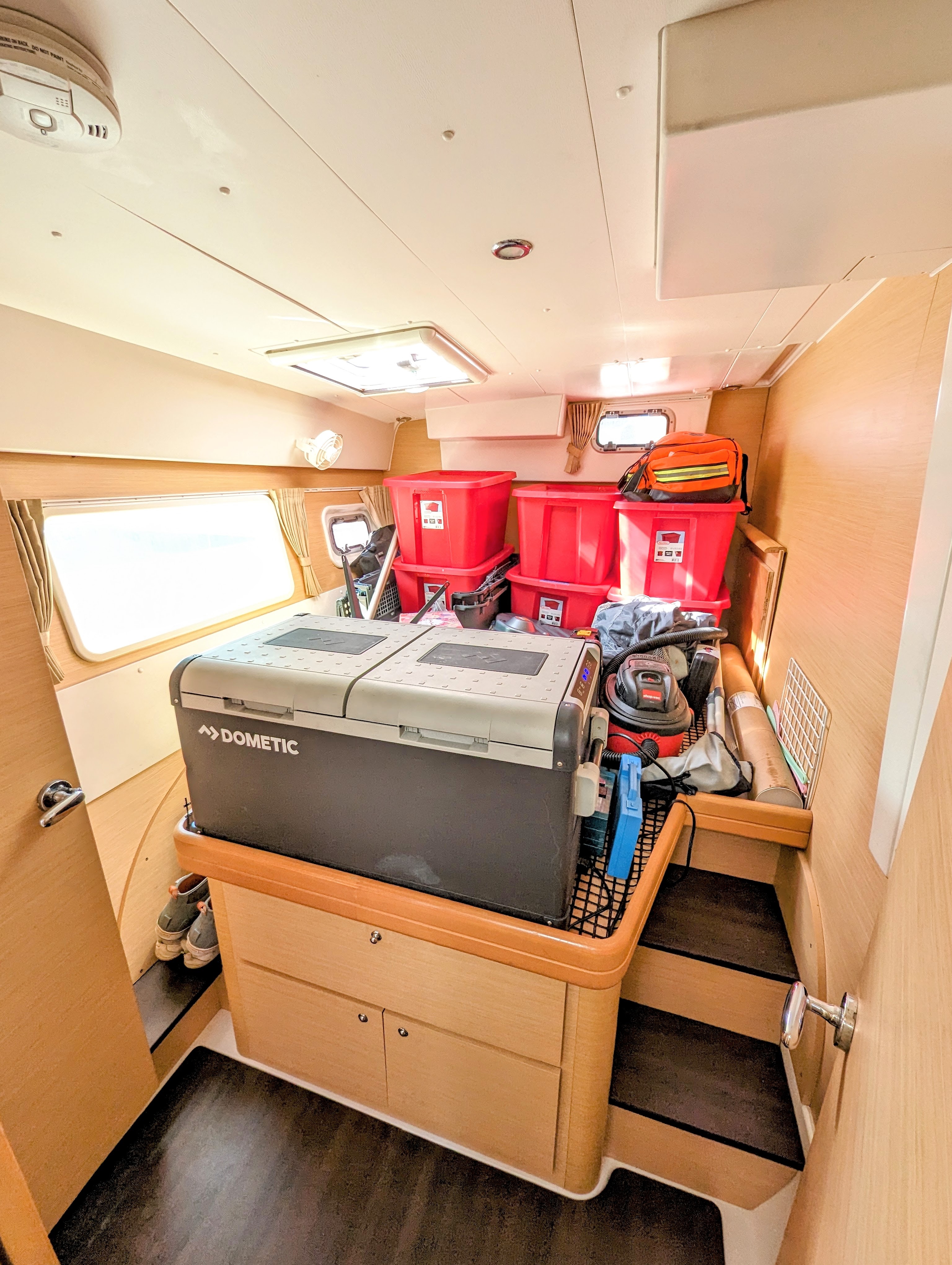

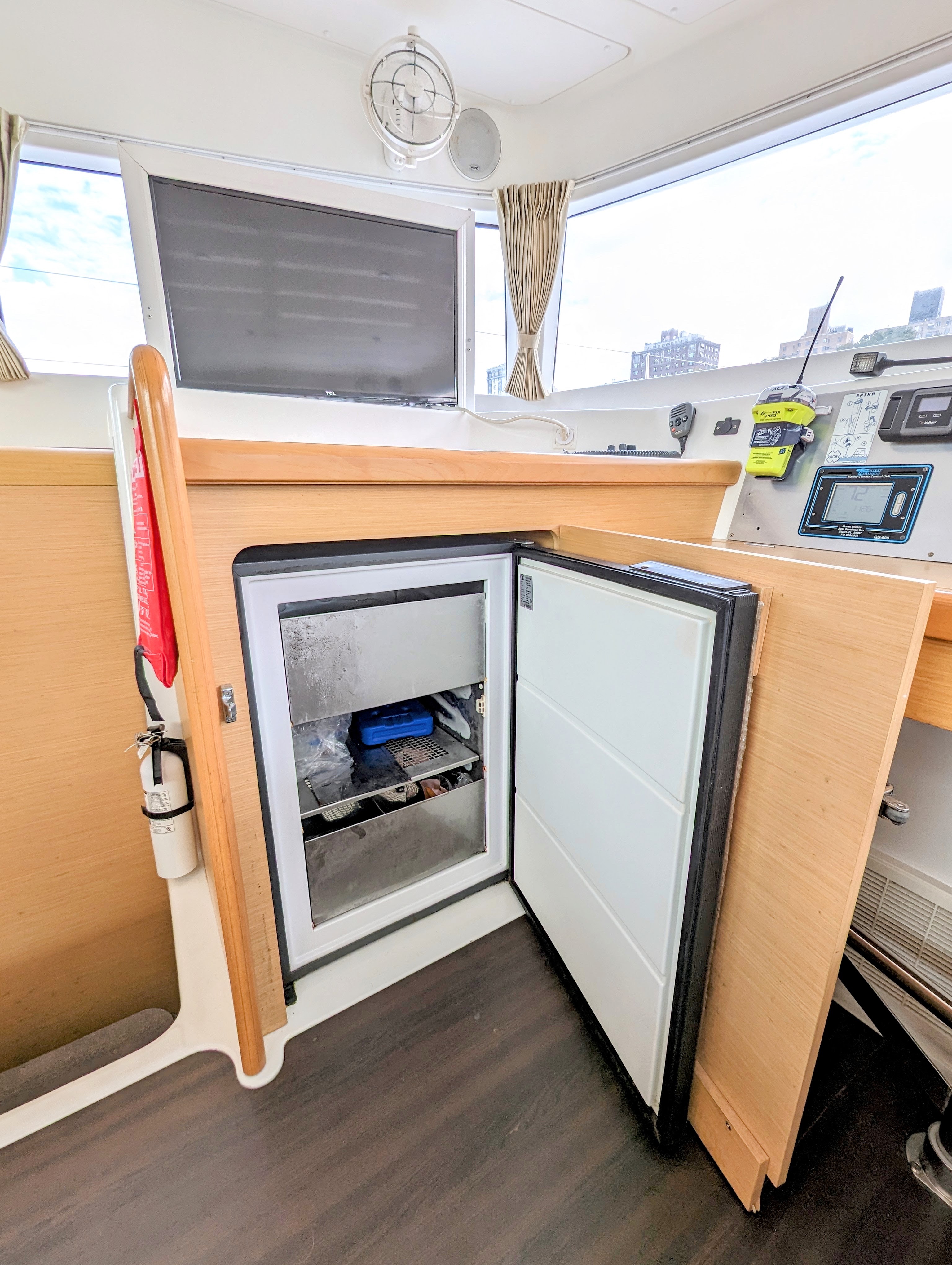

Dometic 75L fridge/freezer combo w/ dedicated 12v socket
3X step up/down transformers

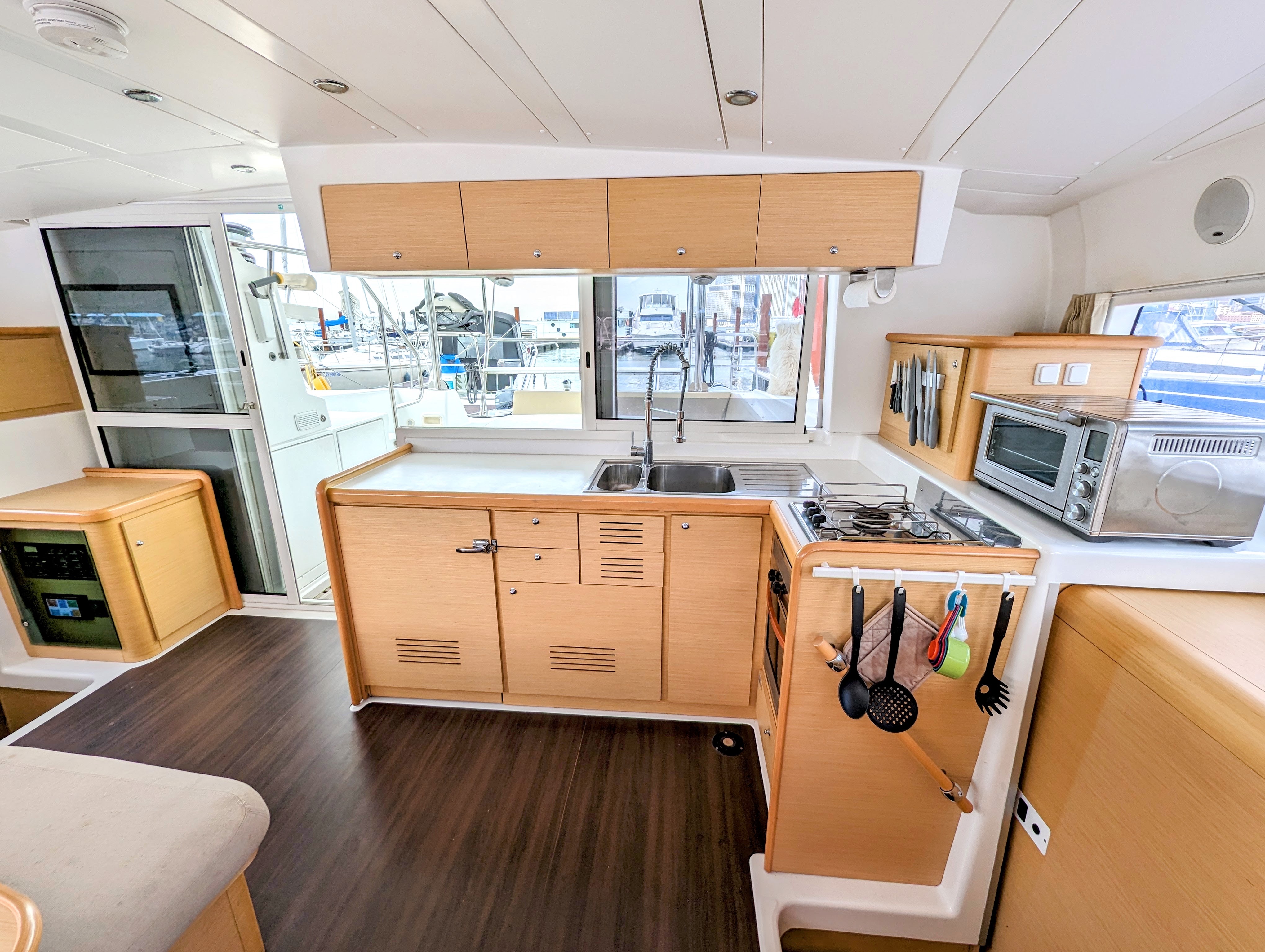

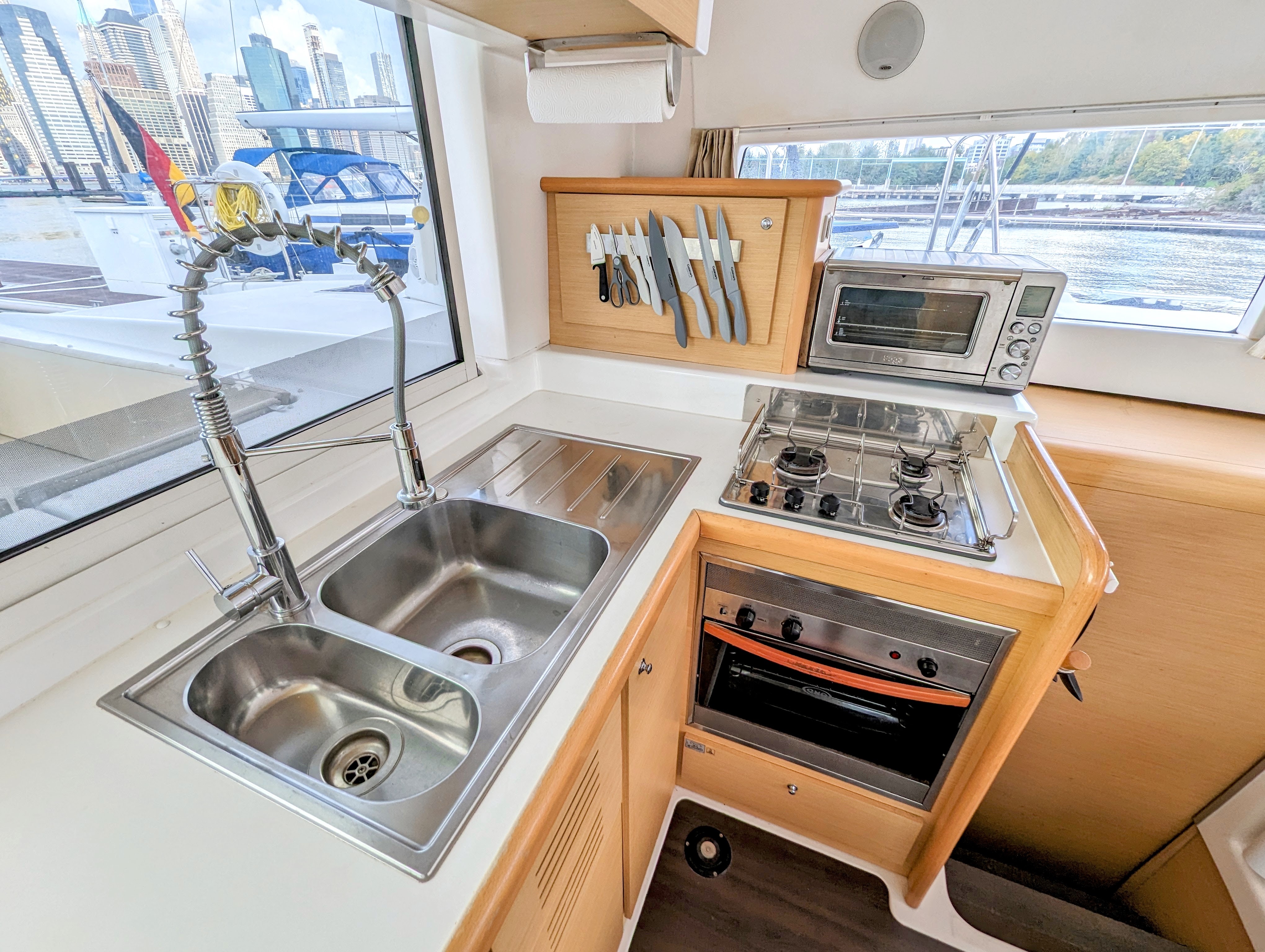

Galley

Oven: ENO 3 burner cooktop/oven
Oven/air fryer with dedicated power line/breaker installed in 2022
Refrigerator
Deep freezer
Dometic 75L fridge/freezer combo w/ dedicated 12v socket

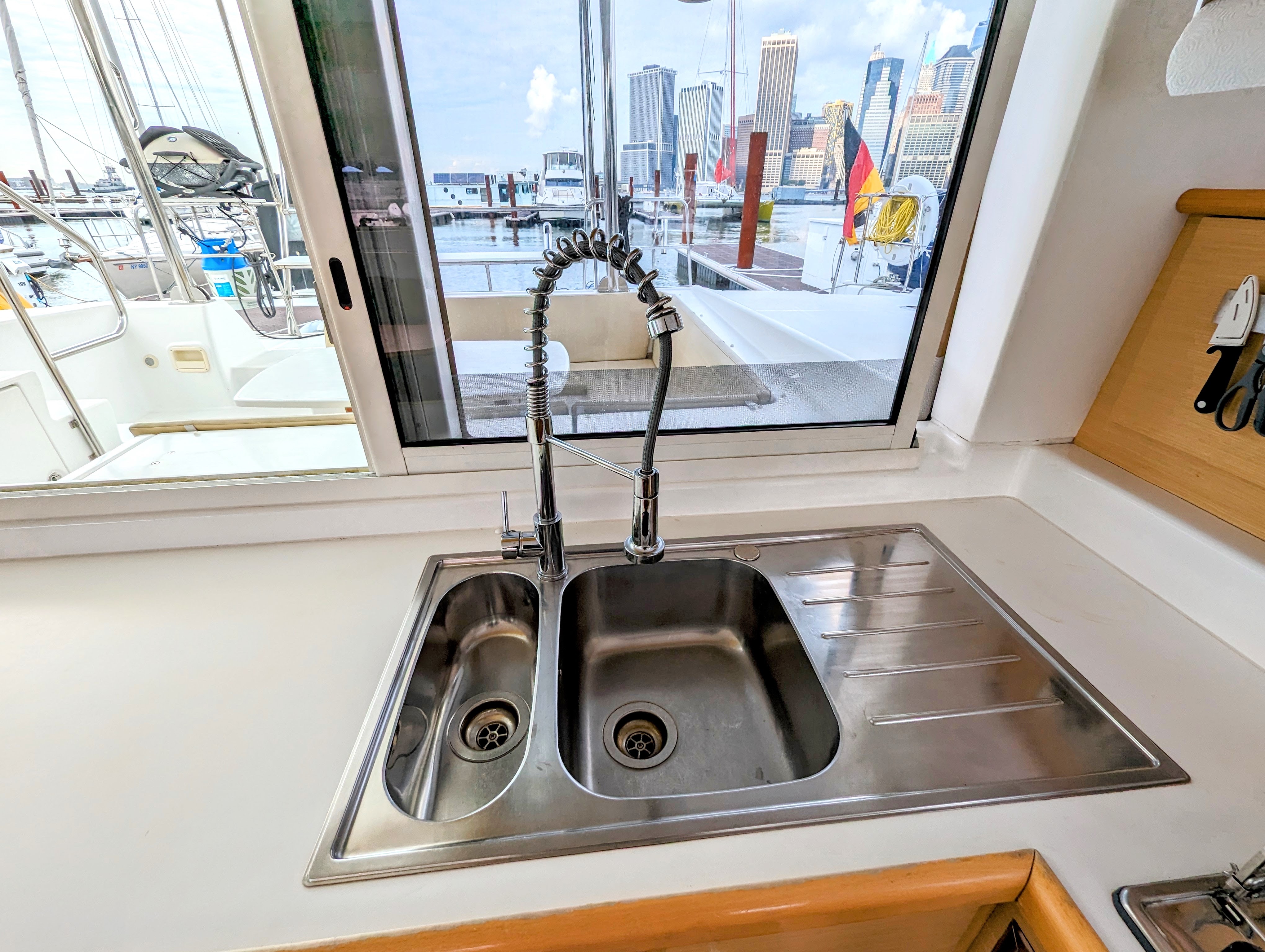

Double sink
Waterfilter

Deck & Equipment

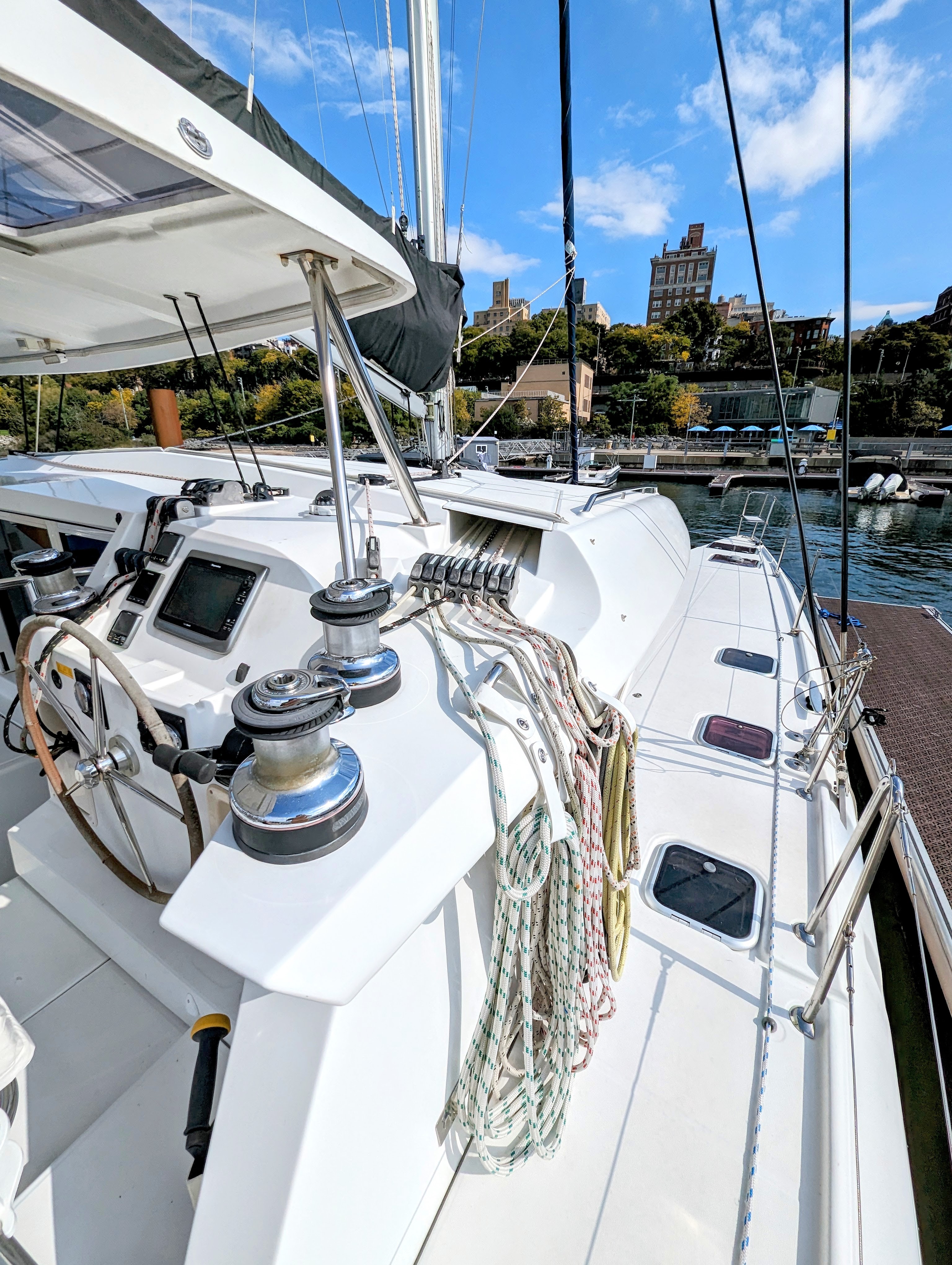

Winches: All 2speed self-tailing Harken – 2 x 46, 1×44 electrical (motor needs repleacement), 1×44, & 1×32
Deck cleat: 8×16″ & 1×11.5″

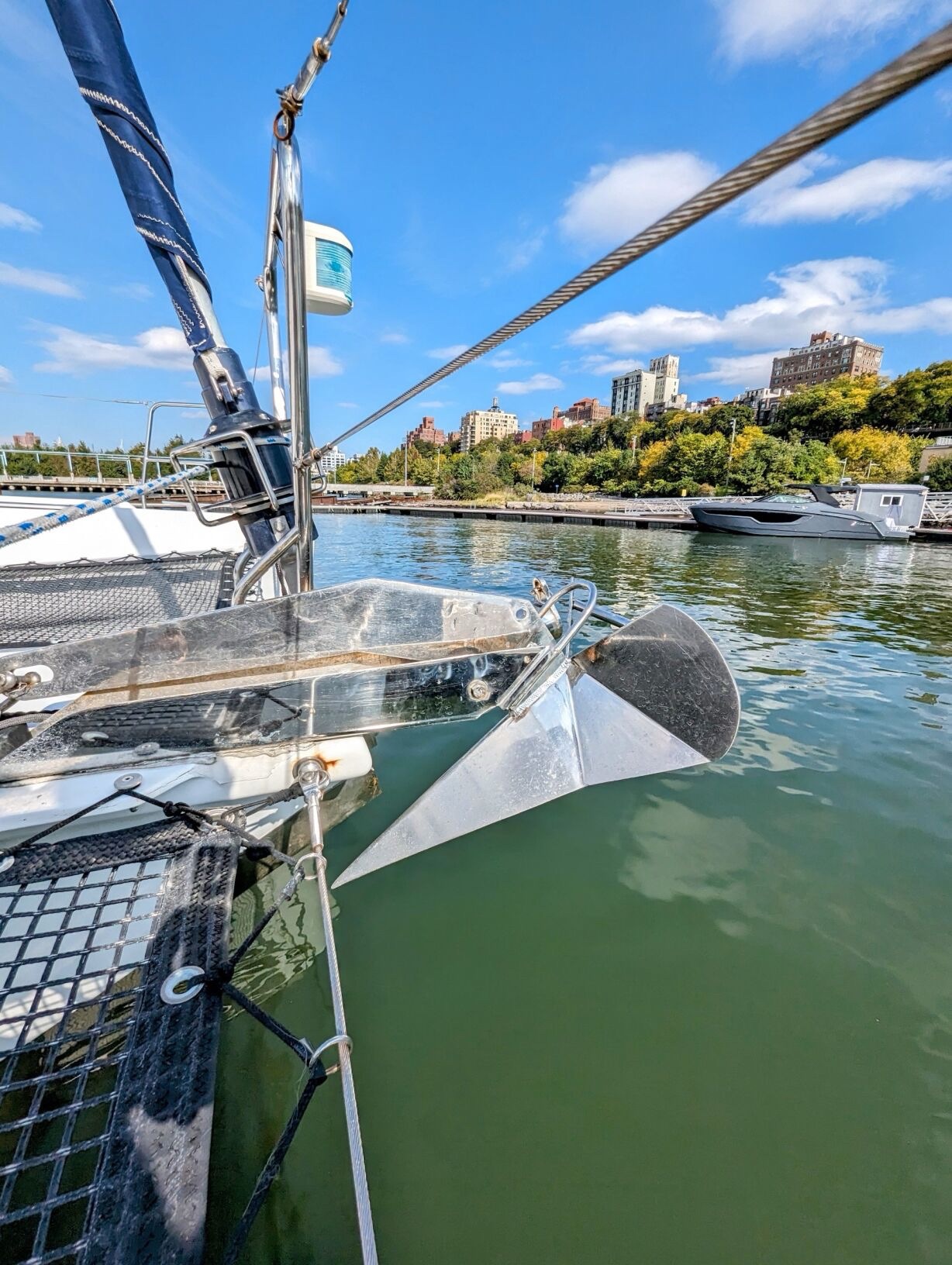

Primary anchor: stainless steel (SS)
Primary anchor chain: 225′ of 10mm SS
Secondary anchor: Fortress style
Secondary anchor chain: 50′ chain 100’rode

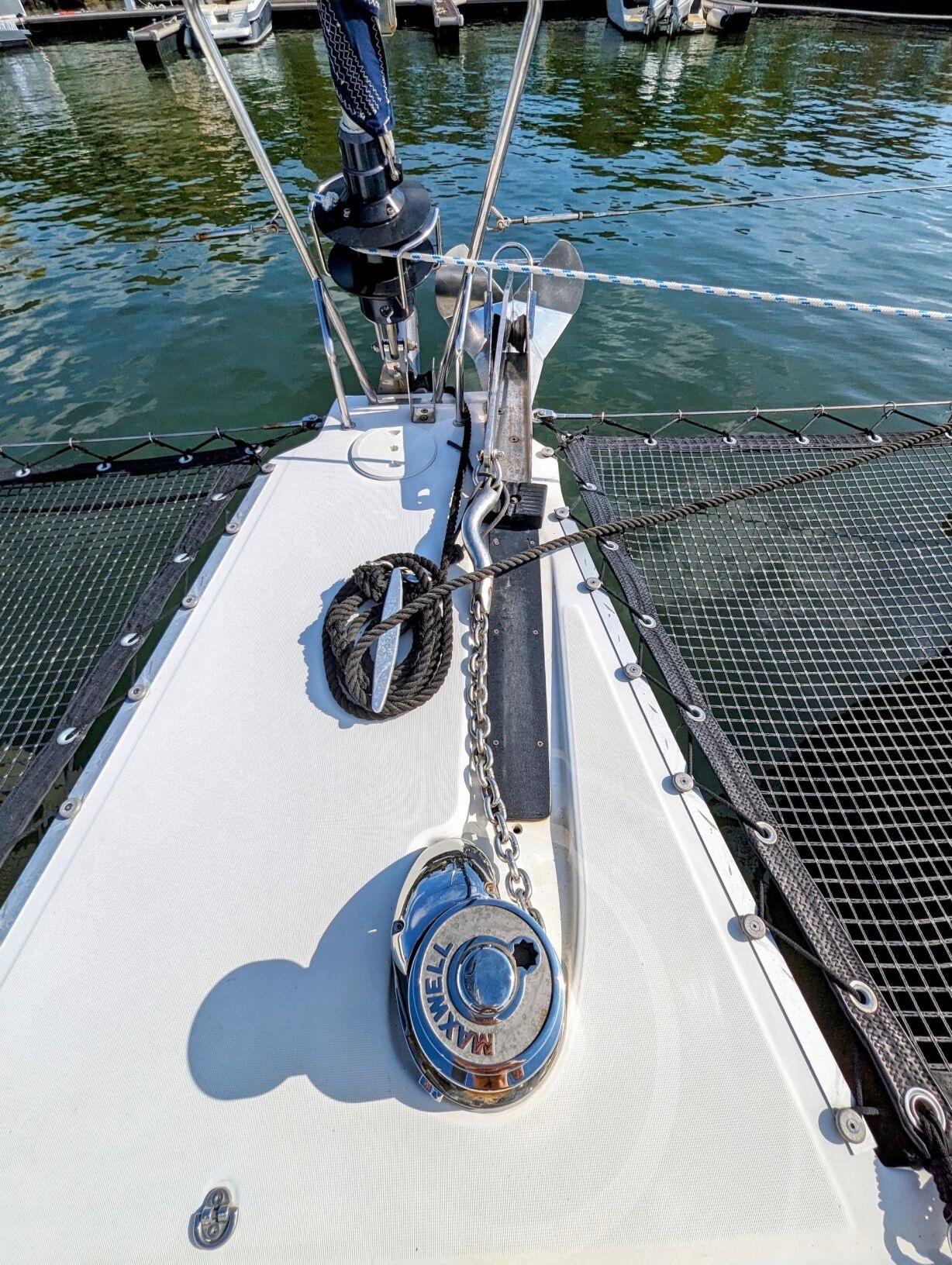

Windlass: Maxwell RC12-10 (2022)
Trampolines: black rubber coated (2022)
Fenders
Dock lines

Safety:
Liferaft – Revere Regatta ISO Life Raft, 8 person, 2023
Life ring
Horseshoe
MOB pole

Hard top
Spray hood
Cockpit cushions: bow and stern
Cockpit table
Cockpit shower
Swim ladder
Custom bench at transom
Bow pulpit seats, port & starboard
Weber Grill with 18.2L Viking fiberglass tank

On Deck:
Winches: All 2speed self-tailing Harken – 2 x 46, 1×44 electrical, 1×44, & 1×32
Deck cleat: 8×16″ & 1×11.5″
Bow pulpit seats: Stainless steel & Starboard x2
Grill: Weber w/ 18.2L Viking fiberglass tank
Primary anchor: SS
Primary anchor chain: 225′ of 10mm SS
Secondary anchor: Fortress style
Secondary anchor chain: 50′ chain 100’rode
Windlass: Maxwell RC12-10 (2022)
Trampoline: Black rubber coated (2022)
Fenders
Dock lines

Outside equipment:
Cockpit cushions: bow and stern
Cockpit table
Cockpit shower
Swim ladder
Radar reflector
Custom SS & starboard bench at transom

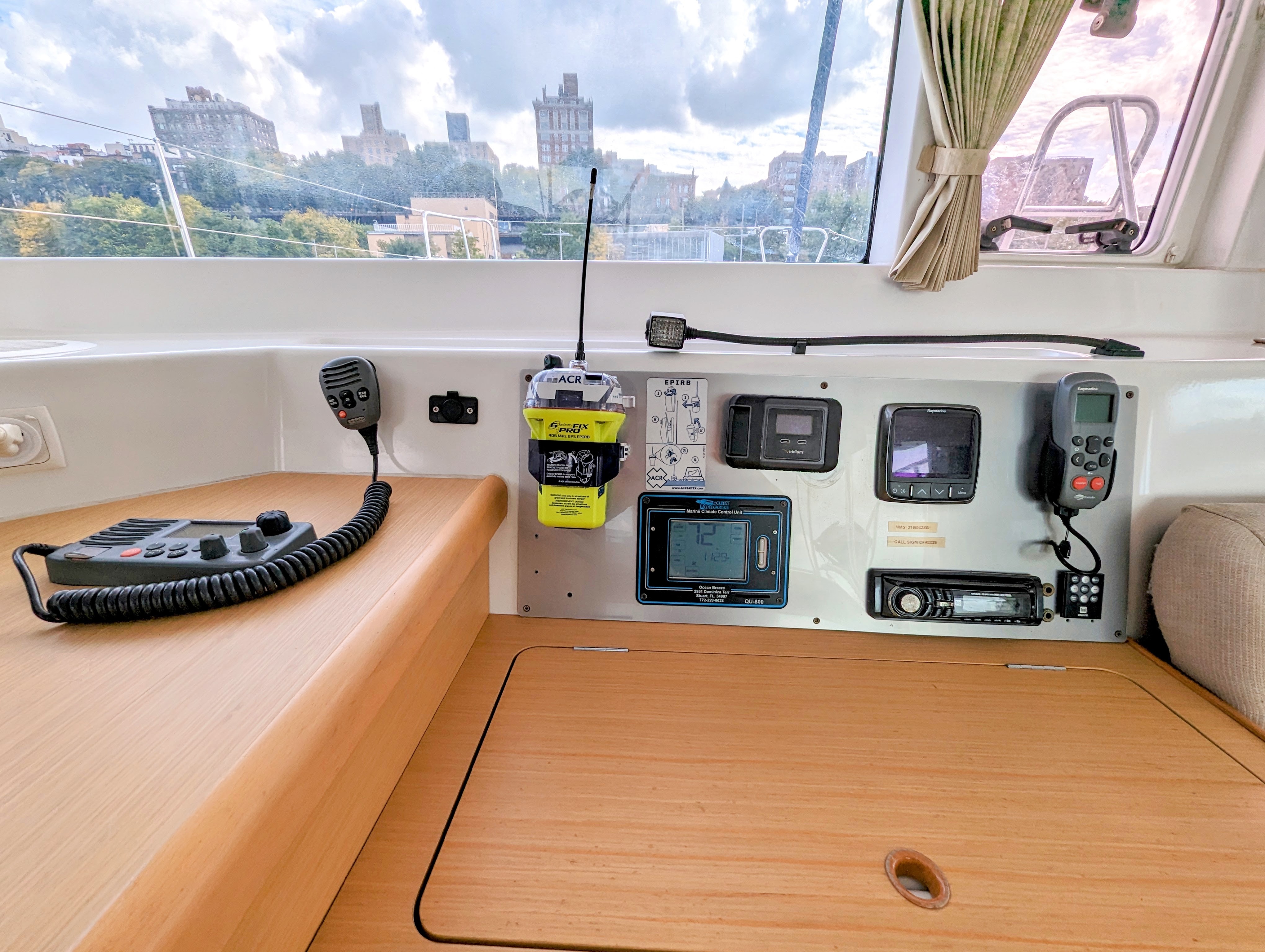

Electronics & Navigation

ELECTRONICS-
Starlink (2023)
Iridium go
Depthsounder
Log-speedometer
Wind speed & direction

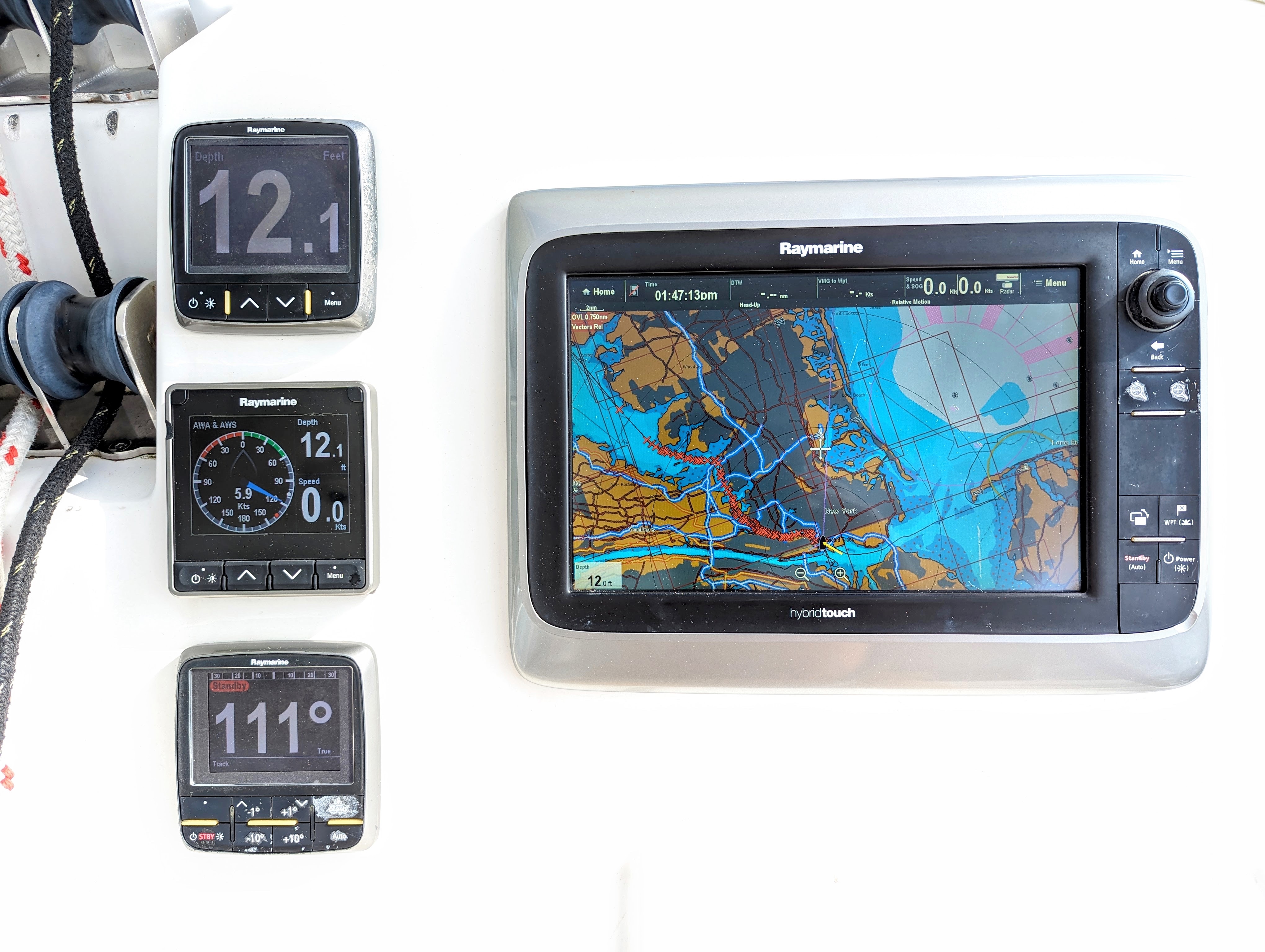

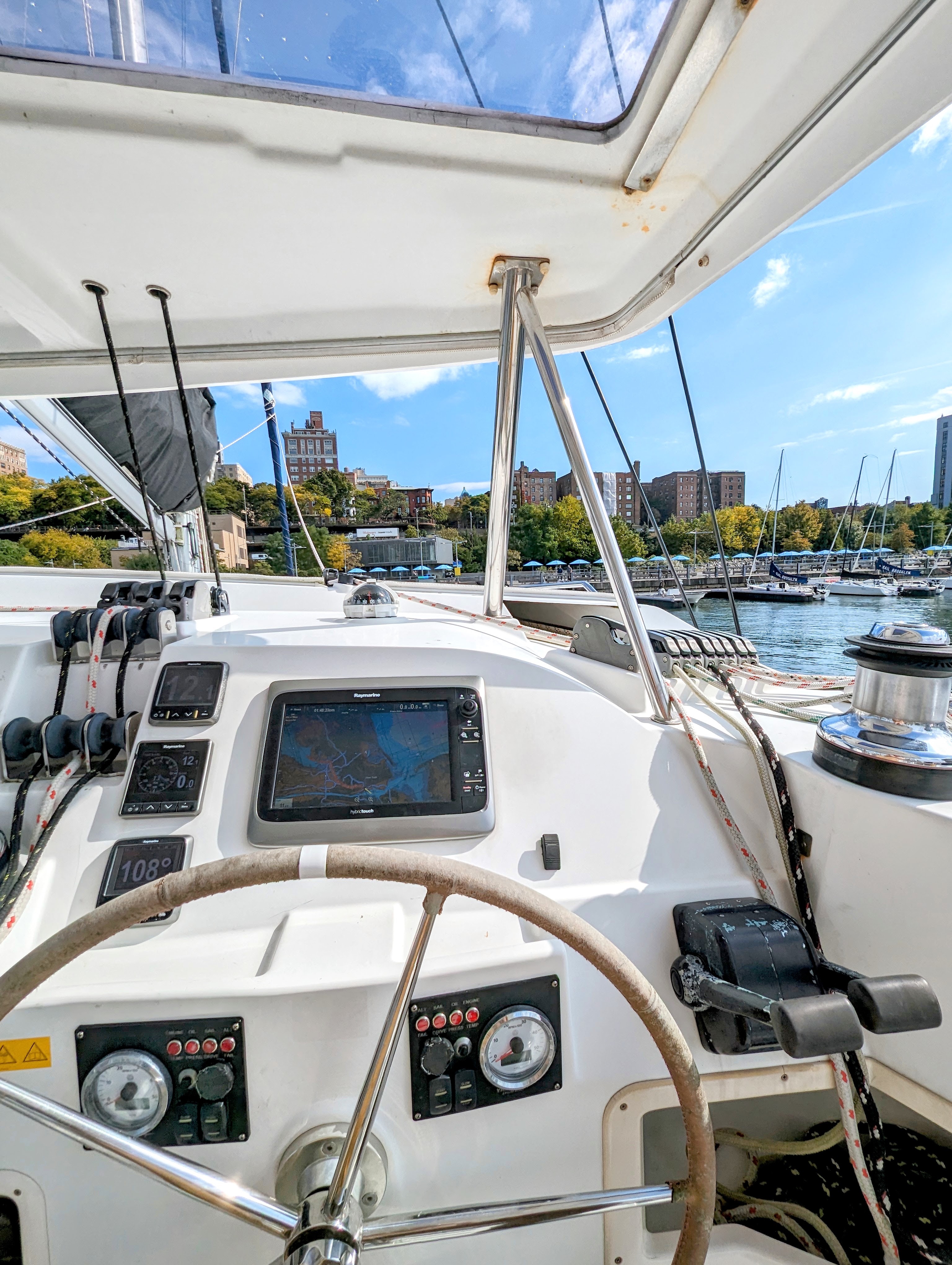

Chart plotter: Raymarine hybrid touch
Auto pilot: Raymarine w/ remote smart controller
Compass: Plastimo – offshore 105 (2020)
GPS: Raymarine – E127 w/ RS130 receiver
VHF: Raymarine – Ray 55
Radar: Raymarine 4kw close array
Radar detector

Electrical, Power & Plumbing

220V primary electrical system
110V Air conditioner system – Ocean Breeze QU-800 110V
Shore power inlet: upgraded to 50amp in 2022 w/ separate 30amp dedicated to air conditioners

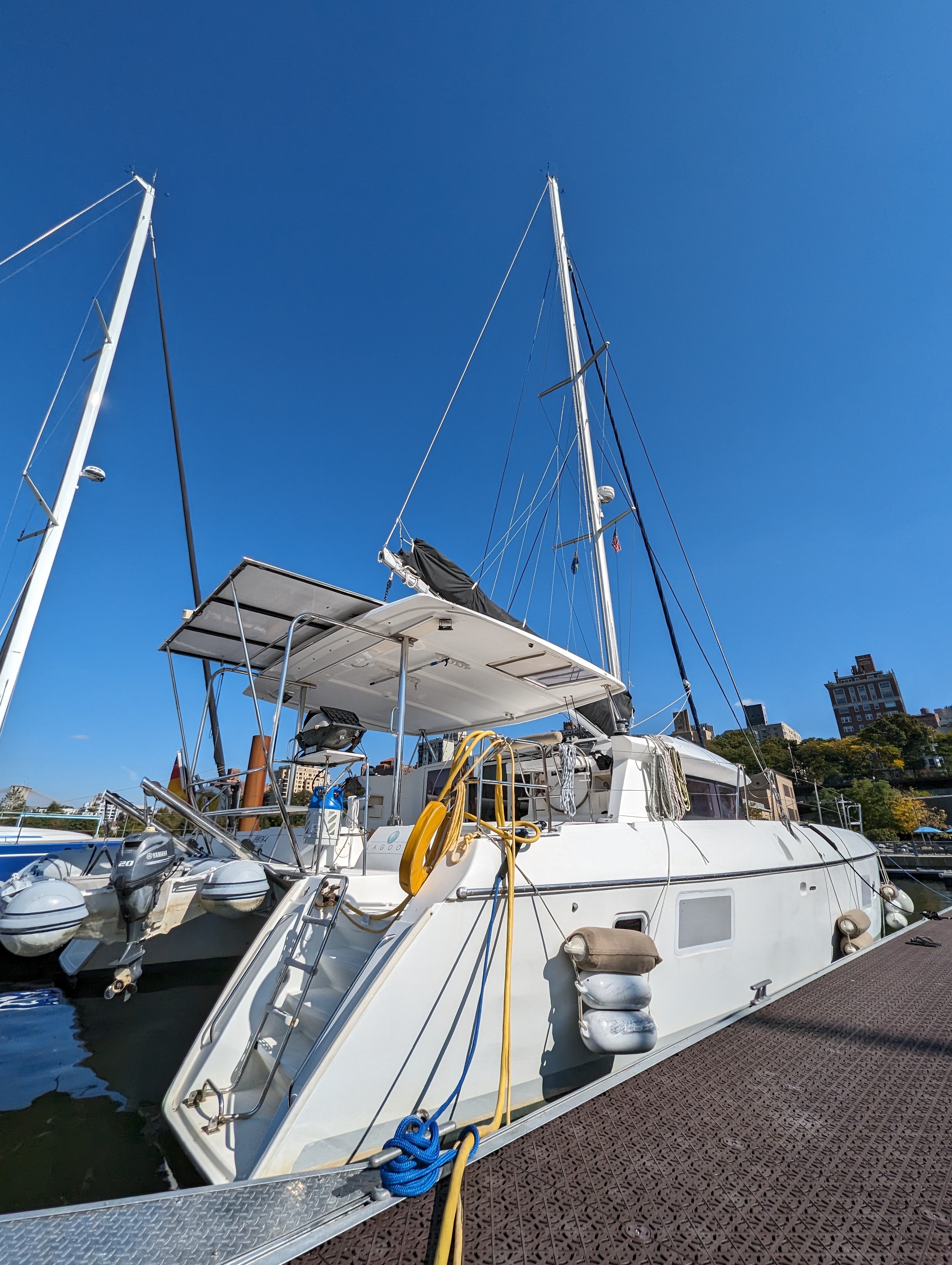

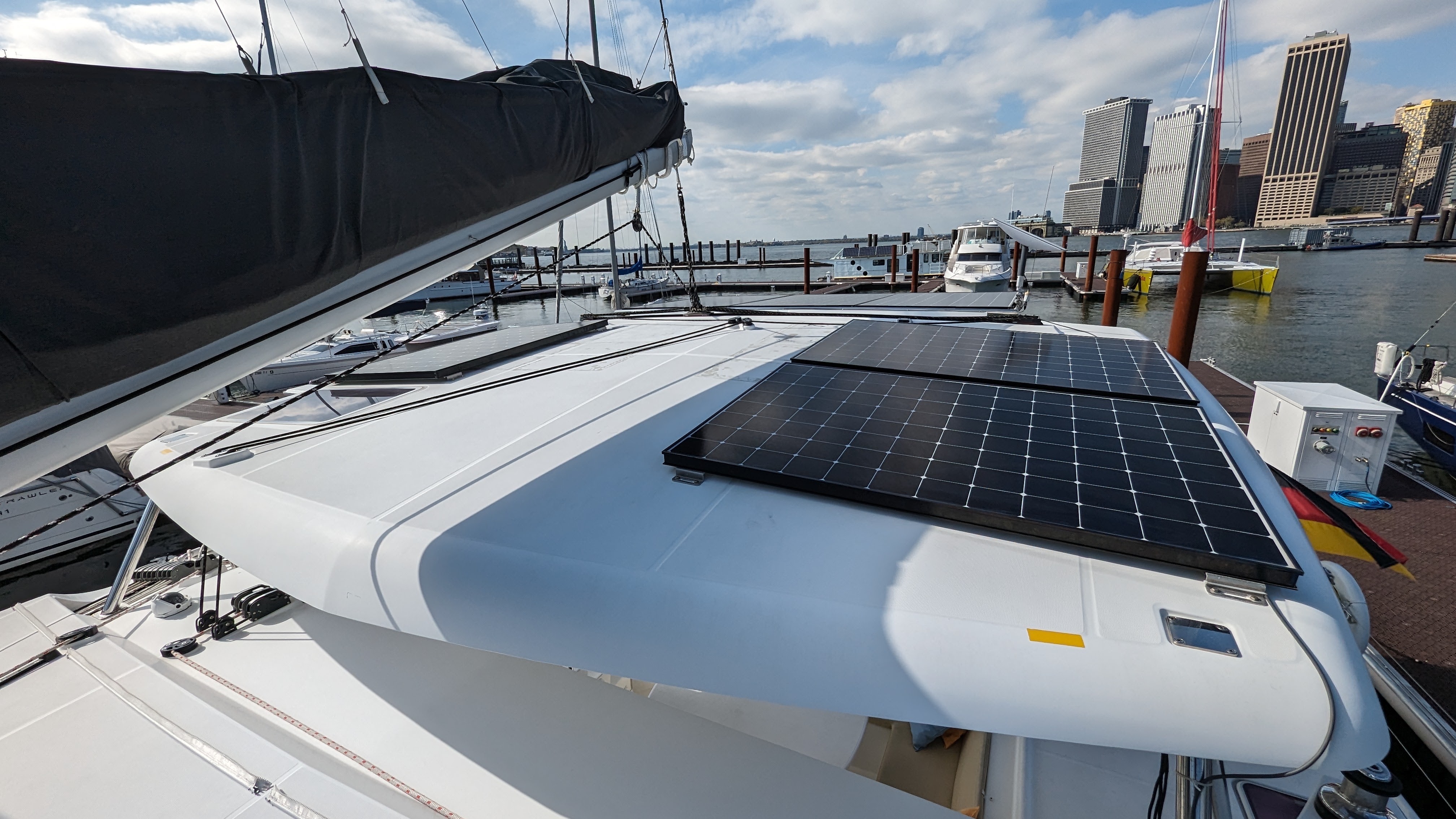

Solar: Total 2190w, 3x360w sunpower, 3x370w sunpower new in 2022 w/ SS arch
Inverter: Victron – Quattro 5000w inverter/charger 230VAC 12V DC (2022)
Alternator: 2xBolmar XT-170A w/ upgraded belts and pulley (2022)
Batteries: Battleborn lithium – 12x100A = 1200A total (8 new 2020, 4 new 2022)
Battery wiring professionally redone w/ heavy duty wiring

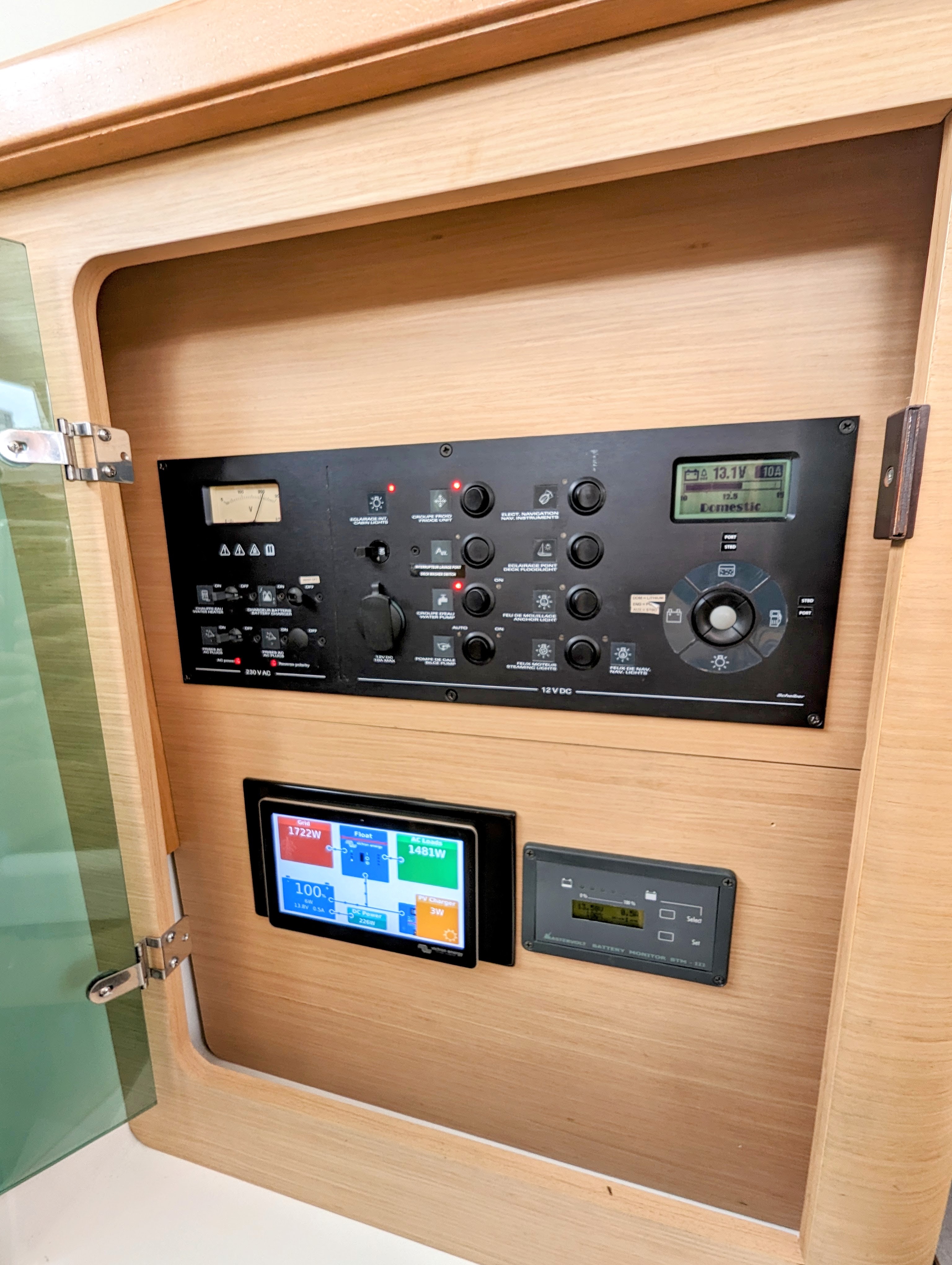

Power monitor: Victron – 7″ energy cerbo GX w/ touch
Generator: Honda – portable EU2000
Hot water heater w/ new heating element/service kit (2022)
Fresh water maker: Spectra Catalina 300 mkII
Electric bilge pumps
Manual bilge pumps
Electric heads: serviced in 2022 w/ new hoses, new joker valves
3X step up/down transformers

Engine & Mechanical

2x Yanmar 3JH4E, 39 horsepower, constantly taken care off and serviced. Engine hours port side: est. 1068
Engine hours starboard side: est. 1146

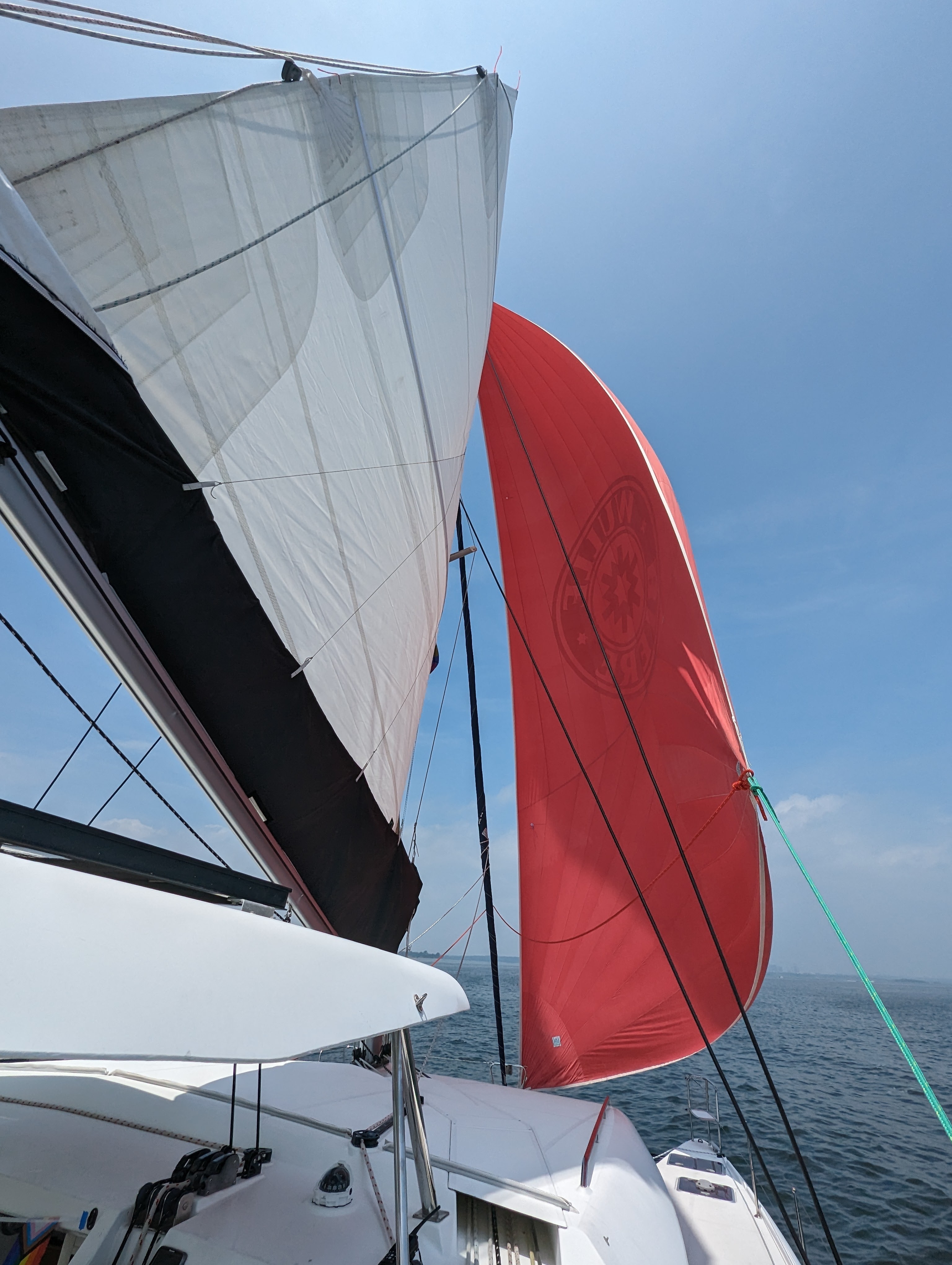

Sails & Rigging

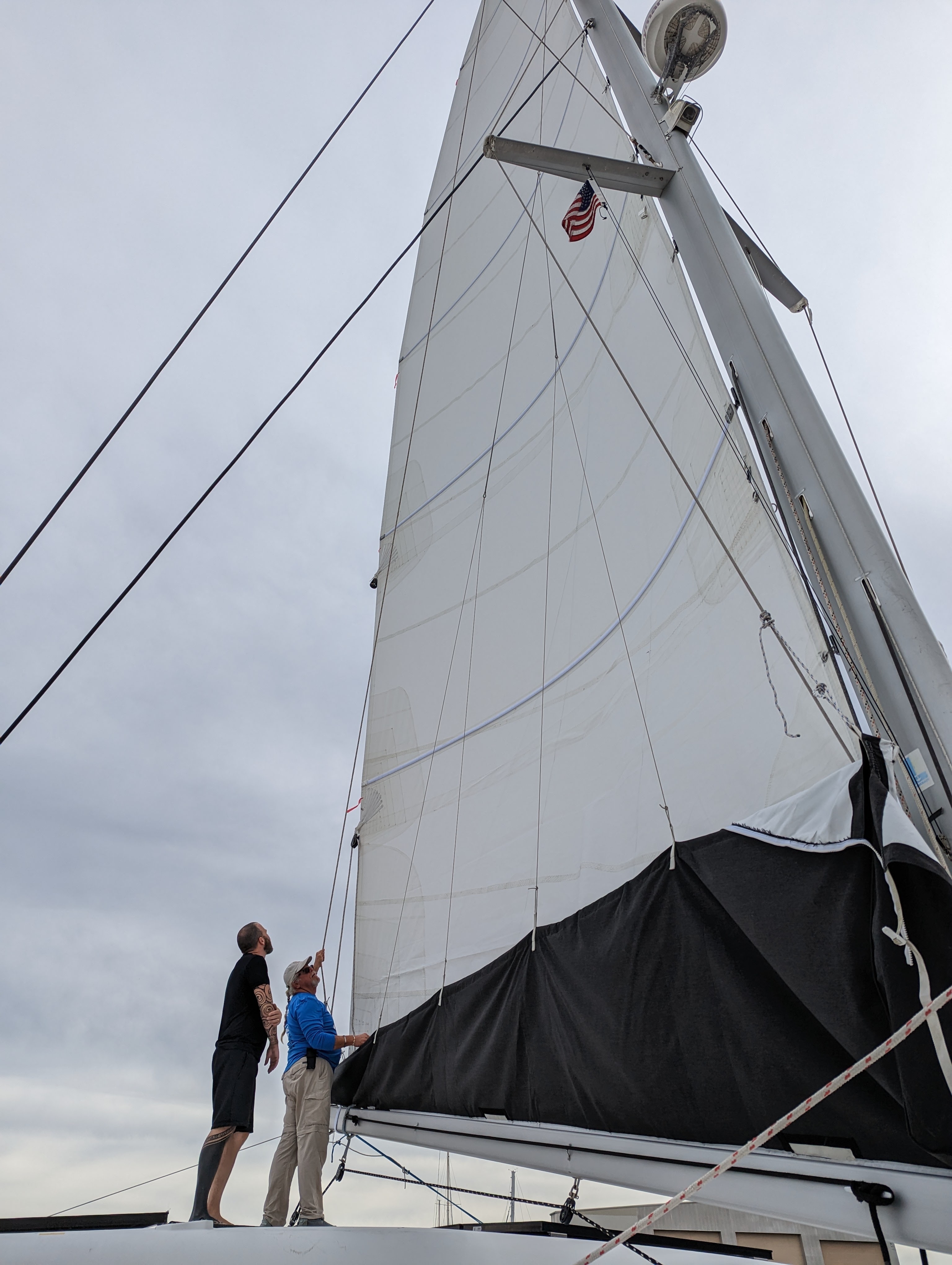

Mainsail – 70m2 Quantum Crosscut Offshore (2022)
Lazy bag (2022)

Roller Furling Headsail
Genoa Furler Size – 110
Roller Furling Code Zero
Screecher Furler – Code Zero Endless Furler

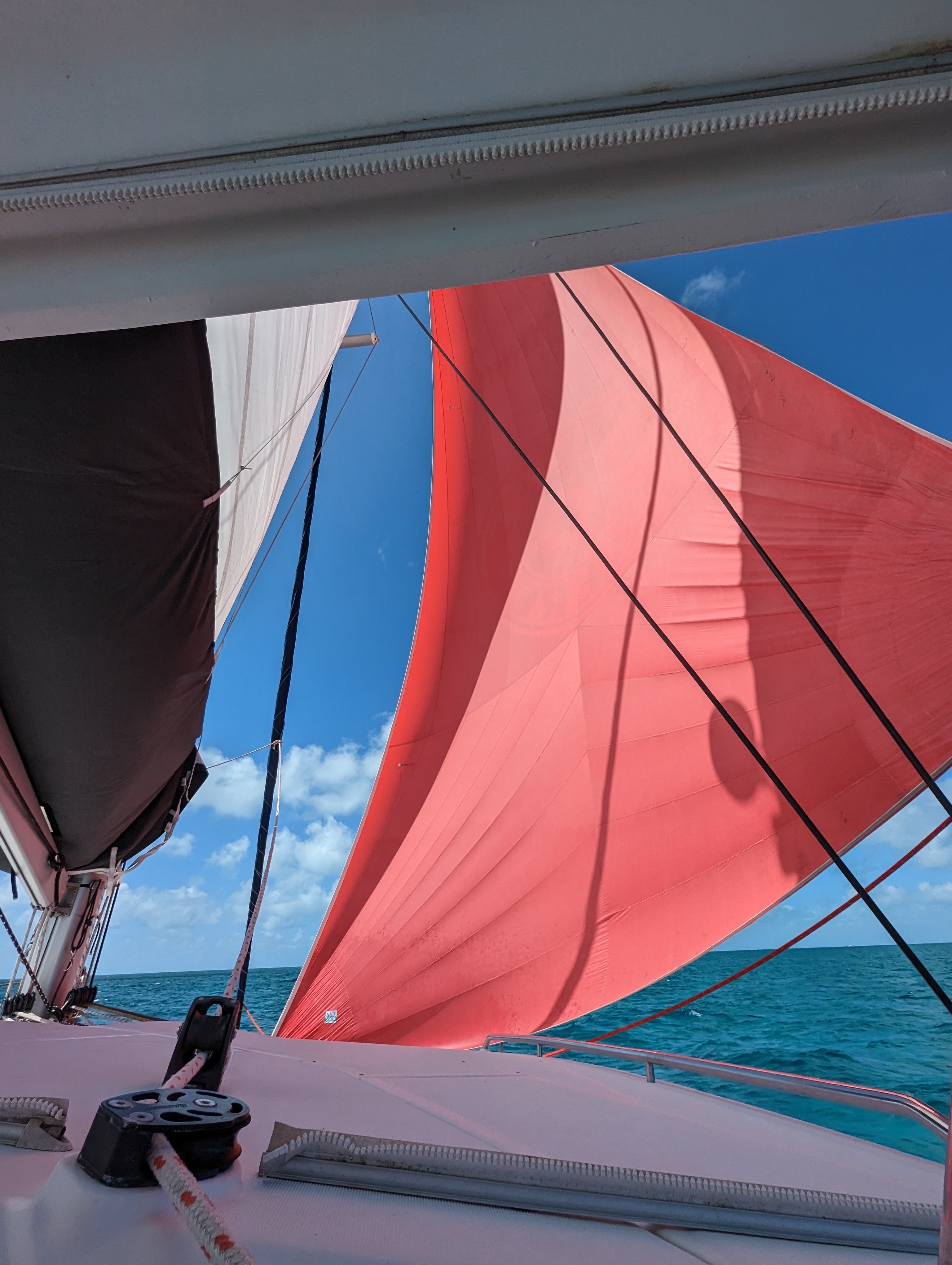

Symmetrical spinnaker on a pull down sock.

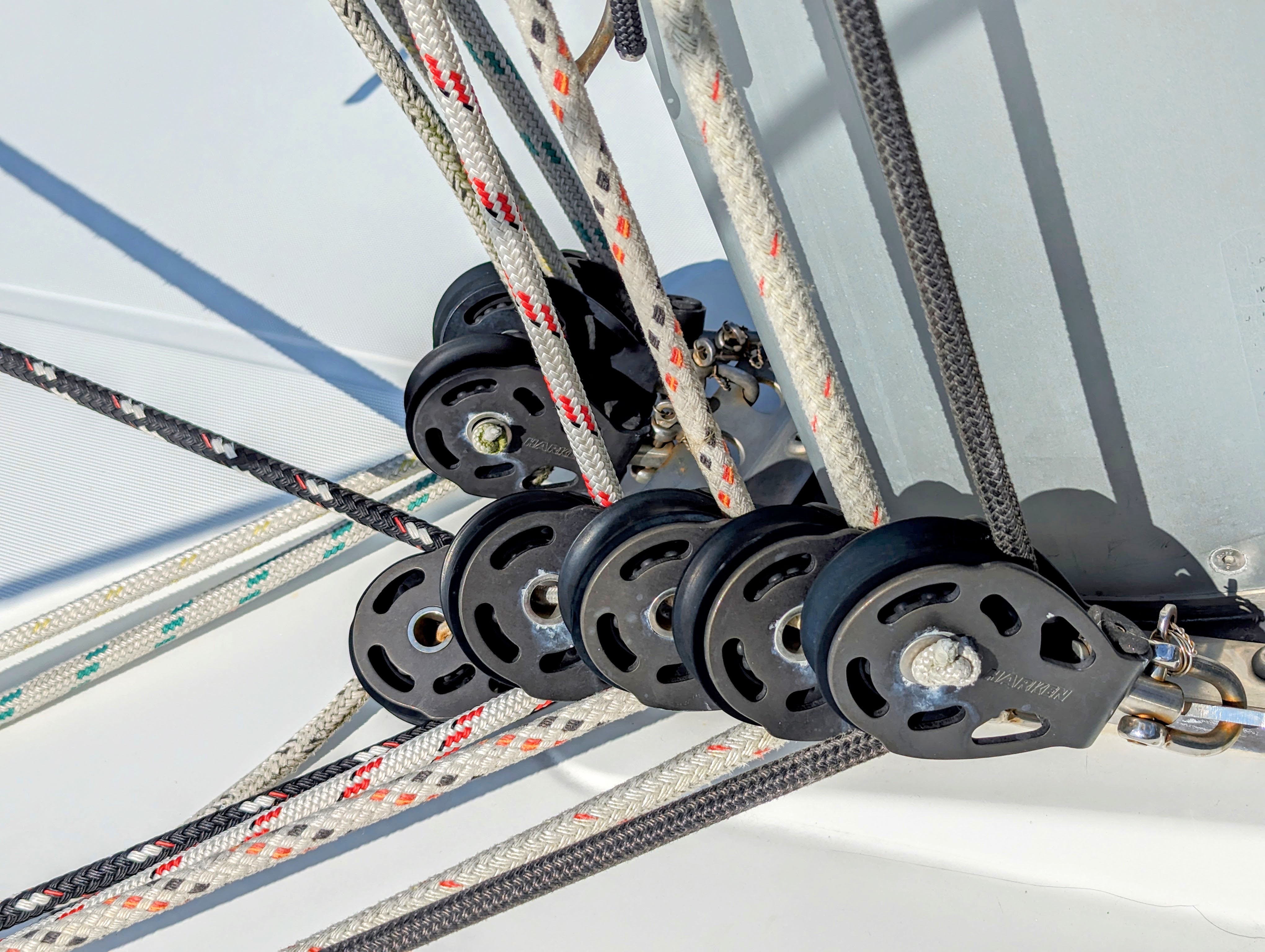

Runnning rigging:

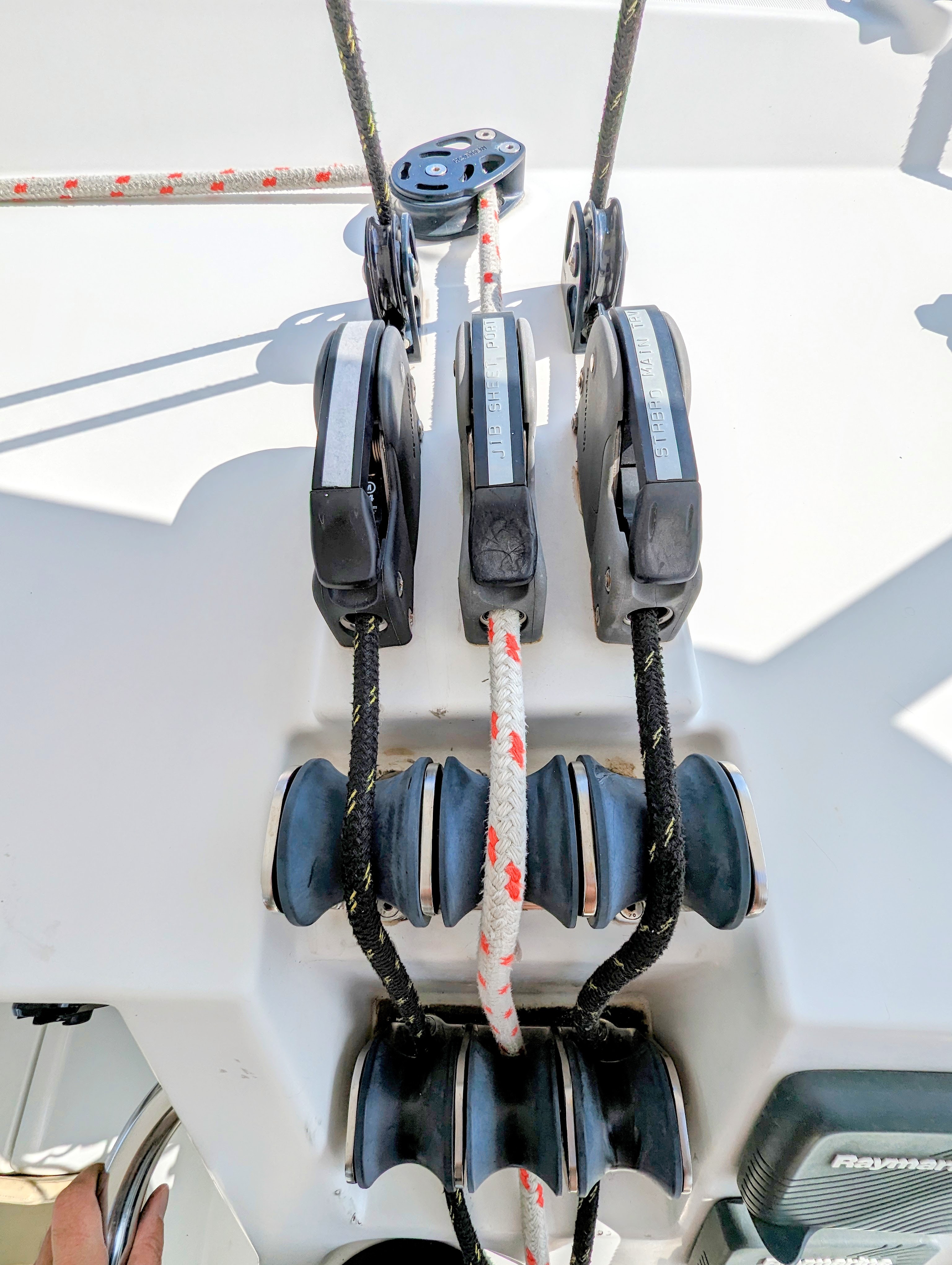

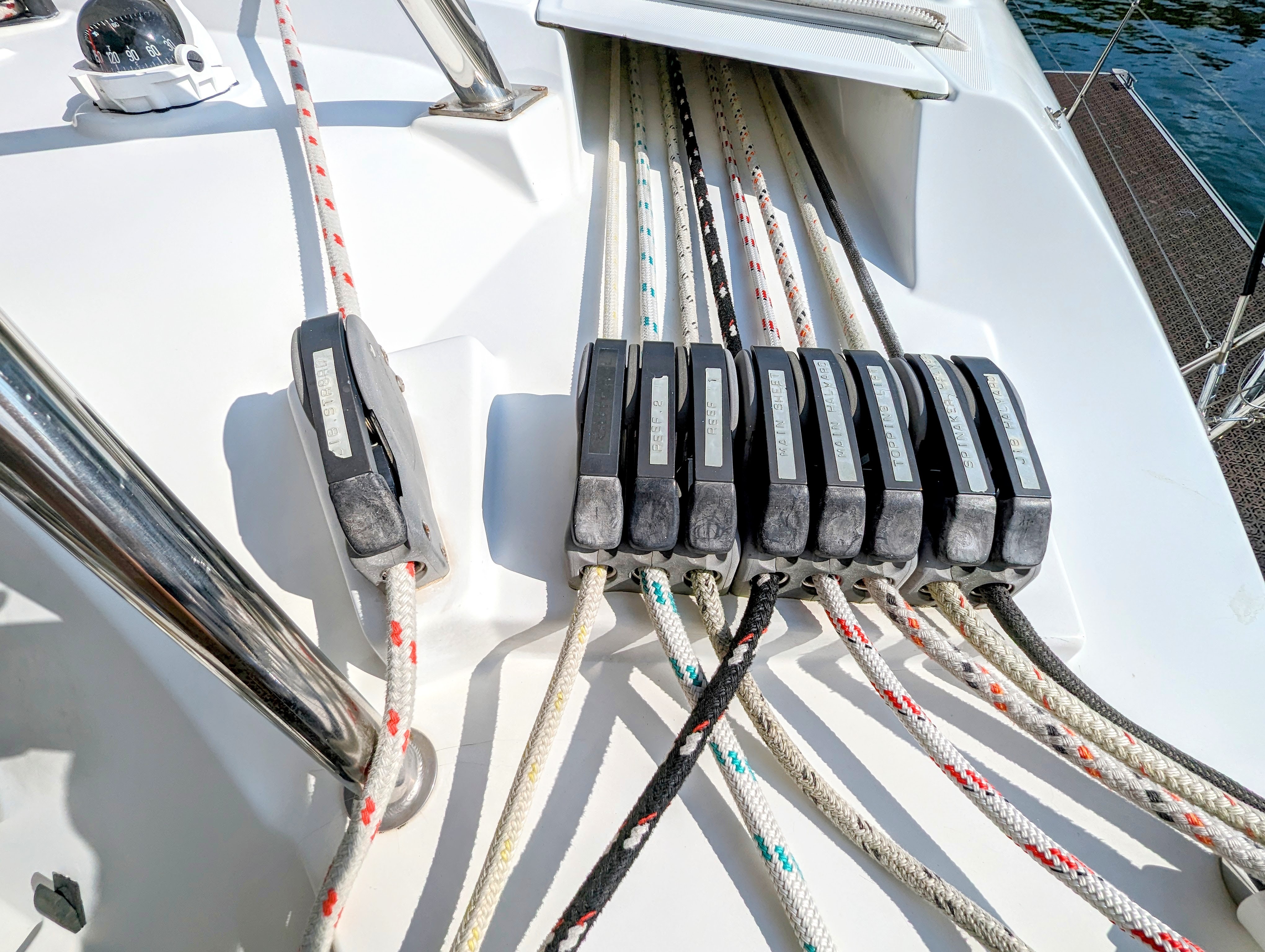

New mainsail halyard (2023), 12 Spinlock clutches, 2 Harken jibsheet tracks
Batten car: Facnor, Traveler: Harken

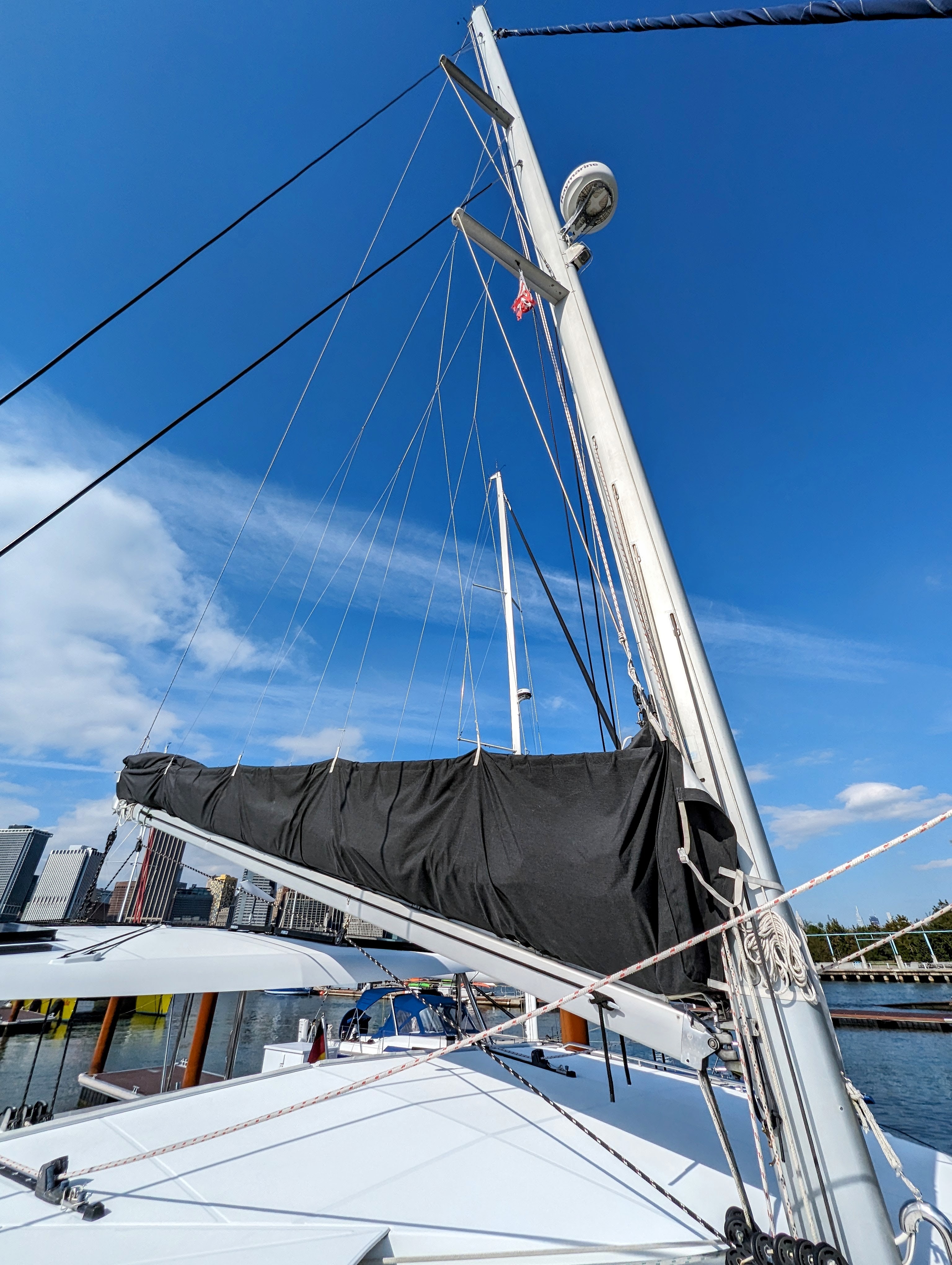

Mast – Aluminum 68′
Bowsprit – Stainless 2′
Standing rigging (new in 2023) to include:
– type 316 ss wire
– Sta-Lok / Hayn swage terminals
– Sta-Lok Supadjust turnbuckles
– Shroud chafe gear

Additional Information

TV: 32 inch
Radio/CD player
Cockpit and salon speakers
Washing machine: Splendide (2020)

Upgrades:
NEW 2023-
Bottom Job
Engine Overhaul by Yanmar-certified Mechanic
Complete Sail drive Overhaul by-Yanmar certified Mechanic
Standing Rigging
Revere Regatta Life Raft (ISO Certified, 8 person)
