Alacrity | 2009 Fusion 40

Worton, MD, US

About

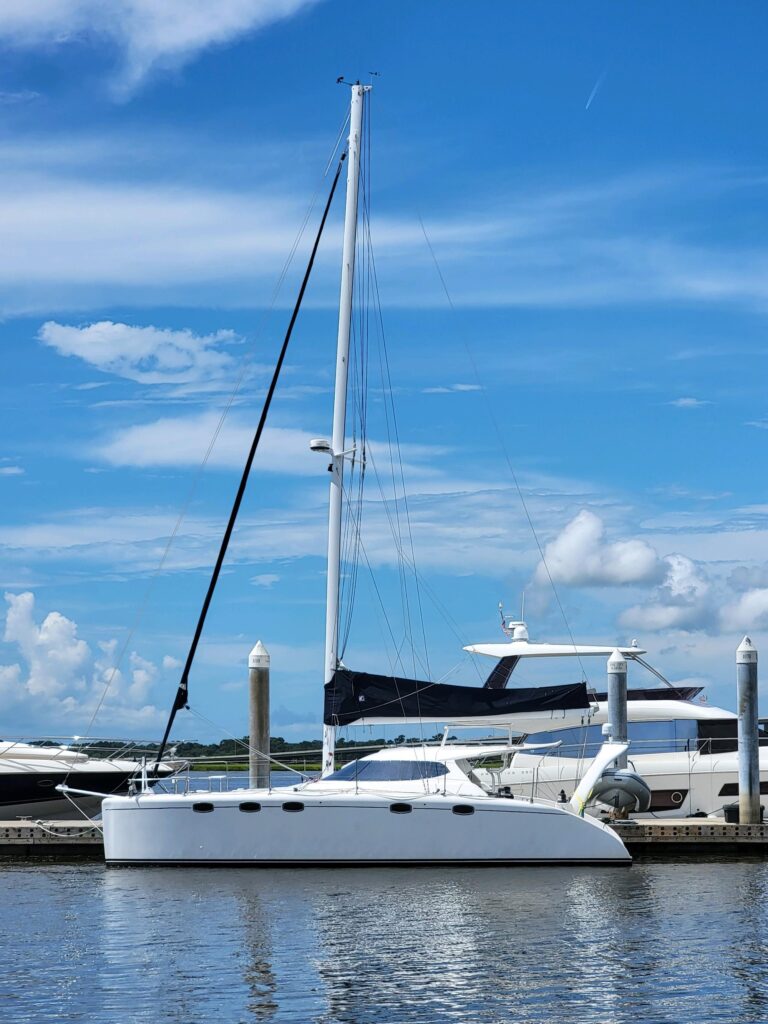

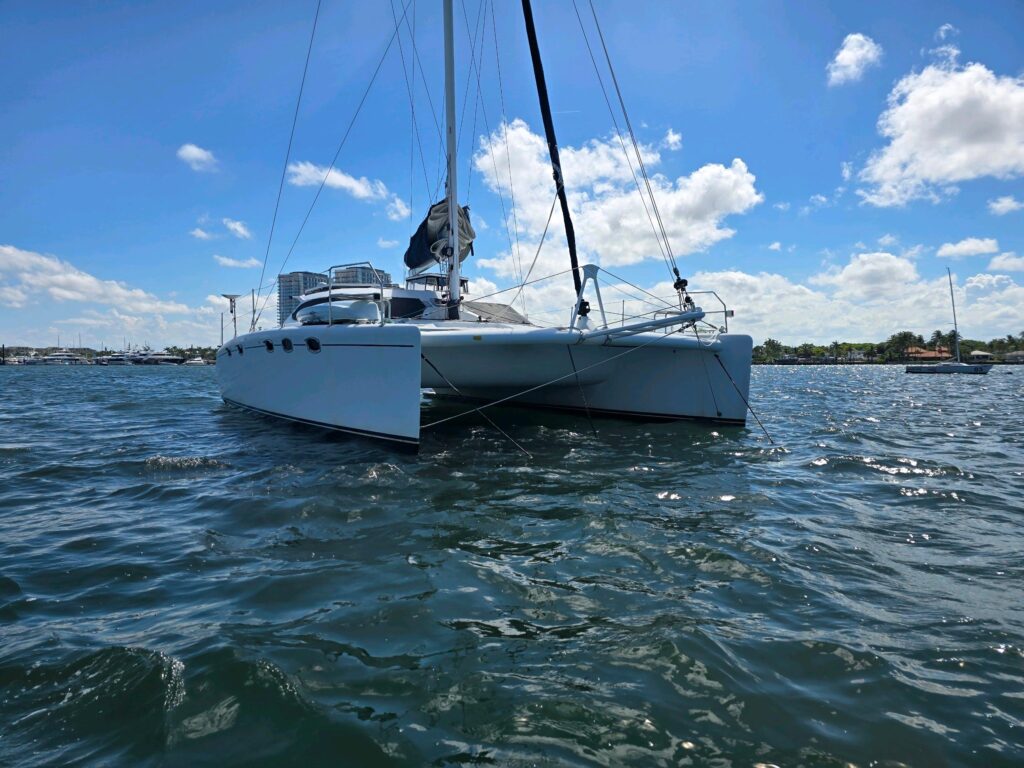

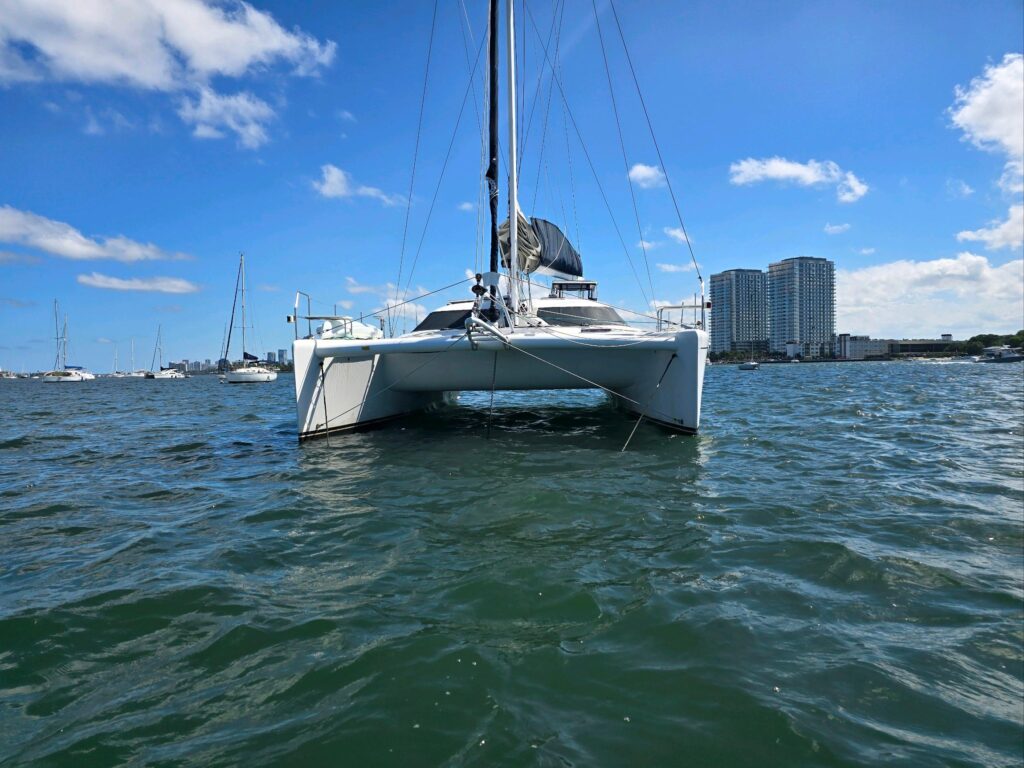

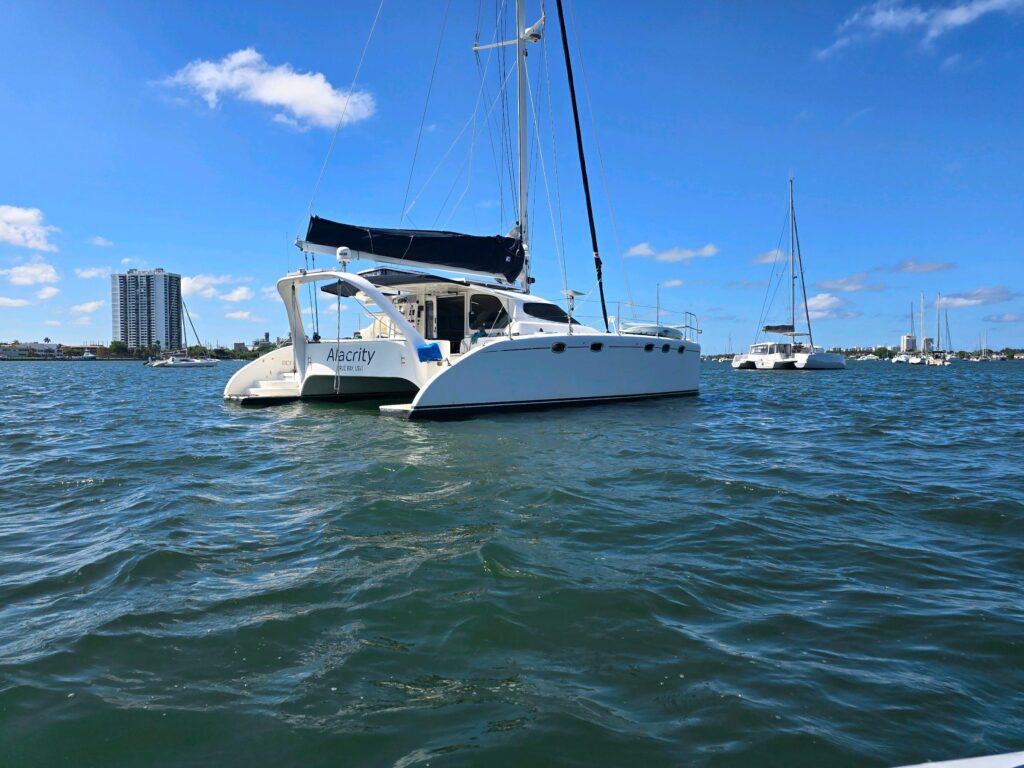

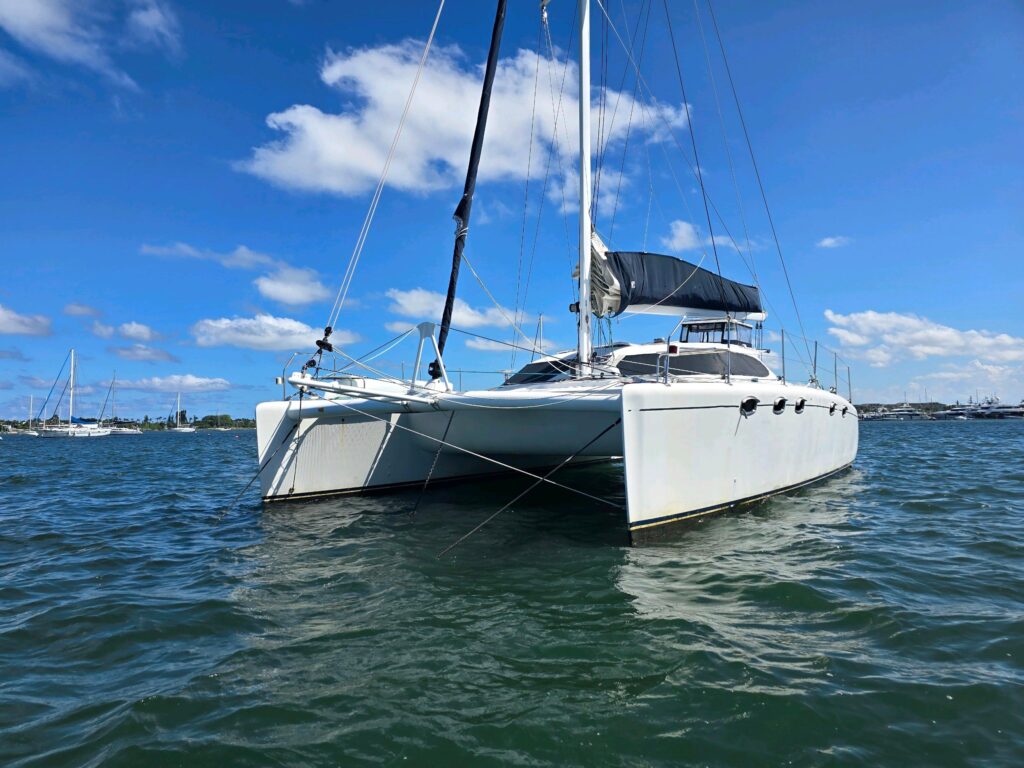

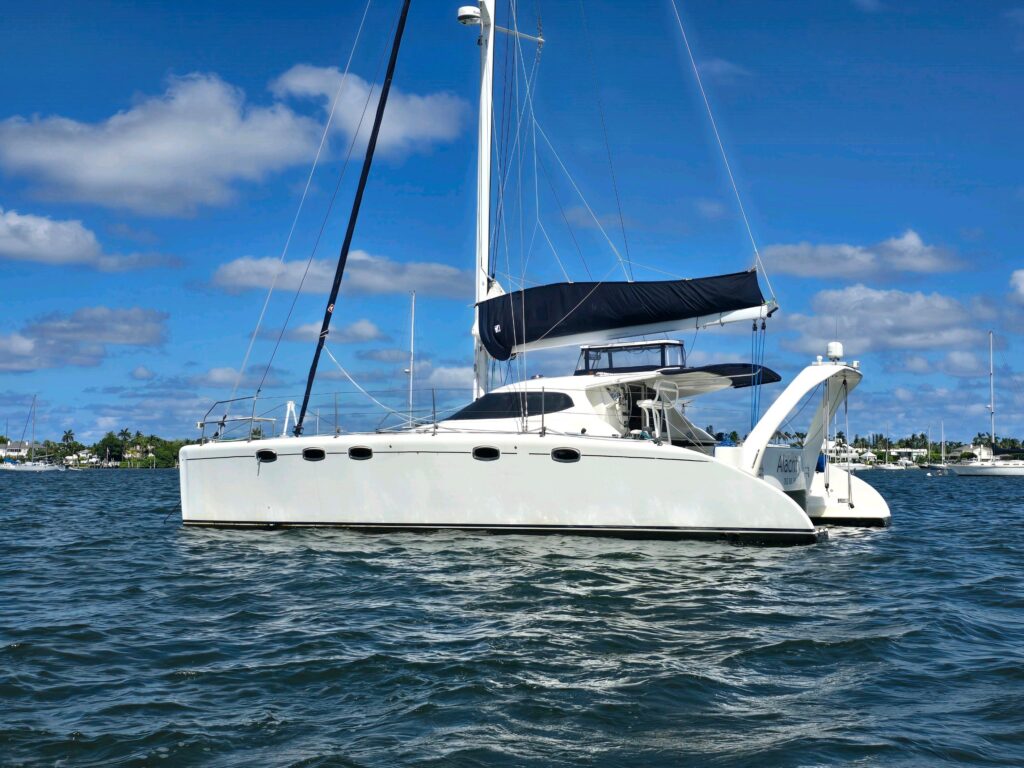

ALACRITY is an excellent example of Fusion Catamarans. Fusion catamarans came in kit form from Australia using computer design and foam core / glass w/Vinylester resin (so no osmosis). The sections were then shipped in 2 40ft containers to the builder. Alacrity was built by expert craftsman in the former Manta Catamaran factory in Sarasota Florida.

Specifications

  • Length: 40ft
  • Beam: 23' 6"
  • Draft: 3' 6"
  • Year: 2009
  • Hull: Fiberglass
  • Status: Active

View More Specs

SPECS

MEASUREMENTS

  • Length Overall: 40 ft
  • Max Draft: 3' 6"
  • Bridge Clearance Measure: 63' 0"
  • Beam Measure: 23' 6"

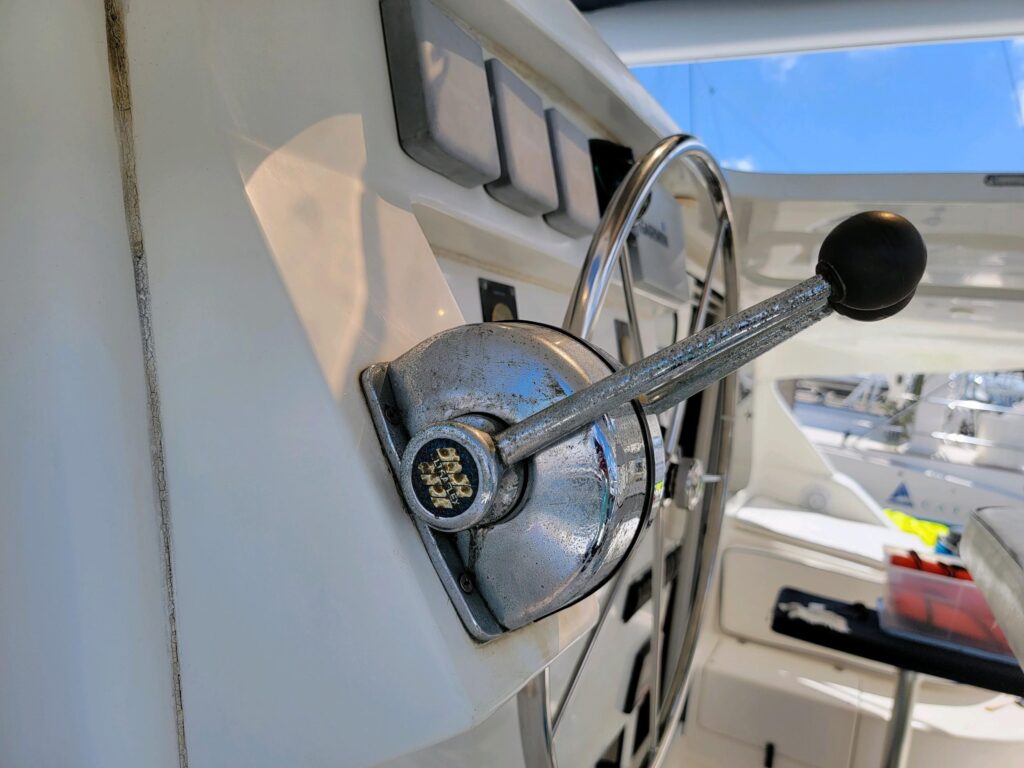

ENGINE(S)

  • Total Power: 54

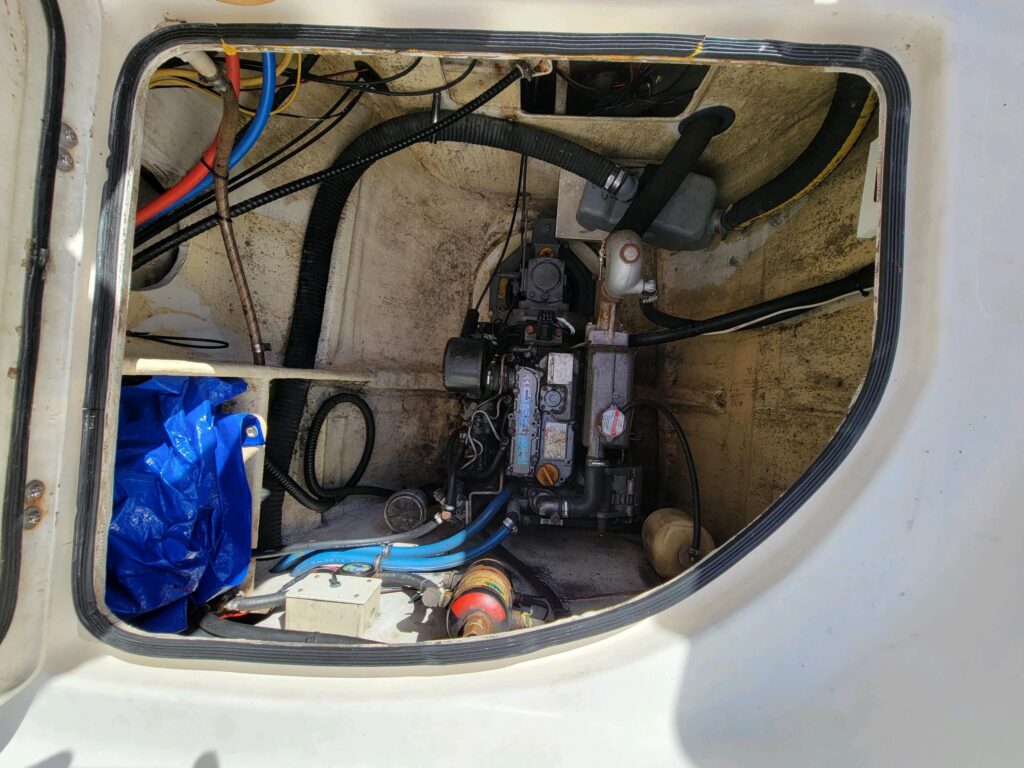

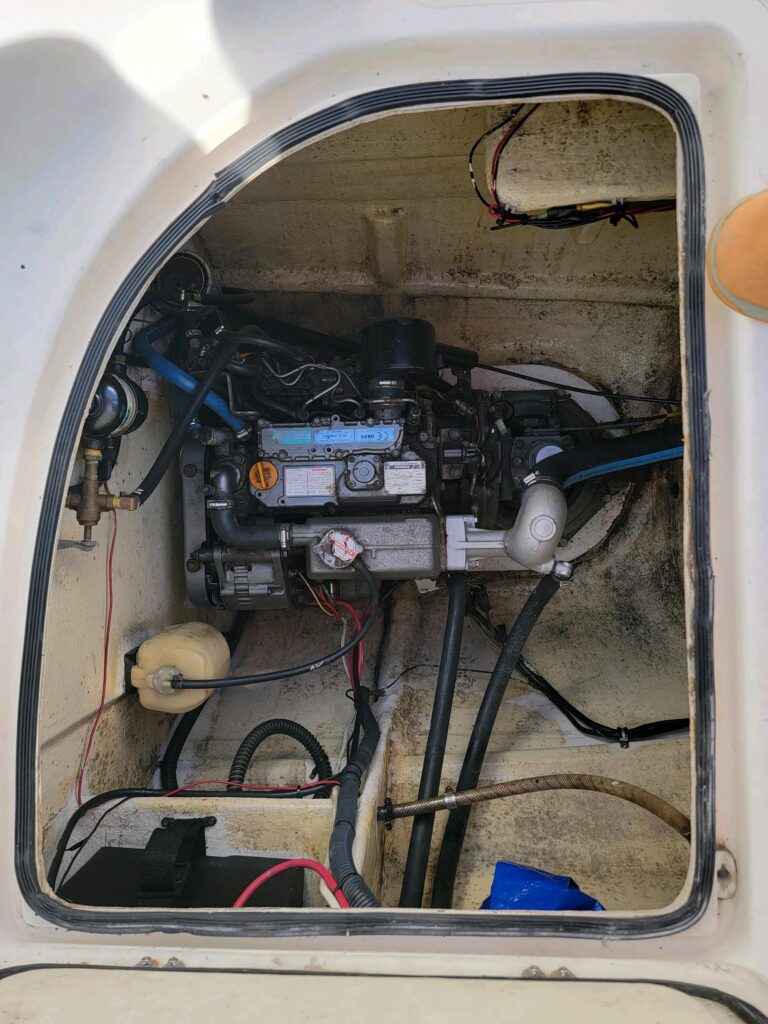

  • Engine Brand: Yanmar
  • Engine Model: 3YM30
  • Engine Type: Inboard
  • Engine/Fuel Type: Diesel
  • Engine Hours: 1644
  • Engine Power: 27 hp

  • Total Power: 54
  • Engine Brand: Yanmar
  • Engine Model: 3YM30
  • Engine Type: Inboard
  • Engine/Fuel Type: Diesel
  • Engine Hours: 1875
  • Engine Power: 27 hp

TANKS

  • Fresh Water Tanks: 2 (85 Gallons)
  • Fuel Tanks: 1 (85 Gallons)

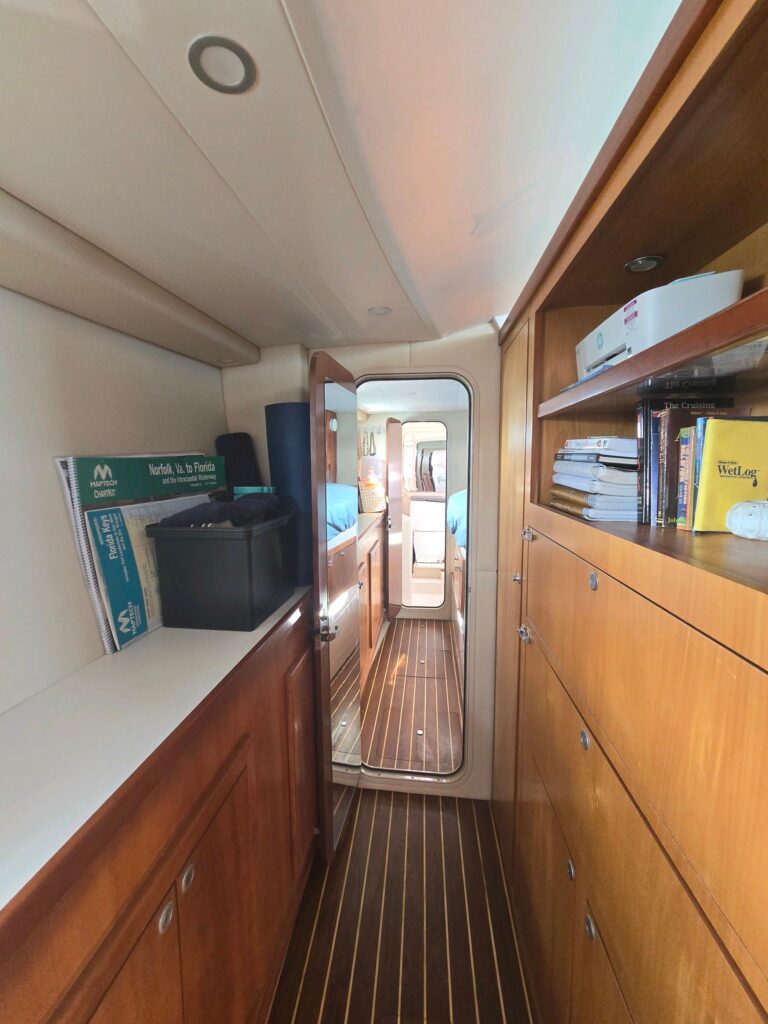

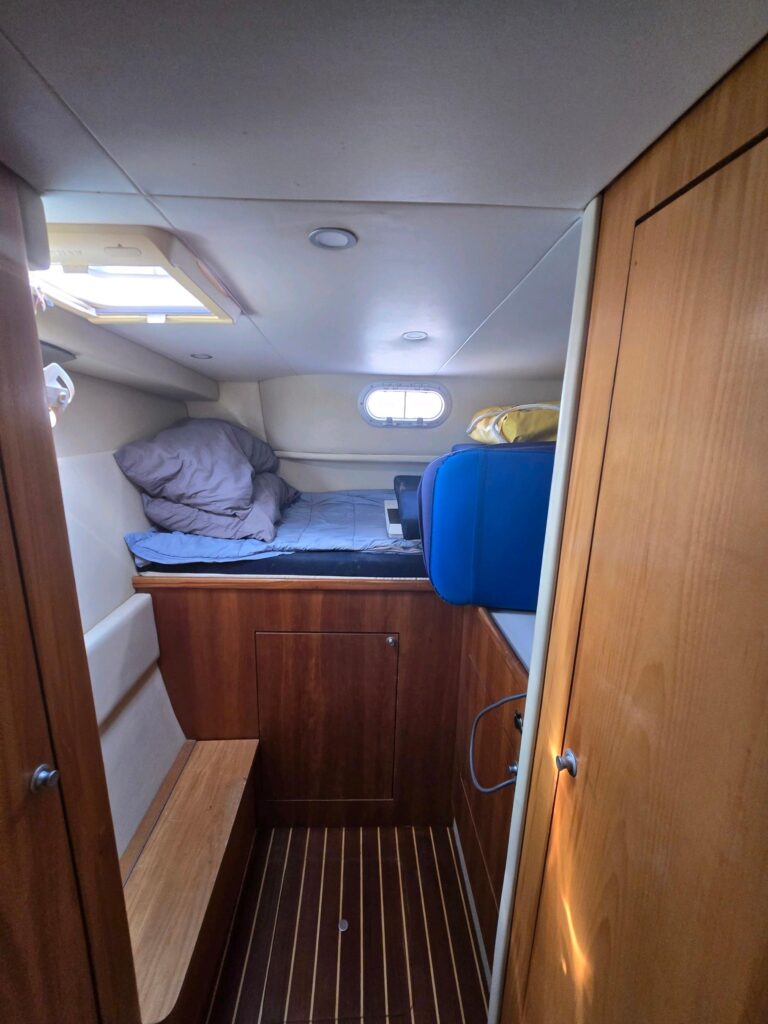

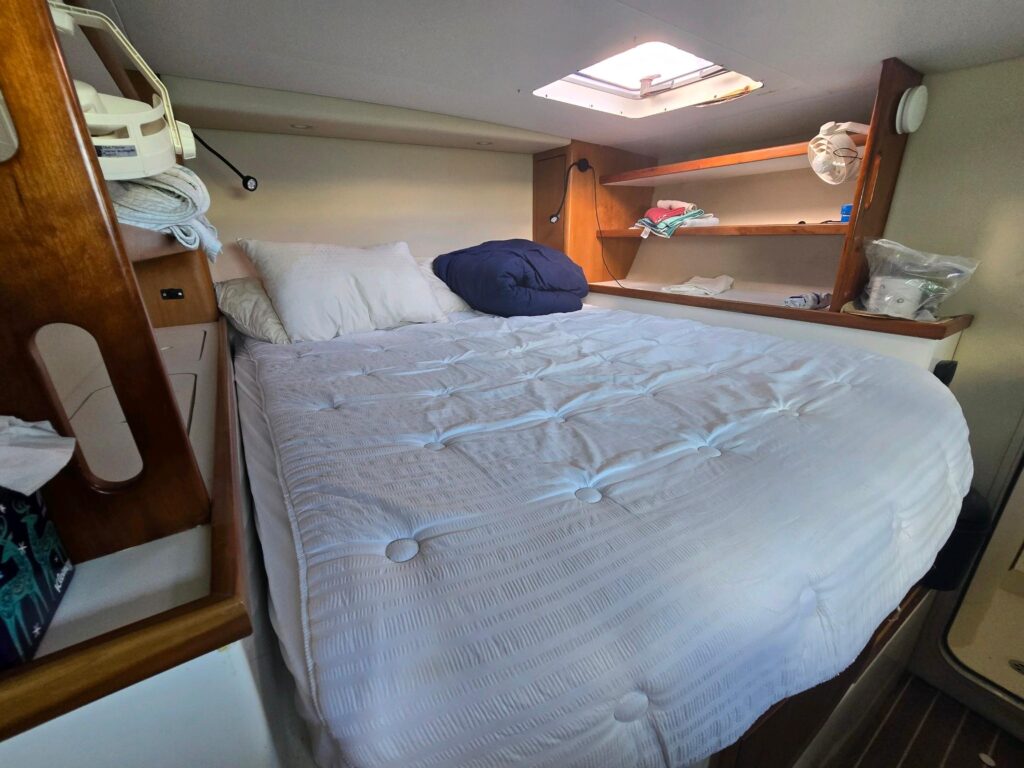

Accommodations

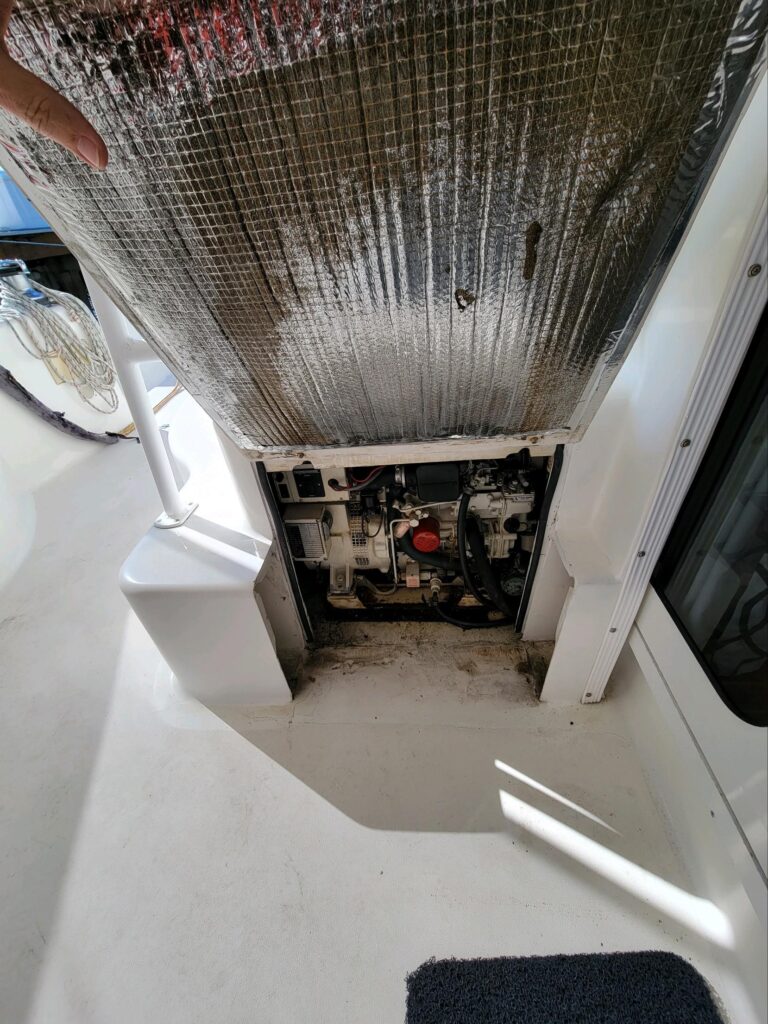

5.5 Westerbeke Generator

2 AC and Heating units. One for each hull

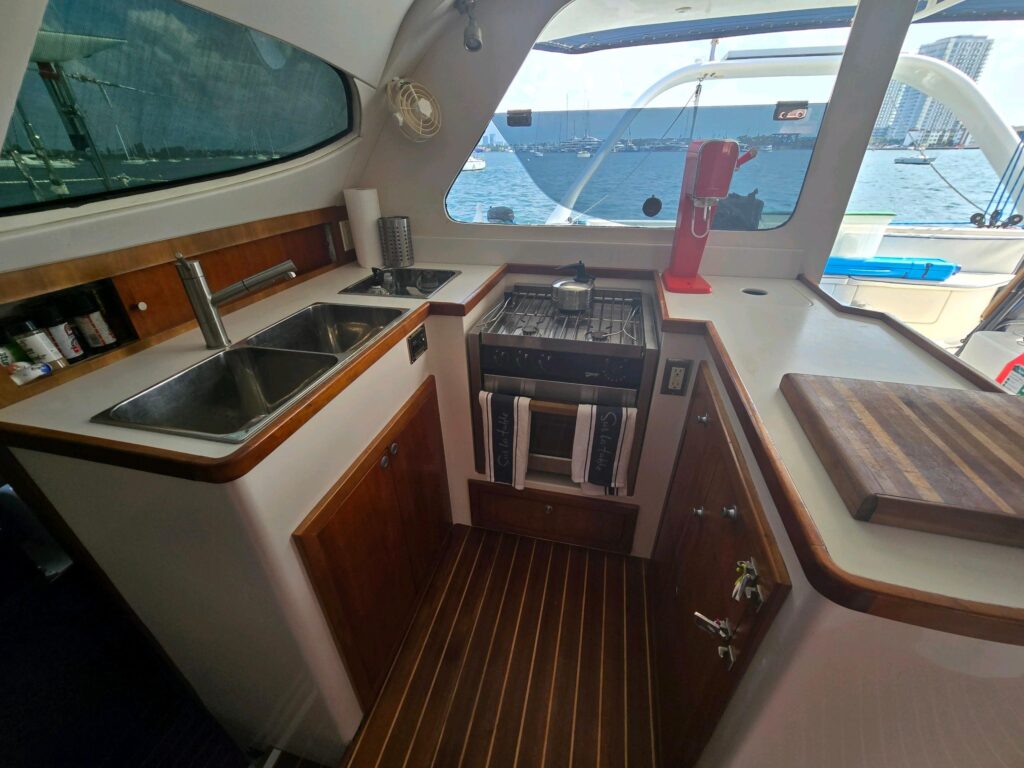

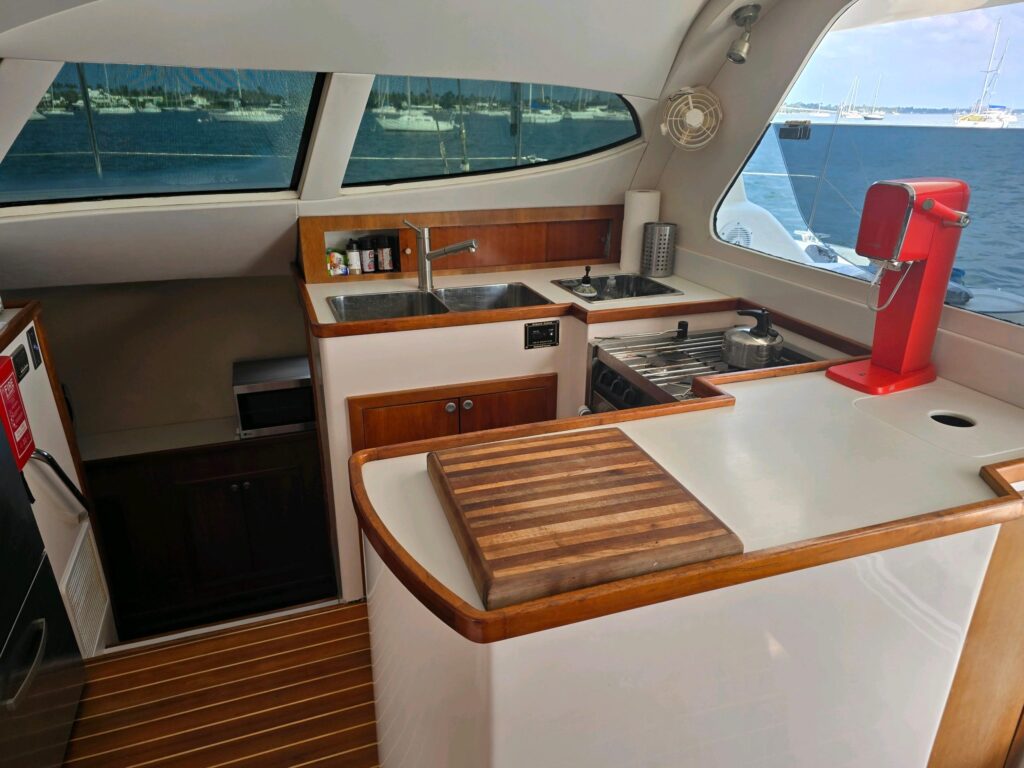

Corian counter top

Force 10 3 burner stove

There are two fuel tanks, and 2 water tanks (one of each in each hull). The water tanks are 2×50; the fuel tanks were originally 2×50 but the one in the stbd hull was replaced by the previous owner (apparently a leak). Its a bit smaller than the original; probably more like 30-35 gallons. So the total fuel is about 80-85 gallons.

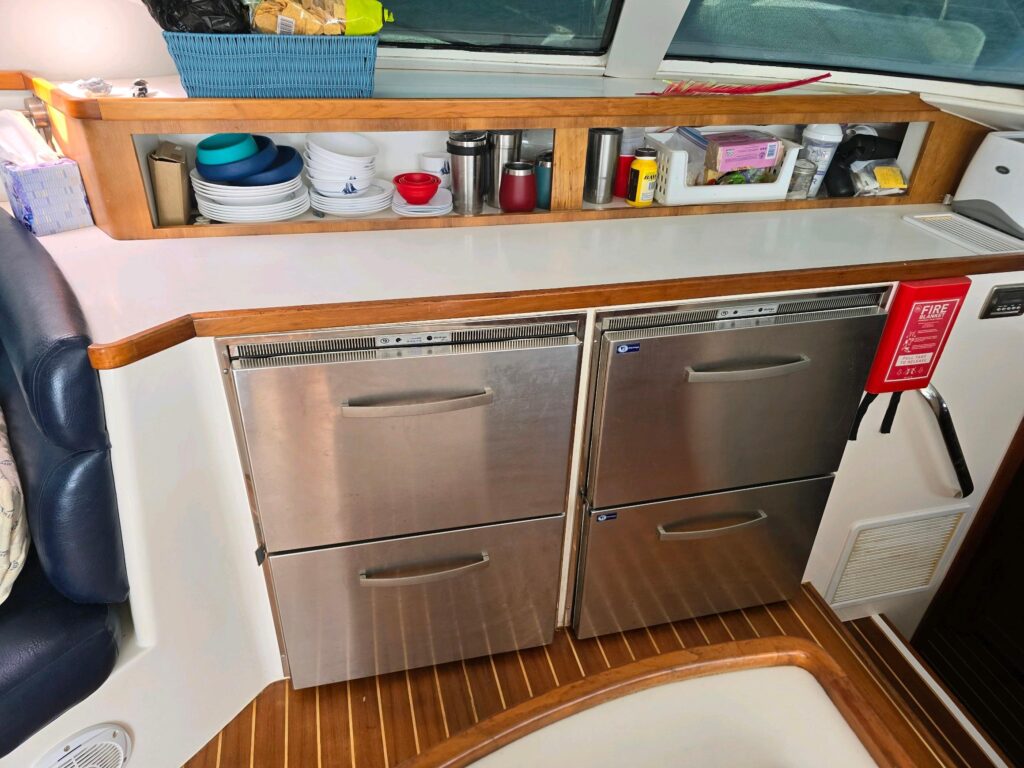

4 Vitrifrigo drawers 2 fridge and 2 freezer.

Ground tackle

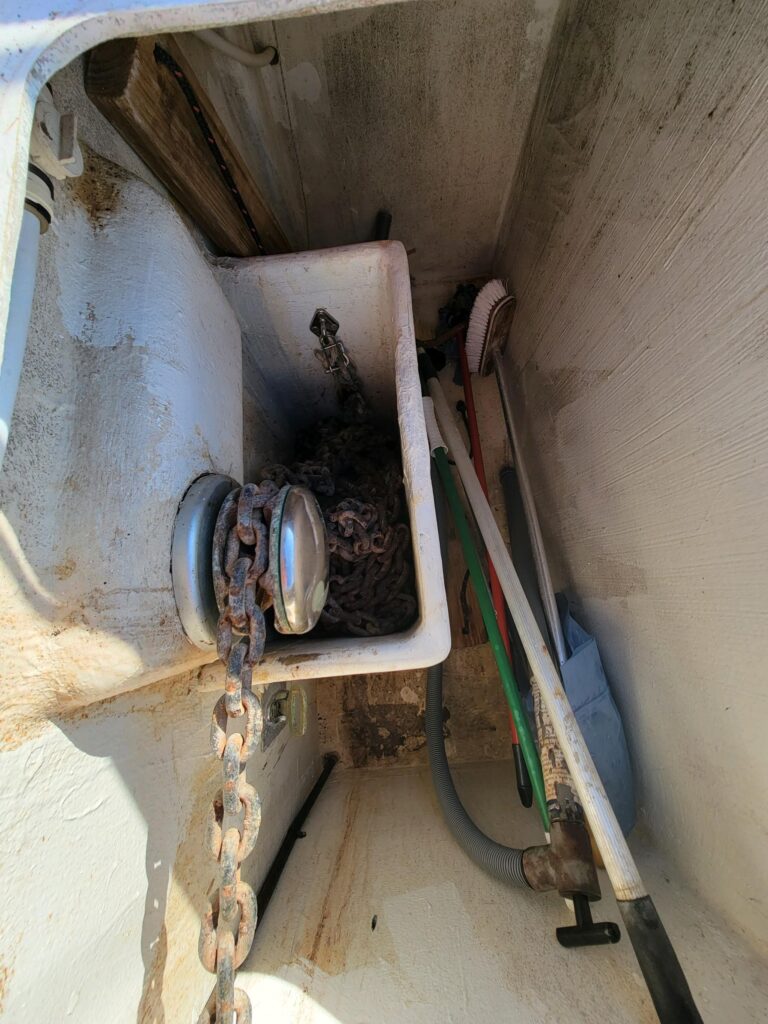

Spade 20Kg anchor/ 80 meter 5/16 HT chain

Fortress FX 37

Refit info

Refit for Alacrity (Fusion 40 catamaran) in 2022 & 2023

Ground tackle:
20kg Spade anchor (2022)

Fortress FX-37 (2022)
80 meters 5/16″ HT chain (2022)

Engine / Mechanical:

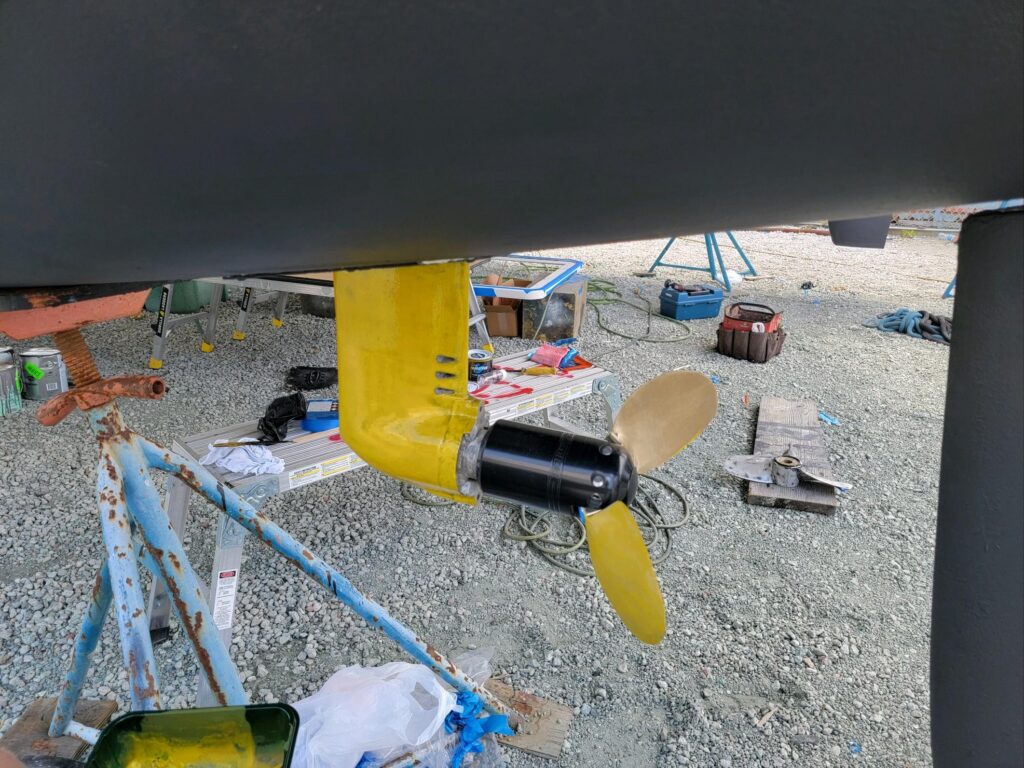

2 2-blade Flexofold props (2022)
Balmar 618 regulator (stbd engine) (2023)
Serpentine belt & pulley upgrades for both engines (2023) 2 135AH alternators (stbd & port) (2023)

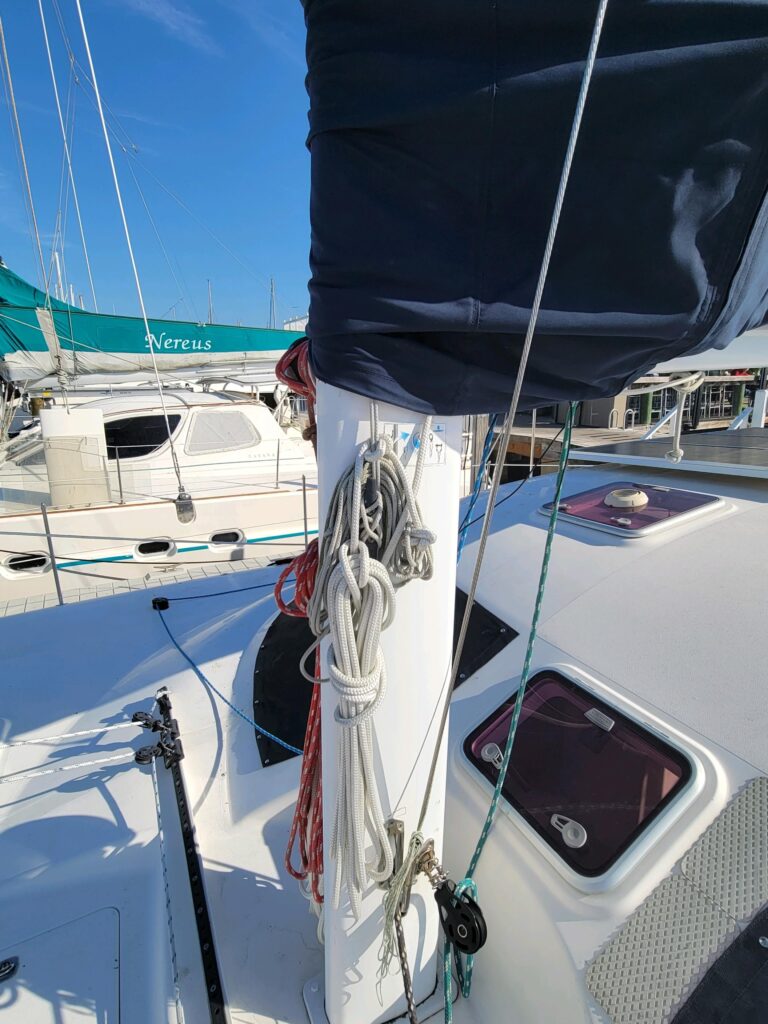

Sails:
UK Code Zero (2022)

Calvert self-tacking jib (2023)

Plumbing:

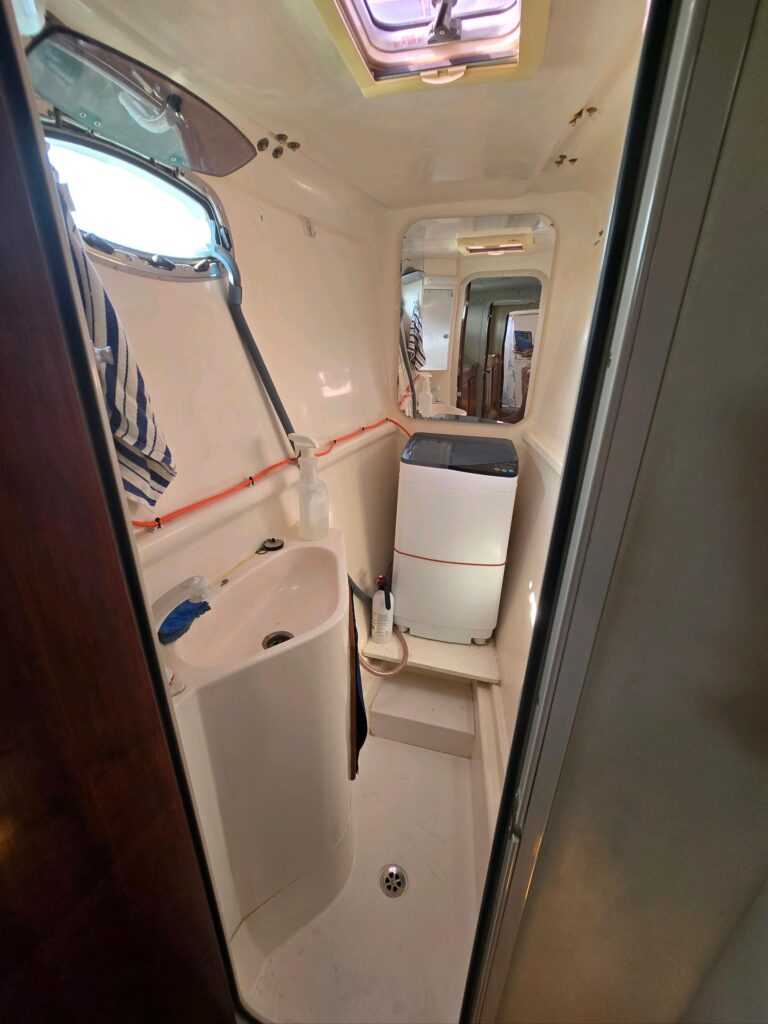

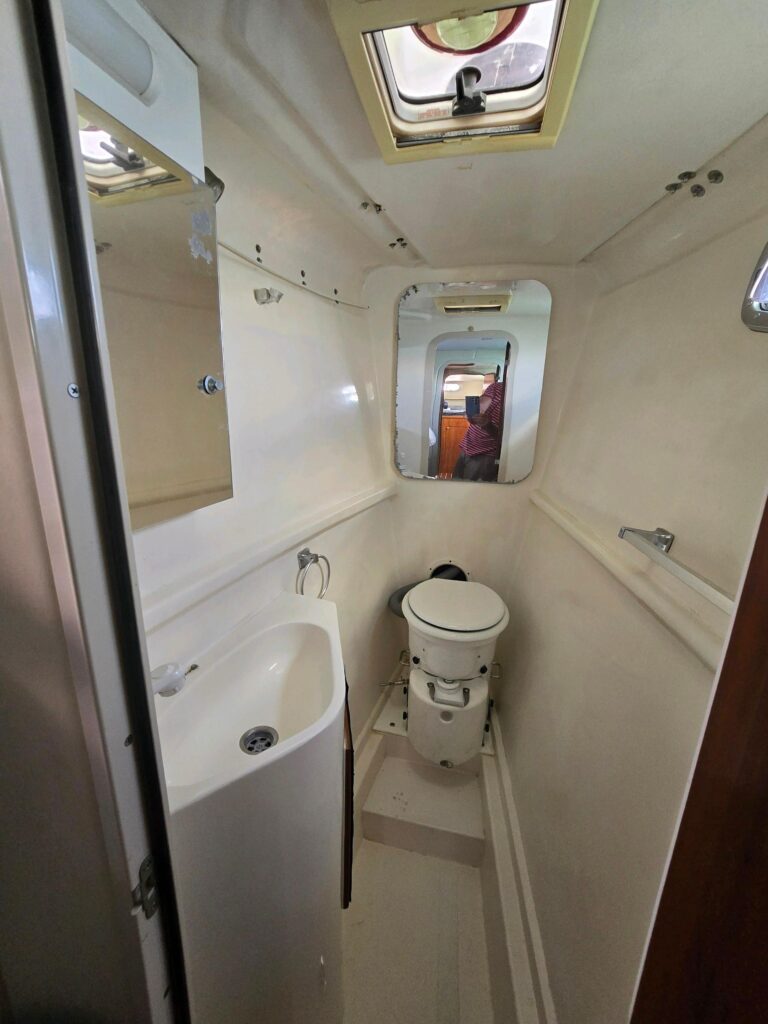

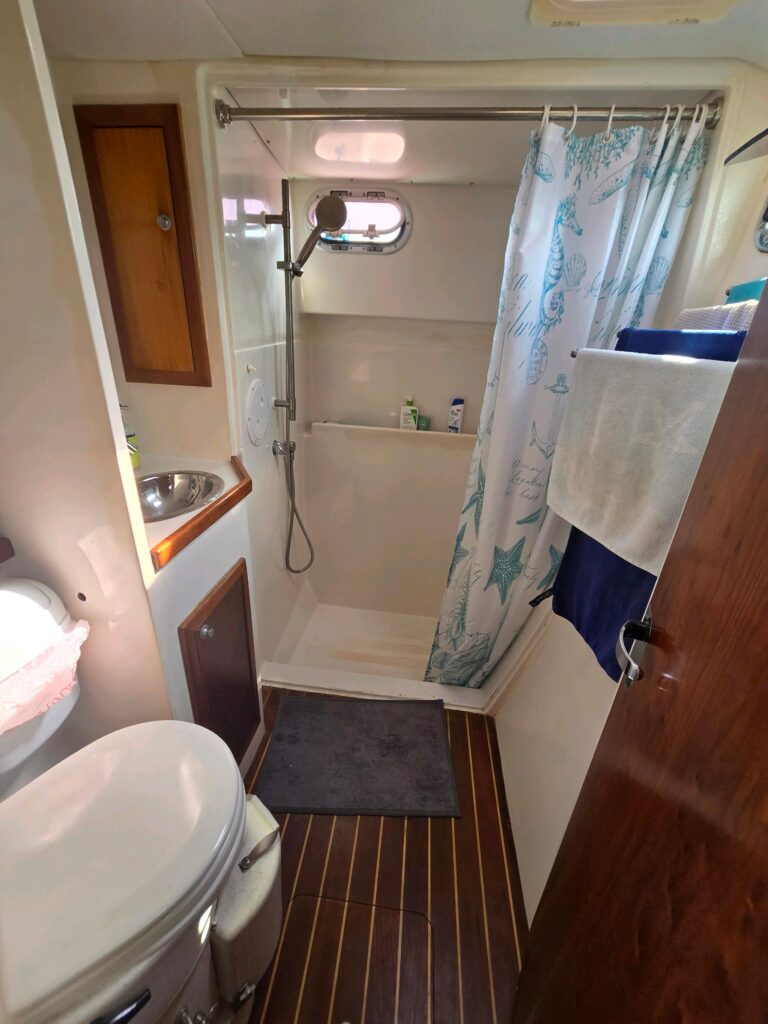

2 AirHead composting heads (removed old manual heads & holding tanks) All new plumbing fixtures in heads, galley, and transom shower
2 Johnson fresh water pumps (2023)
Washing machine (2023)

Electrical:
2 Epoch 300AH LiFePo batteries (2023 – removed 3 AGM 200AH & saved 400 lbs!)

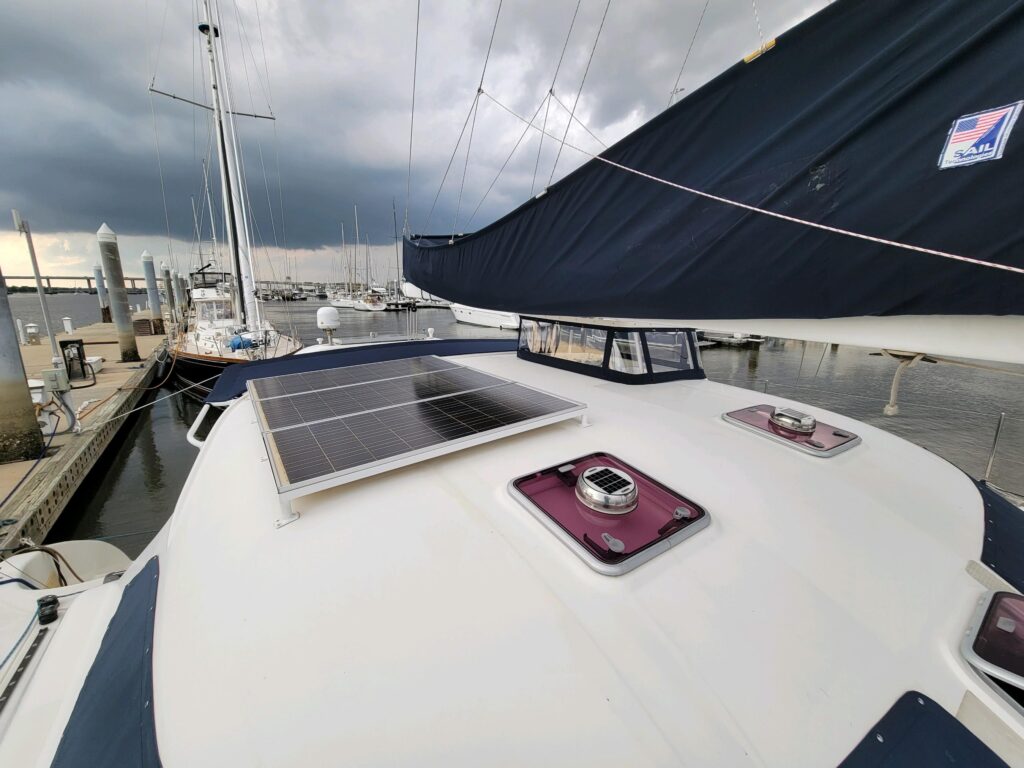

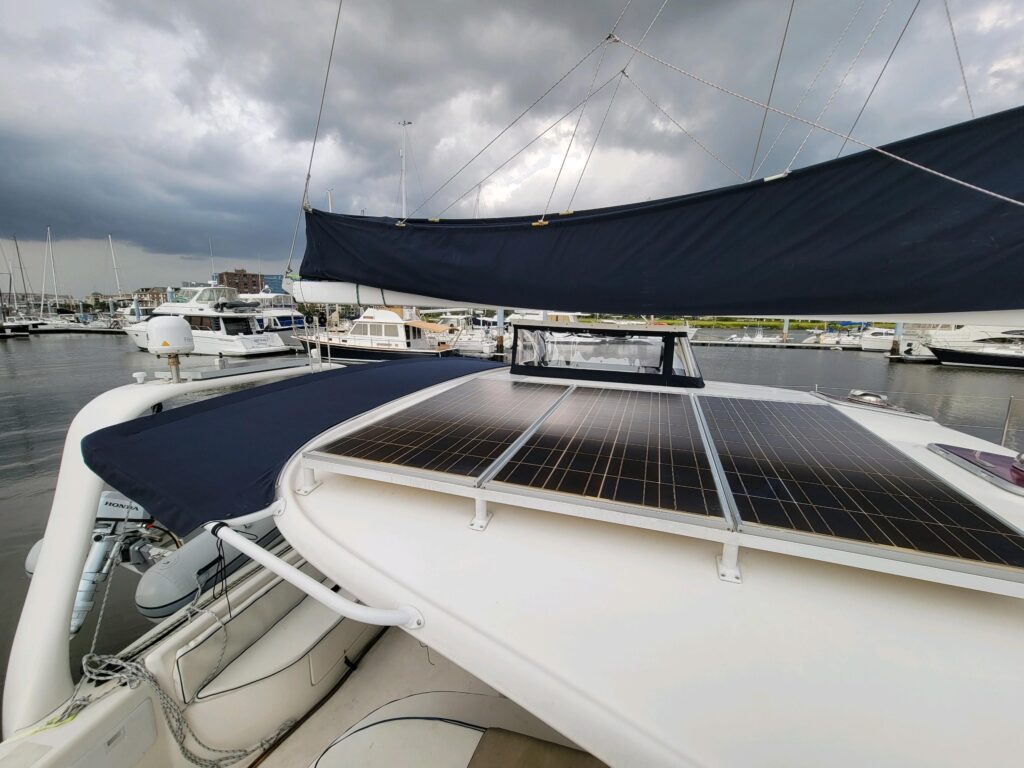

2 Renogy 175 watt flexible solar panels (2023 – bringing total up to 850 watts)
Victron Multiplus II 2000/80 (2023)
3 Victron bluetooth solar chargers (2023)
Victron 30AH DC-DC charger (2023)
Renogy 60AH DC-DC charger (2023 – died & am sending back for repair/replacement) Replaced all lights with LEDs (2023)
4 reading lights in cabins w/USB ports (2022)

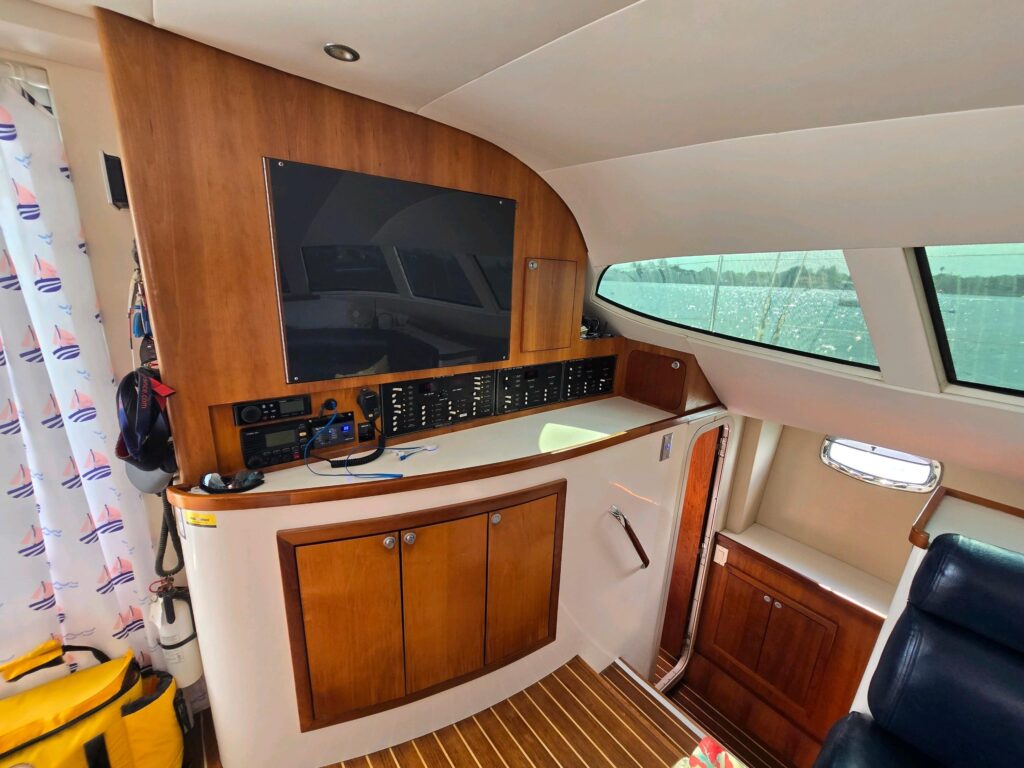

Electronics:
Starlink (2022)

Inmarsat Fleet Broadband 150 (2022) Garmin GPSMap 1042 (2022)
EPIRB (2022)
AIS (ACR A/B) (2022)

Fusion RA-270 stereo

Miscellaneous:
ATN awning for foredeck

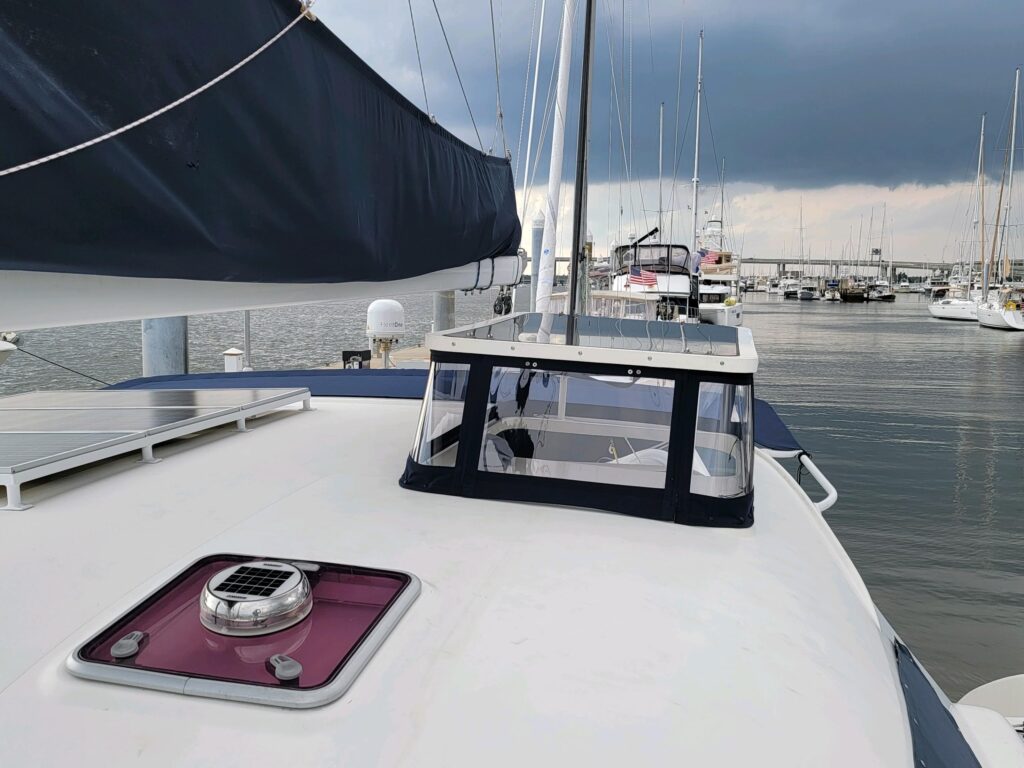

Highfield 9′ UL aluminum floor RIB 4 Solar vents (2022) 5hp Honda

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
