Boat Details

About This Boat

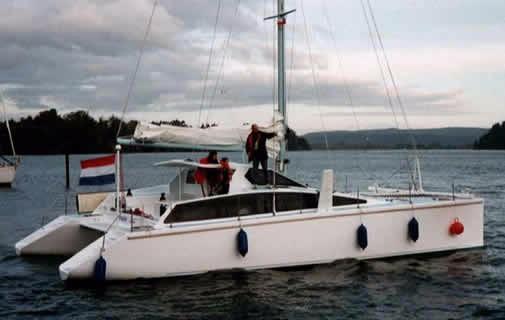

The Crowther is named after the legendary Australian boat designer and builder Lock Crowther.  His first boat was a trimaran built in 1959 while he was still a teenager.  Over 2500 boats were built using his various designs.  After his death in 1993, his son took over the business, which is when this vessel was built.  Crowther Cats are know for applying innovative materials at the time, like GRP-foam sandwich construction, and concepts like wave piercing bows.

Originally this design was a 40ft catamaran, and then in 1997 they launched an extended version by adding 3ft to the stern, with a comfortable swim platform.

Delivery in Puerto Montt or Lima, Peru. Other options can be negotiated.


Additional Details

DIMENSIONS AND DETAILS

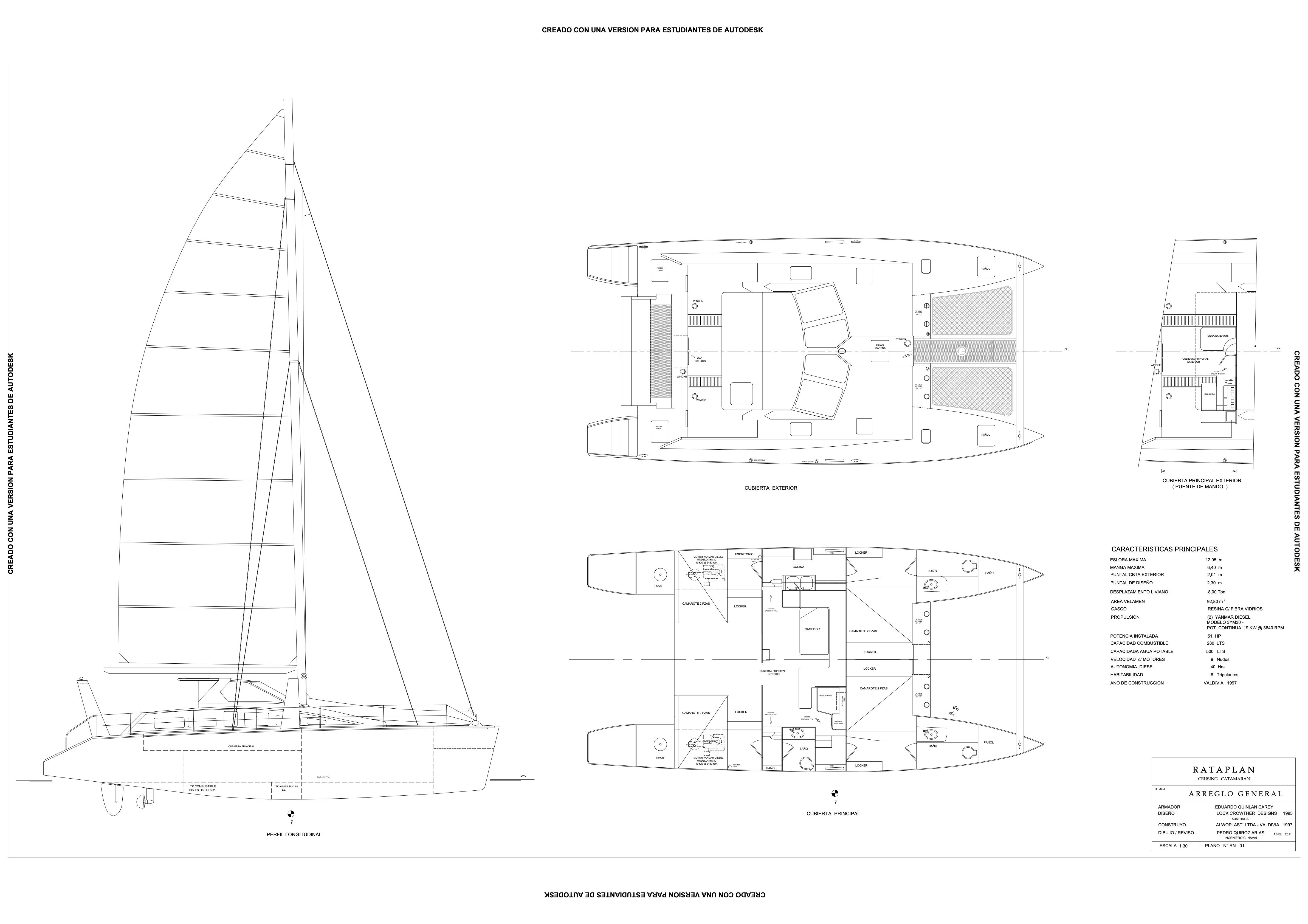

  • Rataplan (Lock Crowther Design)
  • Built 1997 (Full Overhaull 2010)
  • First year of the extended 3ft stern with swim platform
  • Loa: 13,05 m (42.8 ft)
  • Beam:  6,35 m (20.8 ft)
  • Draft:  0,8 m ( 2.6 ft)
  • Mainsail Full batten 61 m² (656 ft²) Jib 29 m² (312 ft²) Working jib 12,8 m² (138 ft²)
  • Fiberglass (Diviny Cell)
  • Displacement 22.000 lbs
  • Factory Alwoplast, Valdivia, Chile
CONSTRUCTION
  • Polyester and high quality anti-osmotic resin FRP construction
  • Balsa core hull, solid laminate under water line, white gel coat, Balsa core bridge deck and deck, gel coat, solid laminate inner liners
  • Laminated marine plywood bulkheads

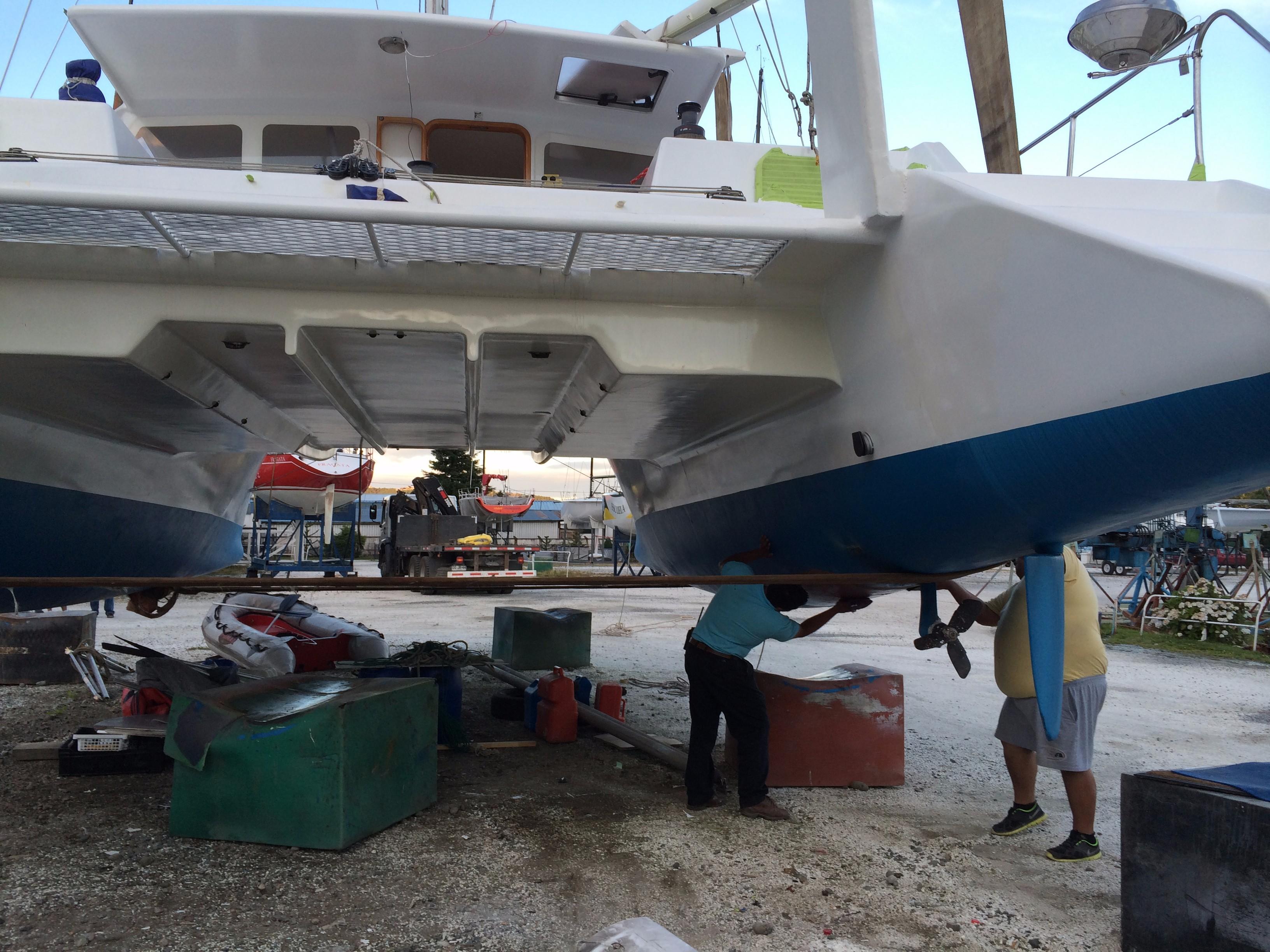

  • Shallow draft hull no keel (see photos) with Daggerboards
SAILS AND STANDING RIGGING
  • 1 Full batten 61 m² (650 ft²) ( Dacron® full batten mainsail (Lidgard Sail from New Zealand, New in 2010)
  • 1 Jib 29 m² (310 ft²) (furling genoa UV protection . Working jib 12,8 m² (138 ft²)
    14 m /62’4” aluminium mast withouth mainsail track and ball-bearing battcars
  • 2 Double spreader rig
  • 1 anodized aluminium boom
  • 2 high shrouds with chafeguards
  • 2 lower shrouds with chafeguards

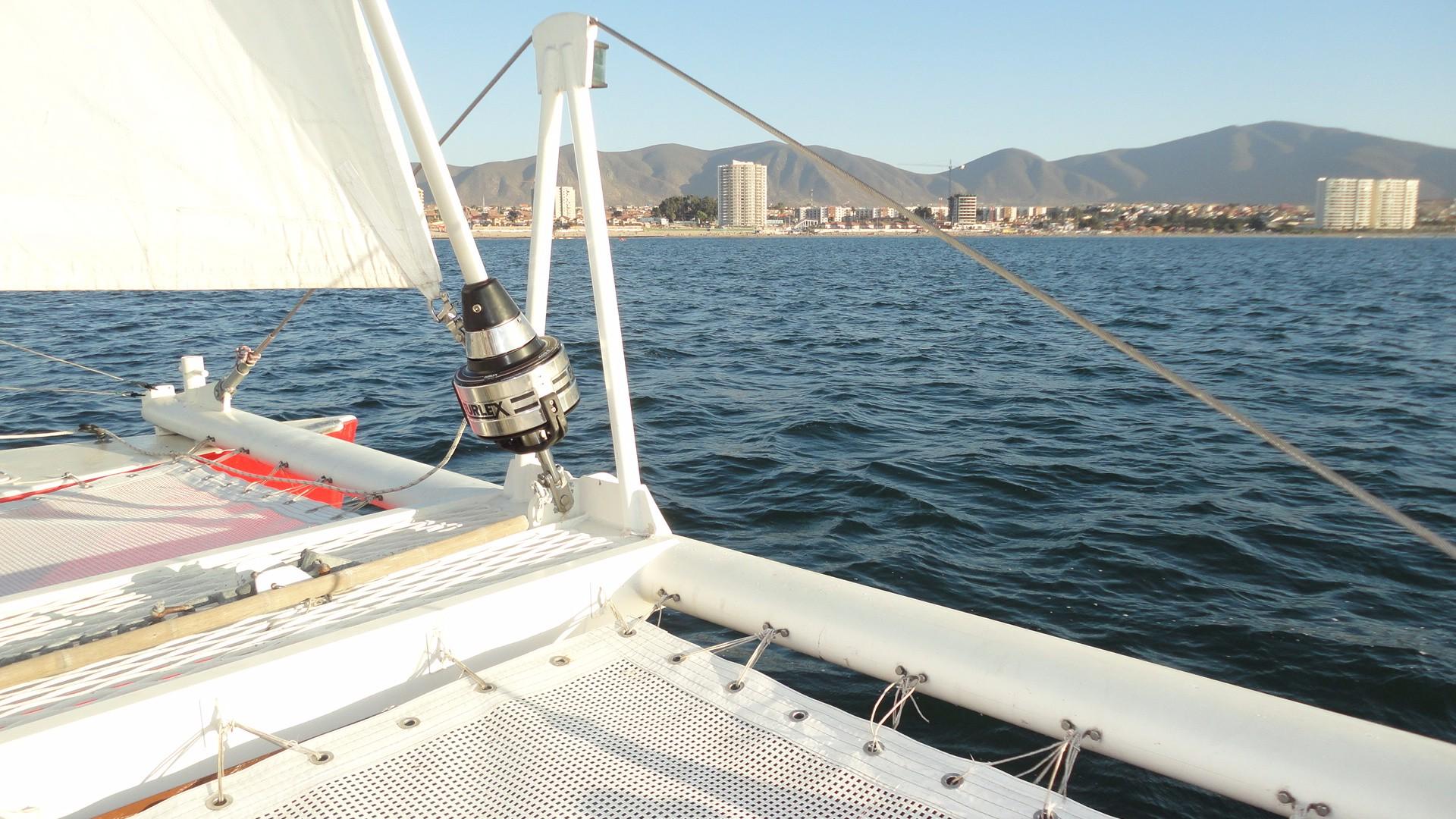

  • 1 forestay furler 400
  • 2 mainsail lazy-jacks
  • Standing Rigging is original from Germany.  In case replacement is needed, Alwoplast has quoted $11,000.
  • Jib Furler and forestay foil is new from 2011.
HARDWARE
  • 8 mooring cleats
  • Lewmar H3 Anchor Electric Windlass in anchor locker
  • 3 Manual Winches: 40 Harken STC

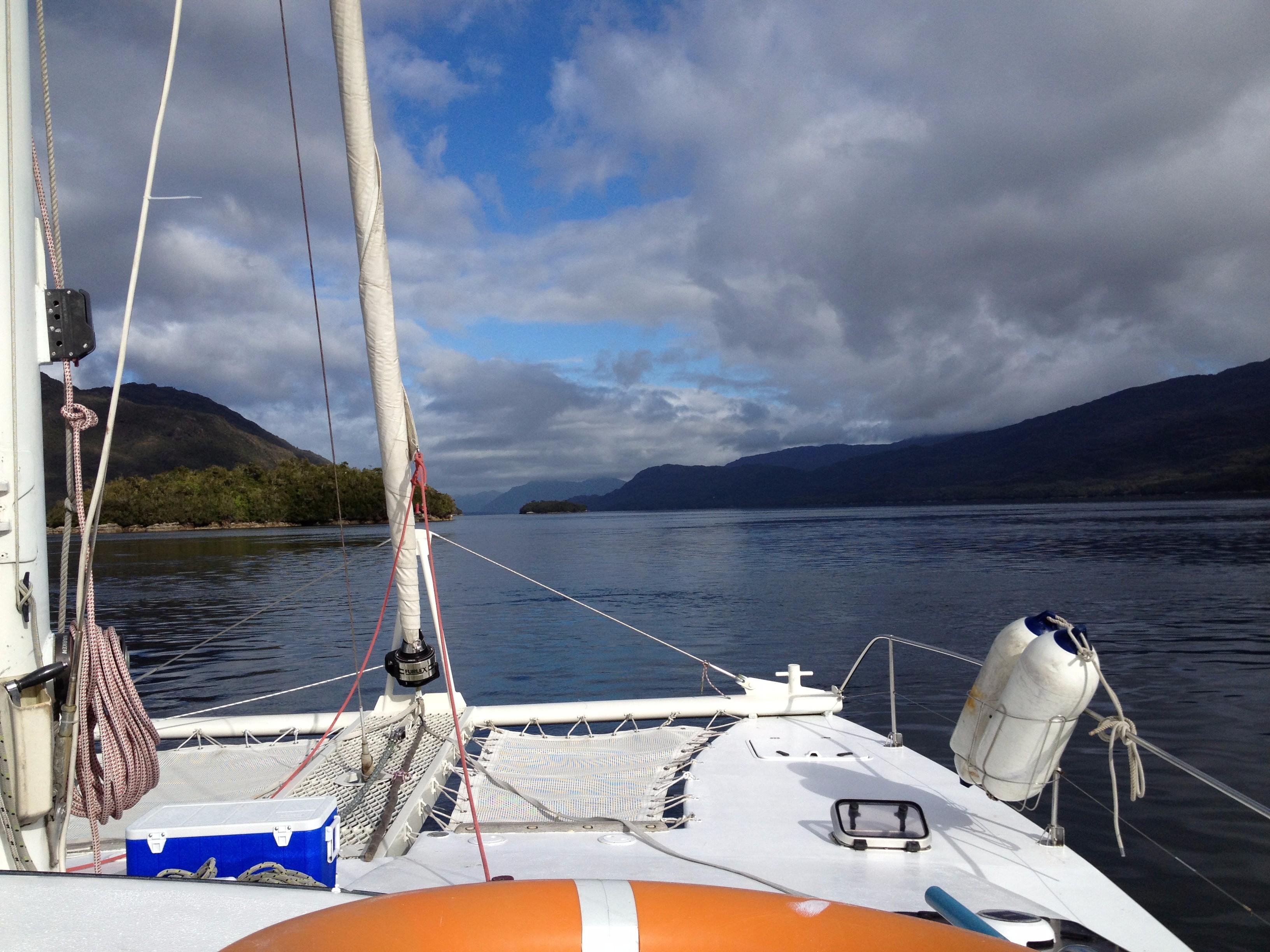

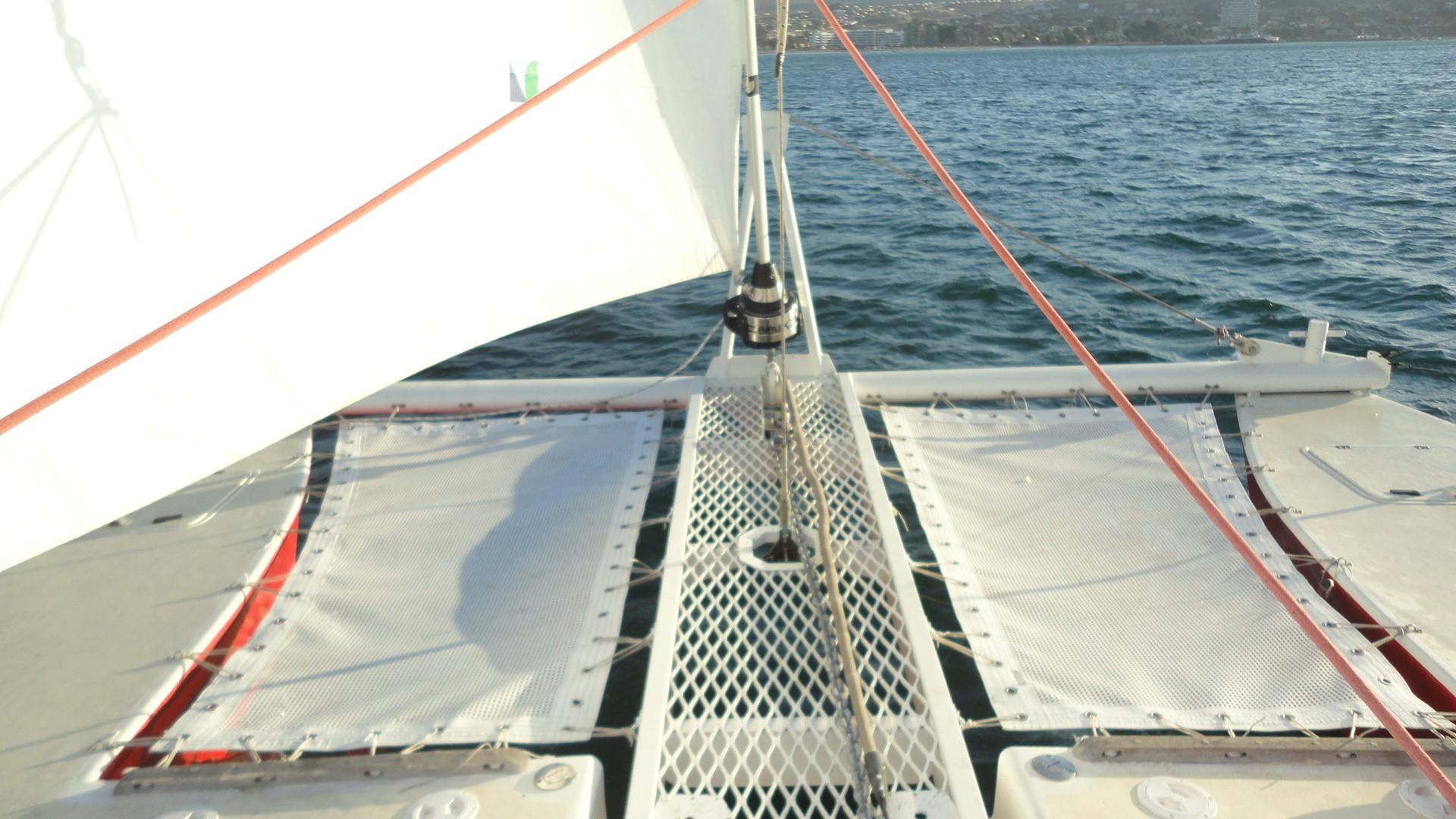

  • Trampolín (France) (Bow safety net with knot-less nylon netting)
  • Anchors: Delta (25 kg / 55 lb), Bruce (16 kg / 35 lb) Fortress (7 kg / 15.4 lbs, aluminum)
AFT COCKPIT
  • Large cockpit usable as deck salon
  • Removable varnished small cockpit table
ENGINES AND PROPELLERS
  • Two 30 HP sail drive SD 20 (HP saildrive diesel engines. Yanmar 3YM30 ea. With Engine controls at helm station)

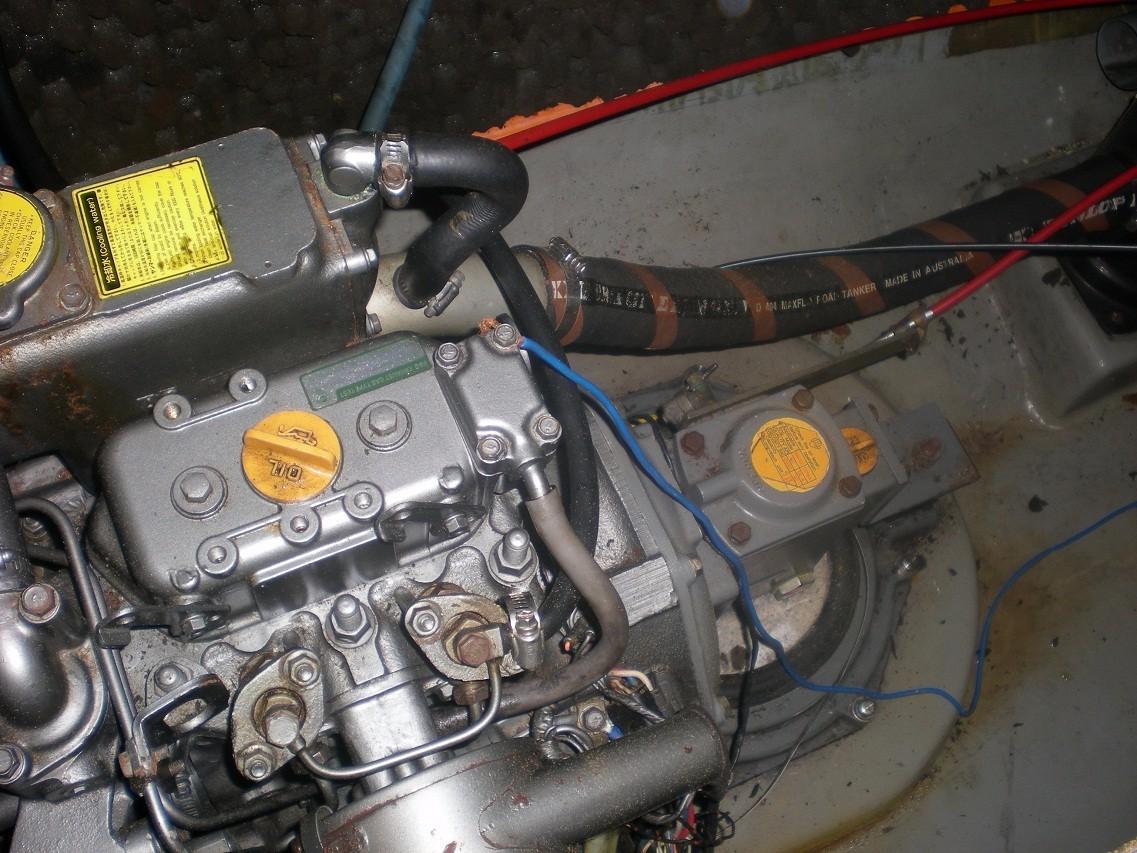

  • Engine:  2 Yanmar 30 HP Model 3YM30 (NEW in 2010) currently with 700 Hours

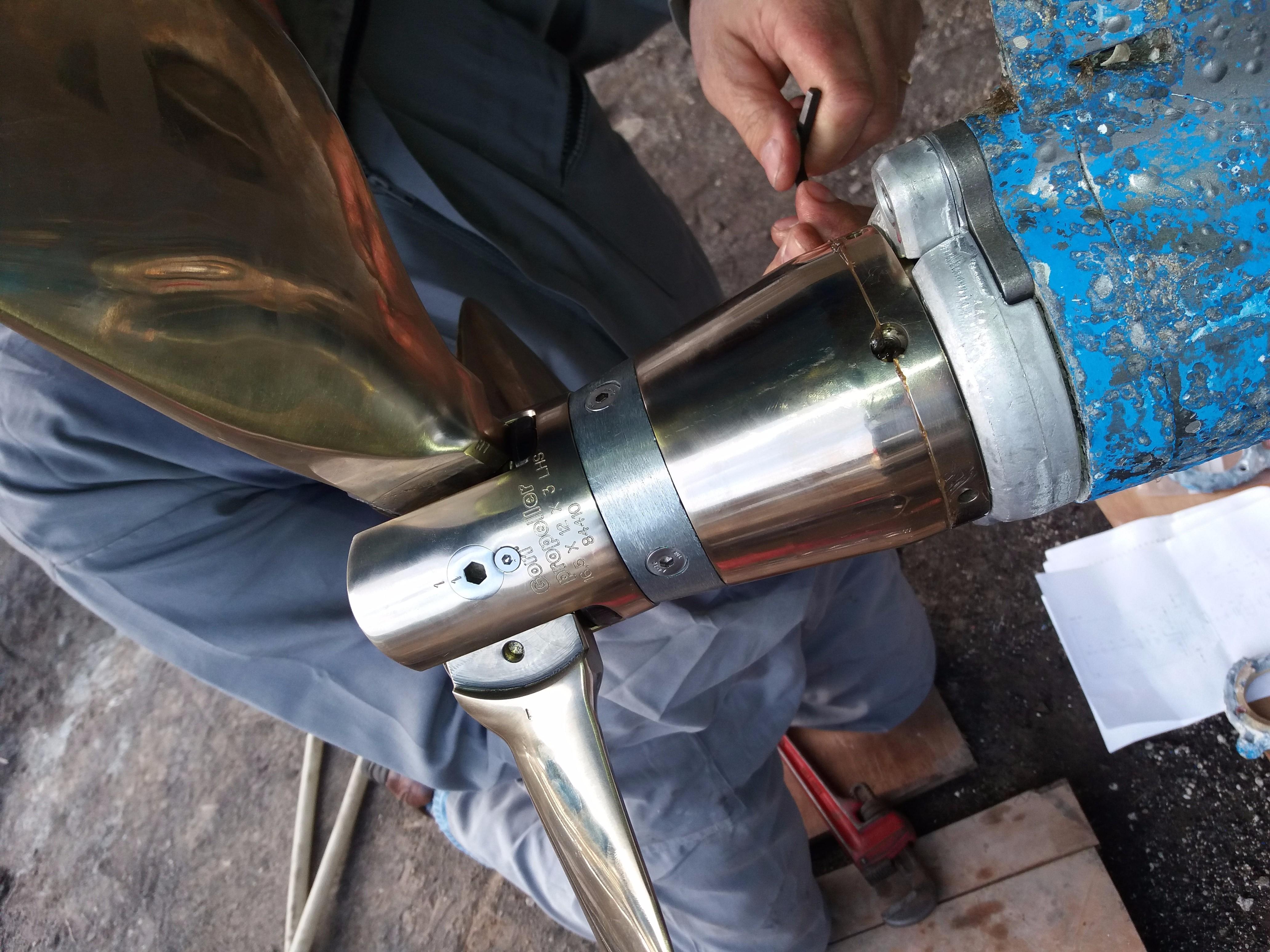

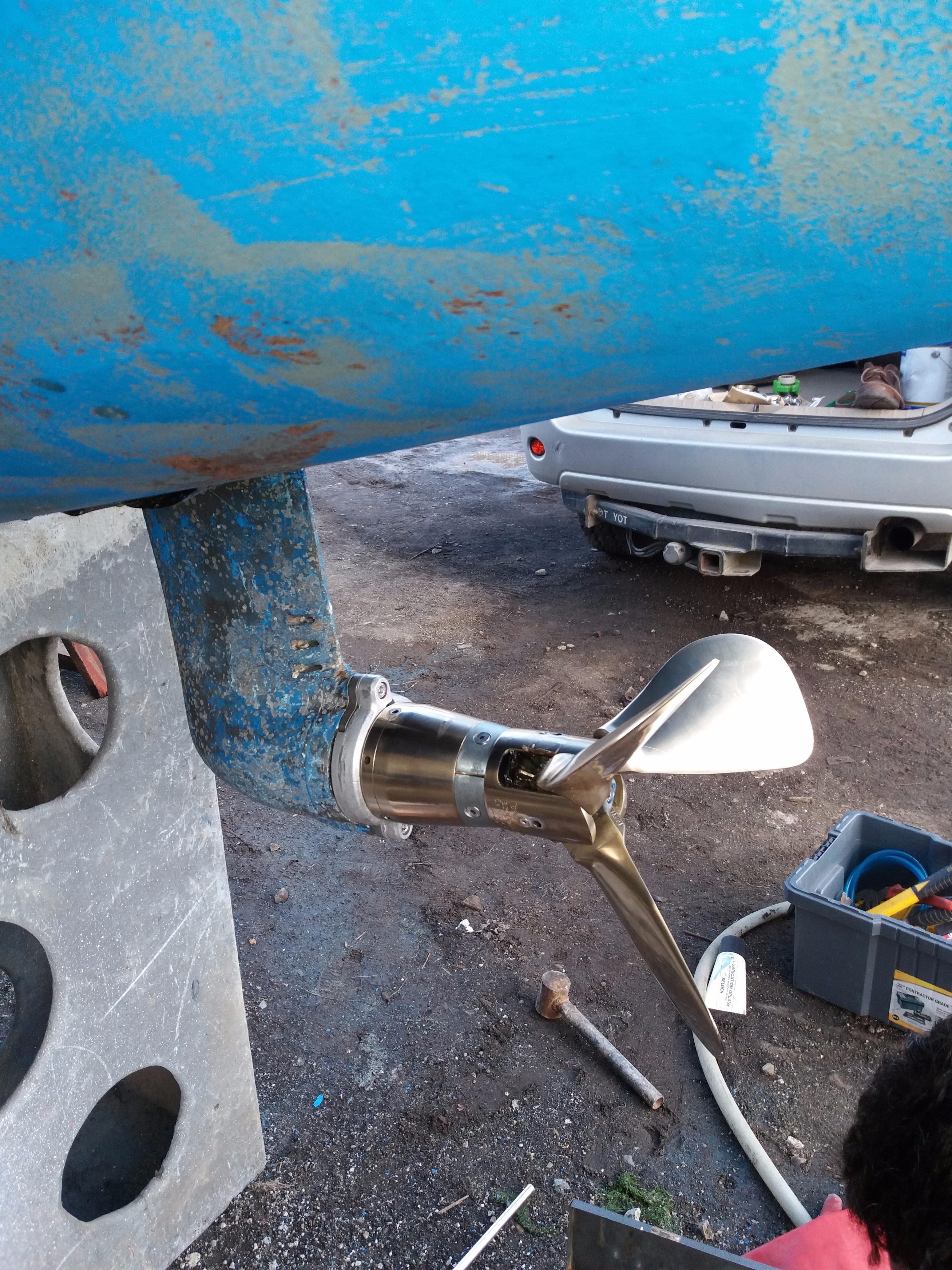

  • 2 16.5" Gory Propellers, 3 blades (2015)
  • 8 knots at 2500 rpm and 3 liters per hour (0.79 gallons/hr)
  • Soundproofed engine compartments, soundproof access panels
  • 2 RACOR Sea water filter
  • 2 x 140 liter (37 gal.) Stainless steel fuel tanks
  • Six 60 liter (15.8 gal) jerry cans for diesel.
PLUMBING
  • 132 gal: 2 x 66 Jabsco (2 water tank pressurized freshwater system).
  • 2 Hot water tanks (10 galons ea.)
ELECTRONICS

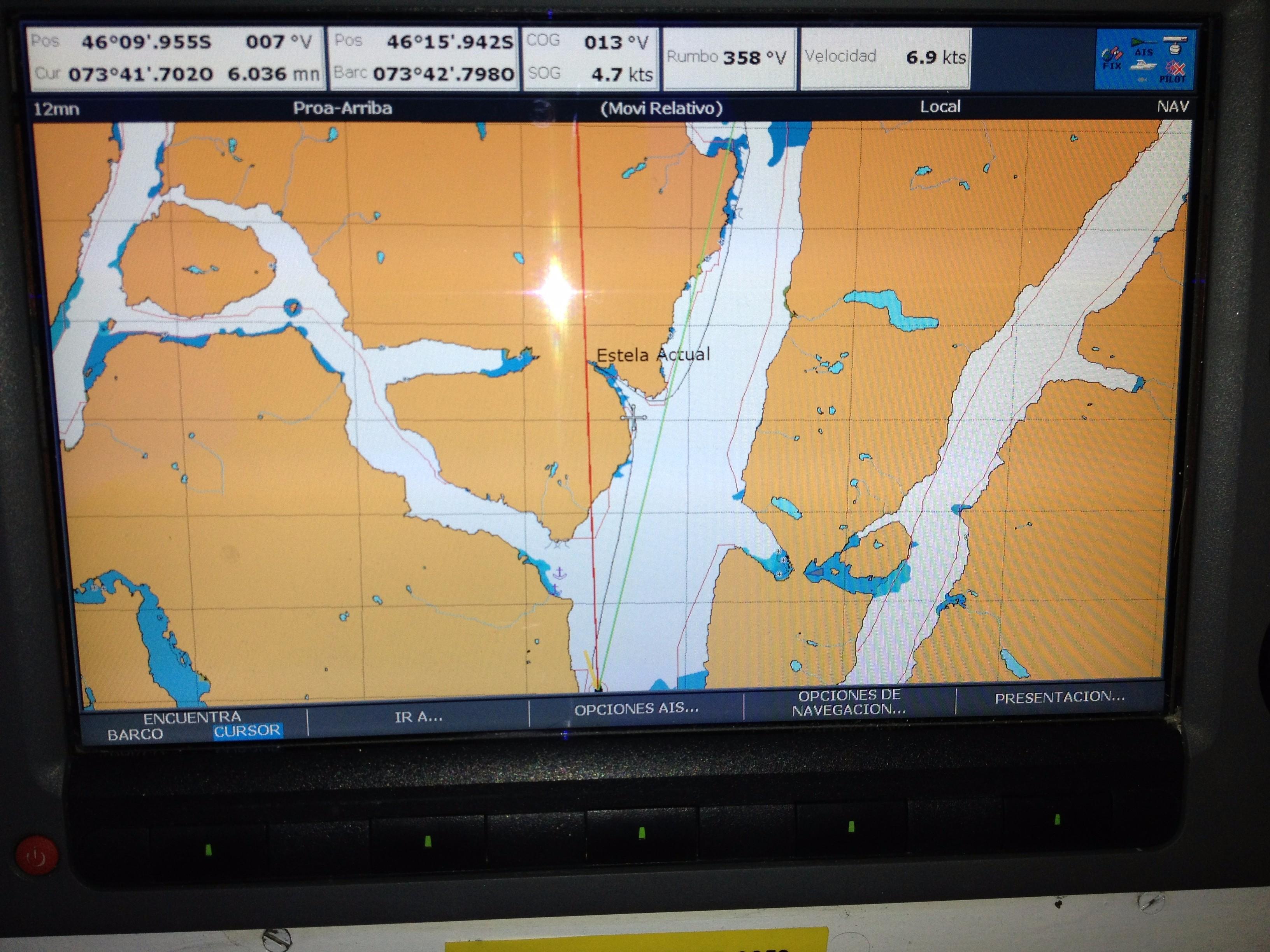

  • Chart Plotter C120 W RayMarine 2011 with 2017 charts for Panama to South America.

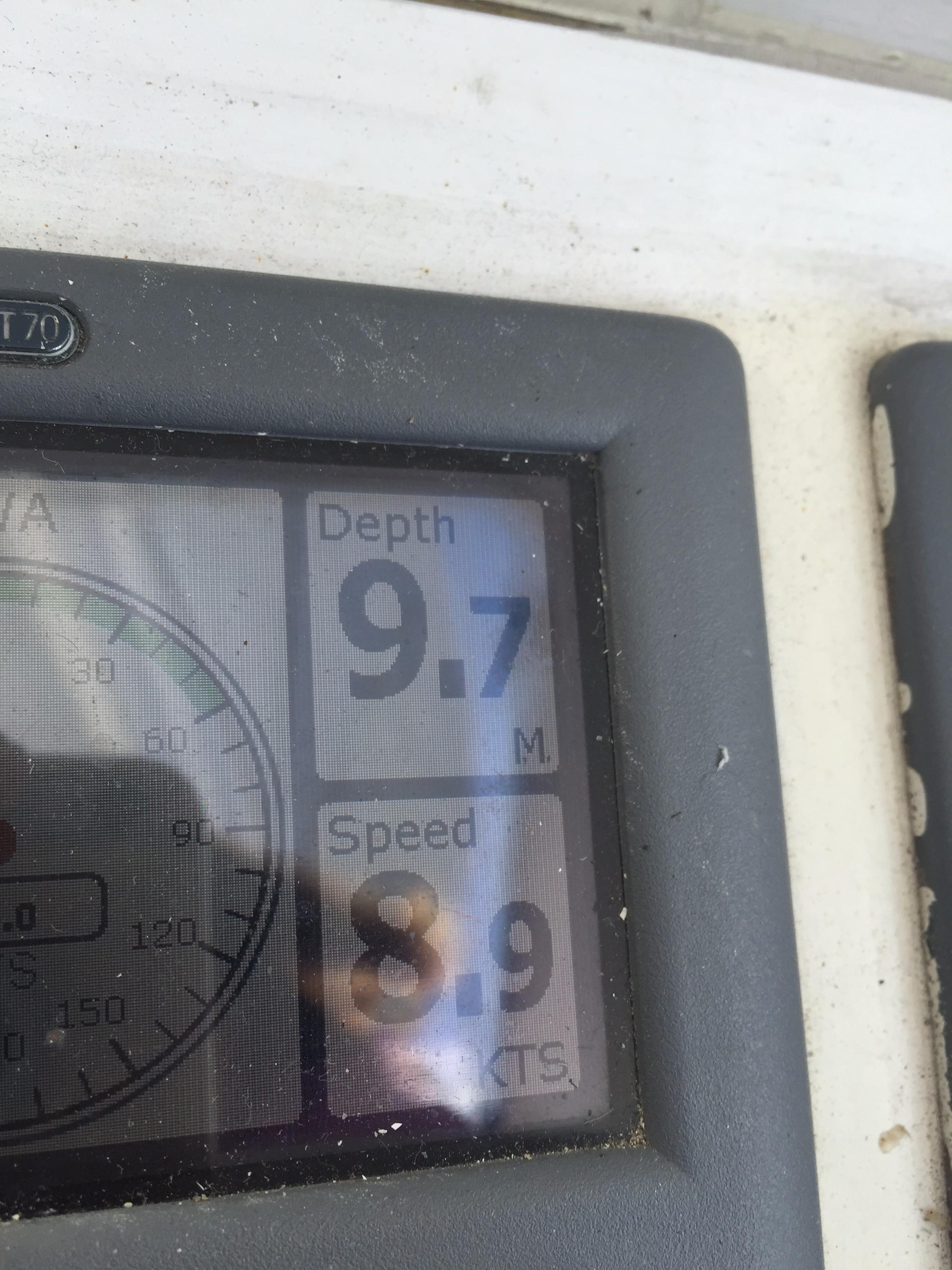

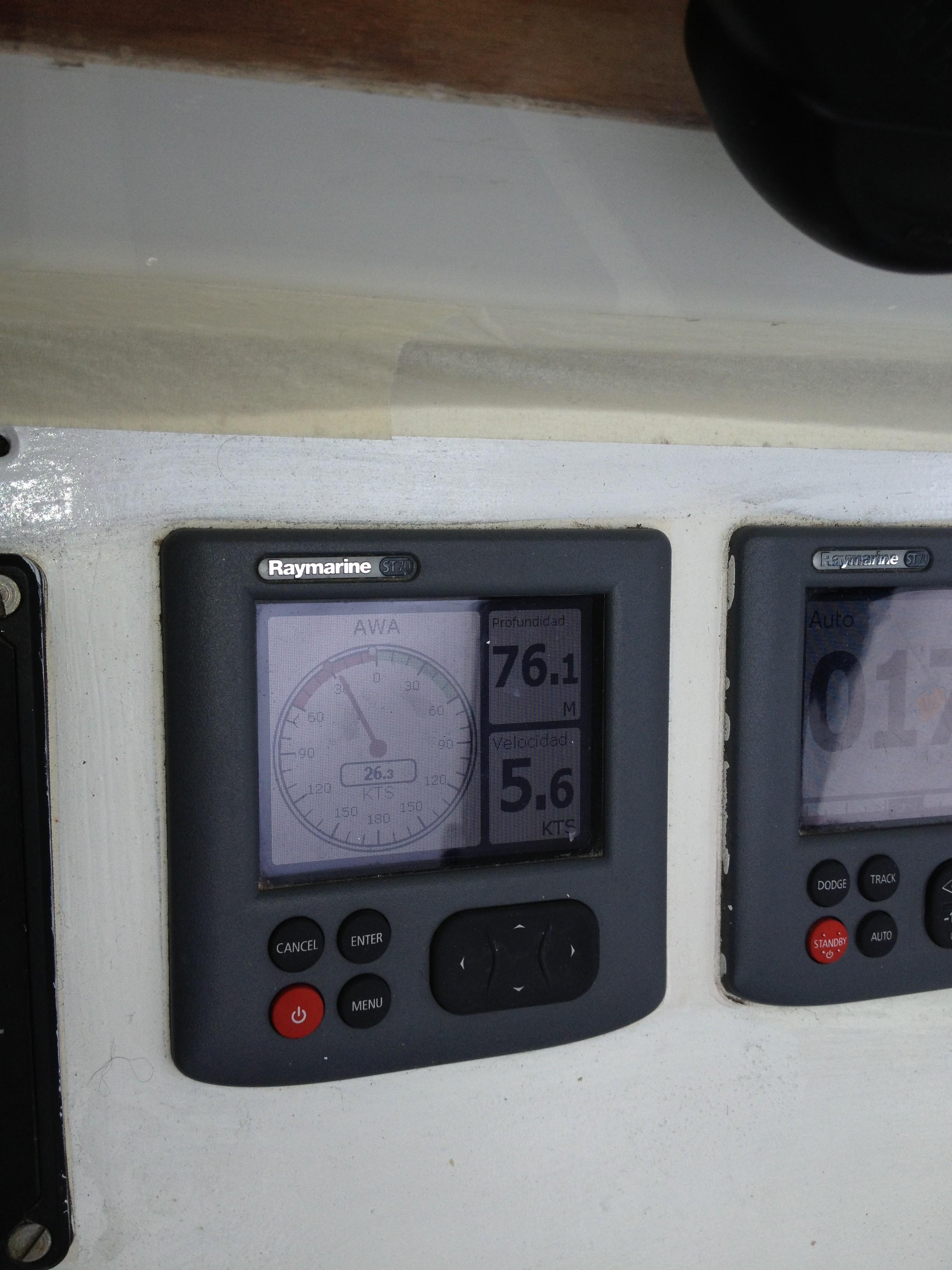

  • ST70 Color controlhead (rotary rudder reference sensor included) 2011
  • Autopilot X-30 CorePack 2011

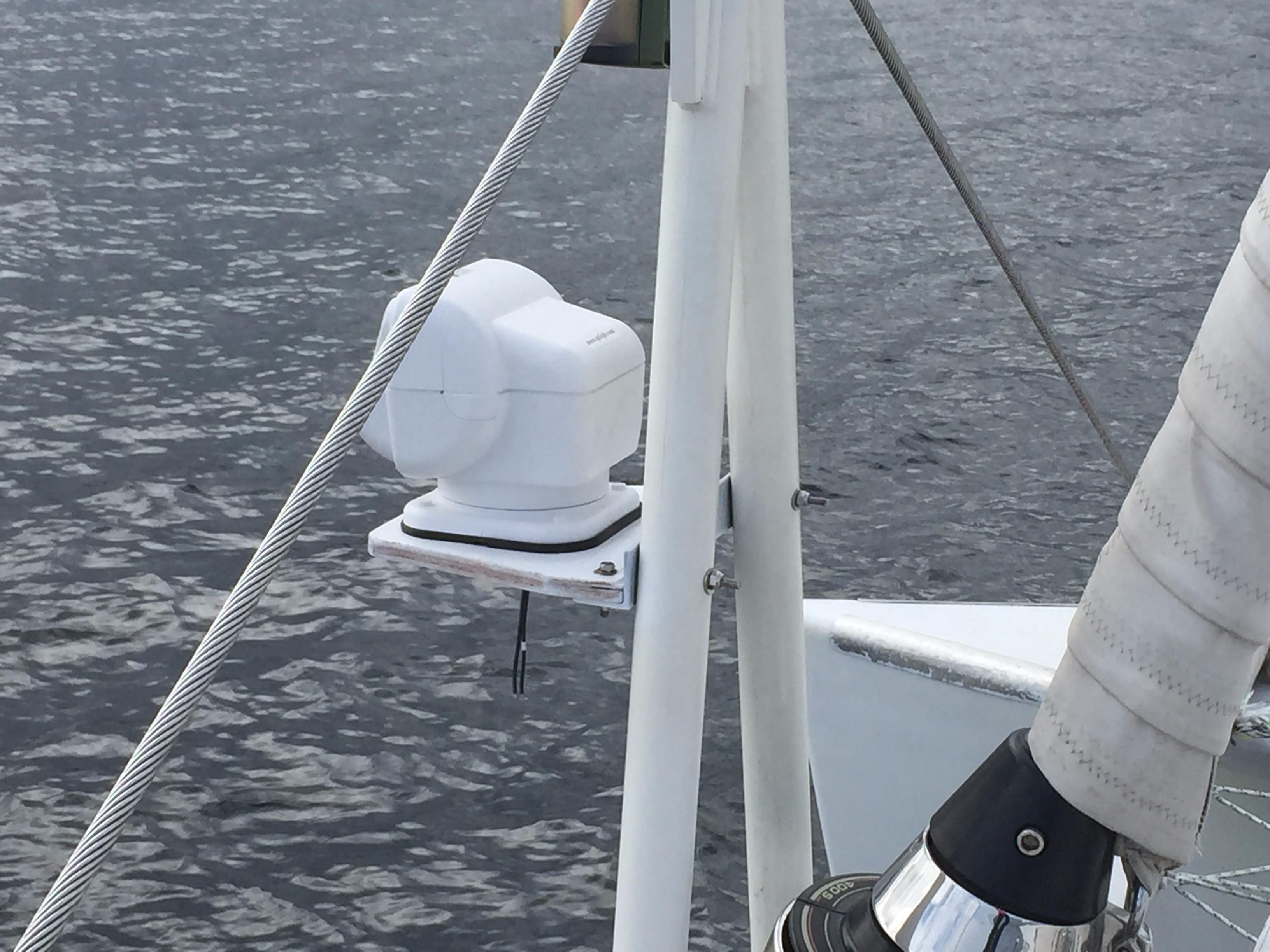

  • Radar RayMarine 2011
  • GPS (2x) GPS Sensor 125 Plus AIS System 2011
  • VHF receiver, Radio/CD player (old) and VHF Raymarine 2180 + 2 Handheld Radios 2011
  • Honda Marine 2000 Watts 220 – 12 Volts
  • 2000 W Inverter (12 / 220 Volts)
ELECTRICAL SYSTEMS
  • Main 12V electrical panel without PMMA door on port side of salon next to companionway
  • Ampmeter, voltmeter, circuit breakers, back lighting, water gauge, 12V outlet
  • 2 Deep Cycle AGM engine start batteries: 12 v- 110 Amp in 2011
  • 4Deep Cycle AGM house batteries: 12 v-140 Amp in 2011
  • Battery charge splitter
GALLEY

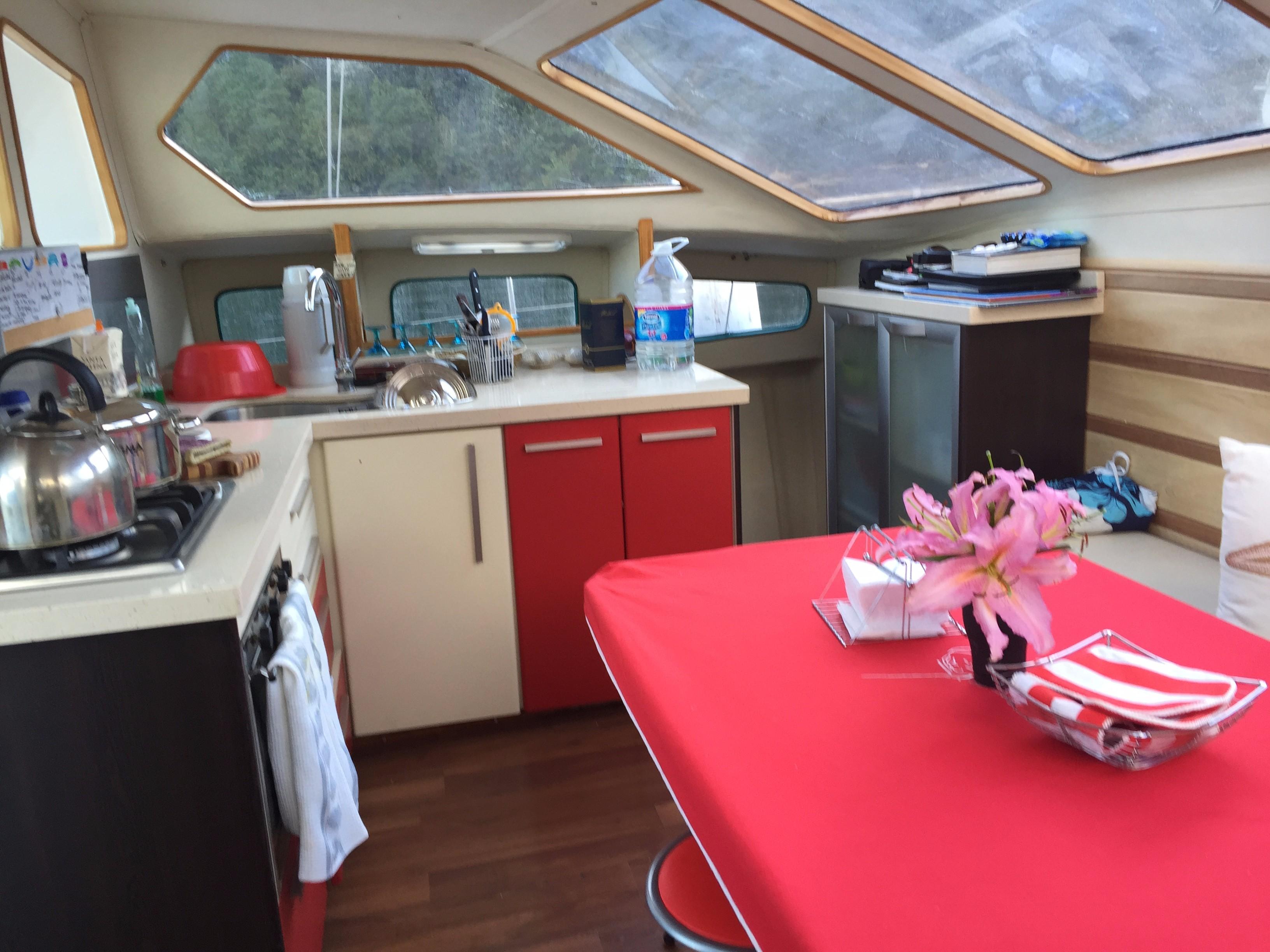

  • New Galley in salón.  Literally ripped out the old galley and built a modern more functional galley
  • New granite countertop in 2015
  • Double s/s sink and Storage under sink
  • 3 burner stove / oven with grill (LPG)
  • 12V fridge 130 liter / 4.6 cu ft
TENDER
  • 10.5 ft Hard bottom Dinghy
  • 10.5 ft Soft bottom Dinghy
  • Two Tohatsu Outboards.  10 HP and 3.5 HP (2 stroke)
  • Two 2-person Kayacs
  • 4 person liferaft
BOW
  • T-shape foredeck seating area with generator locker
  • Generator is a 2 stroke Honda Marine 2kW almost new





Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Managing Broker

Contact - George Ottoni
The Multihull Company

Located in Hollywood Beach, FL

US CELL: +1-513-677-5338
Office Phone: +1-215-508-2704
Email: George@multihullcompany.com
View George Ottoni's Profile

Boat Specifications

Year

1997

Length

43 ft

Location

Chile

Price

207,000

Status

Active

Make

Crowther

Model

43

Name

RATAPLAN

Boat Video

Additional Specs

Keel

Other

Engines

Make: YANMAR

Model: 3YM30

Type: Inboard

Fuel: diesel

Power: 30|horsepower

Year: 2010

Hours: 700

Location: Port



Make: YANMAR

Model: 3YM30

Type: Inboard

Fuel: diesel

Power: 30|horsepower

Year: 2010

Hours: 700

Location: Starboard



About This Boat

The Crowther is named after the legendary Australian boat designer and builder Lock Crowther.  His first boat was a trimaran built in 1959 while he was still a teenager.  Over 2500 boats were built using his various designs.  After his death in 1993, his son took over the business, which is when this vessel was built.  Crowther Cats are know for applying innovative materials at the time, like GRP-foam sandwich construction, and concepts like wave piercing bows.

Originally this design was a 40ft catamaran, and then in 1997 they launched an extended version by adding 3ft to the stern, with a comfortable swim platform.

Delivery in Puerto Montt or Lima, Peru. Other options can be negotiated.


Additional Details

DIMENSIONS AND DETAILS
  • Rataplan (Lock Crowther Design)
  • Built 1997 (Full Overhaull 2010)
  • First year of the extended 3ft stern with swim platform
  • Loa: 13,05 m (42.8 ft)
  • Beam:  6,35 m (20.8 ft)
  • Draft:  0,8 m ( 2.6 ft)
  • Mainsail Full batten 61 m² (656 ft²) Jib 29 m² (312 ft²) Working jib 12,8 m² (138 ft²)
  • Fiberglass (Diviny Cell)
  • Displacement 22.000 lbs
  • Factory Alwoplast, Valdivia, Chile
CONSTRUCTION
  • Polyester and high quality anti-osmotic resin FRP construction
  • Balsa core hull, solid laminate under water line, white gel coat, Balsa core bridge deck and deck, gel coat, solid laminate inner liners
  • Laminated marine plywood bulkheads

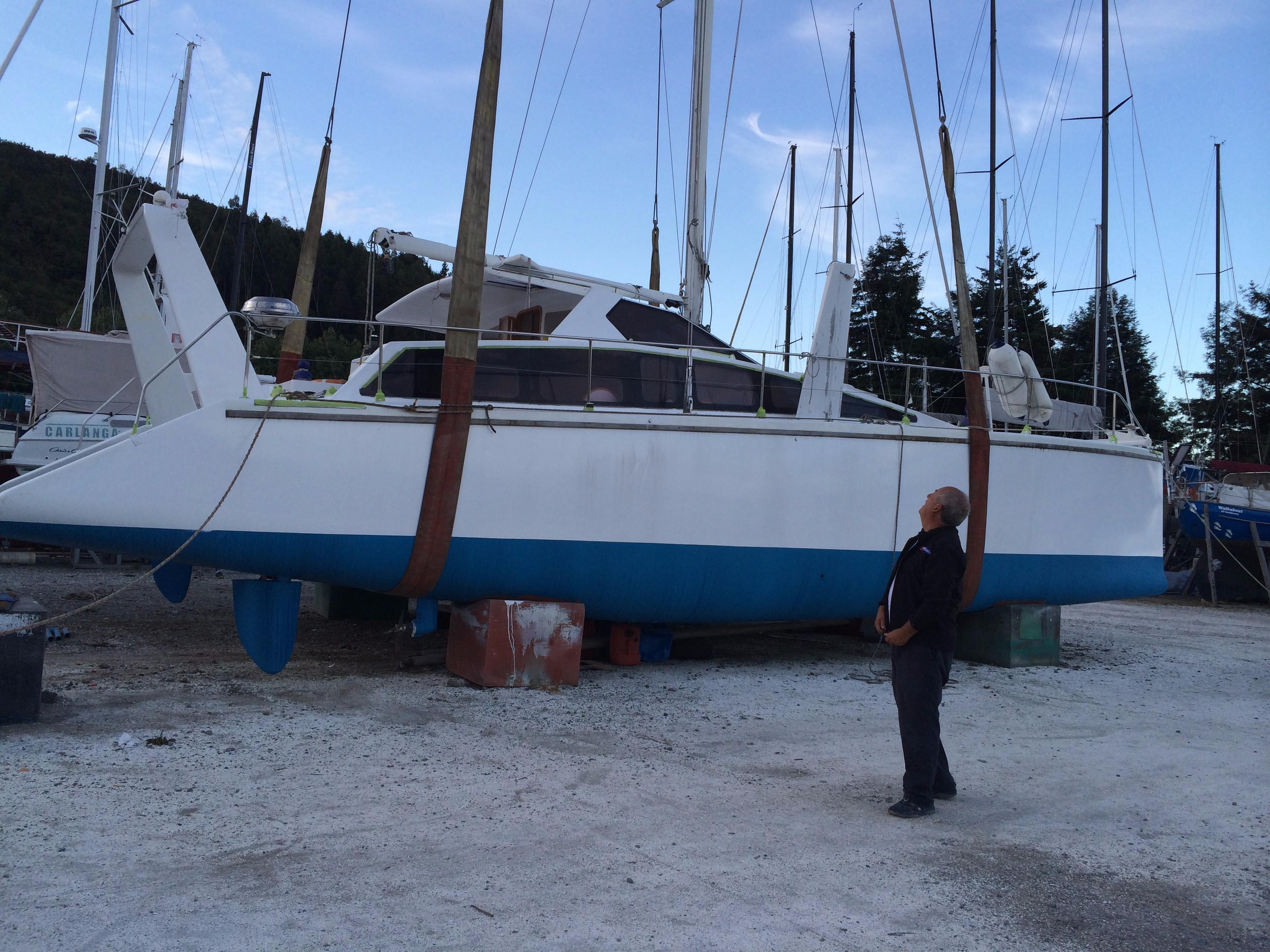

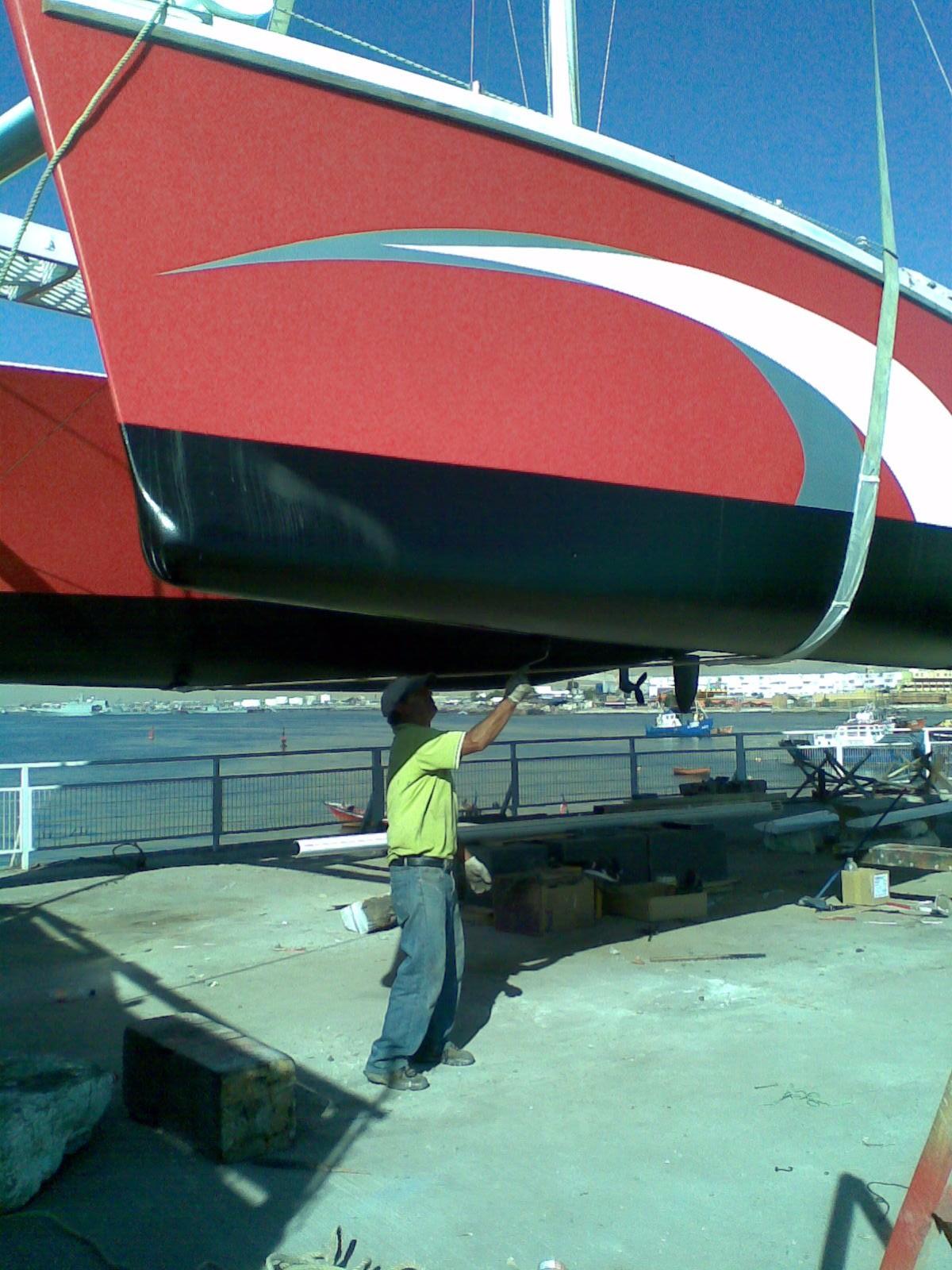

  • Shallow draft hull no keel (see photos) with Daggerboards
